EK Water Blocks Unveils EK-Quantum Momentum² ROG Crosshair VIII Extreme D-RGB

EK, the premium liquid cooling gear manufacturer, is releasing a new AMD AM4 socket-based monoblock belonging to the Quantum Line of products, the EK-Quantum Momentum² ROG Crosshair VIII Extreme D-RGB—Plexi. This monoblock is engineered specifically for the ROG CROSSHAIR VIII EXTREME motherboard from ASUS. The addressable D-RGB LED in the monoblock is compatible with ASUS Aura Sync RGB control and offers a full lighting customization experience for every single diode at any given time. This Momentum² monoblock is EK-Matrix compatible.

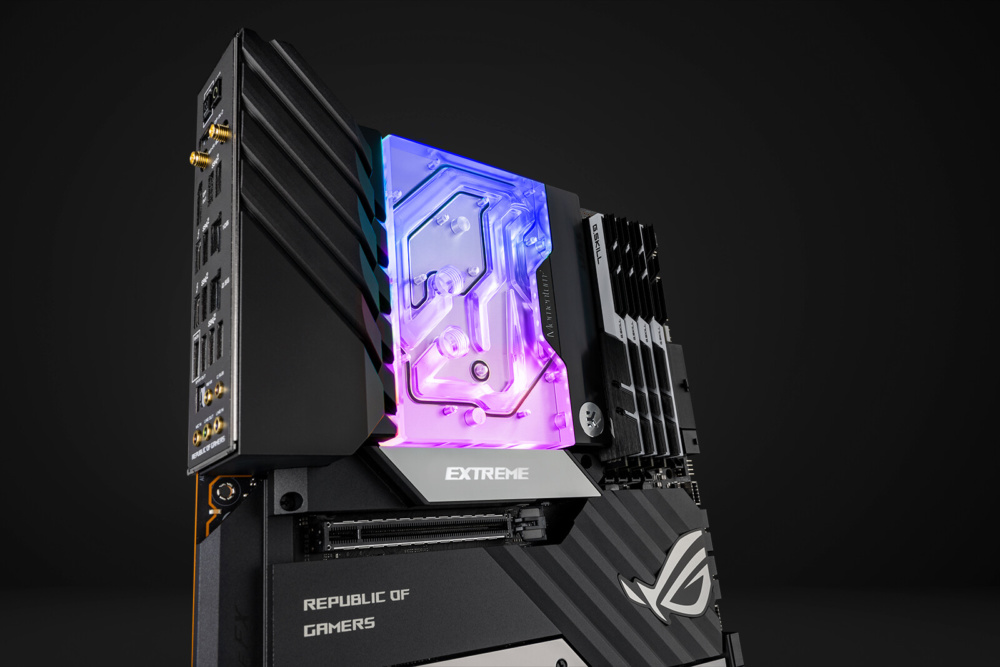

ekwb crosshair viii 3

This is a complete all-in-one (CPU and motherboard) liquid cooling solution for AMD Ryzen 5000 series processors and the monoblock is compatible with the AM4 socketed ROG Crosshair VIII Extreme motherboard. This monoblock uses the latest generation of EK Velocity² cooling engine to ensure the best possible CPU cooling while not reducing flow to other components. This water block directly cools the Ryzen CPU, VRM section, and the LAN controller. The LAN controller is cooled by an add-on large heatsink that goes over the I/O section and is linked to the monoblock.

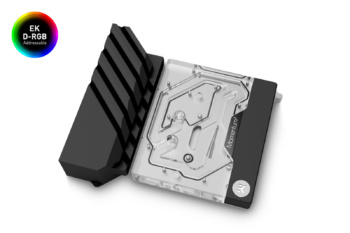

ekwb crosshair viii 1 ekwb crosshair viii 2

Liquid flows directly over all critical areas, providing the enthusiasts with a great solution for high and stable overclocks. Like with every EK monoblock, the EK-Quantum Momentum² ROG Crosshair VIII Extreme features a high flow design and it can be easily used with the system using weaker water pumps or lower pump speed settings as well. The Quantum Momentum² monoblock also comes with sophisticated D-RGB (addressable) lightning with a total of 8 LEDs. They connect to a standard 3-pin 5 V D-RGB addressable header, named Aura Gen2 header on this ROG motherboard.

The base of the monoblock is made of nickel-plated electrolytic copper while the top is made of quality cast acrylic material. The nickel-plated brass screw-in standoffs are pre-installed and allow for easy installation.

A Digital (addressable) 3-pin 5 V D-RGB LED strip is installed in the monoblock that connects to the motherboard’s 3-pin LED header or it can be connected to any other supported 5 V 3-pin LED controller. This product is compatible with ASUS Aura Sync RGB control software. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the AURA Addressable Gen2 header.

MSRP: 249.99€.
