Sapphire Radeon R9 285 Dual-X OC Video Card Review

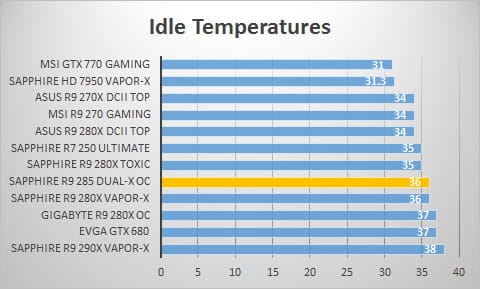

So how does the Dual-X cooler do when put to the test? We will be running it through our set of temperature tests. First is our idle test, which is taken from the Windows desktop.

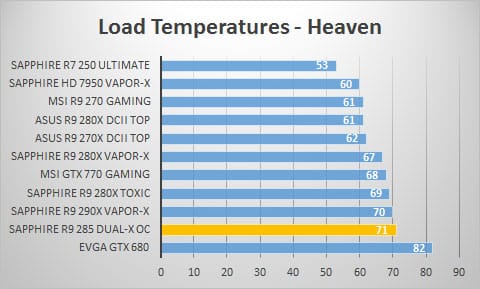

Our first load test is a loop of Heaven Demo 4.0 for 30 minutes. This is a good representation of typical gaming conditions.

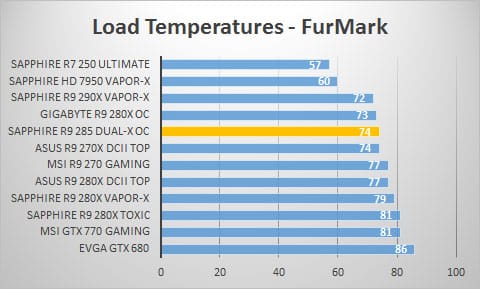

Our final test is Furmark’s 15 minute 1920 x 1080 benchmark. This puts the maximum load on the graphics card. Although most users would never put their cards under this much stress we like to include it in our tests.


As you can see the Dual-X cooler did pretty well, especially on the FurMark test, which is the most extreme. I do want to mention that the card was also extremely quiet during all tests.

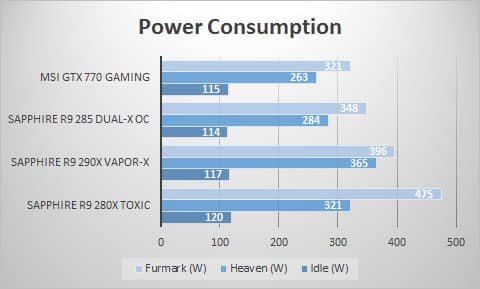

Power Consumption
Power consumption for a system is of course very important. To measure power consumption I used a killawatt meter. The idle test is taken on the Windows 7 desktop. The first load test was taken running a loop of Heaven benchmark for 30 minutes and the second load test was running Furmark’s 15 minute 1920 x 1080 benchmark. Keep in mind the wattage value is for the full system not just the graphics card.


As you can see the card is more efficient than the R9 280X and R9 290X.
