Crucial T710 Gen5 Solid State Drive Overview

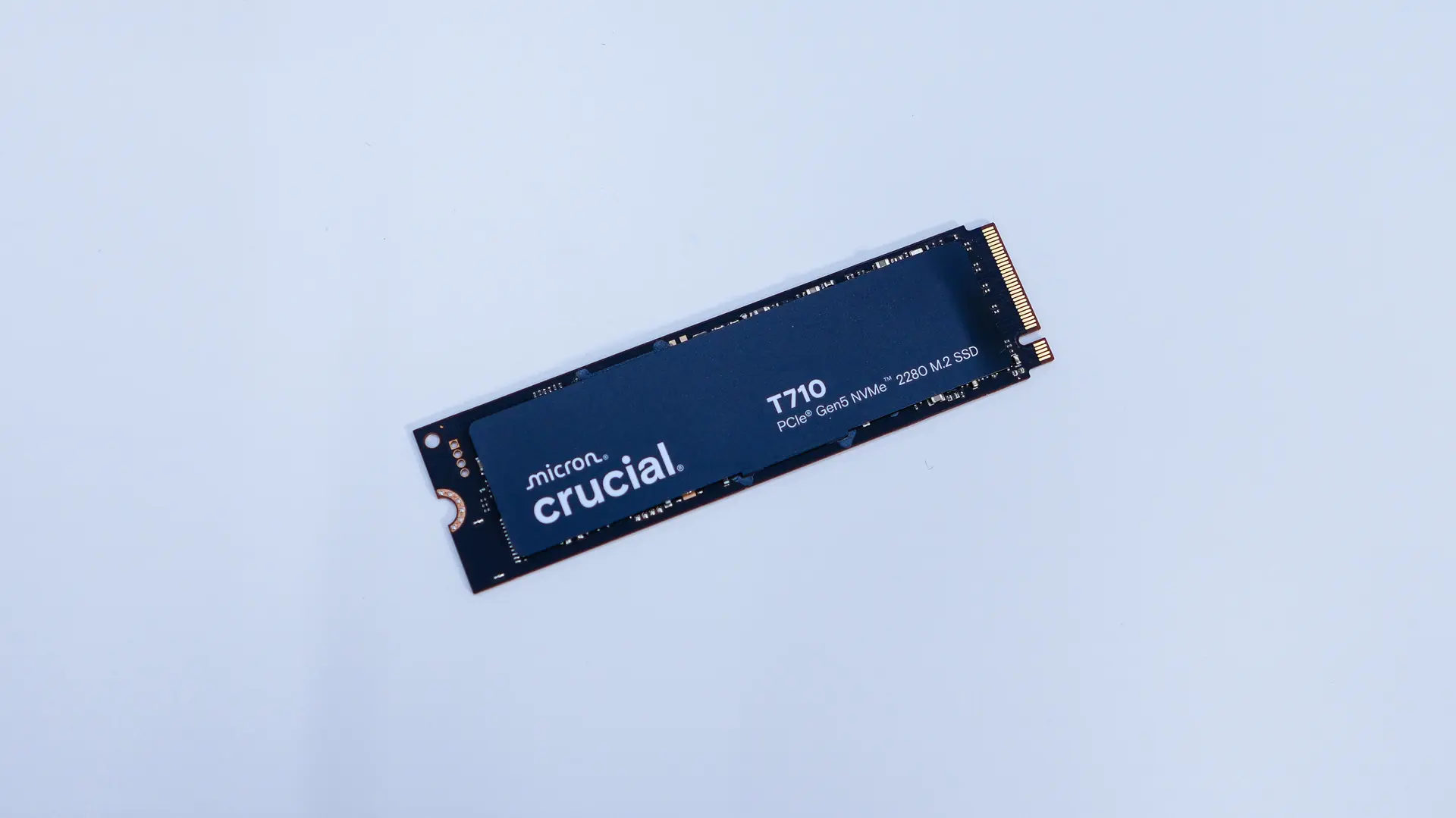

The Crucial T710 is your standard M.2 2280 (80mm) drive. We received the non-heatsink version, but there is a version with a heatsink if you for some reason don’t want to use the heatsink that is included with your motherboard.

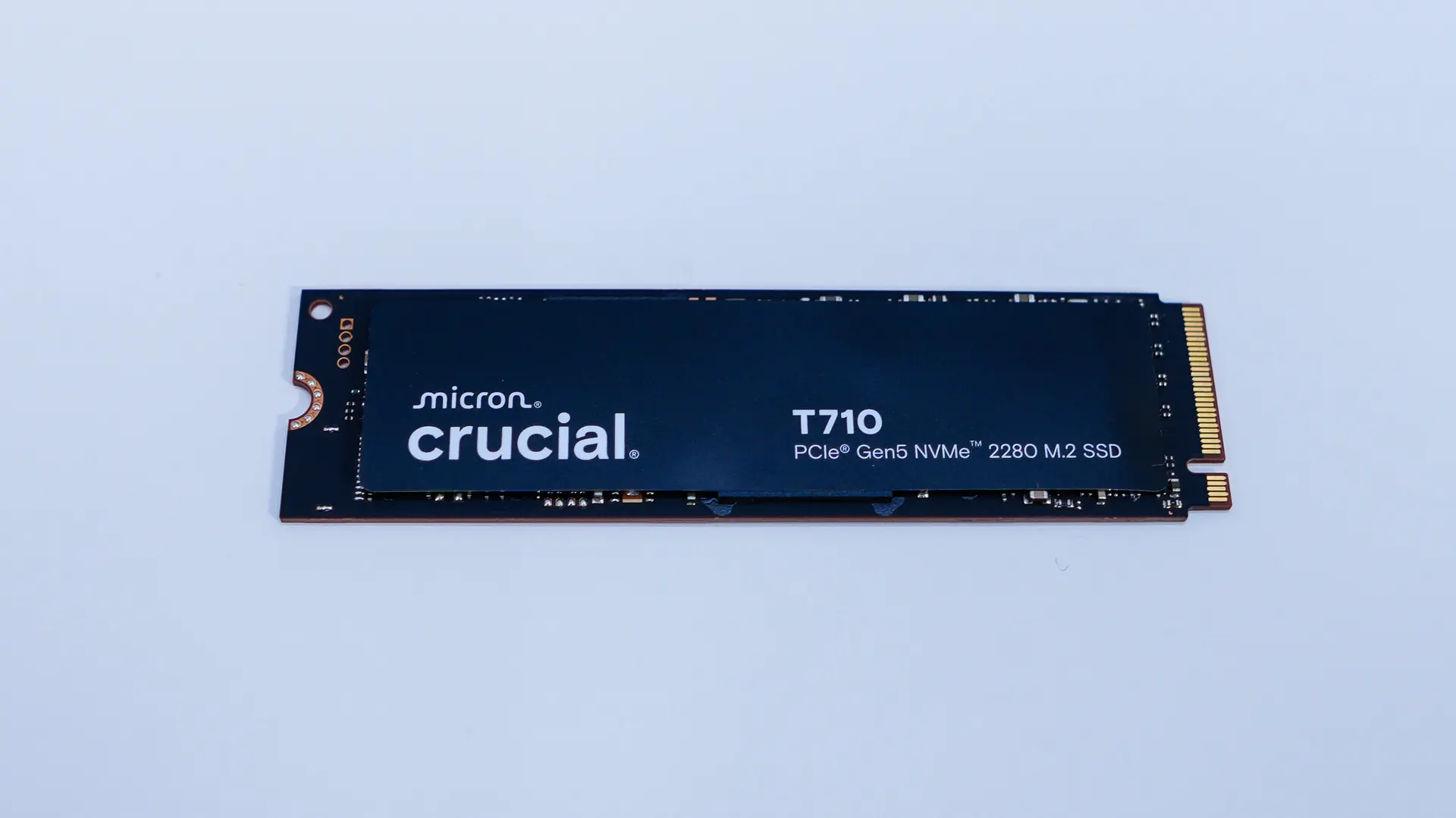

On the main side of the drive we do have a sticker over our components. These components include the 8-channel Silicon Motion SM2508 controller, two Micron 276-layer 3D TLC NAND chips, and a Micron DRAM cache chip.

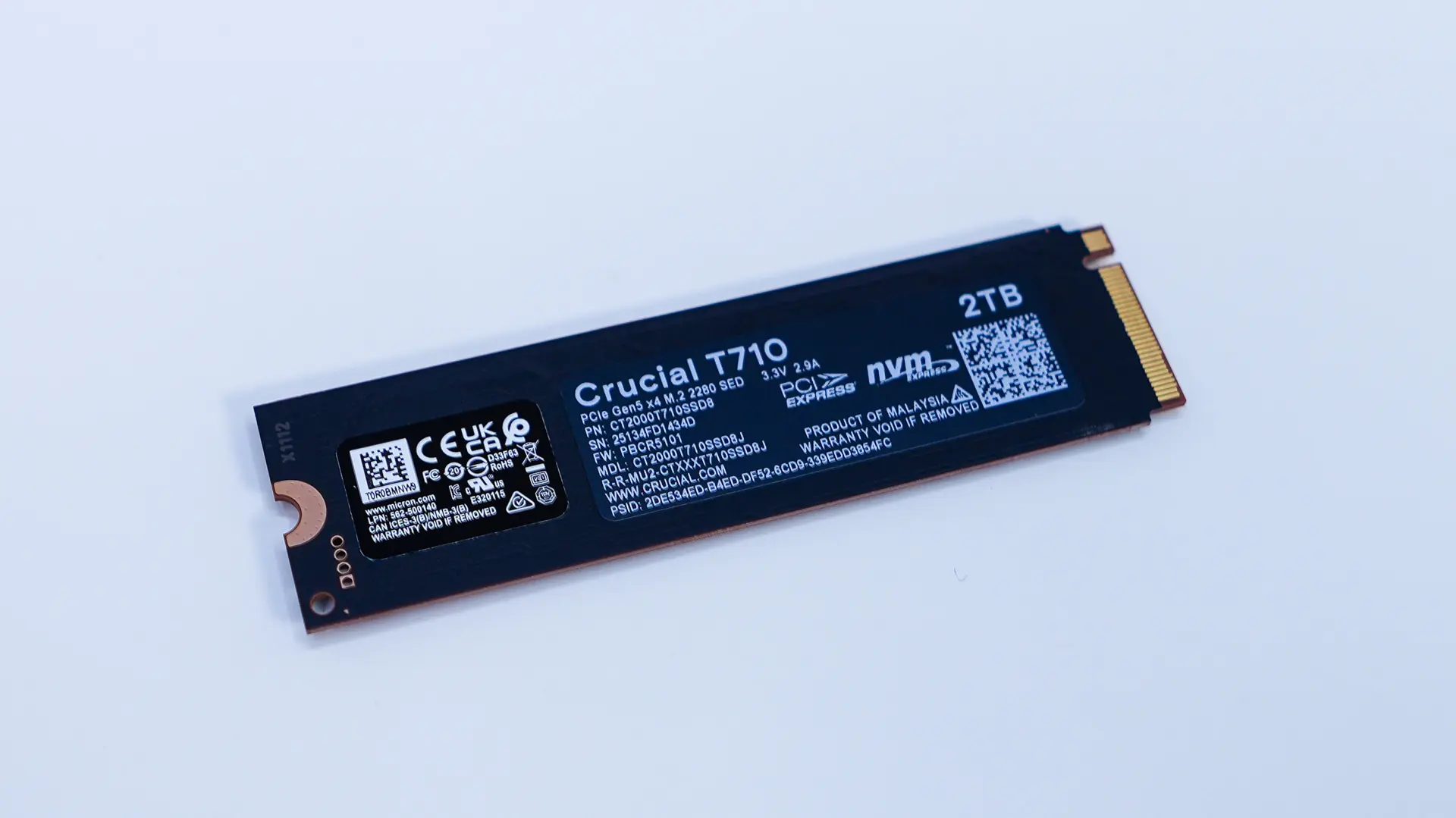

The drive is single-sided so on the back you’ll find another sticker with all of your important information on it including the serial number and capacity.
