EK Announces EK-QuantumX Loophole Distroplate D5 PWM

EK, the premium water-cooling gear manufacturer, is launching a new universal distribution plate – EK-QuantumX Loophole Distroplate D5 PWM. The distro features an entire wall filled with ports, allowing users to pick the ones that fit their unique build perfectly. As the waterway has no prebuilt inner channels but rather an “open space” internal structure, the user can custom-route tubes from one port to another within the distro itself using micro 90-degree angled adapters and micro HDP or HDC fittings. This unprecedented flexibility and customizability is also reflected in the universal mounting on 140 mm fan mounting holes, enabling compatibility with almost any modern PC case. This product does not feature any LED illumination.

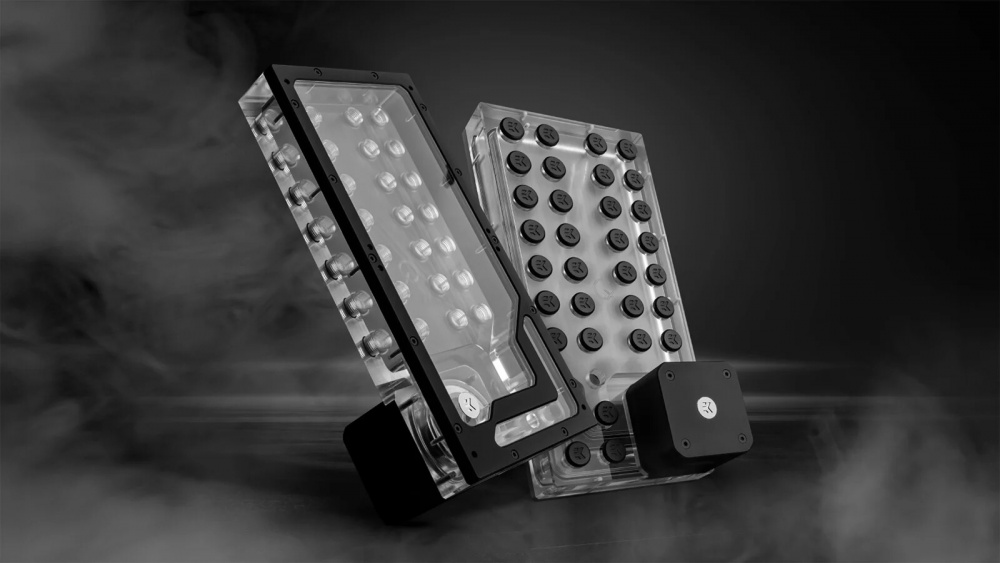

EK QuantumX Loophole 3

The EK-QuantumX Loophole Distroplate D5 PWM is a custom water-cooling reservoir, routing, and pump solution that can be mounted on 140 mm fan patterns inside the chassis (provided there’s enough room for it in the case). It is unique in the sense that there are no pre-made channels for coolant routing. Instead, the channels are built by the user. The distro can be mounted on practically any 280 mm (2x140mm) mounting point, and with angled brackets (sold separately), users can mount it 90° to a 120 mm or 140 mm fan mount. It is part of the QuantumX Line aimed at enthusiasts who wish to stand out. The product comes in two finishes: Silver and Black.

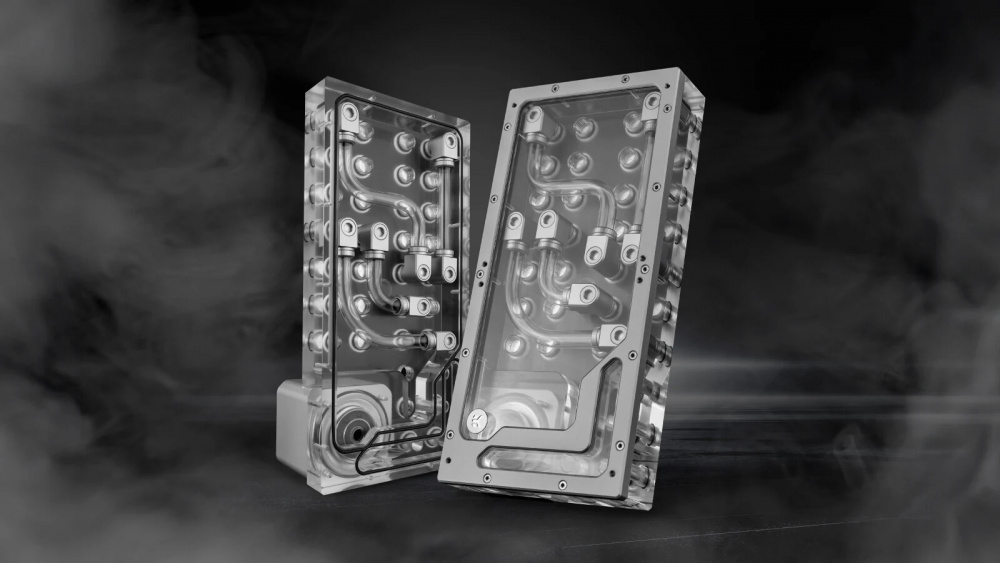

EK QuantumX Loophole 2

Both versions feature screws, an anodized aluminium frame, and the EK-Quantum Convection premium pump cover in corresponding colors. Designed to offer unique aesthetics, this advanced all-in-one waterway solution includes a pump, reservoir, and a total of 34 industry-standard G1/4″ threaded ports. Connection on the inside of the distro is made via micro adapters, fittings, and tubes.

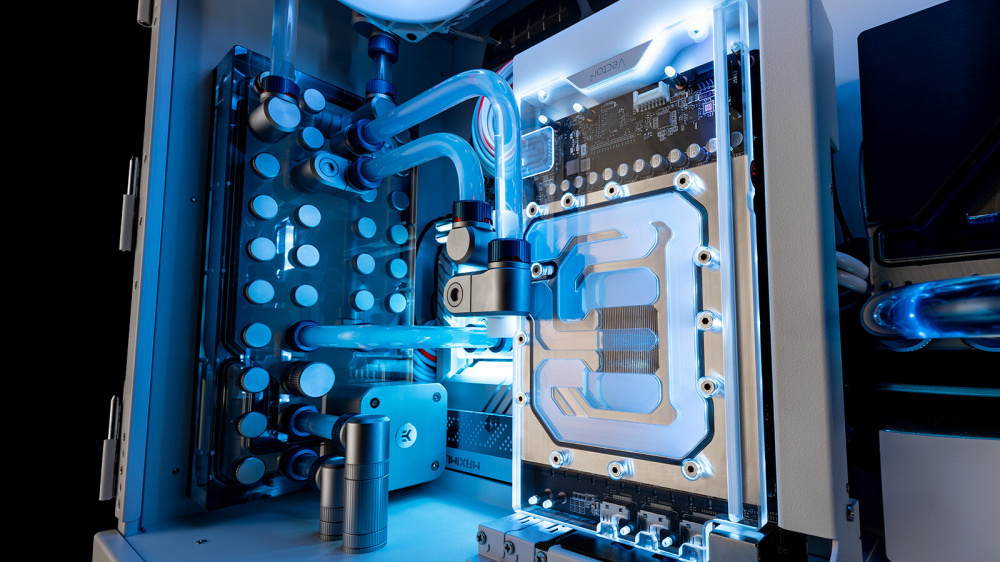

EK QuantumX Loophole 4

EK recommends the use of the following:

  • EK-Quantum Torque Micro Rotary 90°
  • EK-Quantum Torque Micro HDC 12
  • EK-Quantum Torque Micro HDP 12
  • EK-Quantum Torque Micro Extenders

There is 22 mm of space between the thread hole surface and the inner lid surface. Using these Torque Series products guarantees compatibility and mitigates any potential issues with the height of the fittings. These products are not included with the distribution plate and are purchased separately in any preferred finish. All thirty-two G1/4″ plugs come with this distro, together with their respective covers in either white or black, depending on the version of the Loophole Distroplate.

Genuine D5 pump and EK-Quantum Convection Aluminium Cover
This water distribution plate comes with a powerful yet silent PWM-controlled D5 pump. The goal was to make a product with enough power to offer excellent reliability and outstanding performance with multiple blocks and radiators while keeping the noise down to a minimum. The D5 pump has been updated with the latest G3 (Generation 3) variant and comes with a SATA power connector, following the latest PC industry trend to decrease the use of 4-pin Molex cables.

EK-Quantum Convection cover is made of CNC-machined aluminium anodized in black or silver. It is designed to improve the aesthetics of D5 pumps and features a rectangular design with a convenient hole for routing the cable and hiding it as much as possible, allowing for a cleaner look.

The EK-Matrix7 Compliance
EK-Matrix7 standardizes the products’ dimensions, including the port position and spacing, making liquid cooling loop assembly easier and more intuitive than ever. EK-Quantum distribution plates follow the EK-Matrix7 standard, enabling them to seamlessly integrate with the Vector² GPU water blocks, active backplates, and Quantum Surface radiators. This means the user will spend less time planning the loop and bending the tubes, resulting in an epic water-cooled build.

Technical Details

  • Dimensions with the attached pump (W x D x H): 140 x 87 x 294 mm
  • Reservoir volume: ~562ml
  • G1/4″ ports: 34
  • Plugs: 32 pieces with covers
  • Frame: anodized aluminium
  • Pump cover: anodized aluminium

Pump Motor Technical Specifications:

  • Motor: electronically commuted spherical motor
  • Rated voltage: 12 V DC
  • Power consumption: 23 W
  • Maximum pressure head: 3.9 m
  • Maximum flow: 1500L/h
  • Maximum system temperature: 60°C
  • Materials: Stainless Steel, PPS-GF40, EPDM O-rings, Aluminium Oxide, Hard Coal
  • Power connector: SATA and 4-pin PWM FAN connector

Operational Regime:

  • PWM duty cycle: ~ 20-100%
  • Default behavior: runs at 100% duty cycle when no PWM feedback signal is present
