More Details on Cryorig’s R1 Ultimate CPU Cooler

Earlier this month we first got news of a new player in the PC Cooling market, Cryorig. Their first product will be the R1 Ultimate CPU Cooler. While we were given some information on the R1 earlier this month the company has released even more information on the design and technologies used on the R1 Ultimate.

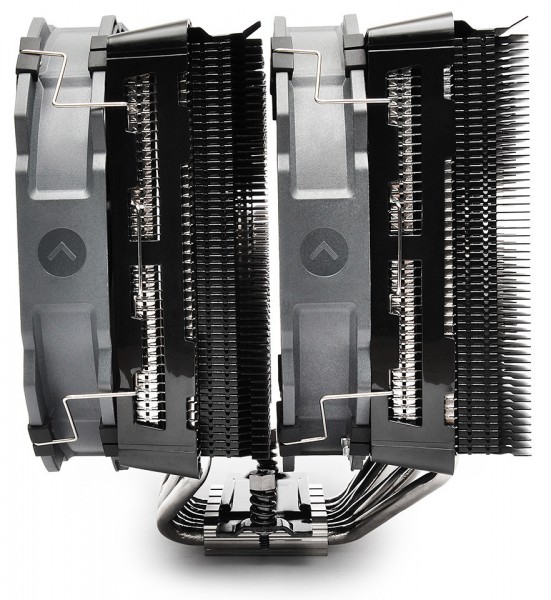

Cryorig R1 Ultimate CPU Cooler

Heatpipe Displacement Optimization
On aluminum sheets, heat spreads out in a radial direction. By displacing the heatpipe alignment on the heatsink fins, our Heatsink Displacement Optimization allows for better and more evenly spread heat conduction on the fins compared to traditional linear alignment.

Jet Fin Acceleration System
The individual tower stack on the R1 Ultimate is separated into two sections, the wider gap air intake and the high density exhaust section. By the laws of fluid dynamics, the increase in fin count in the exhaust section squeezes airflow and increases exhaust air speed. The increase of airflow speed in our Jet Fin Acceleration System allows heated air to leave the tower faster.

Heatpipe Convex-Align System
The R1 Ultimate’s Heatpipe Convex-Align System allows for more heatpipes in a given area, optimized heatpipe placement in the copper base, and improved alignment with your CPU. With the Heatpipe Convex-Align System, each heatpipe functions to their maximum TDP capacity.

Acoustic Optimizations
Acoustics are just as important as performance. That’s why both the XF140 and XT140 140mm fan integrate acoustic optimizations. Both fans featuring High Precision Low Noise (HPLN) Sleeve Bearing and the detachable Acoustic Vibration Absorbers that gives the fan a snugger fit while canceling vibration and noise at the same time.

Patent Pending “MultiSeg” Quick Mount System
CRYORIG’s MultiSeg Quick Mount System, features a 1.5mm thick mechanical structure reinforced metal backplate and precision pressure calculated spring screw mounting system. The MultiSeg Quick Mount System delivers a quick, ultra secure and sturdy all in one solution on Intel LGA115X platforms. Mount your R1 Ultimate in a matter of minutes.

Product Warranty
Besides the trademarks over trademarks of features, the R1 Ultimate is offering up to six years warranty upon product registration. Each CRYORIG product (besides the CP9 Cryo-Paste) will come with a unique VIP Product Registration Card. By registering your product you not only extend your product warranty to the max of six years, you also instantly become a CRYORIG.com VIP member. VIP members are instantly eligible for our worldwide VIP prize draws, and get a chance to win limited edition products and more!

Cryorig R1 Ultimate CPU Cooler

Product Specifications
CRYORIG R1
– Dimension ( with fan ): L130 mm x W140 mm x H168.3 mm
– Weight ( with fan ): 1248 g
– Weight ( without fan ): 936 g
– Heat pipes: 6mm heatpipe x 7 units
– Copper Base: C1100 Pure copper nickel plated

XF140
– Dimension: L140 mm x W140 mm x H25.4 mm
– Weight: 156 g
– Rated Speed: 700 ~ 1300 RPM ±10 %
– Noise Level: 19 ~ 23 dBA
– Air Flow: 76 CFM
– Connector: 4-Pin PWM

The CRYORIG R1 Ultimate is scheduled for release on Jan. 2014, in select countries and regions. North America, Japan and Korea MSRP is set at 89.95USD
