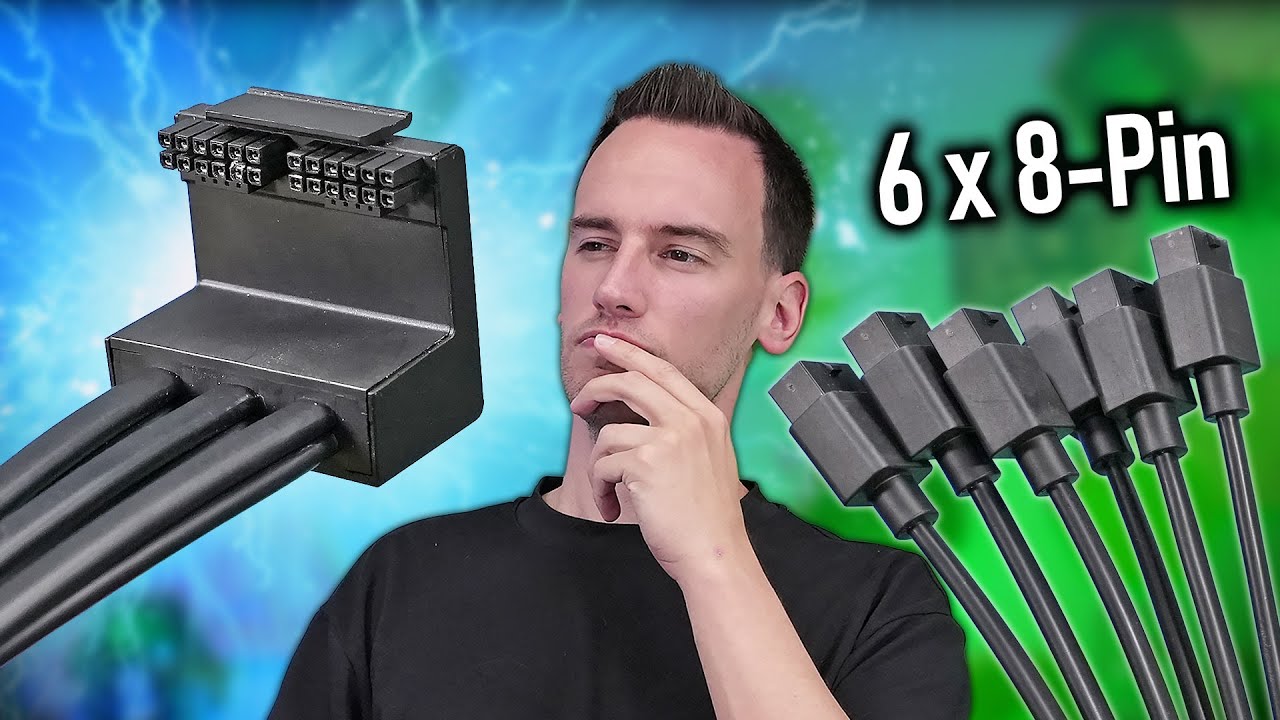

A prototype power adapter for Nvidia’s unreleased RTX Titan Ada graphics card has surfaced, revealing a rather unconventional design. This adapter, designed to feed the immense power requirements of the high-end GPU, connects to six individual 8-pin PCIe power connectors and converts them into two 12VHPWR connectors, potentially capable of delivering up to 900W.
Key Takeaways:
- Dual 12VHPWR Connectors: The RTX Titan Ada prototype featured two 12VHPWR connectors, a departure from the single connector found on consumer cards like the RTX 4090.
- Six 8-Pin to Dual 12VHPWR Adapter: To power these connectors, Nvidia developed a custom adapter that consolidates power from six 8-pin PCIe connectors.
- Potential 900W Power Delivery: With each 8-pin connector rated at 150W, the adapter theoretically supports up to 900W, indicating Nvidia’s plans for a significantly power-hungry GPU.
- Prototype Nature and Safety Concerns: Early reports suggest this adapter lacked the sensing pins found on newer cables, which ensure all power connectors are properly seated, potentially posing a safety risk if used improperly.
- Dated Design: The adapter is marked with a manufacturing date of January 2022, suggesting Nvidia was exploring these high-power configurations well before the launch of the RTX 40 series.
A Glimpse into Nvidia’s Extreme Power Aspirations
The discovery, brought to light by renowned overclocker der8auer, offers a fascinating look at Nvidia’s engineering efforts for a GPU that never made it to market. The RTX Titan Ada, based on the AD102 chip, was envisioned as a true flagship, potentially surpassing even the RTX 4090 in performance.
The Adapter’s Design and Functionality

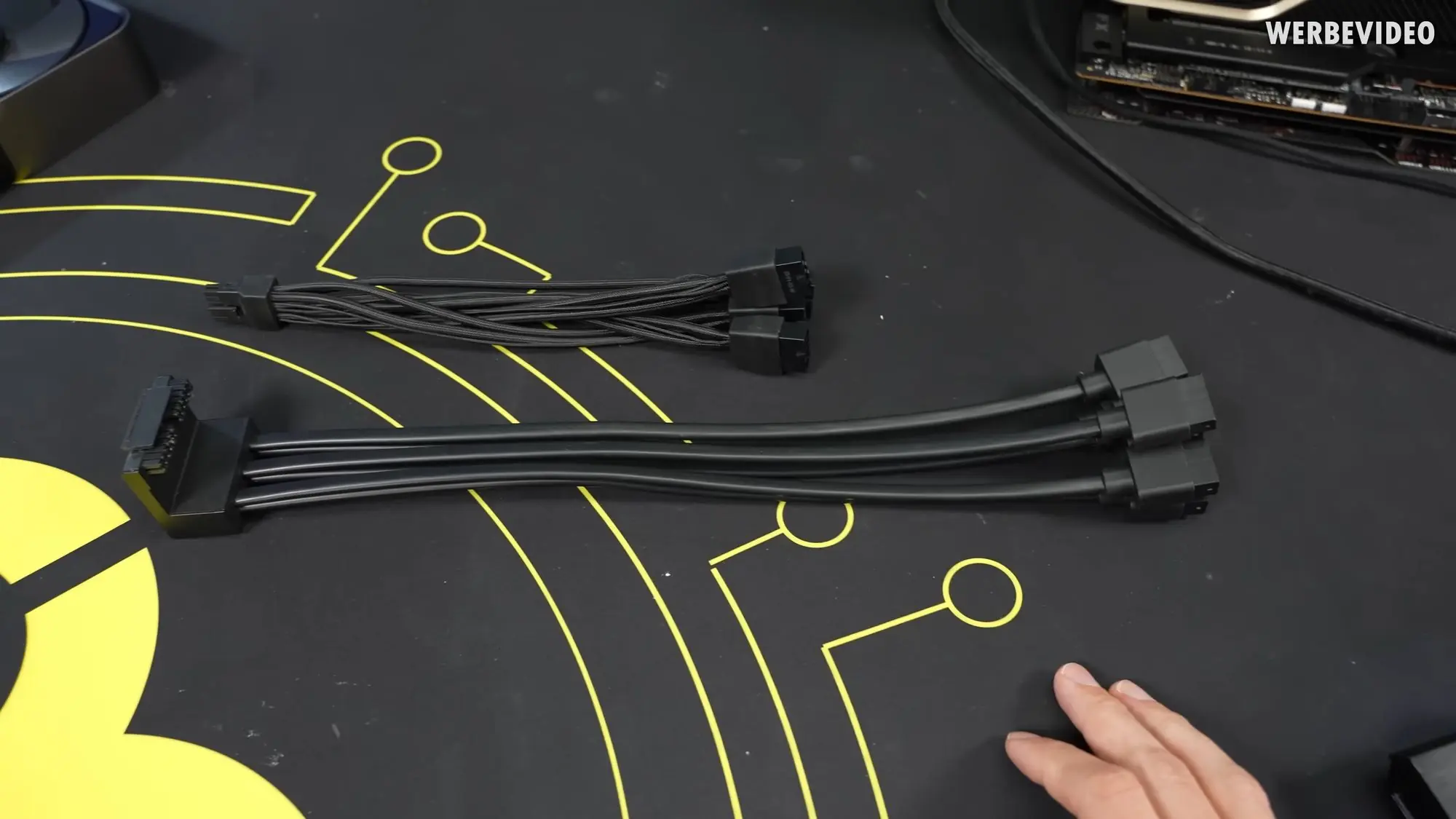

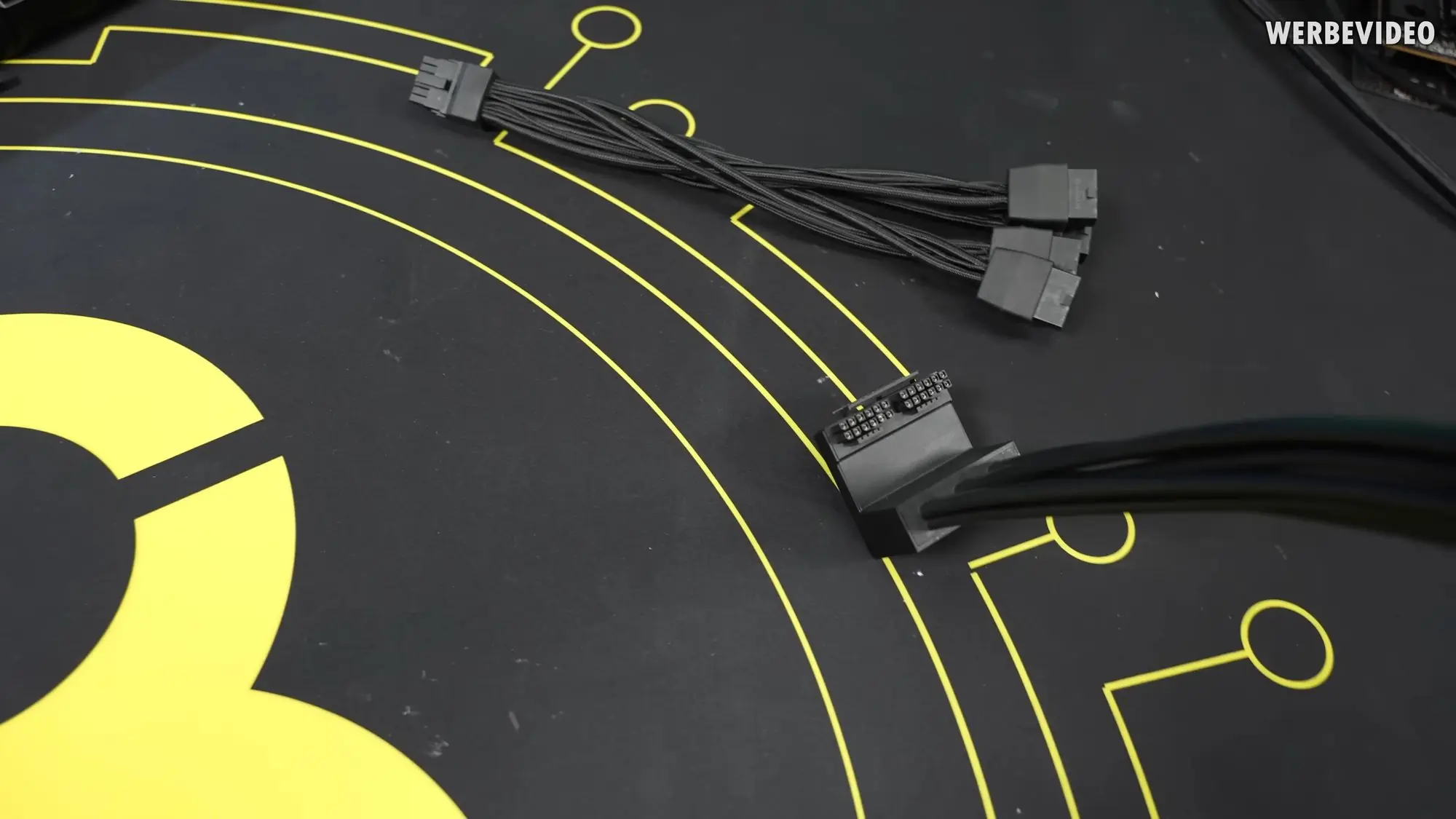

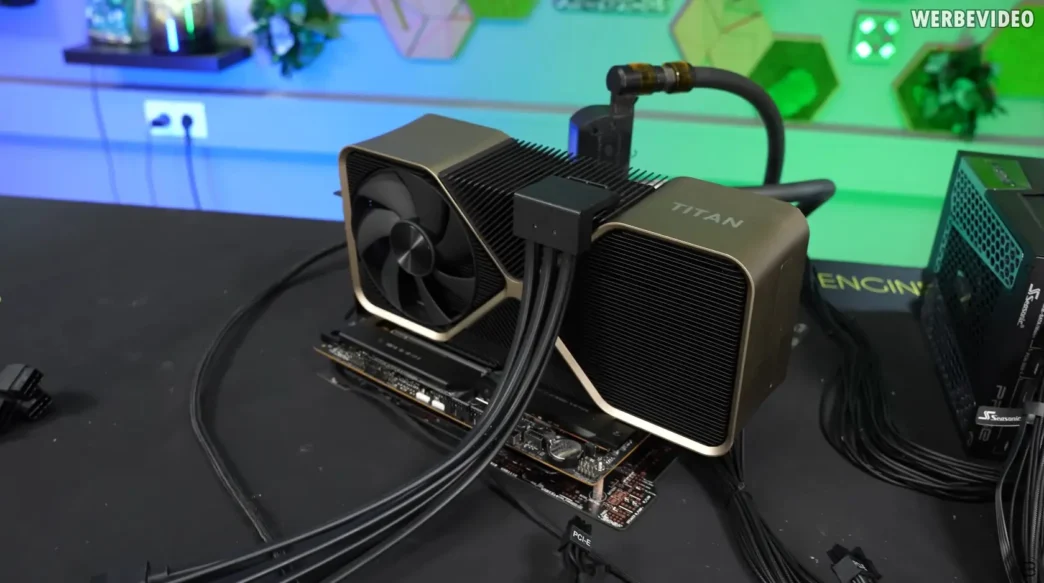

The adapter itself is described as bulky and less flexible than the retail cables Nvidia later adopted. It was constructed with custom molded parts, indicating a significant level of development. However, a key observation is the absence of sensing pins, which are crucial for ensuring all 8-pin power cables are correctly connected. Der8auer demonstrated that the card would continue to run even with several 8-pin connectors unplugged, highlighting a potential safety concern inherent in this prototype design.
Implications for Future GPUs
While the RTX Titan Ada never saw a commercial release, the existence of this power adapter suggests Nvidia was seriously considering GPUs with much higher power draw. This exploration into extreme power delivery could be a precursor to future flagship cards, such as a potential RTX 5090 successor or a new Titan-class offering, that might push beyond the current 600W limits of single 12VHPWR connectors. The company’s willingness to develop such a robust power solution underscores their commitment to pushing performance boundaries in the high-end GPU market.
