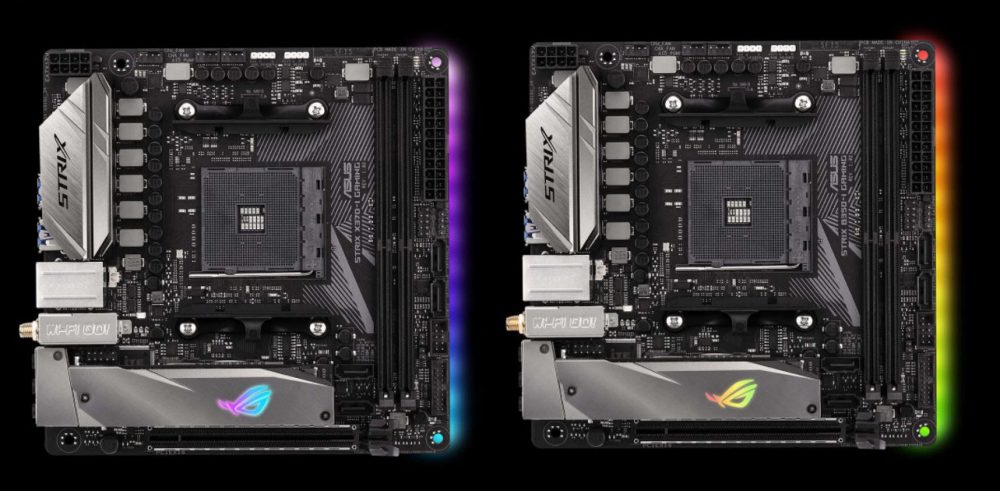

Mini-ITX boards are among the most difficult to produce. Their diminutive 6.7″ x 6.7″ dimensions leave little real estate for slots and ports, let alone the extra features that make ROG unique. We’re not willing to compromise your experience for a compact footprint, so it takes some time and creativity to make everything fit. But it’s worth the effort, because our new Strix X370-I Gaming and Strix B350-I Gaming motherboards for Socket AM4 raise the bar for small-form-factor Ryzen builds. They match the cutting-edge features of their full-sized siblings, including liquid-ready cooling and addressable RGB lighting, and they combine an M.2 SSD heatsink and amped-up audio on an innovative riser card.
Optimized overclocking on liquid or air
Ryzen CPUs are physically much larger than the Intel alternatives, adding another layer to an already challenging proposition. The extra area is well-spent, though. With up to eight Zen-based CPU cores primed for heavy multitasking and multithreaded workloads, Ryzen offers exceptional performance and value for game streamers, content creators, and power users who want to do more with their PCs.
Unlocked multipliers make Ryzen overclocking accessible for everyone, and the Strix X370-I and B350-I Gaming take full advantage. They feature the same six-phase VRM design as our full-sized ATX boards for AM4, ensuring stable power delivery well above stock speeds. They’re also built for the higher memory clocks required to fully unleash the platform’s potential. The shorter traces used for the dual-DIMM configuration improve signaling, enabling DDR4-3600 speeds that surpass what’s supported by competing motherboards.
Our exclusive 5-Way Optimization technology simplifies the overclocking process for beginners and experts. This intelligent auto-tuner automatically overclocks the CPU and configures the cooling based on the individual characteristics of components in your build. First-timers can overclock easily with a single click, while veterans can quickly find a stable baseline before moving to more aggressive manual tuning. And both benefit from 5-Way’s ability to test connected fans and calibrate their response curves accordingly.
There are three fan headers onboard, one of which is configured out of the box for liquid pumps and all-in-one coolers. All the headers adapt automatically to three-pin DC or four-pin PWM devices. Instead of being bound to a single temperature sensor, each header can control fan speeds based on input from a group of multiple sensors. Along with the ability to detect GPU temperatures in select graphics cards, this capability ensures efficient cooling for a wide range of workloads, including gaming and other graphics-heavy work.
Audio and storage that think outside the form factor

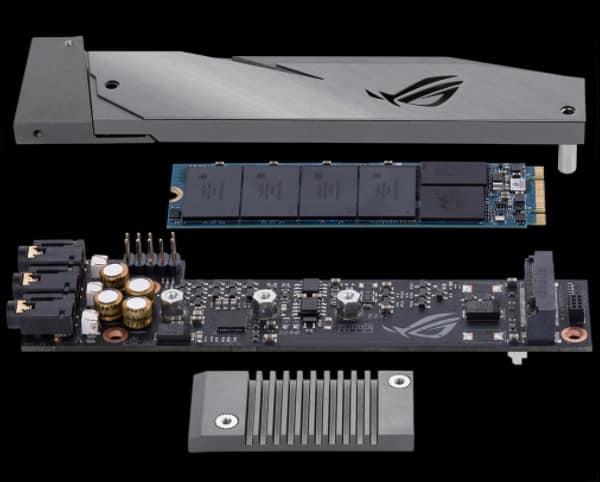

The Republic of Gamers has a history of working around Mini-ITX limitations by building up with additional circuit boards. Our Maximus Impact series made room for upgraded audio with a dedicated riser, and the Strix X370-I and B350-I Gaming go one step further with an M.2 Audio Combo card that contains both SupremeFX sound and M.2 storage. This small PCB is sandwiched between isolated heatsinks for an M.2 drive and the platform chipset, ensuring effective cooling without taking up too much space.
M.2 SSDs can throttle performance under sustained workloads that generate too much heat, and smaller Mini-ITX chassis present an especially toasty thermal environment. To help maintain performance when you need it most, the combo card reduces SSD temperatures with a custom heatsink. The M.2 slot supports the fastest NVMe drives with four lanes of Gen3 bandwidth directly from the CPU. It’s joined by a secondary M.2 slot on the back side of the motherboard, allowing you to run two SSDs without any cable clutter.
The SupremeFX audio is linked to a dedicated chipset interface, so it doesn’t share bandwidth with the primary M.2 slot. Its shielded S1220A codec routes audio output through headphone amplification capable of detecting and adjusting for the impedance of your headset. All of the audio circuitry is elevated off the motherboard, which helps isolate it from interference and improve overall fidelity. This is especially important for Mini-ITX motherboards that lack expansion capacity for a separate sound card.
Fully equipped in a fraction of the footprint
A single graphics card is all that’s needed for high-end gaming and VR machines, but GPU coolers are increasingly heavy, which puts additional strain on the PCI Express slot. Our SafeSlot reinforcements guard against damage from the bumps and rough handling that can occur when transporting systems to LANs and shipping them to customers. The PCIe x16 slot is secured to the circuit board with extra solder points, and its walls are reinforced with metal bracing.
Onboard WiFi supplies fast 802.11ac connectivity spread over dual bands and a 2×2 antenna. The wireless module has MU-MIMO support to improve performance with compatible devices, plus Bluetooth for peripherals. Serious online gaming requires a wired connection, so the boards add a reliable Intel Gigabit Ethernet controller backed by GameFirst IV traffic prioritization software.

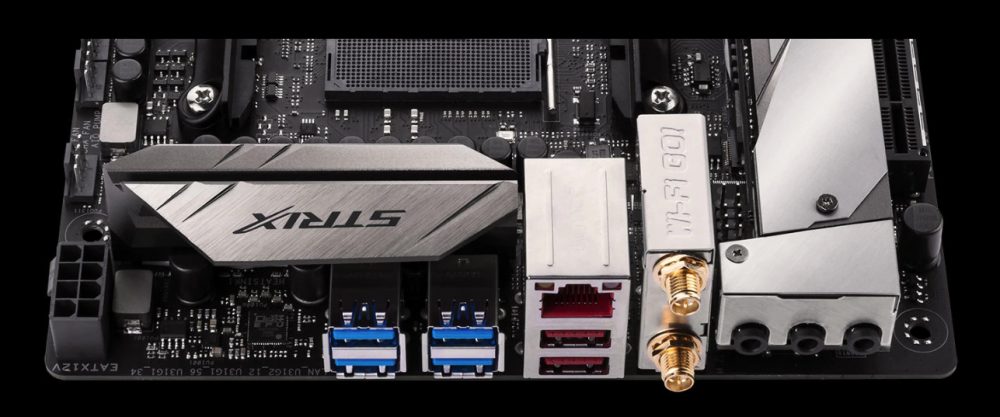

With four SATA ports, there’s plenty of capacity for hard drives and additional SSDs. Around back, you get dual USB 3.1 Gen 2 ports with 10Gbps of bandwidth for fast external storage. They’re paired with four Gen1 USB ports linked directly to the CPU, along with an internal header for two more up front. We also include an internal USB 2.0 header for front-panel ports on older chassis and all-in-one coolers with additional functionality. Without display outputs, the boards are designed exclusively for gaming rigs with discrete graphics cards, which is basically all of them.
Pricing and availability
All but identical twins, the ROG Strix X370-I and B350-I Gaming set the standard for Mini-ITX AM4 motherboards. They’ll be available starting late-October in the United States with pricing to be released in the coming weeks. Please check with your local ASUS ROG representative for details on availability in other regions.
