ASUS Announces Trio of TRX40 Motherboards for AMD Threadripper: ROG Zenith II Extreme, ROG Strix TRX40-E Gaming, and Prime TRX40-Pro

ASUS today announced its all-new series of TRX40 motherboards, ROG Zenith II Extreme, ROG Strix TRX40-E Gaming and Prime TRX40-Pro, that come loaded with improvements and new features to help professionals, enthusiasts and gamers alike unleash the full potential of 3rd Generation AMD Ryzen Threadripper processors. Teamed up with the TRX40 chipset, 3rd Gen Threadripper CPUs bring PCI Express 4.0 to the high-end desktop for the first time, doubling bandwidth across a total of 64 PCIe 4.0 lanes to allow for even faster SSDs, graphics cards and AV gear. Every PCIe slot and M.2 slot in the ASUS TRX40 lineup is wired with PCIe 4.0 connectivity for maximum bandwidth, meaning any expansion cards slotted into an ASUS TRX40 board will run as fast as they possibly can.

Teamed up with the TRX40 chipset, 3rd Gen Threadripper CPUs bring PCI Express 4.0 to the high-end desktop for the first time, doubling bandwidth across a total of 64 PCIe 4.0 lanes to allow for even faster SSDs, graphics cards and AV gear. Every PCIe slot and M.2 slot in the ASUS TRX40 lineup is wired with PCIe 4.0 connectivity for maximum bandwidth, meaning any expansion cards slotted into an ASUS TRX40 board will run as fast as they possibly can. For high-end desktop users, the TRX40 series offers four memory channels for up to 256 GB of RAM across eight slots. The new 3rd Gen Threadripper CPUs maintain their predecessors’ support for ECC memory, too. This empowers PC builders to take their rigs to new heights with bumped-up 3200 MHz stock RAM speeds and push the limits even further with an extra boost from exclusive OptiMem III technology in the Republic of Gamers (ROG) Zenith II Extreme. There’s a ROG or ASUS TRX40 motherboard for everyone, from professionals who want the most of everything and hardcore gamers obsessed with performance to first-time builders seeking the ultimate PC experience. For further details about our ROG lineup please visit ASUS ROG. A guide with complete specifications and images for the entire lineup of TRX40 motherboards is located at ASUS Edge Up

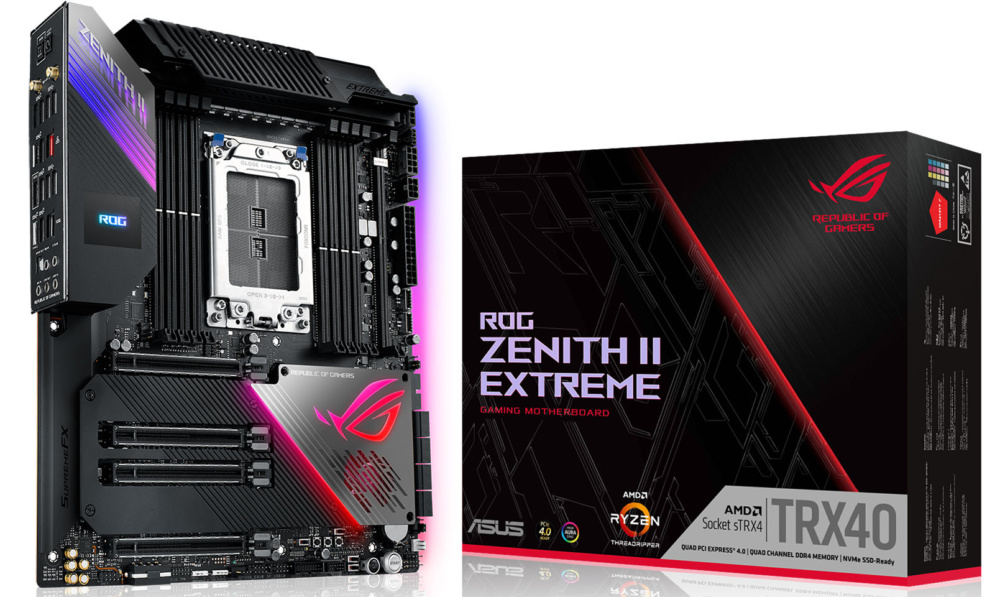

ROG Zenith II Extreme
asus trx40 1

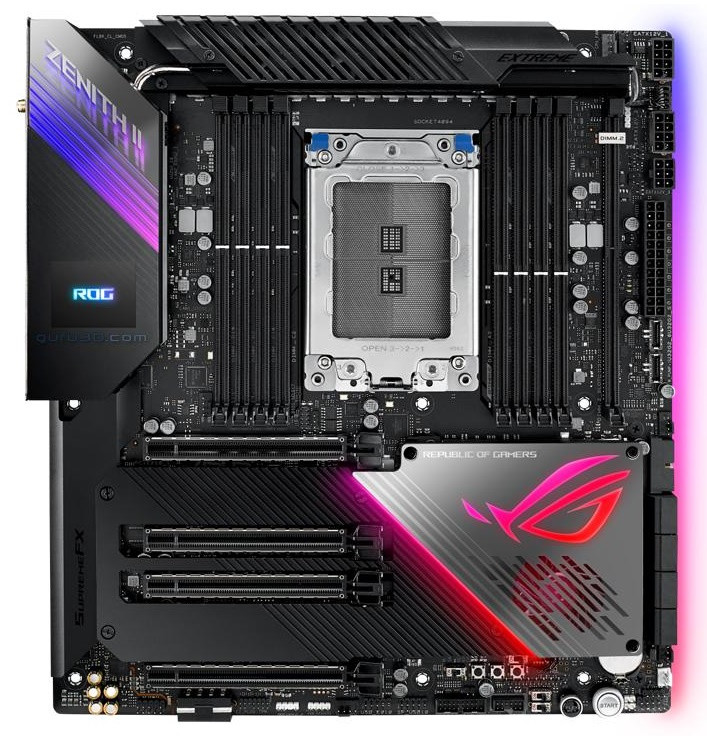

Perfect for professional users and gaming enthusiasts looking to explore the limits of 3rd Gen Threadripper CPUs’ core and memory clock speeds. It’s filled to the brim with top-notch hardware to satisfy the most demanding users. The board’s styling strikes a balance between industrial power and gamer-friendly flash. With the lights off, Zenith II Extreme epitomizes stealth and subtlety, but once the multi-zone Aura RGB LED lighting is fired up, the board becomes a high-end showpiece. The decorative panel atop the I/O shield has a holographic Infinity Lighting motif, while a full-color LiveDash OLED display can display POST codes, critical system information or custom graphics. Aluminium ROG Armor covers most of the front of the board, and a metal backplate fortifies the board against the weight of massive heatsinks and expansion cards.

asus trx40 4

Zenith II Extreme employs an enhanced 16-power-stage VRM design, suitable for the most extreme overclocking efforts. Many components in a high-end build can get a little toasty once workloads ramp up and the bits start flowing, so Zenith II Extreme’s main VRM heatsink uses two semi-passive fans that turn on only when the underlying component temperatures reach 60 ºC. To further enhance heat dissipation, a heat pipe joins the main VRM heatsink with an auxiliary heatsink under the I/O shroud. Another fan underneath the chipset heatsink draws heat away from the main M.2 slots and the TRX40 silicon itself, and its airflow also helps keep the SoC VRM cool during memory overclocking. Every one of those those fans is smart enough to turn on only when they’re needed and are controlled by the Fan Xpert 4 utility. Extensive storage capabilities are enabled by Zenith II Extreme’s five M.2 slots each using up to four lanes of PCIe 4.0, with three slots directly onboard and two coming from the exclusive DIMM.2 module. Hard drives are still the kings of sheer capacity, and Zenith II Extreme provides eight SATA ports to meet even serious mass-storage needs.

Networking is a key aspect for workstation and high-end desktop machines, because workloads on these systems often involve shuffling large chunks of data from one machine to another. Zenith II Extreme features a trio of network interfaces. An Intel I211-AT Gigabit Ethernet controller gets the party started, but the Aquantia AQC-107 10GbE controller really fires things up, as it makes short work of multi-terabyte transfers. If wires aren’t the order of the day, then Zenith II Extreme’s future-proof connectivity with Intel AX200 Wi-Fi 6 and Bluetooth 5 support should satisfy. Every recent improvement in USB speed has made its way into Zenith II Extreme, so the board is more than ready for the latest peripherals. The back panel contains a total of seven USB 3.2 Gen 2 ports with 10 Gbps of throughput, but the real highlight is the super-fast USB 3.2 Gen 2×2 Type-C connector with 20 Gbps of bandwidth. It also includes a pair of front-panel USB 3.2 Gen 2 connectors, four USB 3.2 Gen 1 ports and three USB 2.0 headers.

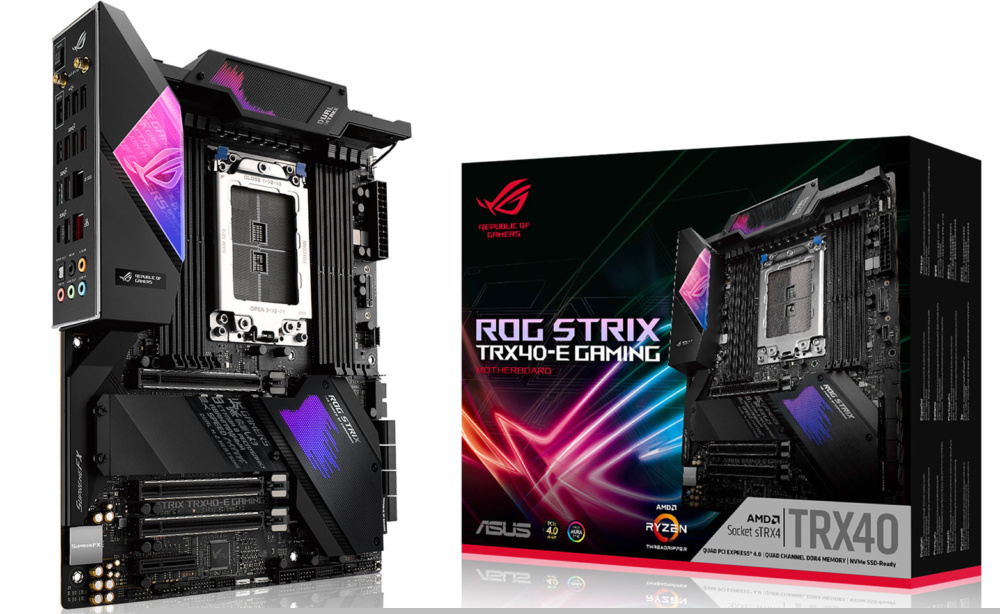

ROG Strix TRX40-E Gaming: Take command of any arena
asus trx40 2

ROG Strix TRX40-E Gaming is the motherboard with all the high-end desktop credentials expected from such a standout component, and it fits all of that power into a standard ATX form factor with great customization options, sleek cybertext aesthetics and a 1.3-inch LiveDash OLED display. Its striking angular design extends to the M.2 heatsink and audio circuitry covers, and most of the board is blacked out so that it can look its best under any shade of RGB LED lighting. This new Strix board feeds its CPU with a 16-stage VRM with two semi-passive fans above the heatsink to keep things cool, even with demanding overlocks. ProCool II power plugs and their solid pins help ensure stable power delivery to Threadripper’s many cores and keep the connectors themselves cool under load. The board also provides plenty of options for storage devices and peripherals. There are three M.2 sockets, each linked to four lanes of PCIe 4.0, as well as eight SATA ports that adorn the edge of the board. Around the back are eight USB 3.2 Gen 2 ports with 10 Gbps of bandwidth, including one TypeC, alongside another four USB 2.0 Type-A connectors. Strix TRX40-E Gaming also offers dedicated headers for both AIO and custom-loop pumps in addition to its standard arsenal of fan headers. The new board also comes with a trio of network controllers. The Intel AX200 Wi-Fi 6 adapter with Bluetooth 5 reprises its role, alongside a potent 2.5 Gbps Realtek Ethernet controller paired with the Intel I211-AT Gigabit Ethernet controller. For audio needs, Strix TRX40-E Gaming uses a SupremeFX S1220 audio codec in addition to providing DTS Sound Unbound support.

asus trx40 4

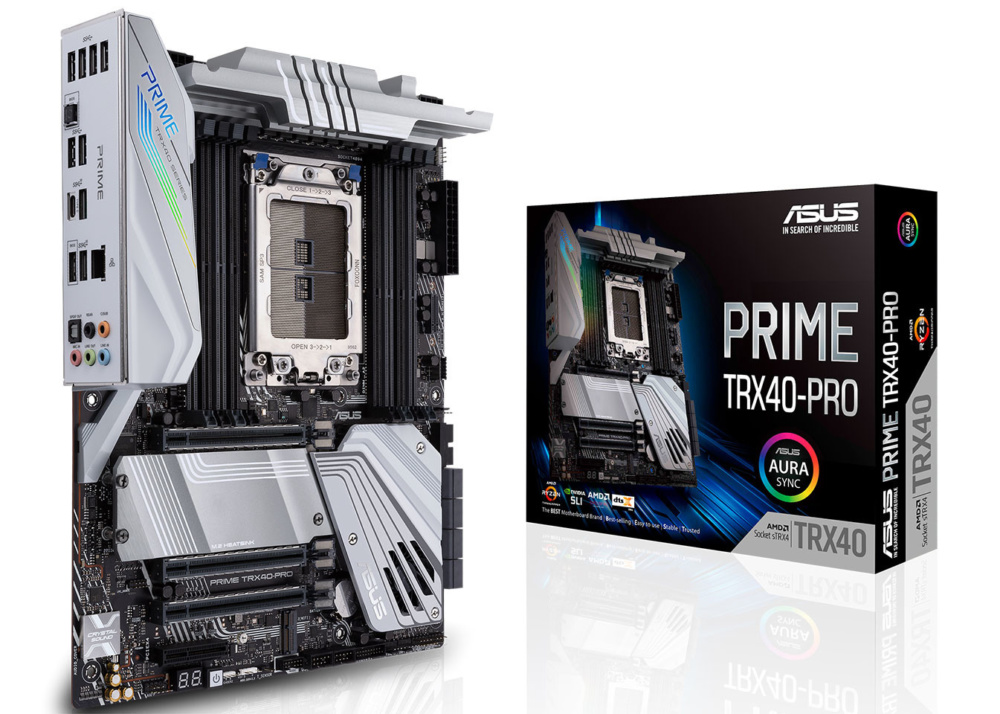

ASUS Prime TRX40-Pro: A rock-solid professional foundation for any 3rd Gen Threadripper
asus trx40 3

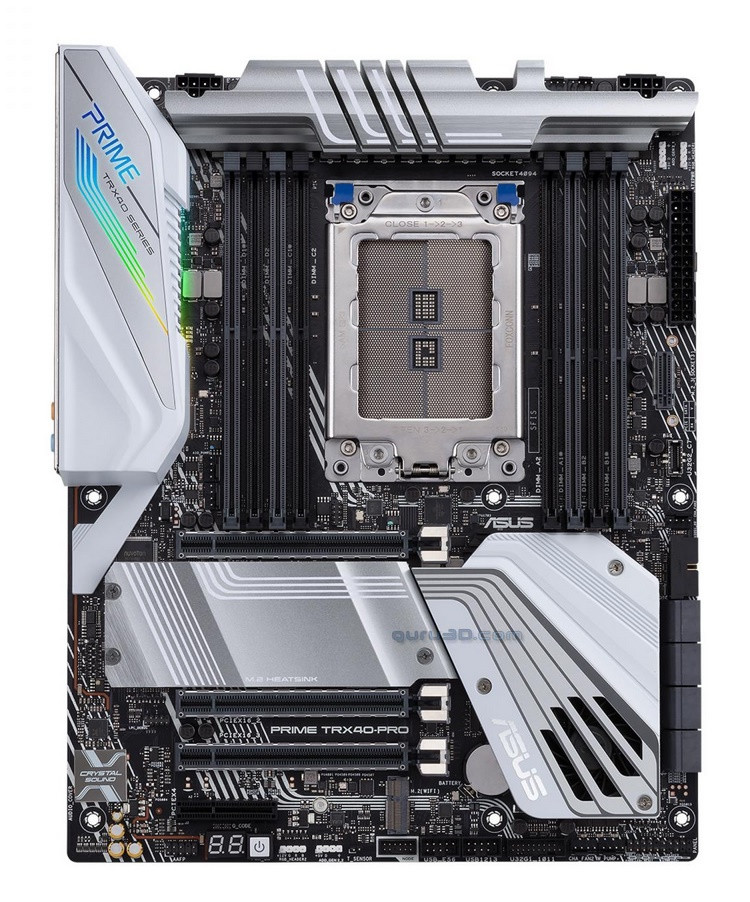

Prime TRX40-Pro is a reliable foundation for any enthusiast or professional with creative workloads like video editing and 3D rendering that benefit from the power of many-core CPUs. In addition to contributing to the board’s clean and futuristic design, its brushed-aluminium VRM heatsink draws heat away from a 16-stage power-delivery subsystem comprising Infineon TDA21462 integrated power stages paired with premium chokes and components. Every single expansion slot comes loaded with the performance of PCIe 4.0, too: three PCIe x16 ASUS SafeSlots grace the main portion of the board, and they’re poised to run all-out in an x16/x16/x16 configuration.

asus trx40 6

Prime TRX40-Pro includes three M.2 slots, wired up to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVM Express (NVMe) devices for massive I/O bandwidth and seamless playback in their editing bays. Two of those slots rest under a dedicated heatsink for preventing SSD throttling under heavy loads. The third M.2 slot positions SSDs vertically to take advantage of ambient airflow around the CPU socket. The USB port selection on the back panel includes three USB 3.2 Gen 2 Type-A connectors and a reversible USB 3.2 Gen 2 Type-C port to provide up to 10 Gbps for connecting fast external storage, audio interfaces, dedicated video editing controllers and more. Prime TRX40-Pro also has a full set of fan and liquid-cooling headers controllable with our Fan Xpert 4 utility. The board also includes an E-key M.2 2230 socket for those who wish to add a Wi-Fi module. Wired connectivity comes from a Gigabit Ethernet port backed by an Intel I211-AT chip. The Realtek S1220 audio codec offers pristine audio quality, helped along by EMI shielding and separate PCB layers for the left and right channels to maintain signal integrity. When it’s time to pump up the volume, DTS:X Ultra support brings immersive 3D spatial audio to existing headphones or speakers.
