Gigabyte Radeon RX 480 G1 Gaming 8GB Graphics Card Review

Temperatures
For our temperature testing we run two different tests. The first is idle with our system sitting on the Windows Desktop. The second is our typical load, which we loop Heaven Benchmark for 30 minutes. Temperatures are recorded using the sensor page in GPU-Z.

temp-idle

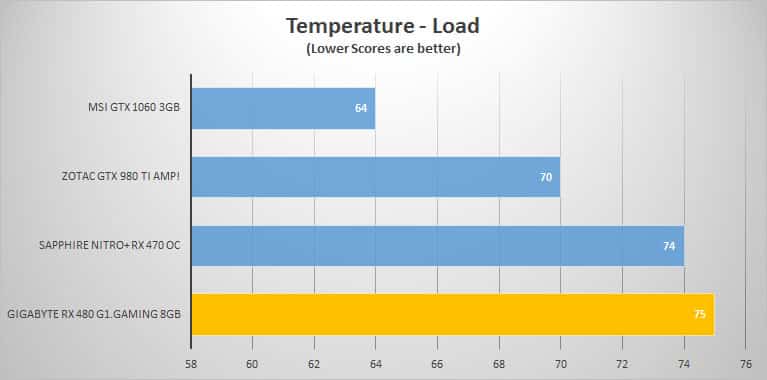

temp-load

Power Consumption
Power consumption for a system is of course very important. To measure power consumption we use the GPU Power Draw sensor in GPU-Z. The idle test is taken on the Windows 7 desktop. The load test was taken running a loop of Heaven benchmark for 30 minutes.

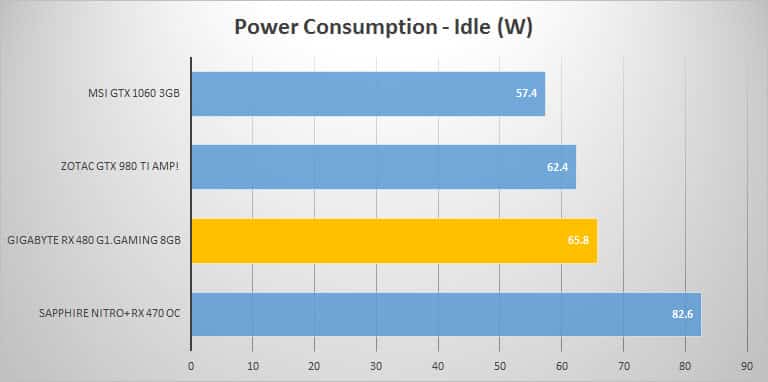

power-idle

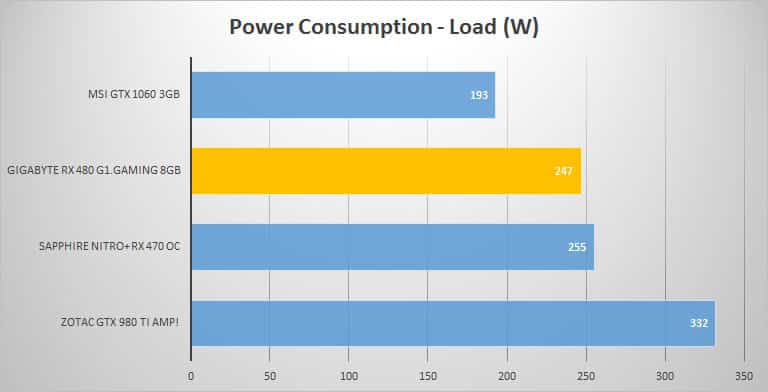

power-load

Noise Levels
We will be using the Galaxy Audio CM130 Sound Pressure Level Meter to take sound level recordings from the graphics card in both idle and load states.

noise-idle

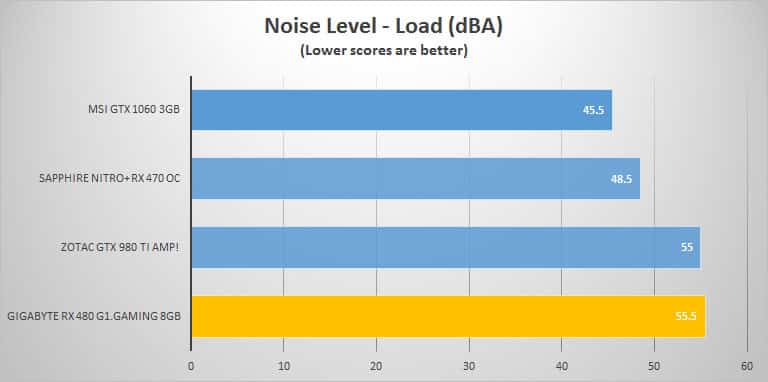

noise-load
