Introducing the EVGA Z790 DARK and CLASSIFIED Motherboards

Introducing the EVGA Z790 motherboards, the pinnacle of high-performance computing. Featuring the Z790 DARK K|NGP|N and Z790 CLASSIFIED, these motherboards support the latest Intel Z790 chipset and are built for extreme computing with 13th Gen Intel Core Series processors utilizing PCIe Gen5 lanes and DDR5 memory. Those familiar with EVGA motherboards will recognize the powerful digital-VRM design, VRM and M.2 cooling, and sturdy low-loss PCB construction.

Z790 DARK K|NGP|N

The EVGA Z790 DARK K|NGP|N rises once again. This world record-setting motherboard is built on a 14-layer low-loss PCB with a 21-phase VRM – capable of squeezing every last bit of performance out of the most extreme 13th Gen Intel Core processors. This board supports current and future standards with up to 64 GB DDR5 and up to 7000 MHz+(OC), PCIe Gen5, and PCIe Gen4 M.2 NVMe support. The Z790 DARK K|NGP|N auto-switches the x16 PCIe Gen 5 CPU lanes between slots 1 and 2 to give your PCIe device maximum bandwidth no matter where it’s installed. Beyond excessive overclocking support, the board also includes multiple USB options, 8x SATA 6 Gb/s ports, 10 Gbps and 2.5 Gbps NICs + Wi-Fi 6E / BT 5.2, 7.1 HD audio, 3x M.2 Key-M slots, and 2x pump headers exclusively built for CPU AIO. The Z790 DARK K|NGP|N remains the choice of those that want a board capable of unbelievable performance.

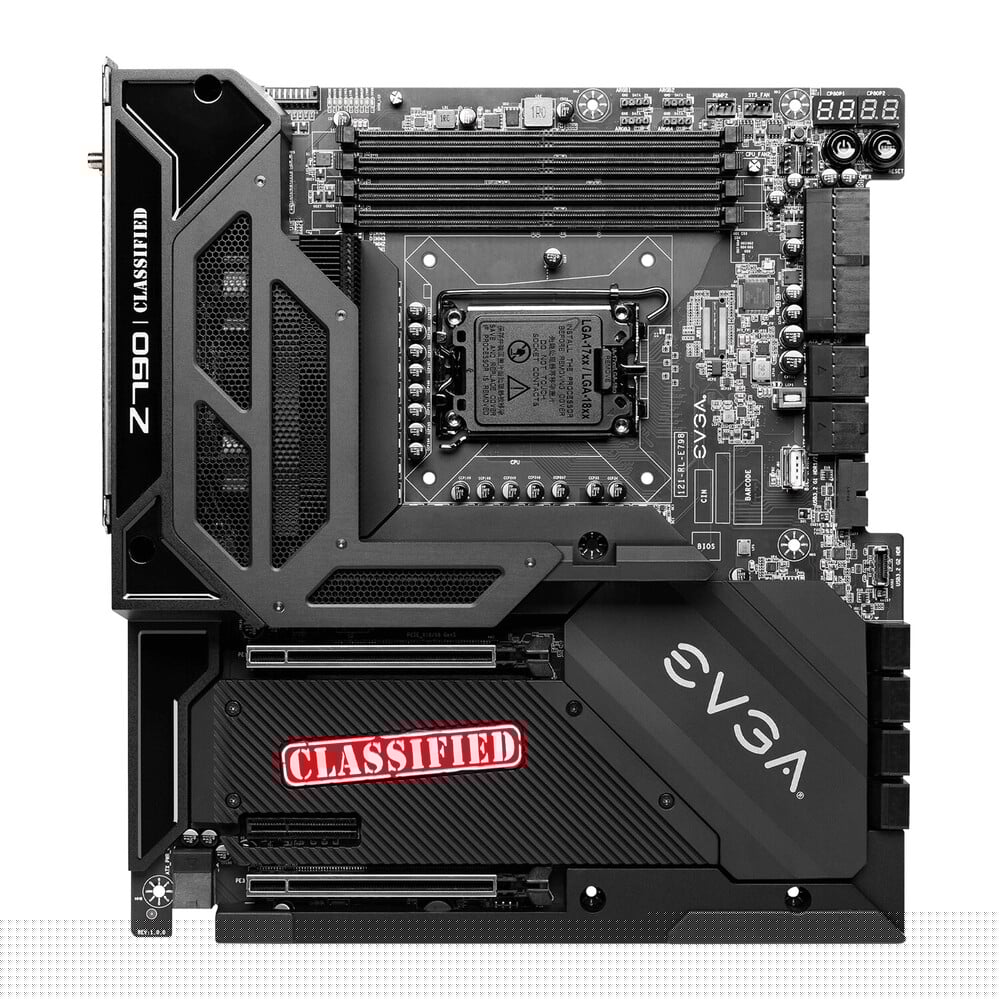

EVGA Z790 CLASSIFIED

The EVGA Z790 CLASSIFIED returns with a new layout and upgrades to keep it the best choice for the motherboard that does everything. The CLASSIFIED takes full advantage of PCIe Gen5 and PCIe Gen4 M.2 NVMe SSDs through the latest 13th Gen Intel Core Series processors, up to 128 GB DDR5 and up to 6800 MHz+(OC) DDR5. A 19-phase VRM and 12-layer PCB provides exceptional power, performance, and stability. New to the CLASSIFIED is a rotated socket to reduce memory latency and improve cable management options, a 10 GbE network port, and two USB4 Type-C ports. Meanwhile, the board also contains a 2.5 GbE port + Wi-Fi 6E / BT 5.2, 7.1 HD audio, multiple USB options, and two DisplayPort Type-C display options. The Z790 CLASSIFIED is the perfect motherboard to help you set records in whatever you do.

EVGA Z790 motherboards are powered by EVGA ELEET X1, the next generation of motherboard tuning utilities. Featuring a simple to use interface, EVGA motherboards have never been easier to overclock or monitor. Review your motherboard, processor, memory and system status at any time and adjust your clock speeds and voltages for maximum performance.
