KLEVV CRAS C925G Gen4 Solid State Drive Overview

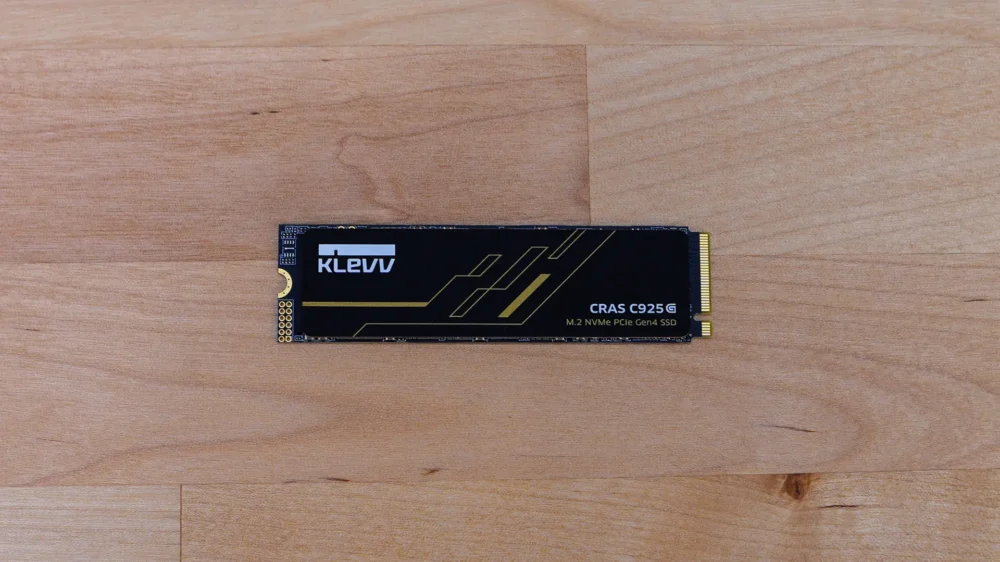

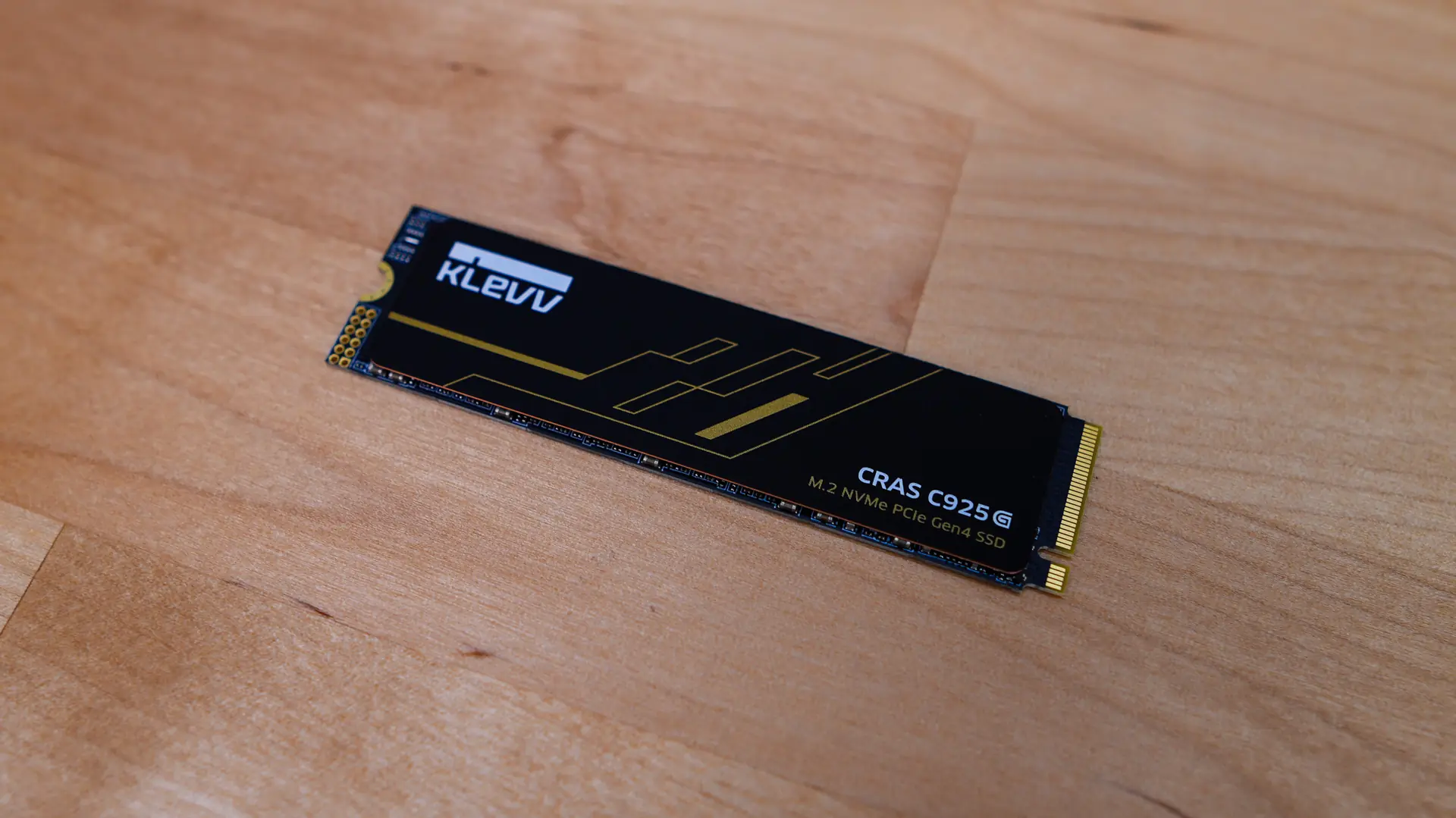

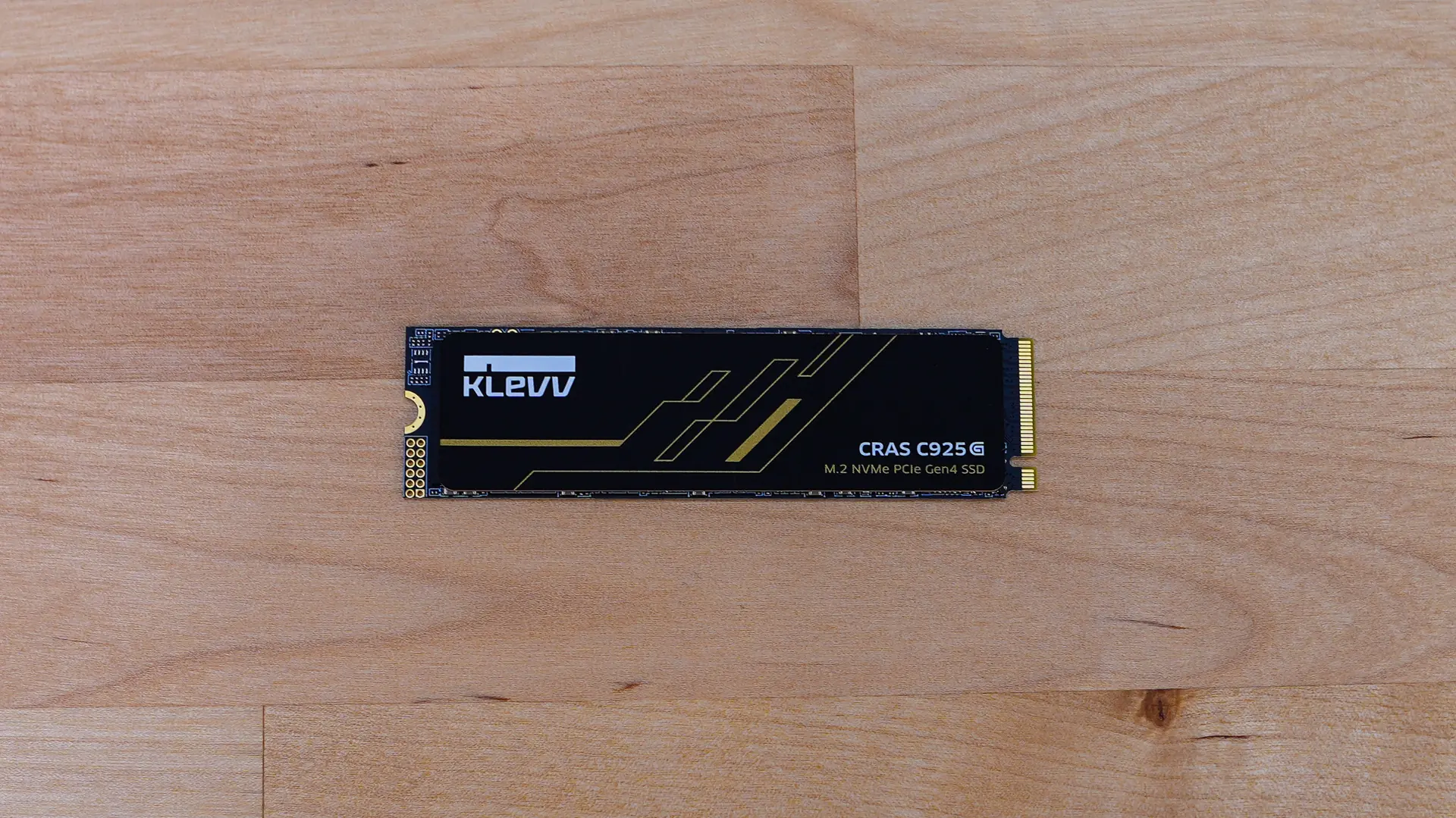

The KLEVV CRAS C925G is your standard M.2 2280 (80mm drive). On the top of the drive there is a sticker with the KLEVV logo.
Now this is not just a sticker, but actually a graphene-copper composite heatsink. This heatsink optimizes cooling performance by facilitating faster heat transfer and ensuring more uniform thermal distribution, effectively eliminating hot spots and maintaining stable peak performance.

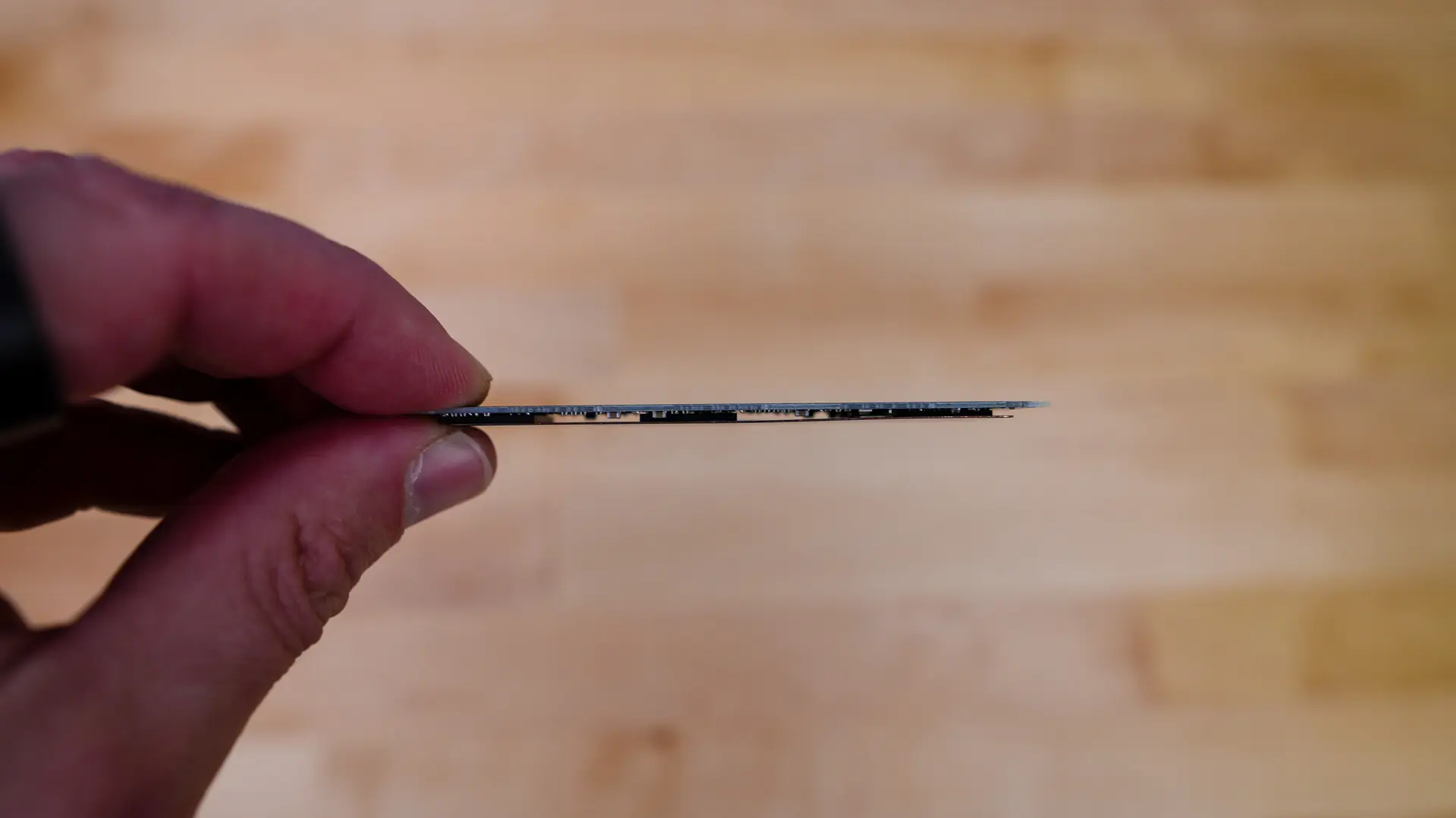

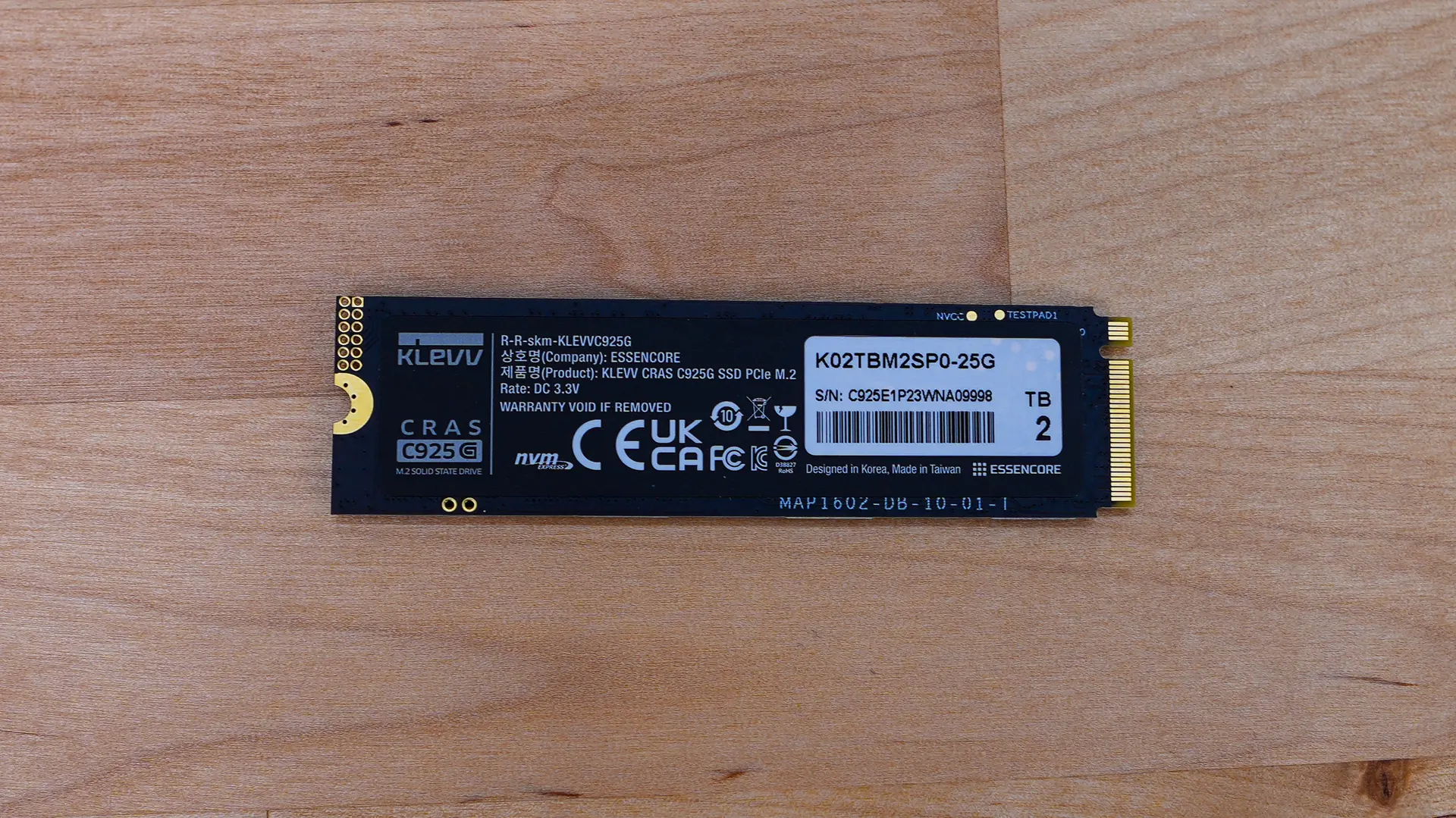

The drive itself is going to be single-sided, so the opposite side just has a sticker on it.
Under the graphene-copper composite heatsink you’ll find the MaXio MAP1602A-F3C 4-channel controller which has a DRAM-less design. This controller will support up to 4TB of NAND with an interface speed of 2400 MT/s. Talking about the NAND we have SK Hynix 238-Layer 3D TLC NAND which has been rebranded to Essencore.
