Overclocking the KLEVV CRAS V RGB
The easiest way to overclock on the Intel platform is to simply change the frequency divider in the BIOS. To achieve the best overclock we try to stay with the timings that the XMP profile recommends. If we run into any issues we will bump up the voltage to see if we can get our system to boot and become stable.

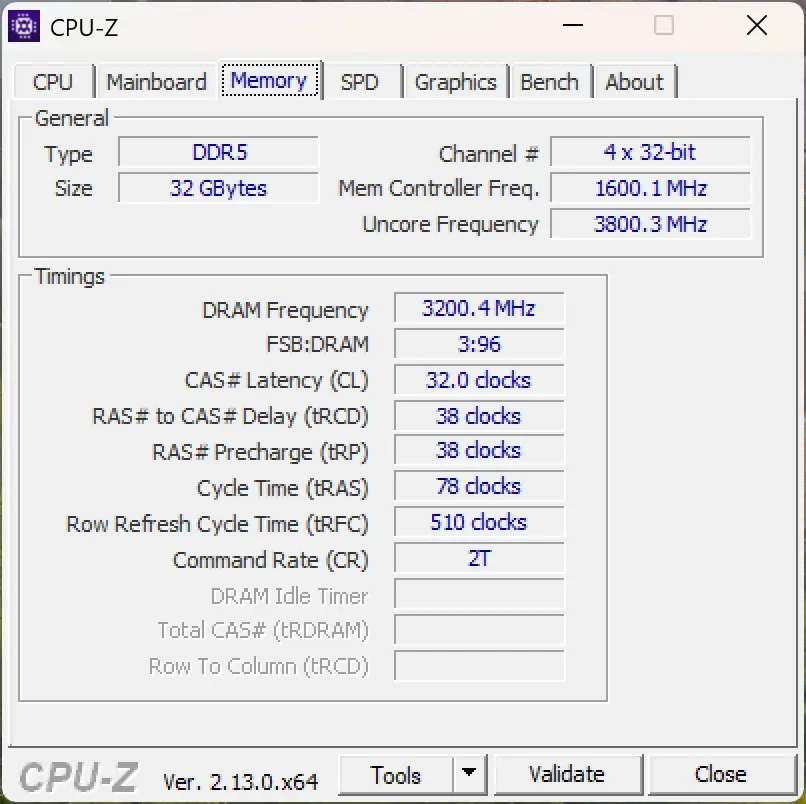

The XMP profile puts this kit at 6000 MHz. This kit was a bit frustrating to overclock, likely because of how tight the timings are. While I was able to get the kit up to 6200 MHz without changing anything, I had to loosen the timings a bit to get the kit up to 6400 MHz. The interesting thing was that this kit did not like the voltage being changed over 1.4V. Each time I would move the voltage, even up to 1.41V the system wouldn’t be stable at all. So we ended up with a max overclock of 6400 MHz with timings of 32-38-38-38-78 at the normal 1.4V
