Lighting on the KLEVV CRAS V RGB Memory

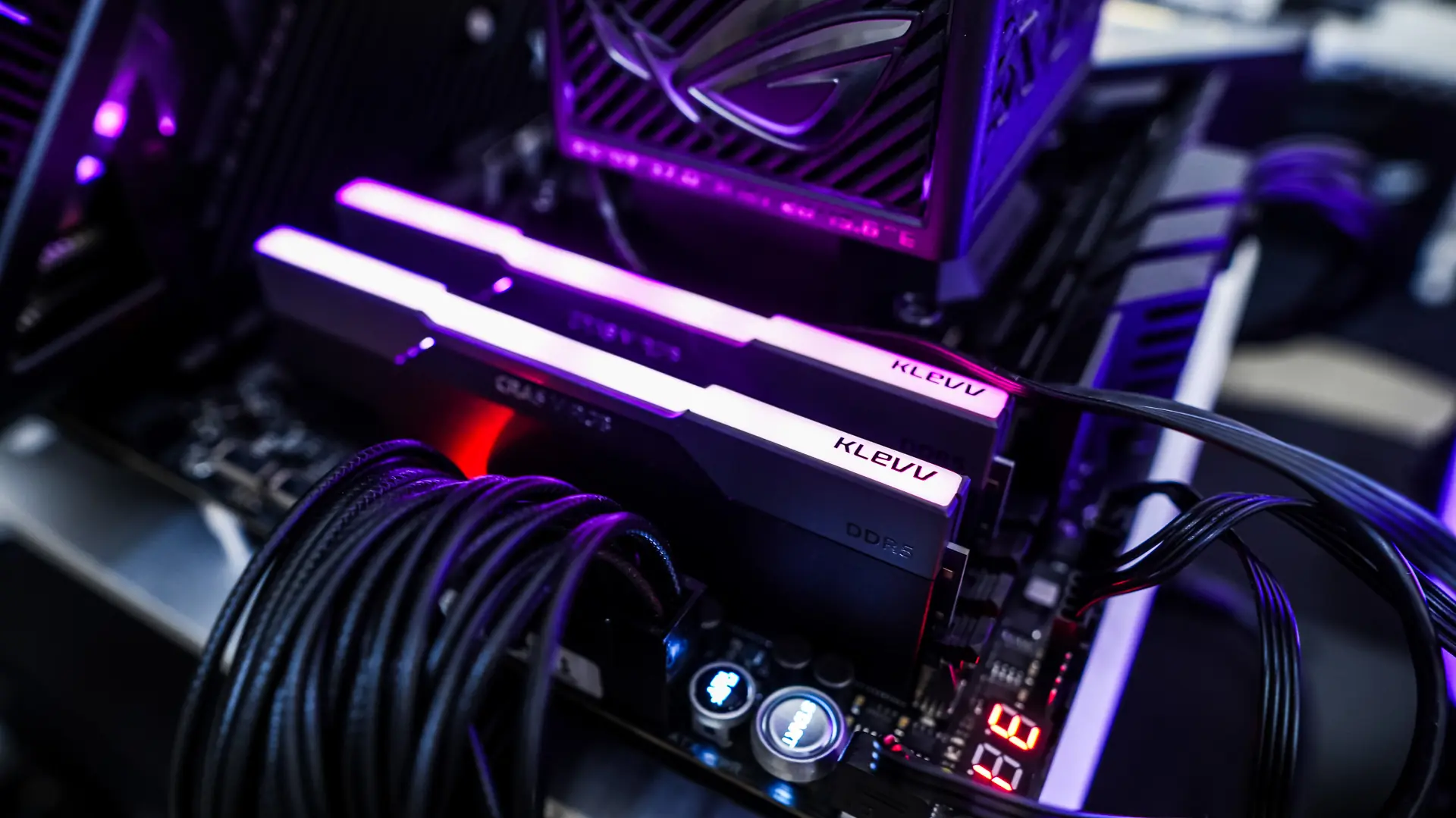

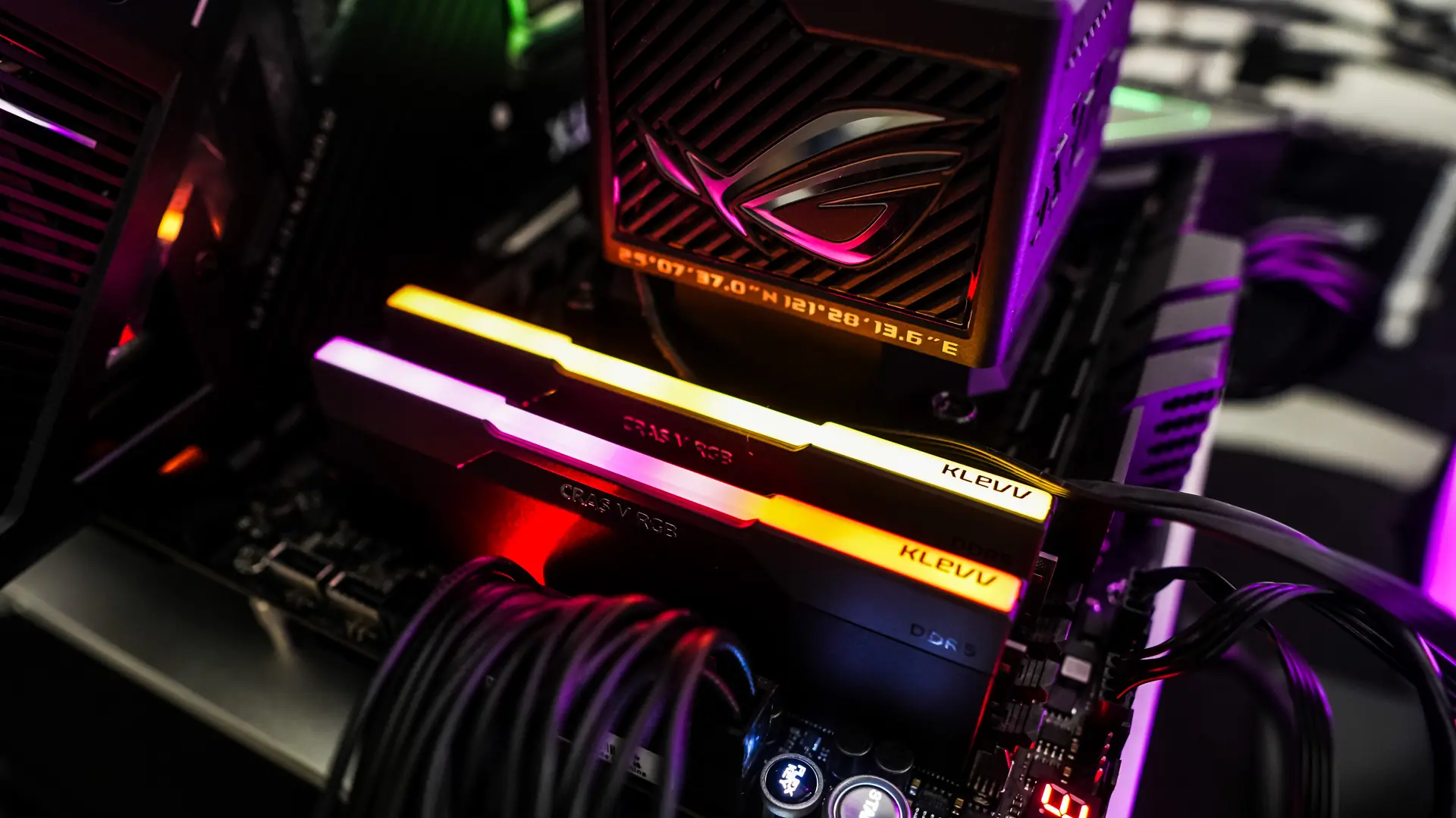

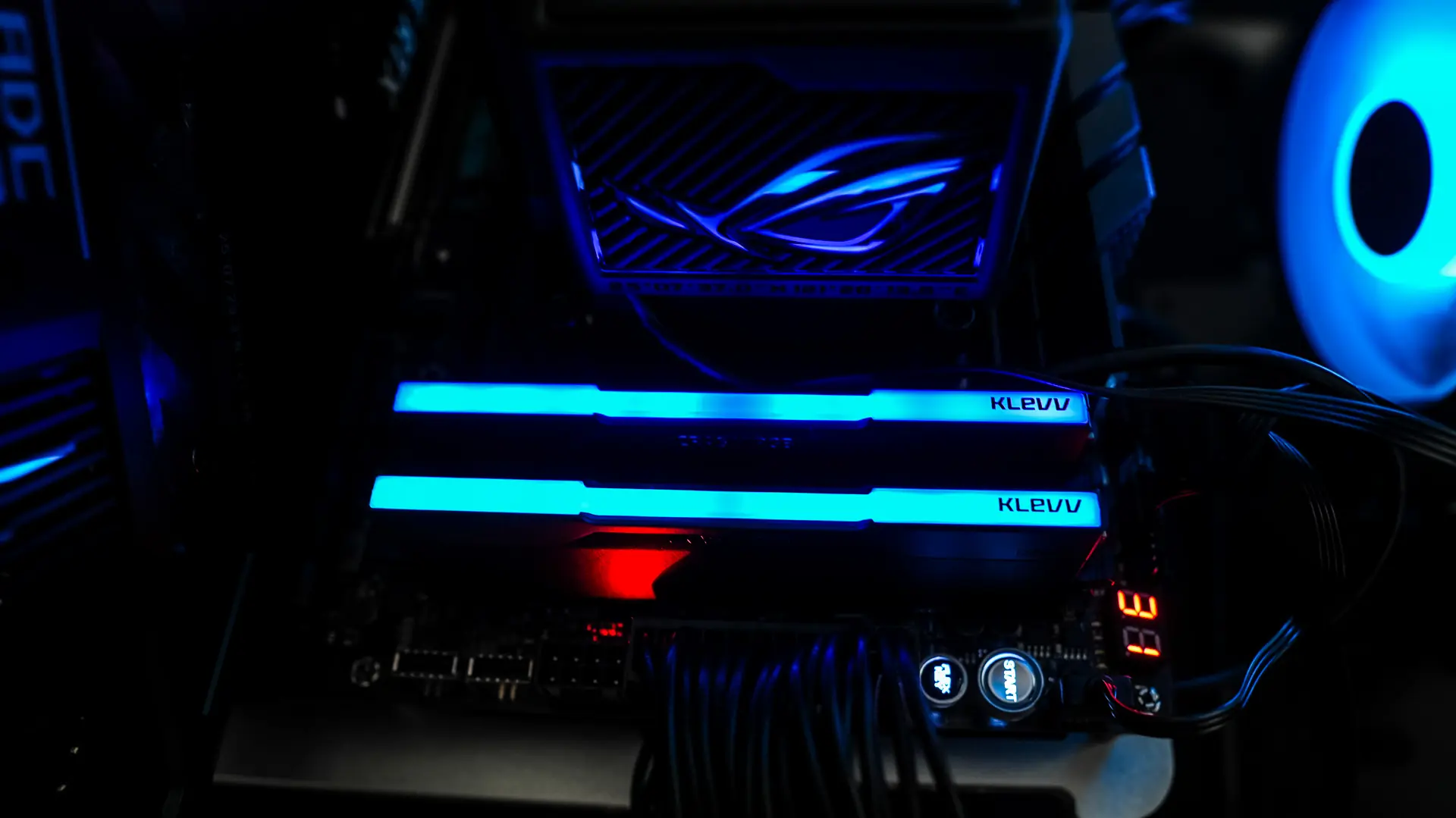

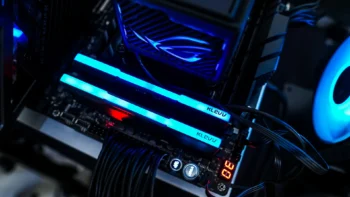

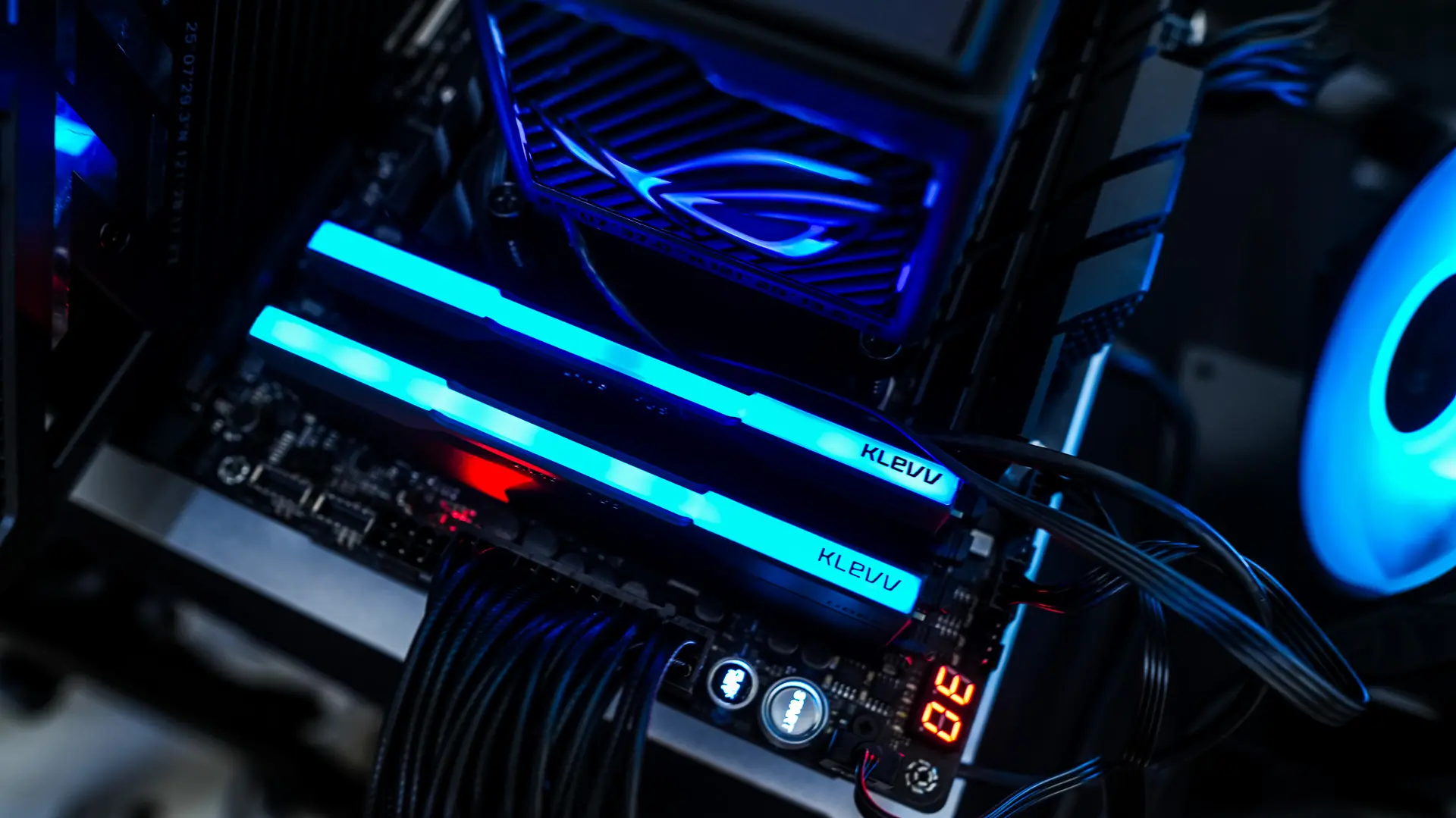

After you get the memory installed and power your system on you’ll notice the RGB strips at the top light up nicely. The diffuser does a good job making the RGB LEDs look like a single light bar. These modules are compatible with all major motherboard RGB software. I had no issues getting them working with ASUS’s Aura Sync.
System Overview & Testing
We installed the KLEVV CRAS V RGB Memory Kit in our Z890 test system which is made up of the following components.
Processor: Intel Core Ultra 9 285K
Video Card: ASUS ROG Strix RTX 4080 Super OC
Motherboard: ASUS ROG Maximus Z890 Hero
Memory: KLEVV CRAS V RGB DDR5-6000 32GB
Storage: Patriot Viper VP4300 Lite
Power: Seasonic Vertex GX-1200
Cooling: ASUS ROG Ryujin III 360 ARGB Extreme
Case: BC1 Open Benchtable

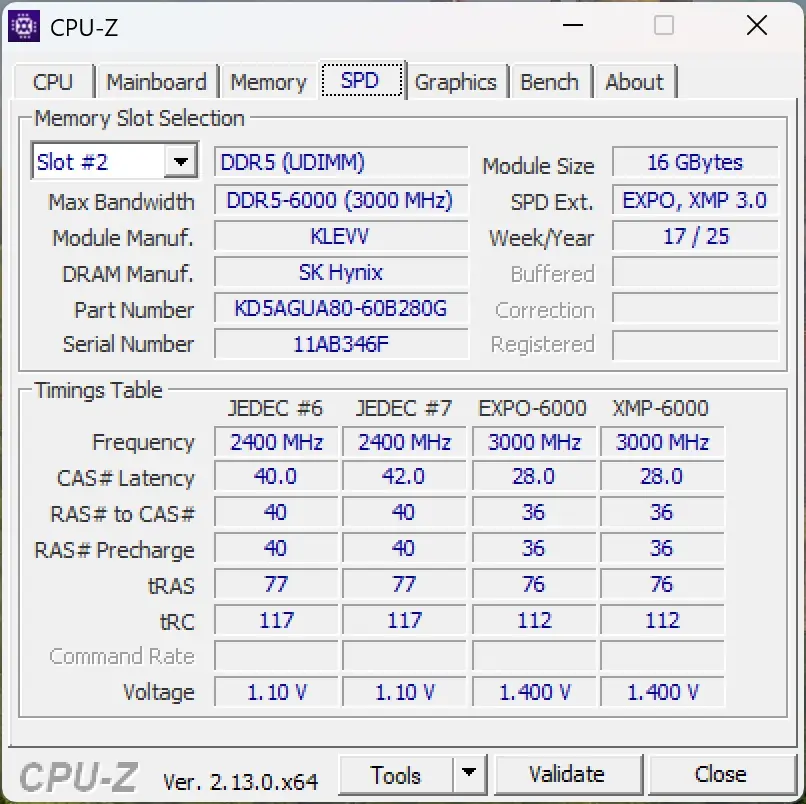

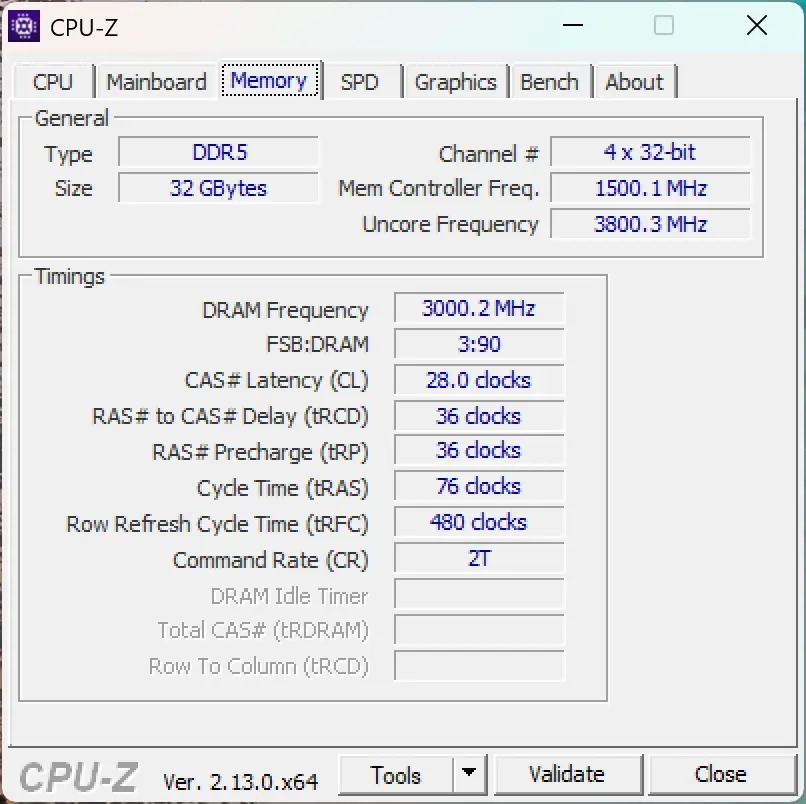

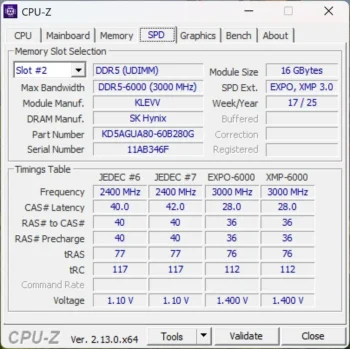

Taking a look at CPU-Z we can see this memory is running at its XMP speeds of 6000 MHz with timings of 28-36-36-76 at 1.4V. We can also see the memory does in fact have both XMP and EXPO profiles. There is only a single profile for each though.
For testing we will run the memory at these settings using the below benchmarking software. Below is a list of benchmarking software that we use.

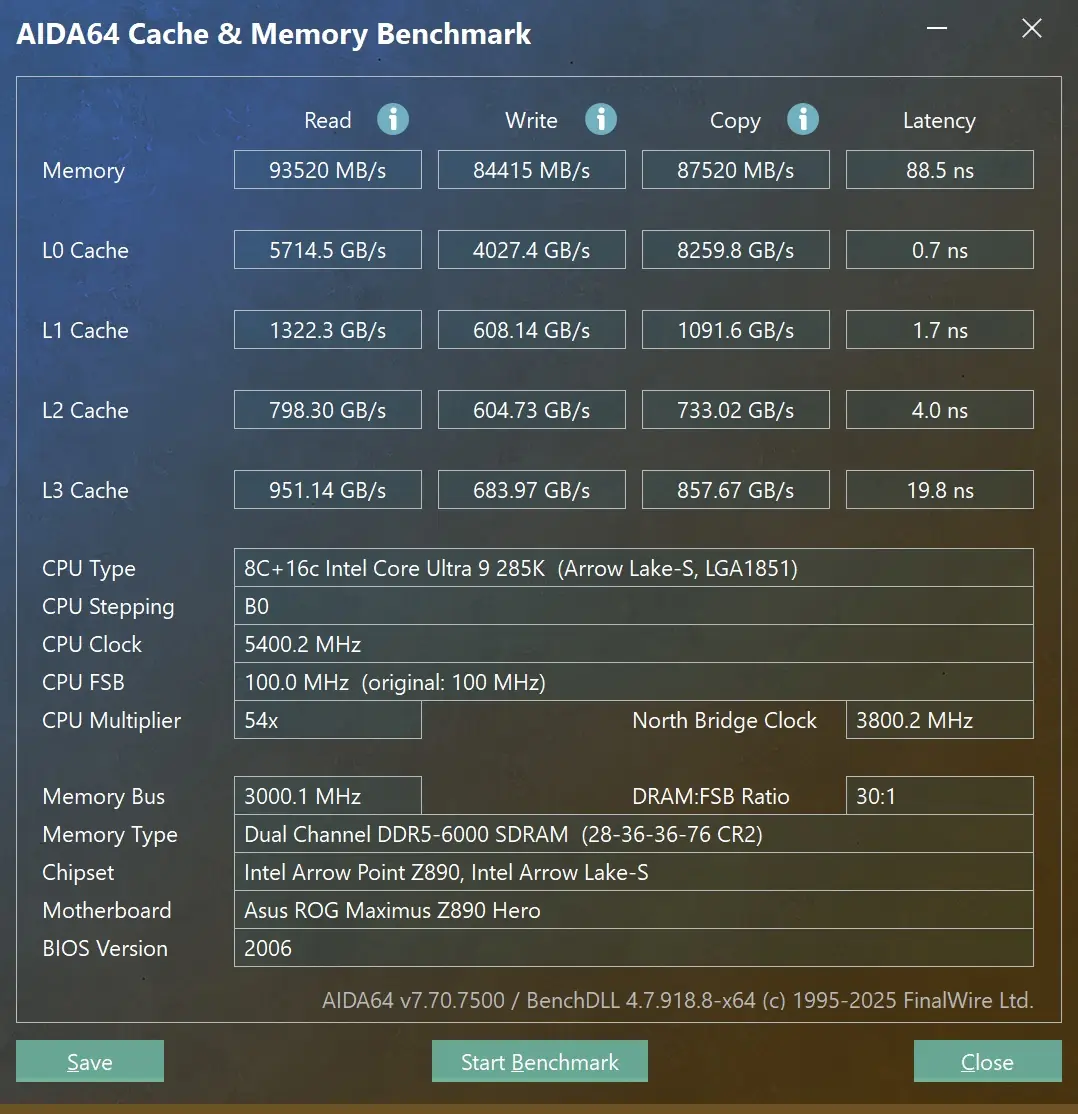

– AIDA64 Cache & Memory Benchmark

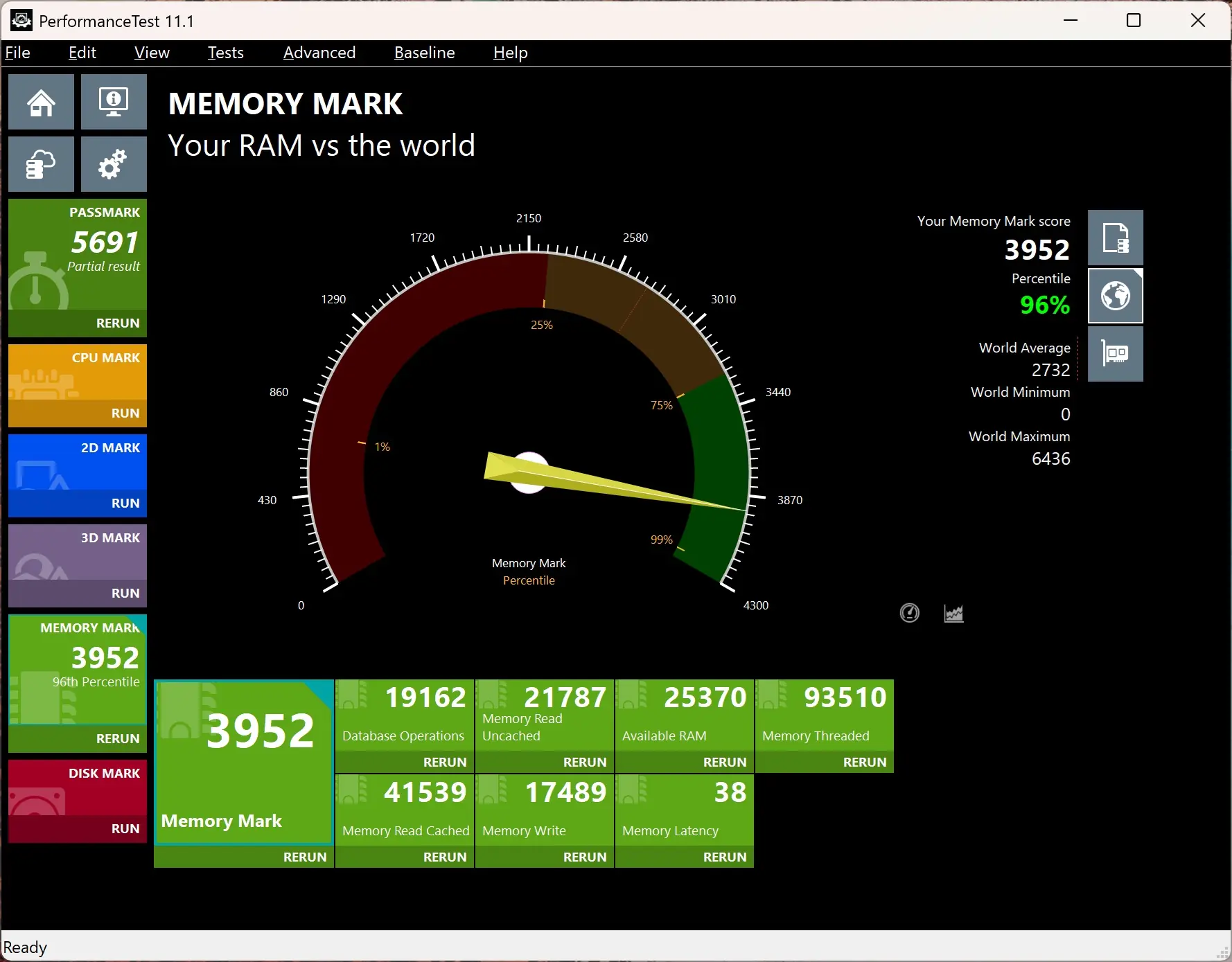

– PassMark Memory Mark

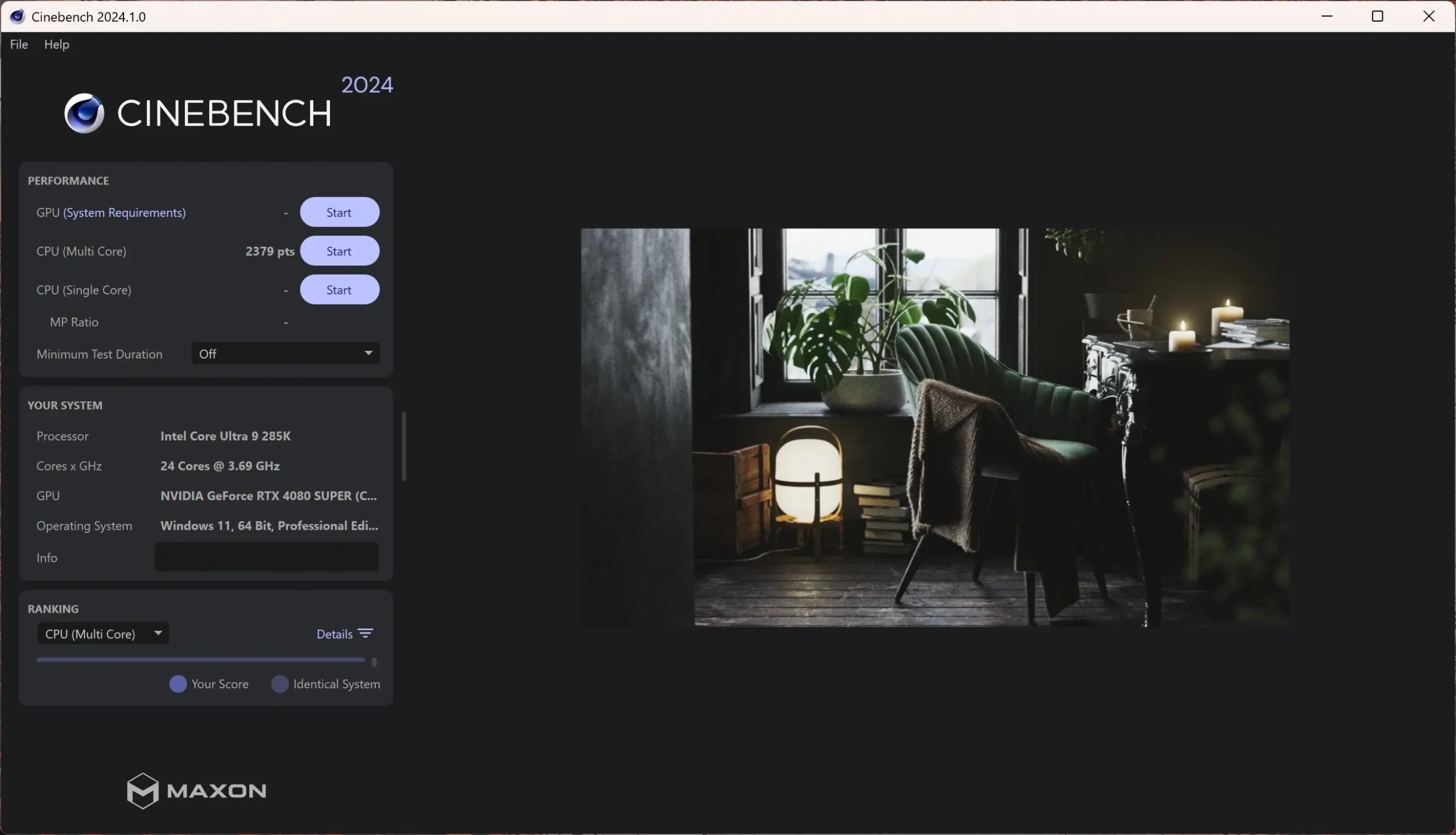

– Cinebench R24

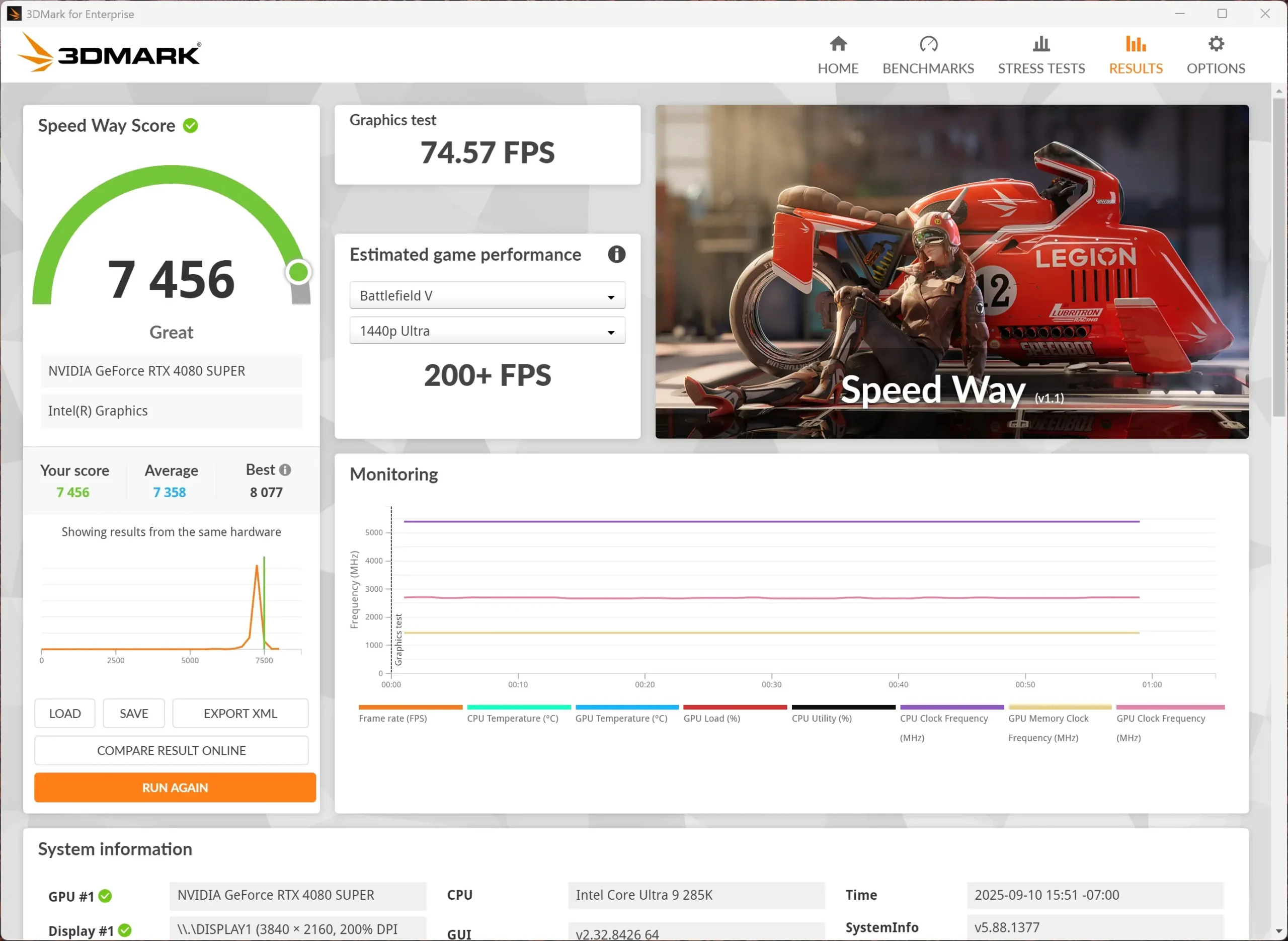

– 3DMark Speed Way

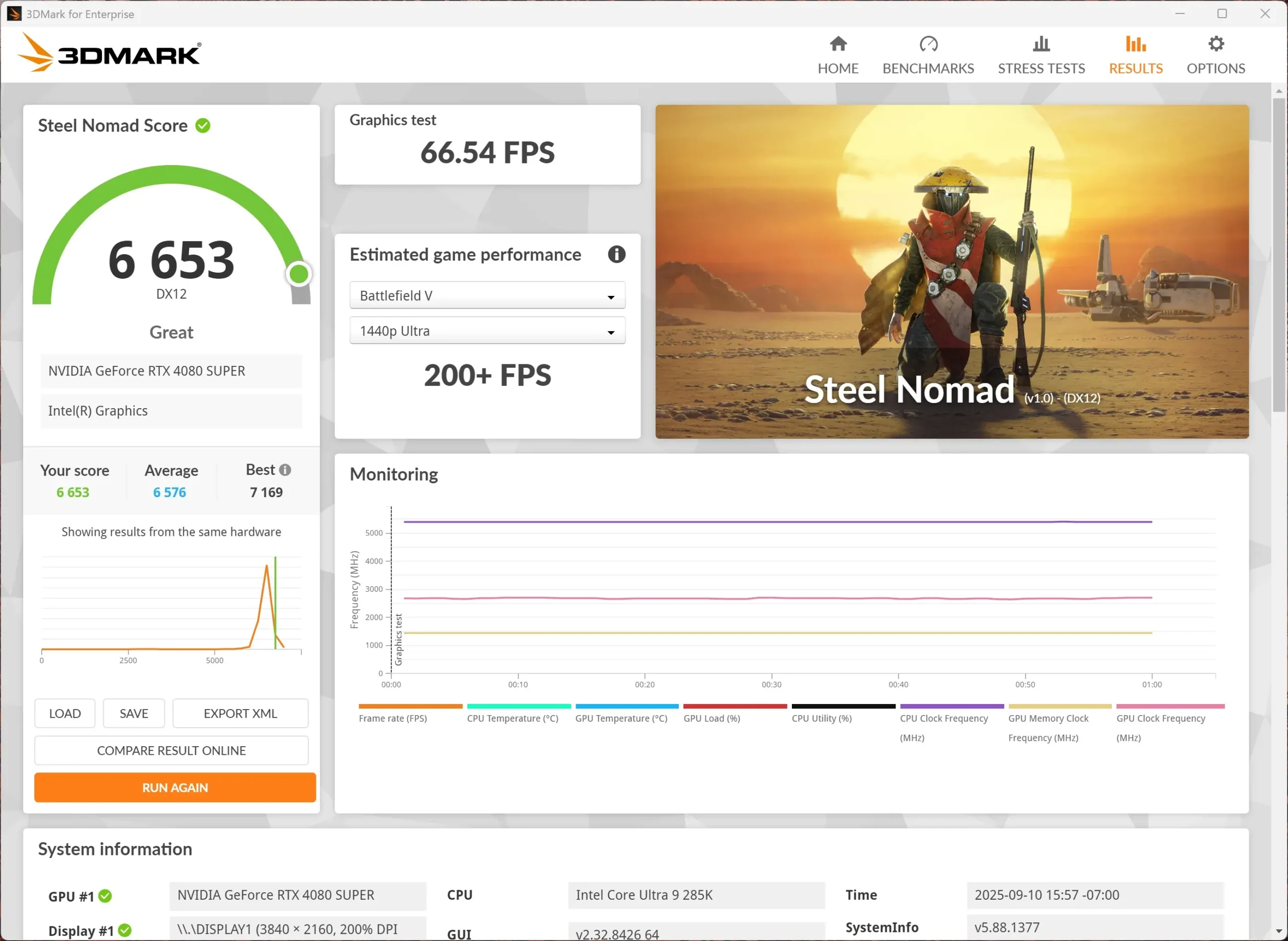

– 3DMark Steel Nomad
