A talented modder has successfully transformed a PlayStation 4 Slim into a fully functional handheld gaming console. This impressive feat of engineering integrates a miniaturized motherboard, a vibrant 7-inch OLED screen, and a custom 3D-printed case, offering a unique portable gaming experience.
Key Takeaways
- A PS4 Slim motherboard has been significantly modified and miniaturized.
- Features a 7-inch 1080p OLED display for enhanced visuals.
- Boasts a custom 3D-printed enclosure with integrated controls and cooling.
- Offers up to 3 hours of battery life, depending on game intensity.
- Includes HDMI output for external display connectivity.
The Ultimate Portable PlayStation
A Reddit user, known as u/wewillmakeitnow, has brought a long-held gaming dream to life by converting a PlayStation 4 Slim into a portable handheld device. This project goes beyond mere concept, delivering a stable and fully functional console that renders games locally, unlike streaming-only devices.

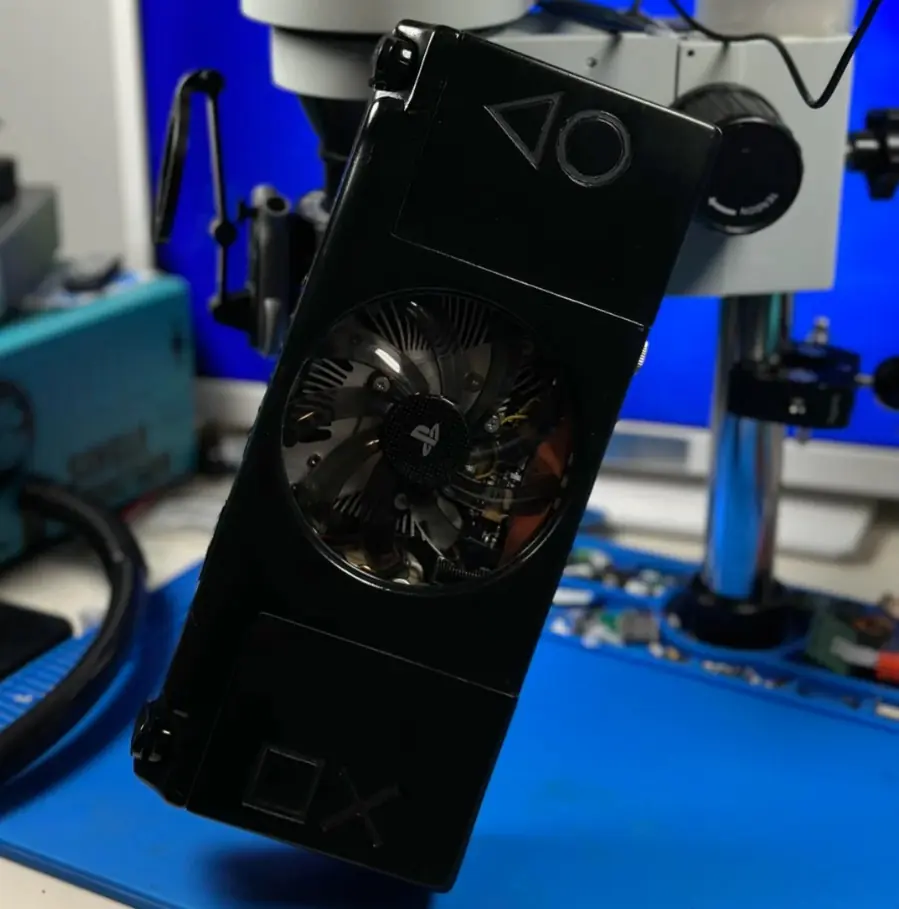

The core of this creation is a heavily modified PS4 Slim motherboard, meticulously cut and reshaped to achieve a compact form factor while retaining all essential functions. The modder also engineered a new power delivery and cooling system, incorporating an ESP32 microcontroller with custom firmware to manage temperature, power consumption, and battery charging, ensuring safe operation and preventing overheating.
A Visual and Functional Masterpiece

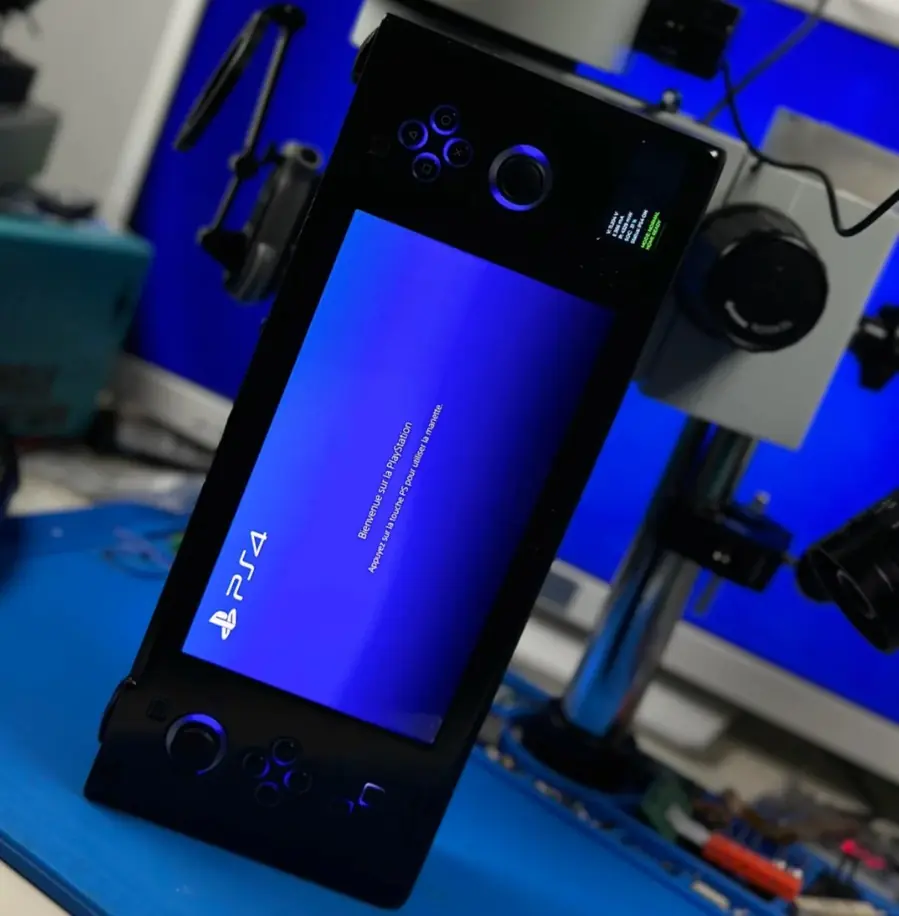

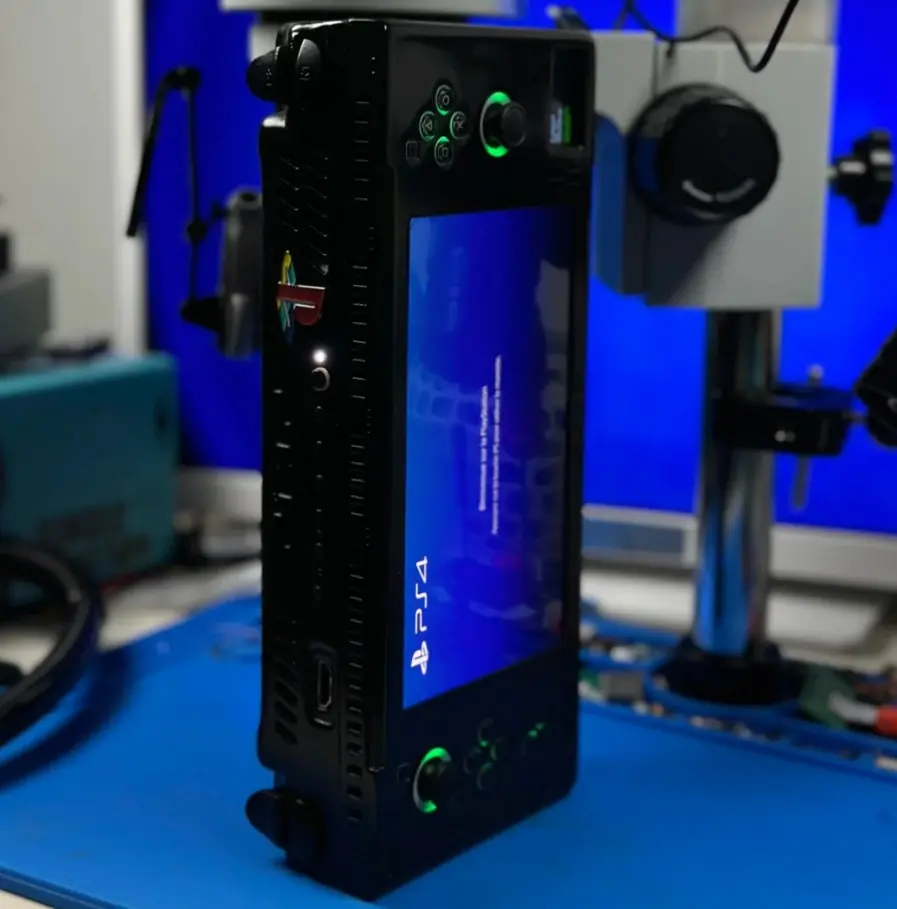

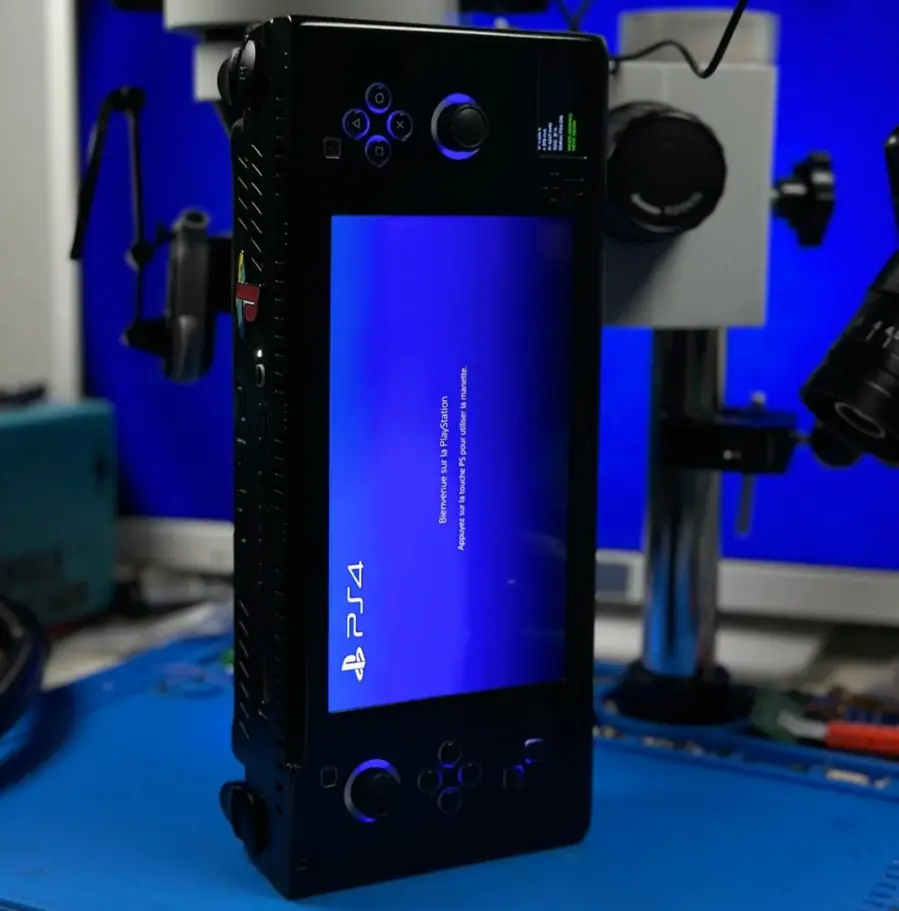

The handheld boasts a striking 7-inch 1080p OLED screen, providing a visually rich experience with deep blacks and vibrant colors. Complementing the display is a custom-designed, 3D-printed ABS plastic shell that houses not only the miniaturized components but also integrated controls with LED backlighting and a small screen for monitoring system status. For added versatility, the device includes an HDMI output, allowing it to function as a traditional PS4 when connected to an external display.
Powering the Portable Powerhouse
To fuel this portable console, a substantial battery pack has been integrated, consisting of six 21700 cells with a combined capacity of approximately 130 Wh. This setup provides an estimated battery life of 2.7 to 3 hours for less demanding games, while more intensive AAA titles will reduce playtime to around 1.3 to 1.5 hours. The system is designed to automatically shut down at low voltage levels to protect the battery cells.
While this remarkable creation is a personal engineering challenge and not intended for mass production or sale, it stands as a testament to the ingenuity of the modding community and the potential for breathing new life into existing console hardware.
Via Reddit
