MSI MPG X670E Carbon WiFi Motherboard Review

Testing – SATA, USB, & Power

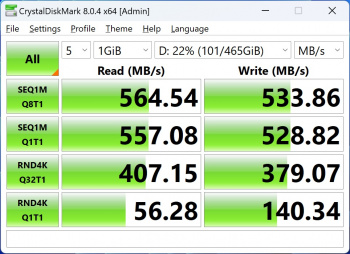

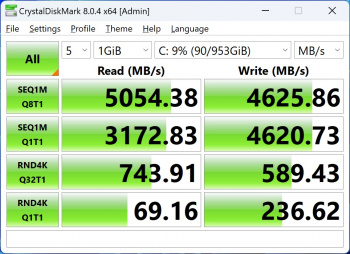

To test SATA, M.2, and USB speeds we make use of CrystalDiskMark hard drive benchmarking tool. For our SATA drive we are using the Samsung 870 EVO and for our M.2 drive we are using the Silicon Power UD90. The SATA results are on the left while our M.2 results are on the right.

msi mpg x670e carbon wifi ssd msi mpg x670e carbon wifi nvme

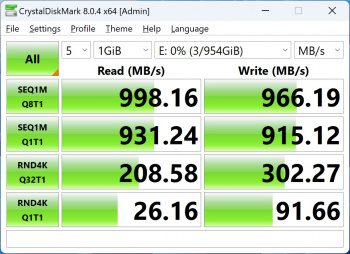

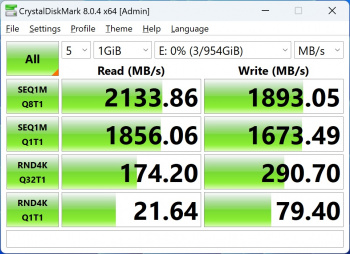

For USB testing we have the Lexar SL660 BLAZE, which is a USB 3.2 gen 2×2 drive. We used both Type-C connections on the rear I/O, one is USB 3.2 gen 2, while the other is USB 3.2 gen 2×2.

msi mpg x670e carbon wifi usb1 msi mpg x670e carbon wifi usb2

Power consumption for a system is of course very important. To measure power consumption I used a killawatt meter. The idle test is taken on the Windows 10 desktop and the load test is taken while running AIDA64’s system stability test with GPU’s enabled. Remember these values are for the entire system.

Idle: 76.7W
Load: 529.8W
