Patriot Hellfire PCIe M.2 Solid State Drive Review

Testing – Anvil, PCMark Vantage & AIDA64
The next test is Anvil Storage Utilities, which is a really great piece of software. The SSD benchmark gives you scores for both read and write as well as a combined score. We run the test at 0Fill first and then at normal or 100% incompressible.


Once again the write speeds decrease when testing non-compressed data.

We also use Anvil to test IOPS. The Threaded Read and Write tests are great for this. On each one we set the QD to 32.

anvil2 anvil3

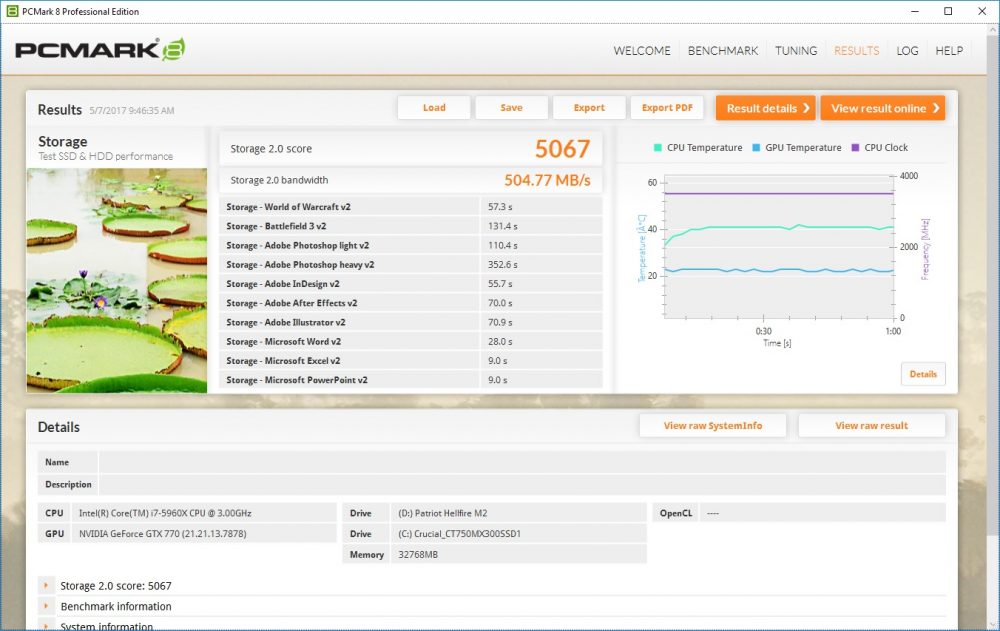

Next up is PCMark 8, we will be running the typical Storage Benchmark.


We have added back AIDA64’s Disk Benchmark to our testing. The linear tests will actually scan from the first physical sector to the last on the test drive. This gives a good representation of sustained read / write operations. We will be running the linear read and write tests using a 1MB block size.

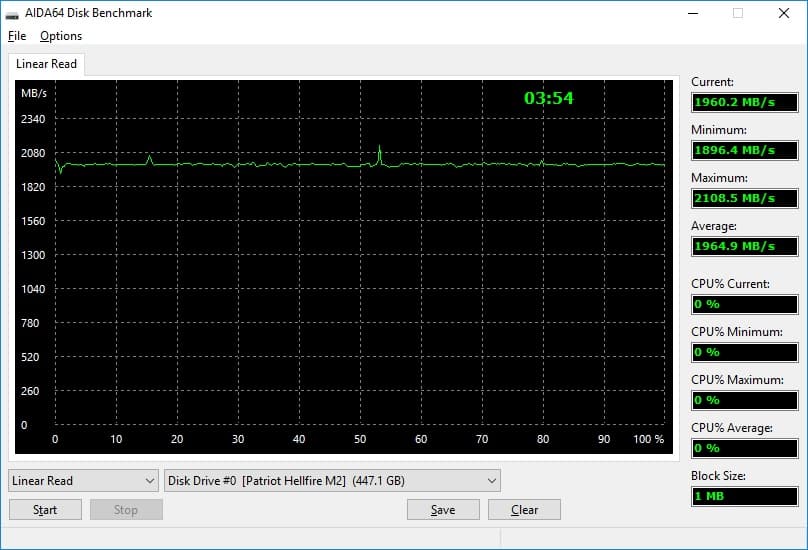

aida read

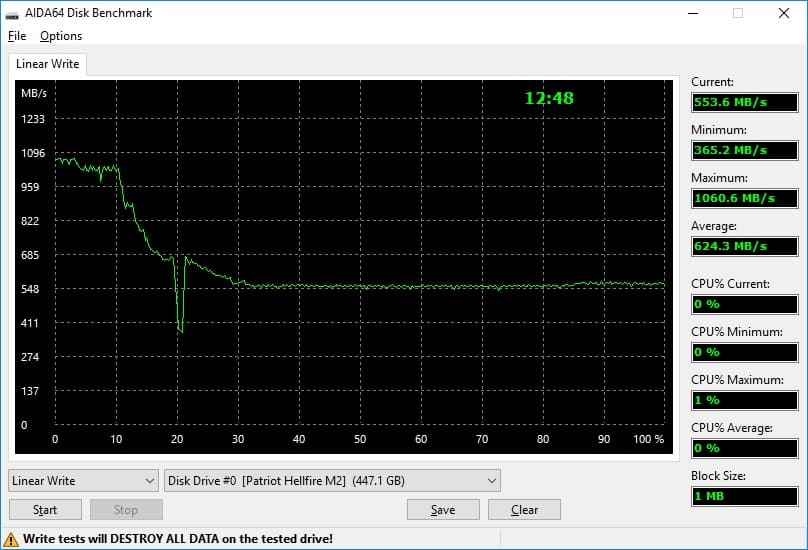

aida write

As you can see from this test the sustained write speed drops off after long sustain writes to the drive.
