In a testament to the enduring legacy of 3dfx, dedicated enthusiasts are breathing new life into the iconic Voodoo graphics cards. These groundbreaking accelerators from the mid-90s, which revolutionized PC gaming with their 3D capabilities, are now being enhanced with custom modifications, including increased VRAM and improved output options, pushing their performance even further.
Key Takeaways
- Enthusiasts are successfully modding original 3dfx Voodoo cards to increase VRAM and improve performance.
- These mods leverage the modular design of the original Voodoo architecture.
- Performance gains, while not matching modern GPUs, are significant for the era.
- New projects are even adding modern features like DVI output.
The Voodoo’s Modular Design and Performance Potential

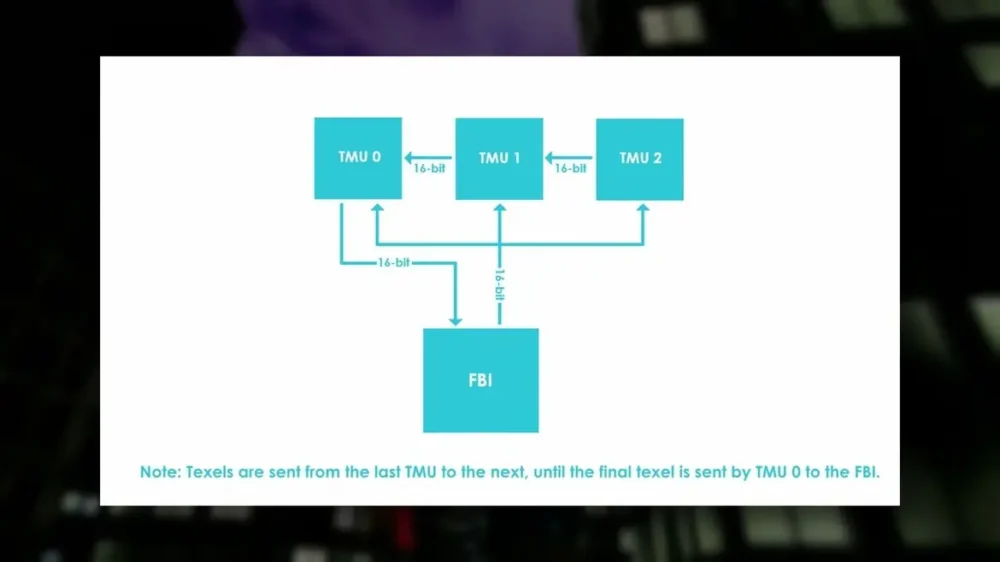

The original 3dfx Voodoo graphics card was a marvel of its time, introducing mainstream gamers to accelerated 3D graphics. Its innovative architecture split the rendering pipeline into separate chips: the Texture Mapping Unit (TMU) and the Frame Buffer Interface (FBI). This modularity, while initially a cost-saving measure, also laid the groundwork for future enhancements.
Doubling Down on Texturing: The Dual-TMU Mod

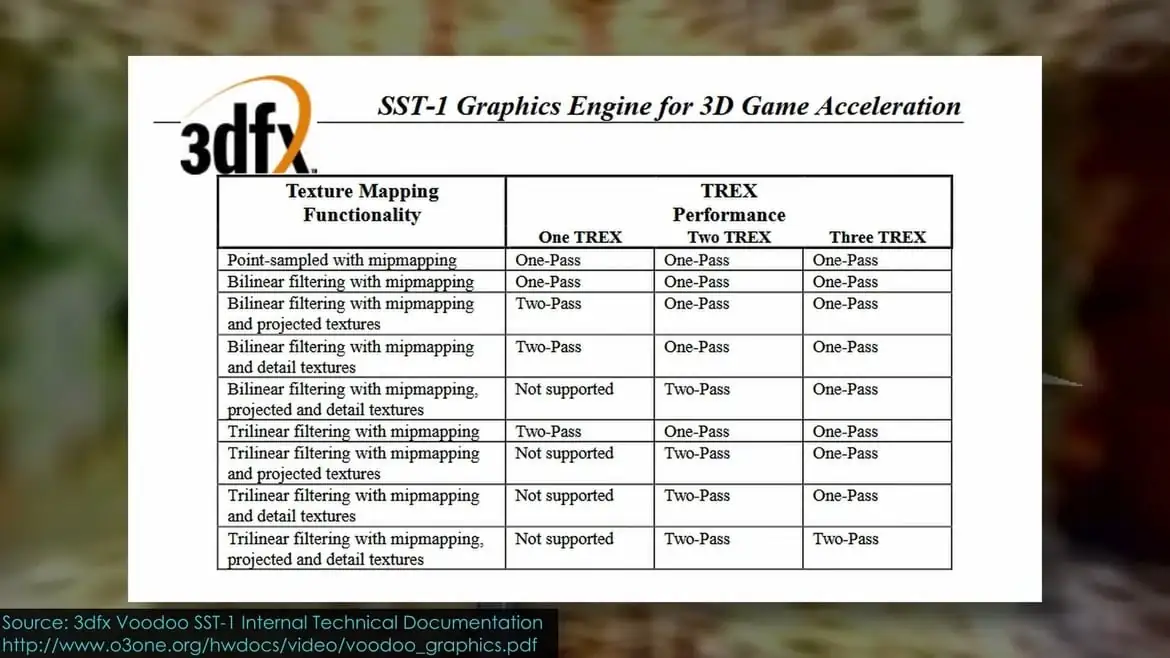

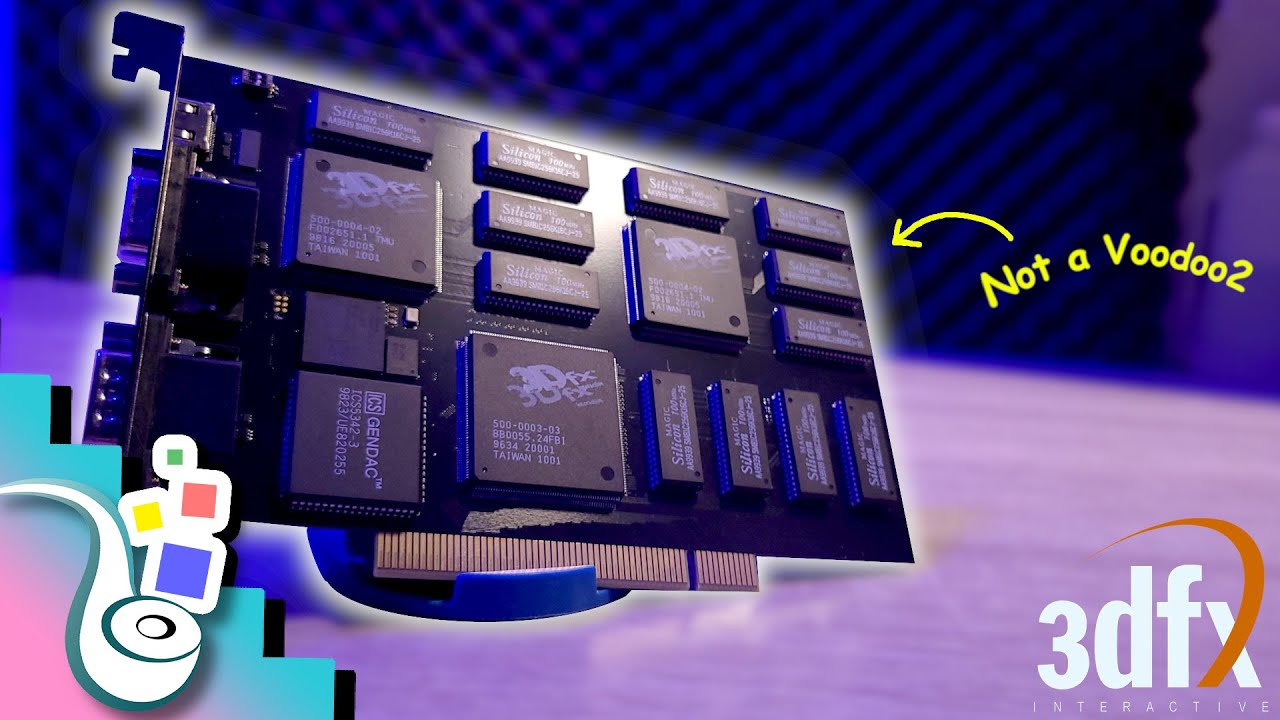

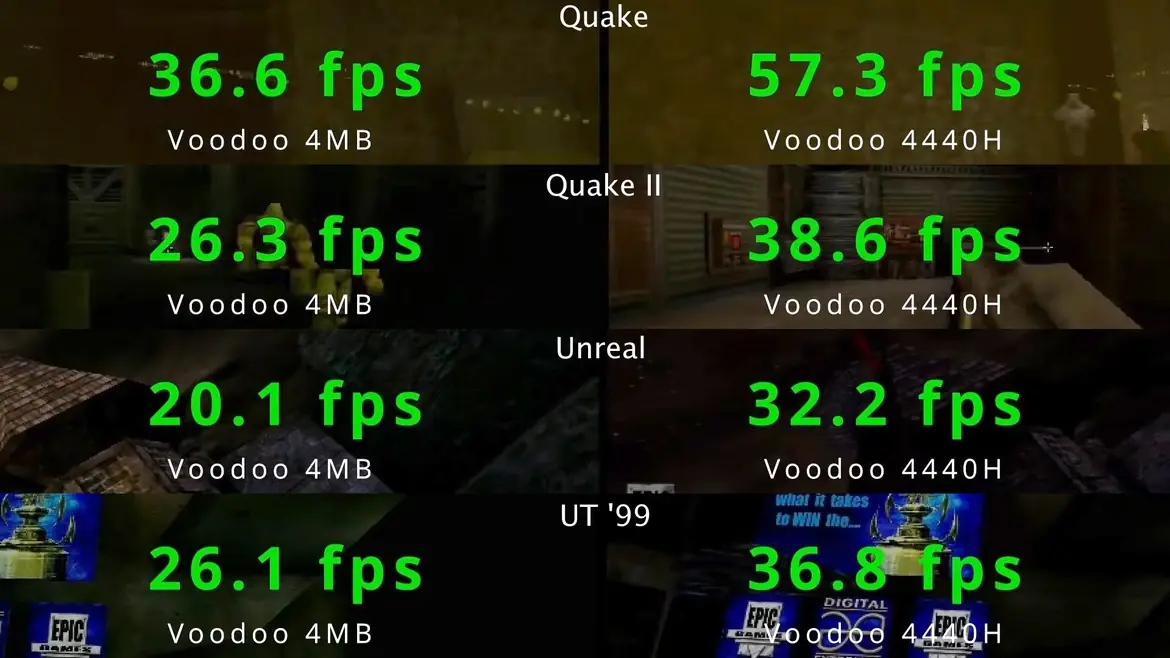

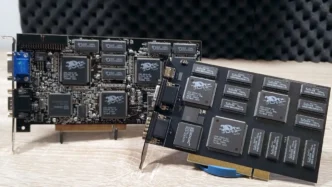

One of the most significant mods involves adding a second TMU and its associated VRAM to the Voodoo card. This effectively transforms the single-TMU design into a dual-TMU configuration, similar to the later Voodoo 2. This upgrade can lead to substantial performance improvements, with tests showing gains of up to 60% when paired with a more powerful CPU from a later era. While the original Voodoo ran at 50MHz, this mod allows the card to better handle single-pass multi-texturing, a technique that became more prevalent as games evolved.
Expanding VRAM: From 4MB to 8MB and Beyond
Many original Voodoo cards shipped with 4MB of EDO DRAM, but the Voodoo chip itself supported up to 8MB. Modders have developed creative solutions, such as piggyback PCBs, to add the extra VRAM without resorting to tedious chip-stacking and soldering. These daughterboards allow for a cleaner installation, bringing the total VRAM to 8MB. While benchmarks show modest performance increases with these VRAM upgrades, they are crucial for maintaining stability and frame rates in more demanding titles of the era.
The VoodooX Project: A Glimpse into the Future of Retro
Beyond memory upgrades, ambitious projects like “VoodooX” are pushing the boundaries further. This custom Voodoo card, based on the VSA-100 GPU found in Voodoo4 and Voodoo5 cards, boasts an impressive 32MB of RAM and, notably, adds DVI output. This modern connectivity offers a significantly clearer and crisper image compared to the original VGA output, demonstrating a commitment to not only preserving but also improving the retro gaming experience.
These modifications highlight the ingenuity of the retro computing community, proving that even decades-old hardware can be revitalized and enjoyed with a fresh perspective and a bit of modern engineering.
