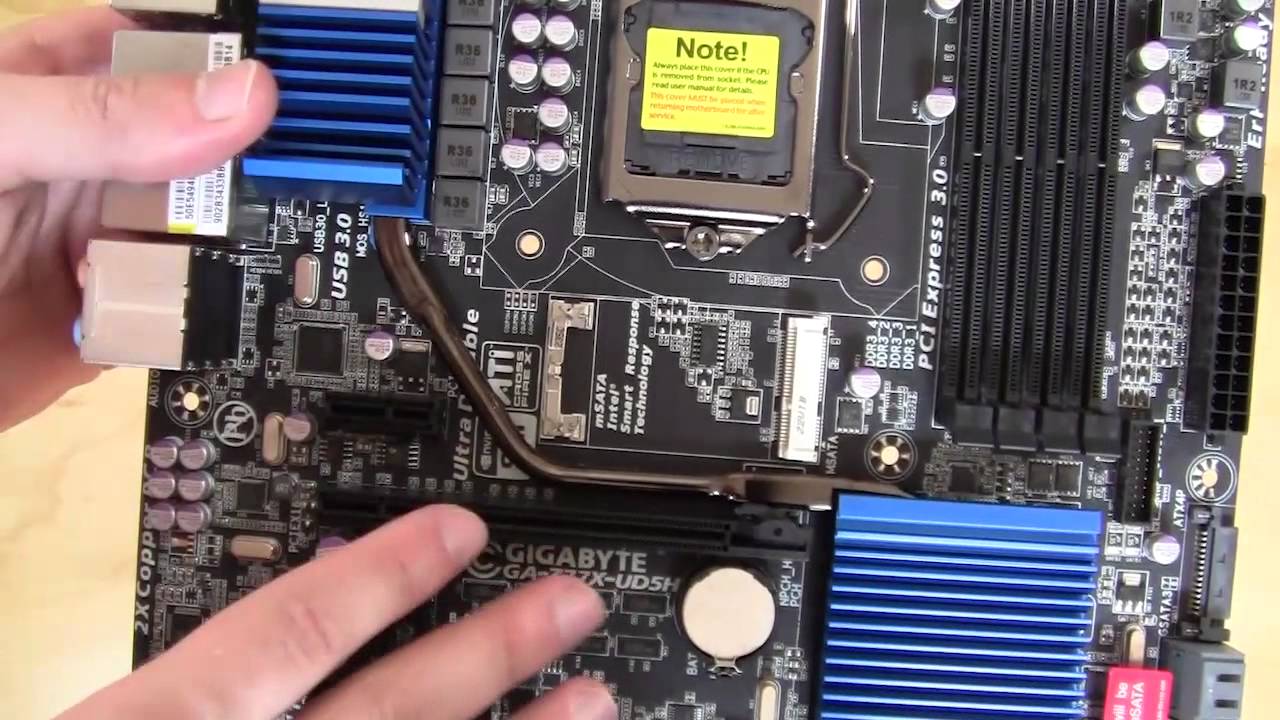

Unboxing the Gigabyte Z77X-UD5H WiFi Motherboard!

Not that long ago we took a look at Gigabyte’s Z77X-UD3H Intel Z77 Motherboard and today we get a first look at the Z77X-UD5H WiFi board. This board is a step up from the UD3H and features Gigabyte’s 3D Power Control, 3D BIOS, PCI-Express 3.0 support, a dual band WiFi and Bluetooth 4.0 expansion card, mSATA port and much more! Will this board be on this list for your Intel Z77 build? Read on to check out our unboxing and overview video!

Product Link: Click Here
Provided By: Gigabyte
Purchase: Newegg
Information: GIGABYTE 7 series motherboards combine a host of new and exciting technologies with the latest Intel Z77 Express Chipset, creating a unique range of motherboard designs that harness the outstanding performance of the new 3rd generation Intel® Core™ processors. With an exclusive ‘Digital’ VRM design, GIGABYTE 3D Power and GIGABYTE 3D BIOS (Dual UEFI), GIGABYTE 7 series motherboards ensure exceptional power delivery and absolute control, with additional features that ensure an unrivalled experience on your next PC build.

GIGABYTE All Digital Power Engine
GIGABYTE Z77 series motherboards take advantage of an exclusive All Digital PWM controller array, to deliver power to the board’s 3rd generation Intel® Core™ processor. Using entirely digital controllers means that more precise power delivery to the motherboard’s most power hungry and energy sensitive components is possible. These components include the CPU, VTT, processor graphics and memory, without doubt the most important components on your motherboard. This All Digital Power system, with Precise Auto Voltage Compensation, provides you with exceptional control over the component power delivery on your GIGABYTE 7 series motherboard.

GIGABYTE 3D BIOS (patent pending)
The revolutionary GIGABYTE 3D BIOS application is based on GIGABYTE UEFI DualBIOS™ technology and is available to consumers in two exclusive modes of interaction, providing enthusiast and mainstream users with a choice of unique and powerful graphical interfaces.

Designed for PCI Express Gen.3 Support
GIGABYTE 7 series motherboards take advantage of the latest connectivity and expansion bus technologies available on the Intel platform. The 3rd generation Intel® Core™ processor platform debuts the new PCI Express gen. 3.0 expansion bus, allowing users to take advantage of the next generation, high-bandwidth discrete graphics card solutions.

Onboard OC Features
GIGABYTE Z77 motherboards add special onboard features that assist DIY builders and overclockers in getting the absolute maximum control from their new 3rd generation Intel® Core™ processors.

Onboard Power and Reset buttons are accompanied by a LED Debug Display that puts users in the driving seat when experimenting with different hardware configurations.

Overclockers will appreciate having Onboard Voltage Read Points, which have been added to allow for accurate real-time voltage reading when pushing your processor and memory to absolute extremes. OC-PEG provides two onboard SATA power connectors for more stable PCIe power when using 3-way and 4-way graphics configurations.

An exclusive Onboard BIOS Switcher is also included which allows users to easily switch between the motherboard’s Dual UEFI BIOS ROMs. This makes it easier to switch between overclocking and regular BIOS settings and also to try a new BIOS revision without losing your original settings. An Onboard Clear CMOS buttons makes it easier than ever to reset your BIOS to its factory defaults.

Exclusive Bluetooth 4.0/WiFi Expansion Card
The motherboard also includes an exclusive PCIe expansion card that offers support for the latest Bluetooth 4.0 and IEEE 802.11 a/b/g/n Wi-Fi connectivity. The Bluetooth 4.0 standard includes Smart Ready technology that is debuting on mobile devices including the Apple® iPhone® 4s. This means that transferring important content from your smart phone or tablet is easier and faster than ever.
