Testing – Anvil, PCMark Vantage & AIDA64

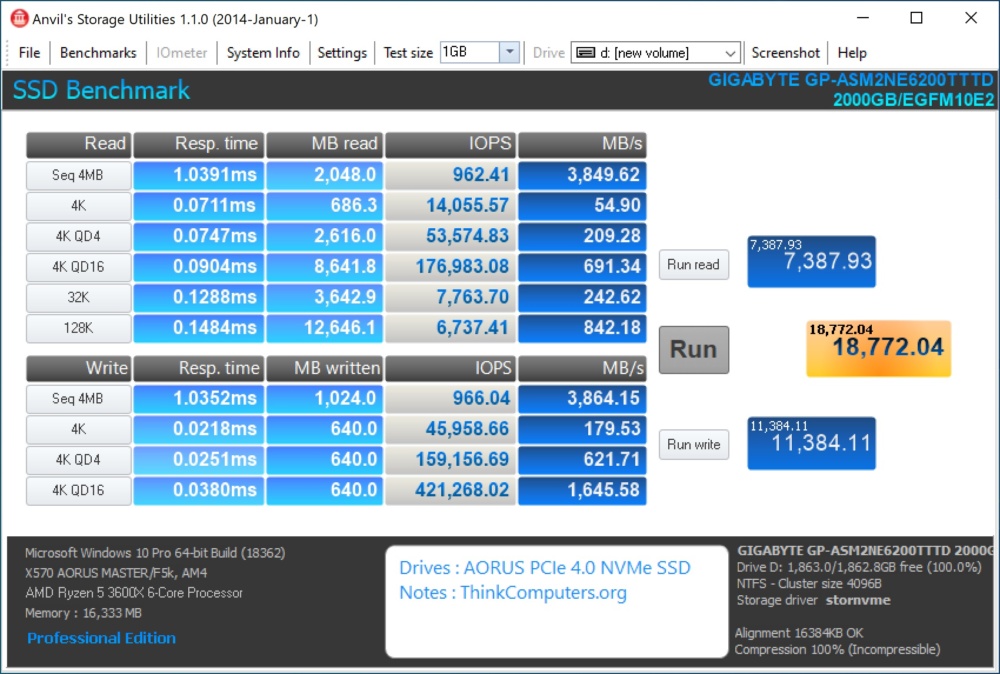

The next test is Anvil Storage Utilities, which is a really great piece of software. The SSD benchmark gives you scores for both read and write as well as a combined score.

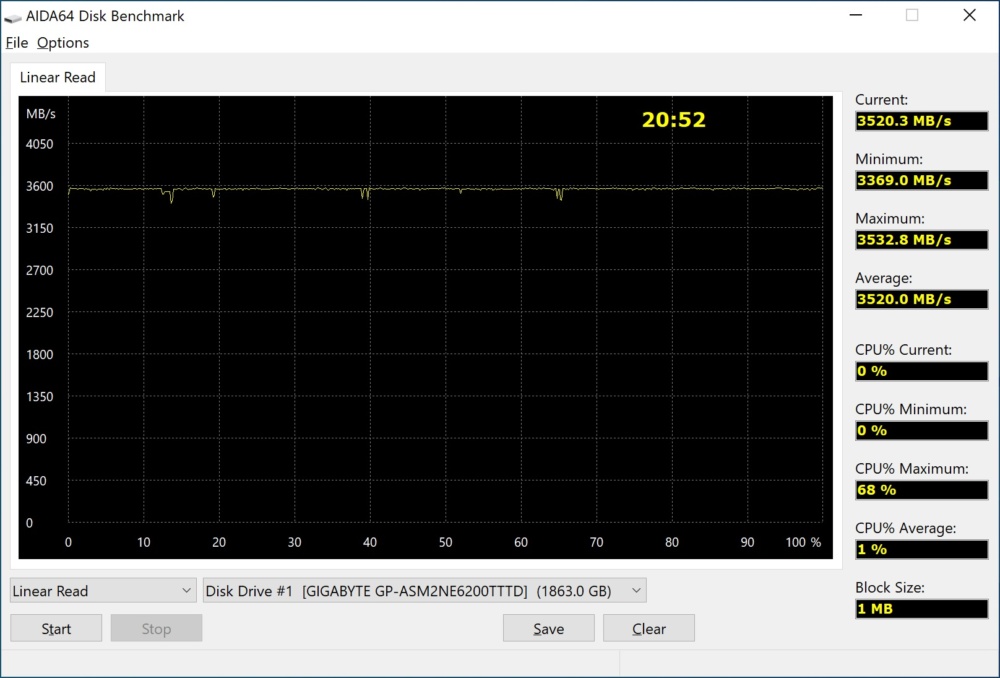

We have added back AIDA64’s Disk Benchmark to our testing. The linear test will actually scan from the first physical sector to the last on the test drive. This gives a good representation of sustained read / write operations. We will be running the Linear Read test using a 1MB block size.

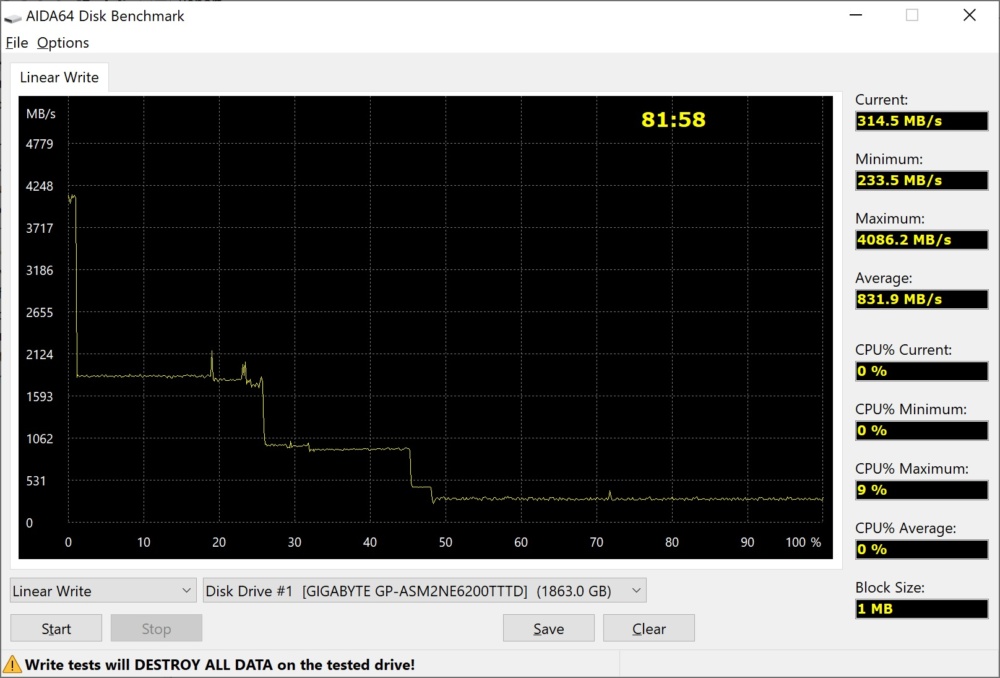

We then run the Linear Write test using the same 1MB block size.
As you can see the drive starts out quite good around 4GB/s, but once the cache is expired the performance of the drive goes down quite a lot.
