Aqua Computer has announced the launch of Ampinel, an innovative safety device designed to prevent overheating and connector failures on high-end graphics cards using the contentious 12V-2×6 (16-pin) power connectors. Ampinel goes beyond monitoring, employing active current balancing for greater peace of mind among gamers and PC enthusiasts.
Key Takeaways
- Ampinel actively balances current across all six 12V lines in GPU power connectors
- Features real-time monitoring, live OLED display, and eight-stage alarm system
- Can automatically shut down systems or cut GPU power during emergencies
- Priced at €79.90 (approx. $94), shipping starts November
Addressing a Persistent GPU Connector Problem
Since the introduction of Nvidia’s RTX 40-series GPUs, the new 12V-2×6 connector has garnered unwanted attention due to sporadic cases of melting connectors and cables. These incidents, largely attributed to uneven power delivery, improper cabling, or missing load-balancing circuitry, have left users concerned about potential hardware damage. Previous solutions primarily focused on passive monitoring, often providing too little, too late
Ampinel’s Proactive Safety Features
Ampinel takes a fundamentally different approach by employing a six-channel, microcontroller-driven load balancer. This system continuously monitors every 12V line within the connector and intervenes when it detects that any single pin is carrying more than 7.5A — the rated safety limit. When necessary, the device redistributes excess load in real time, preventing local overheating and significantly reducing the risk of connector damage or GPU failure.

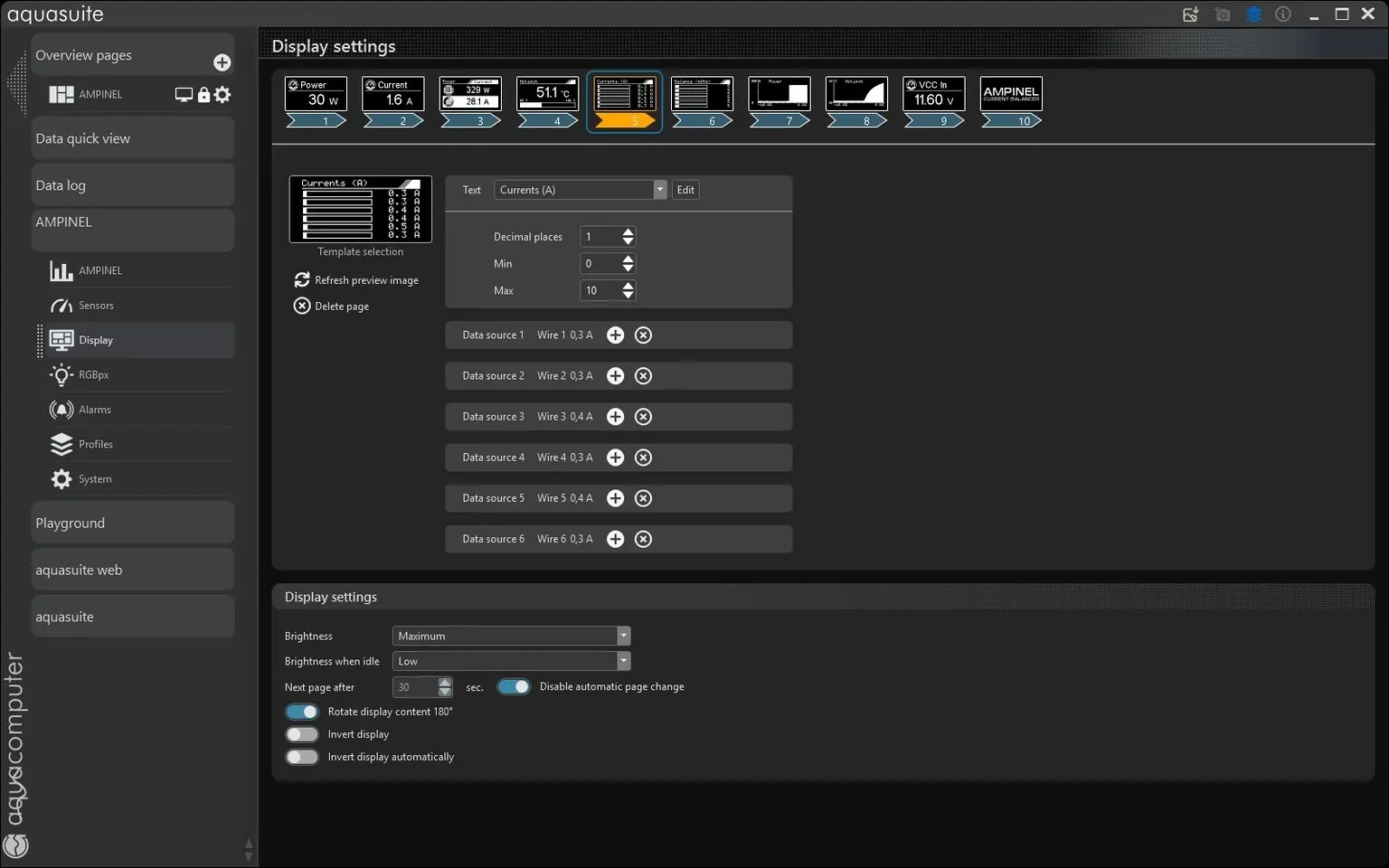

Additional safeguards include an integrated OLED display that shows per-line currents live, RGB LEDs for visual alerts, and an 85 dB audible alarm to warn users if action is needed. Crucially, all protection features are hardware-based and function independently of any software, ensuring consistent safety even if the host system is compromised.
Advanced Monitoring and Alarms

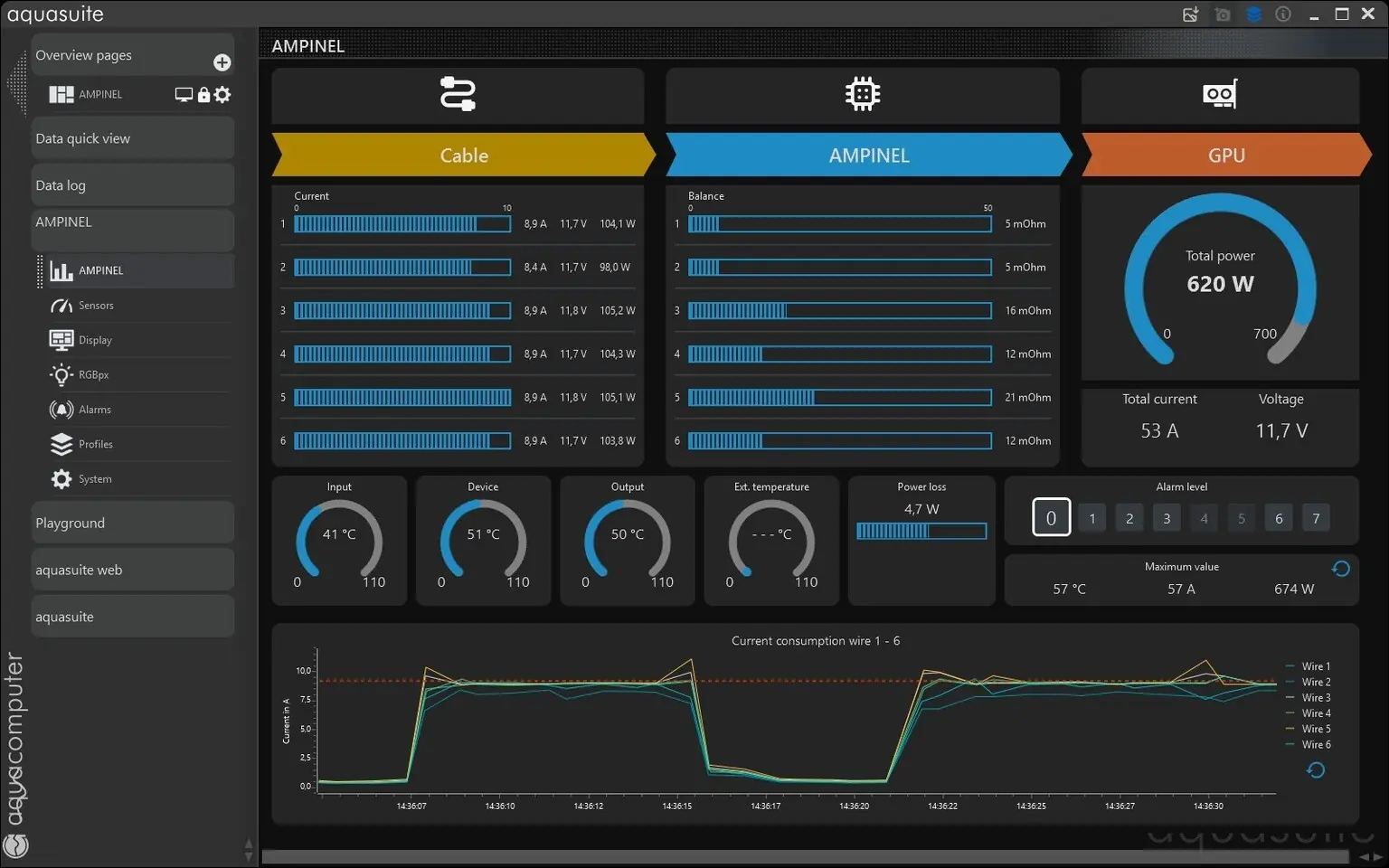

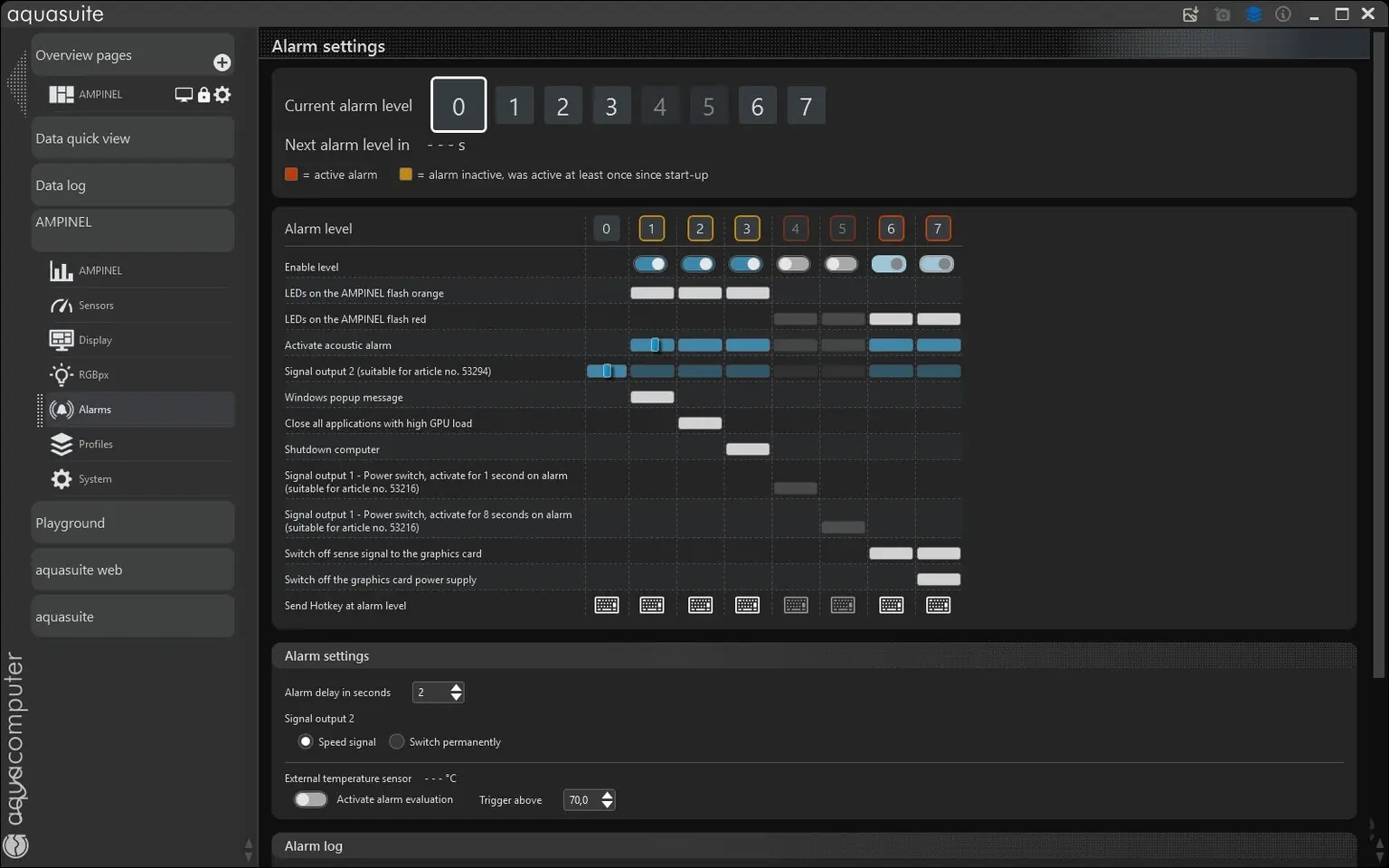

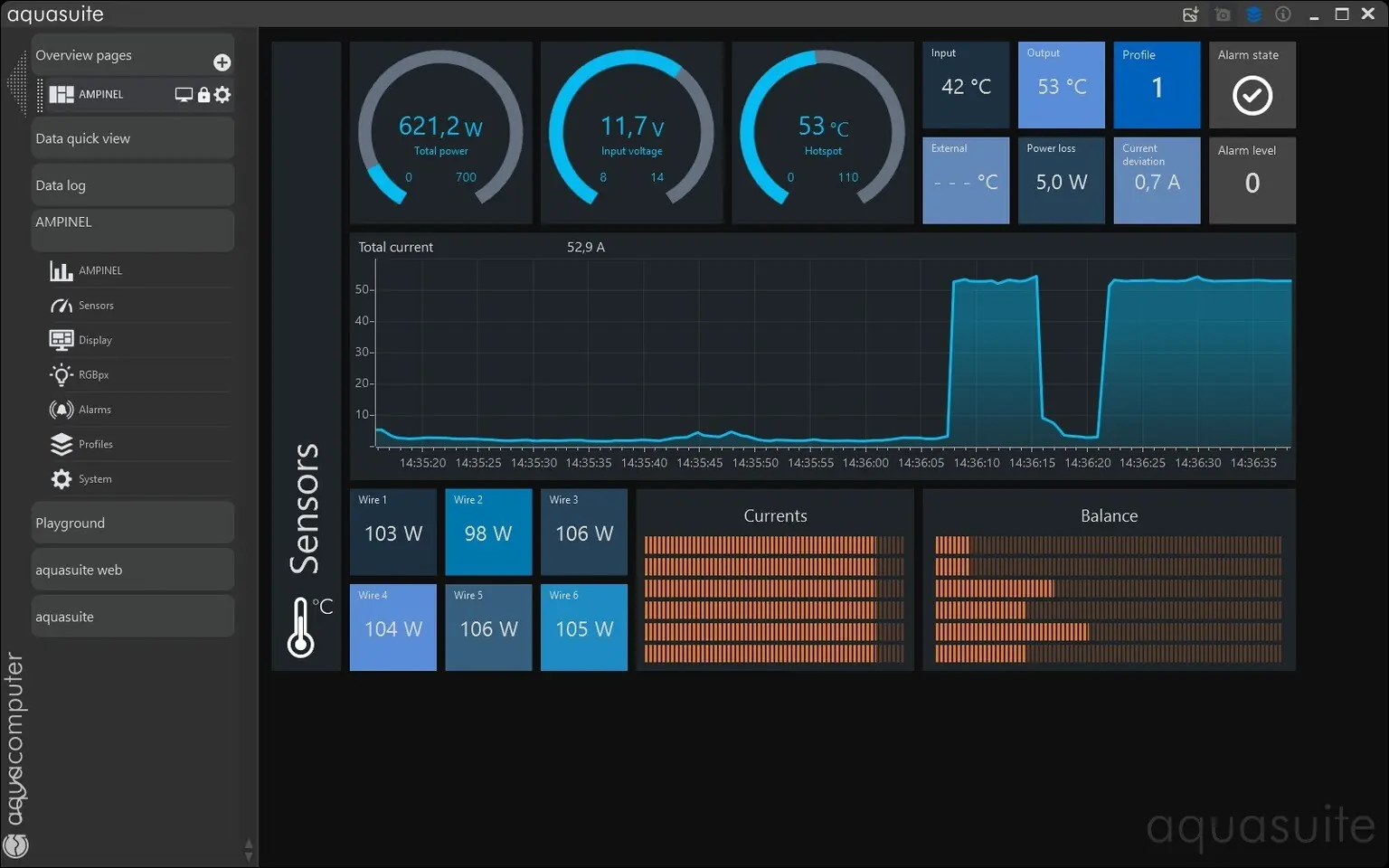

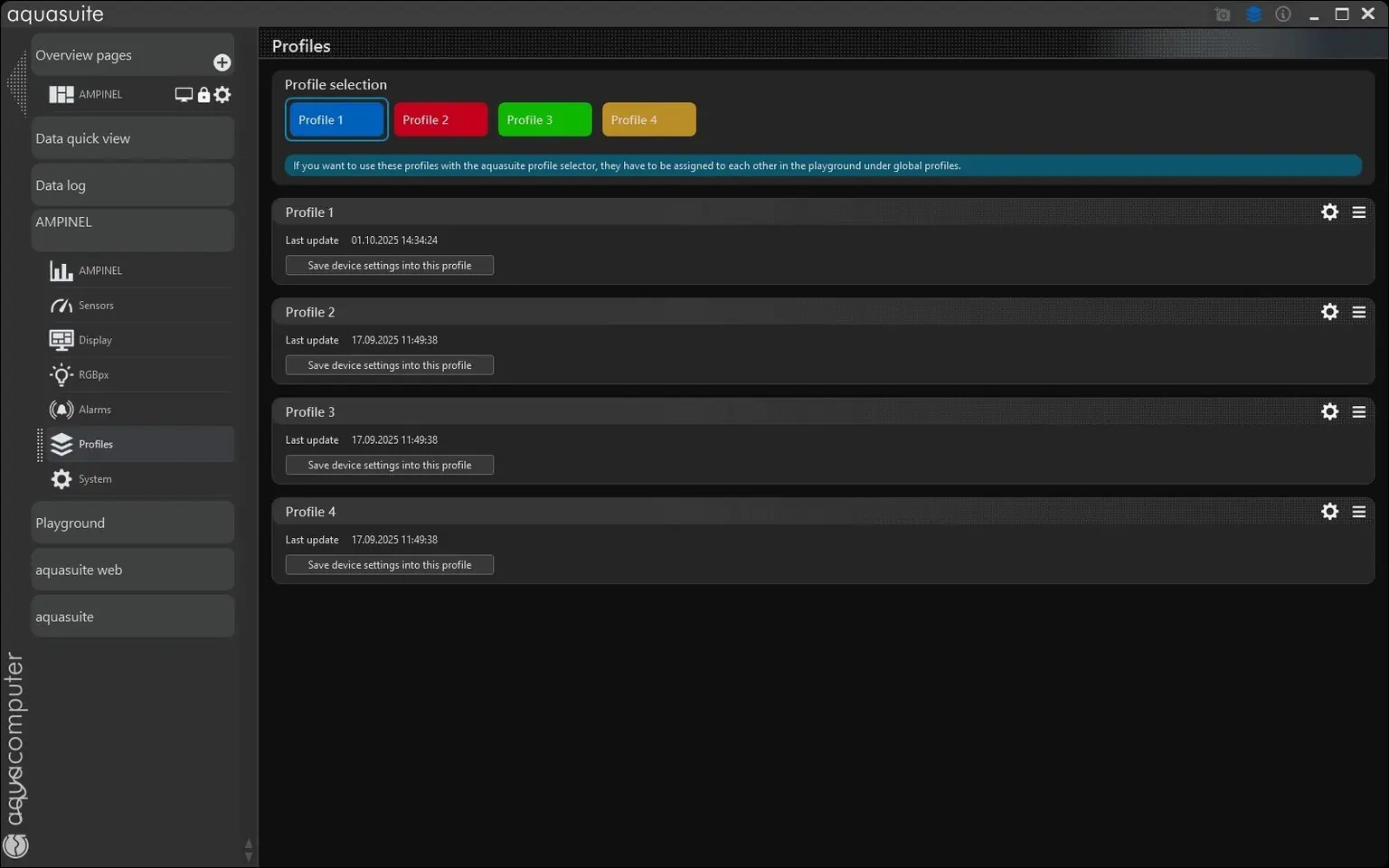

With the bundled aquasuite software, users can access more than 40 monitoring parameters, set up custom alarm levels, and even configure automated actions such as closing resource-heavy applications or initiating a full system shutdown during critical overcurrent events. A unique feature: Ampinel can deactivate the GPU sense line—effectively cutting off power before damage can occur.

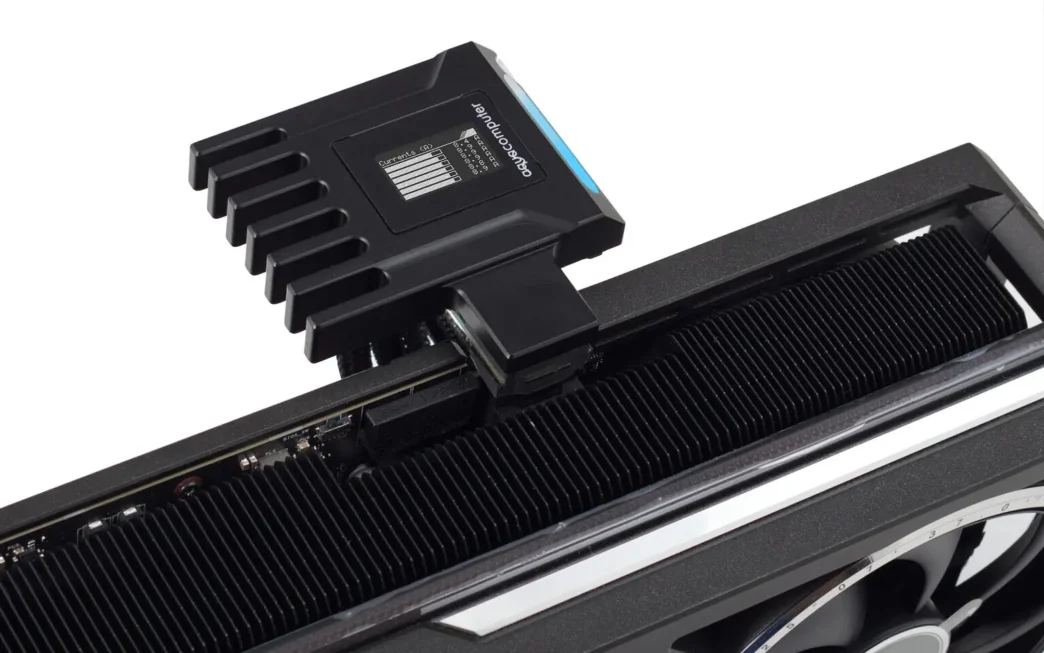

The device is housed in a black-anodized aluminum casing with robust mechanical design and can handle GPUs drawing up to 650 W. Ampinel supports both inward and outward latch connectors.
Who Should Buy Ampinel?
With a retail price of €79.90 (about $94), Ampinel is positioned as an insurance solution for users who run expensive RTX 4090/5090 cards, hardware reviewers, or extreme overclockers. While casual gamers on lower-powered cards may find it unnecessary, power users seeking to safeguard their investment in high-end GPUs will likely value Ampinel’s multi-layered protection.
Aqua Computer is opening orders in November, and a white model may follow for aesthetically minded builds. As GPU power demands continue to climb, Ampinel could become an essential accessory for those unwilling to risk hardware failure due to power delivery issues.
Via Aqua Computer
