Cooler Master MasterBox Q500L Case Review

One of the more popular case reviews we published last year was of Cooler Master’s MasterBox Q300L. It was a very compact Micro-ATX case with a great price point and a handful of features. This year Cooler Master is releasing an ATX version of that case, which is the MasterBox Q500L. The Q500L definitely has to be one of the most compact ATX case we’ve seen, but it still has room inside for an ATX power supply, long graphics cards, and up to four hard drives. You are going to get all of this for only $59.99. Being that this case is so small it could make the perfect LAN rig, read on as we get a system installed in this case and see what it is all about!

Special thanks to Cooler Master for providing us with the MasterBox Q500L case to review.

Specifications

Product Name MasterBox Q500L
Product Number MCB-Q500L-KANN-S00
Exterior Color Black
Materials – Body Steel, Plastic
Materials – Windowed Side Panel Acrylic
Dimensions 386(L) x 230(W) x 381(H) mm
Motherboard Support Mini-ITX, Micro-ATX, ATX
Expansion Slots 7
5.25″ Drive Bays 0
Combo 3.5″ / 2.5″ Drive Bays 2 (each bay supports: 1 HDD or 2 SSDs)
2.5″ SSD Drive Bays 0
I/O Panel – USB Ports USB 3.0 x 2
I/O Panel – Audio In / Out 1 x 3.5mm Audio Jack, 1 x 3.5mm Mic Jack
Pre-installed Fan(s) – Rear 120mm x 1
Fan Support – Top 120mm x 2 or 140mm x 2
Fan Support – Rear 120mm x 1
Fan Support – Bottom 120mm x 2
Radiator Support – Top 120 / 240mm (35mm max motherboard component height)
Radiator Support – Rear 120mm
Clearance – CPU Cooler 160mm / 6.29 inch
Clearance – Power Supply 180mm / 7.08 inch
Clearance – Graphics Card 360mm / 14.17 inch (270mm clearance with PSUs longer than 160mm)
Cable Routing – Behind MB Tray 27~30mm
Dust Filters Bottom
Power Supply Support Top front mount, ATX PS2
EAN Code 4719512080580
UPC Code 884102053078



Packaging

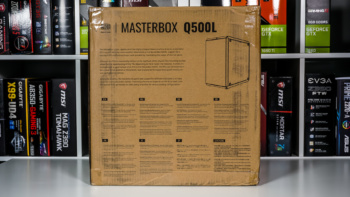

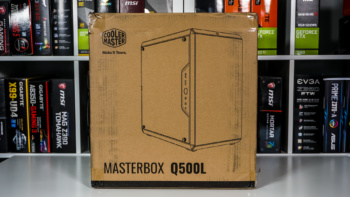

The Cooler Master MasterBox Q500L comes in Cooler Master’s typical case packaging. There is an illustration of the case on the front and lets us know that we indeed have the Q500L. Flipping over to the back there is a small paragraph about the case itself and a list of features in a handful of different languages.

Cooler Master MasterBox Q500L Case Cooler Master MasterBox Q500L Case

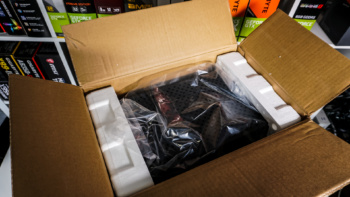

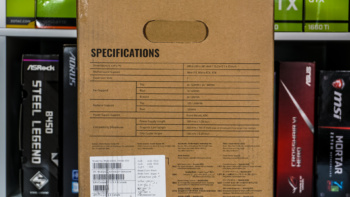

On one side of the box there is a list of specifications. Opening the box up we can see that the case is nicely protected.

Cooler Master MasterBox Q500L Case Cooler Master MasterBox Q500L Case
