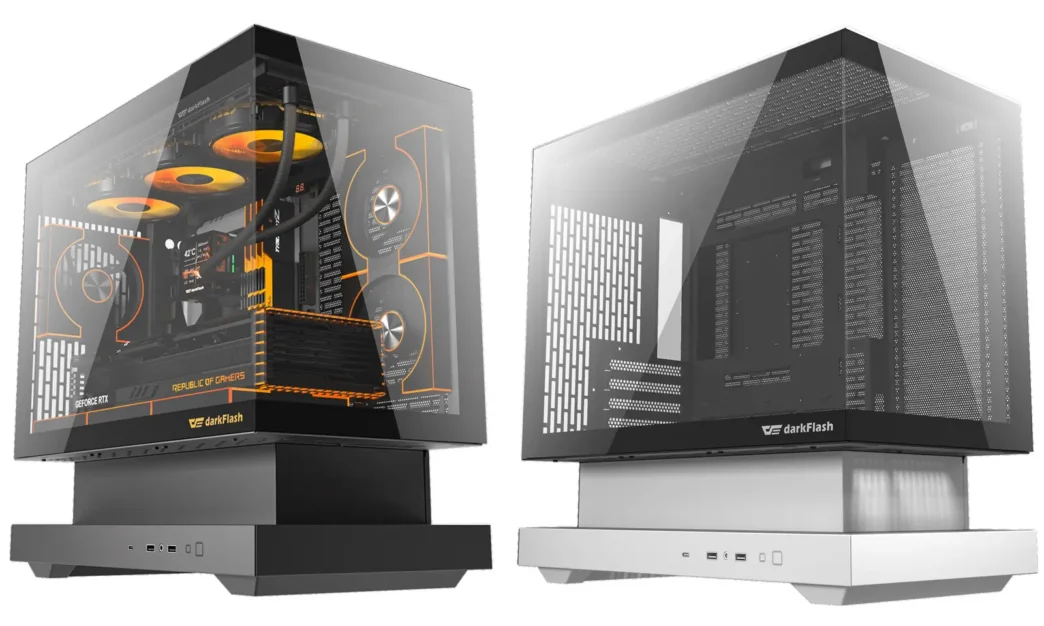

darkFlash has launched the FLOATRON F1, a new microATX PC case distinguished by its innovative floating extended base. This design aims to significantly improve airflow and offer greater hardware compatibility, catering to PC builders seeking both performance and aesthetic appeal. The case is available in black and white.
Key Takeaways
- Innovative Floating Base: Enhances GPU cooling by 5-7°C and provides a display platform.
- MicroATX and Mini-ITX Support: Accommodates a range of motherboard sizes.
- Robust Cooling Options: Supports up to nine fans and 360mm radiators.
- Tool-Free Design: Features a clamshell-style side panel for easy access.
- Modern Connectivity: Includes USB Type-C and USB 3.0 ports.
Design and Airflow

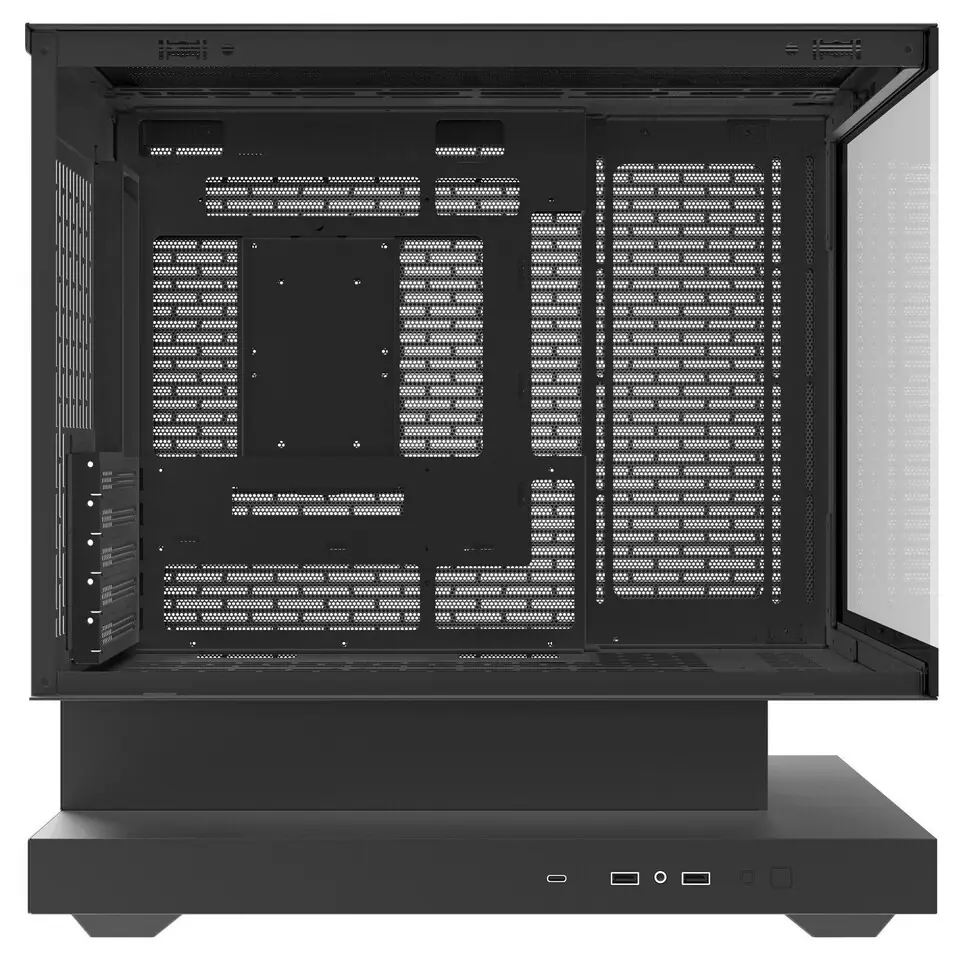

The FLOATRON F1 is constructed from 0.8 mm SPCC steel, measuring 431 x 240 x 421 mm, with an overall footprint of 436 x 240 x 436 mm due to its extended base. This unique base elevates the chassis, promoting better airflow around the GPU and potentially reducing temperatures by 5-7°C. It also doubles as a space for custom lighting or decorative elements.

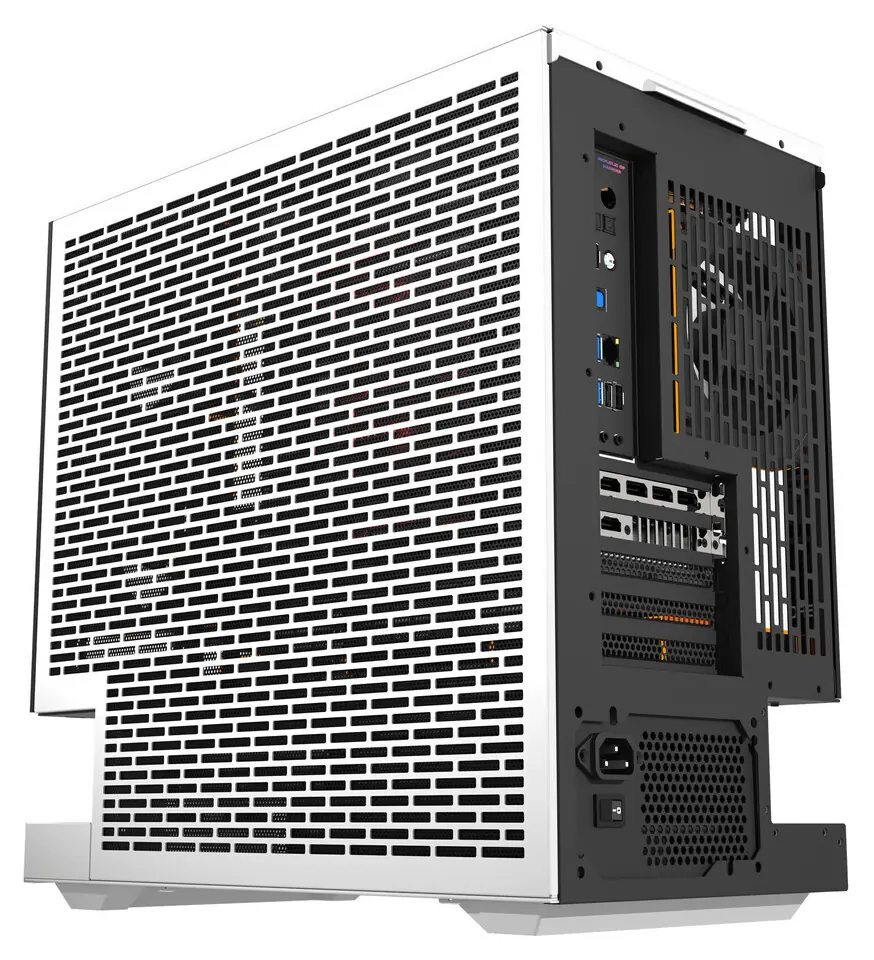

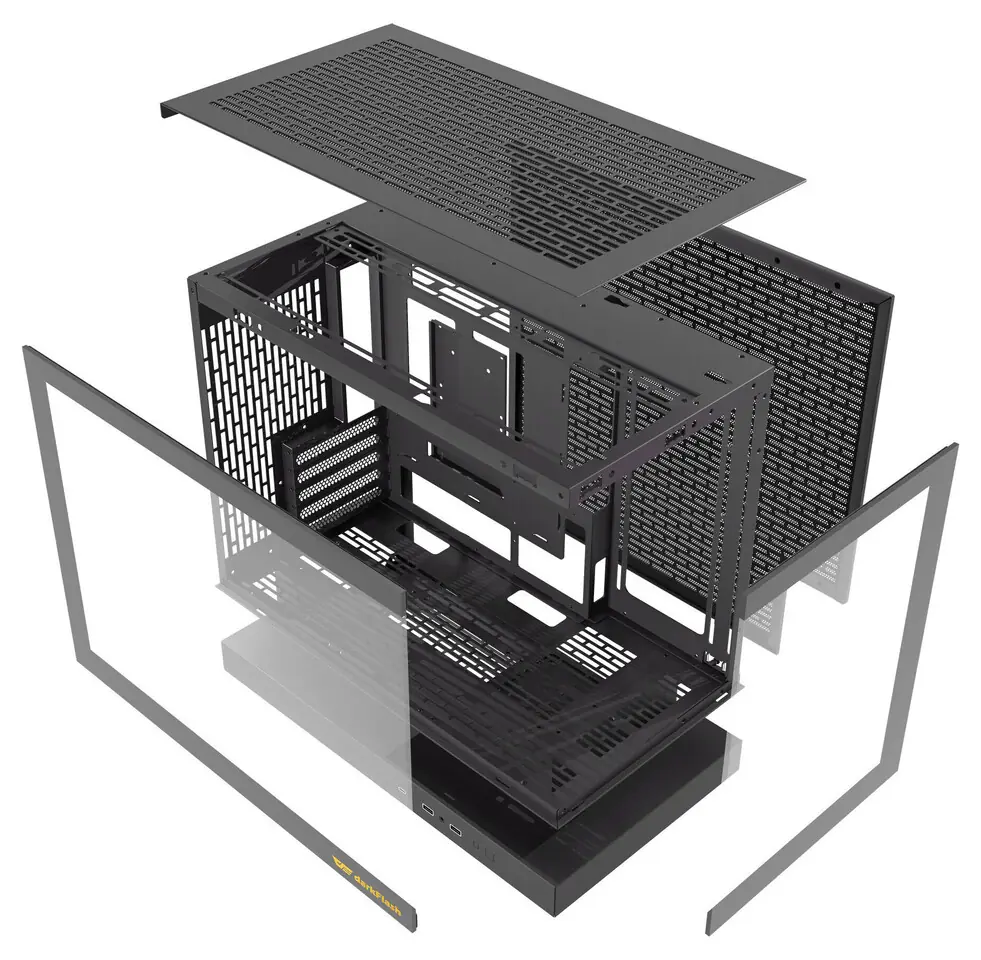

The case features a vertical air duct layout and open ventilation on its side, top, bottom, and rear panels to ensure optimal thermal performance. The side panels utilize a screwless, tool-free clamshell design for convenient access to internal components.
Compatibility and Storage
Designed for microATX and Mini-ITX motherboards, the FLOATRON F1 offers ample clearance for high-performance components. It supports GPUs up to 350 mm in length and CPU coolers up to 185 mm in height, with five PCIe slots available for expansion.
For storage, users can install up to three 2.5-inch SSDs and three 3.5-inch HDDs, providing flexibility for various storage needs.
Cooling Capabilities
The FLOATRON F1 boasts extensive cooling support, accommodating up to nine fans and radiators up to 360 mm at the top. Specific fan mounting options include:
- Top: 3x 120 mm or 2x 140 mm
- Side: 2x 120 mm or 2x 140 mm
- Rear: 1x 120 mm or 1x 140 mm
- Bottom: 3x 120 mm
Radiator support is also available for 360 mm, 280 mm, and 240 mm units at the top.
Connectivity and Availability
The front I/O panel is equipped with modern connectivity, including one USB Type-C port, two USB 3.0 ports, HD audio jacks, and dedicated power and reset buttons. darkFlash has not yet announced specific availability dates or pricing for the FLOATRON F1.
Via darkFlash
