Fractal Design Ion+ 860p 860W Power Supply Technical Overview

Fractal Design is introducing a new line of power supplies today. They are called Ion+ and they are loaded with great features. To start these units are available in 560W, 660W, 760W, and 860W and all offer an 80PLUS Platinum efficiency rating and 10 year warranty. Fractal Design is shipping their new UltraFlex DC cabling with this unit, these cables bend and twist effortlessly to simplify installation in tight spaces, allow precision cable-routing, and eliminate the inherent hassles of traditional rigid power supply wiring. Under the hood you have premium Japanese 105°C capacitors and a custom-tailored Dynamic Series 140 mm fan with exceptionally low minimum speed and true long-life FDB bearing. You can even set this fan to turn off completely when your system is idle. Is this the next power supply for your new build? Read on as we find out.

Special thanks to Fractal Design for providing us with the Ion+ 860p 860W Power Supply.

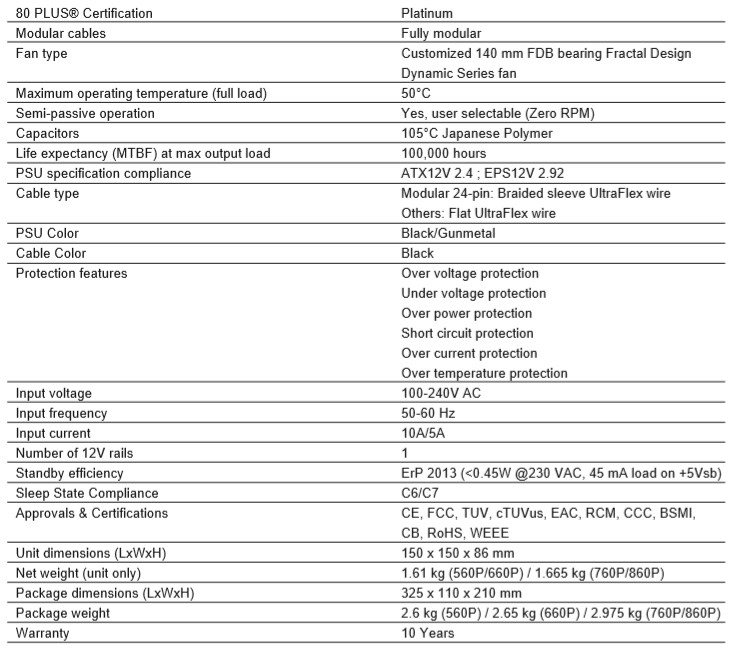

ion specs

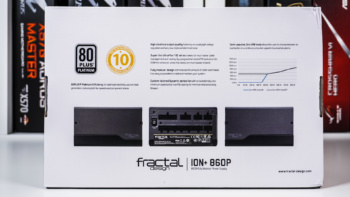

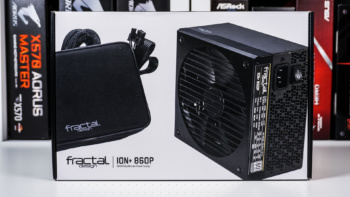

The Ion+ 860P comes in a very nice retail box. On the front there is a picture of the unit. Flipping over to the back we have a few more photos and some of the main features are listed.

Fractal Design ION+ 860P Power Supply Fractal Design ION+ 860P Power Supply

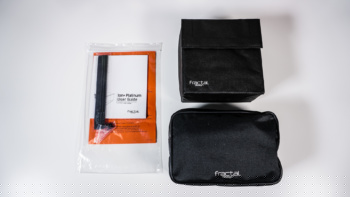

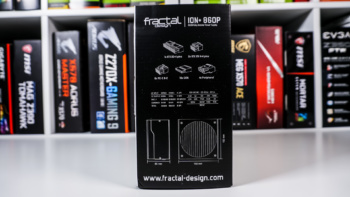

On the side of the box there is an overview of included cables, output specifications, and dimensions. Opening the box up inside we find everything nicely packaged. Included we have the Ion+ 860p power supply, a bag of cables, fractal design velcro ties, a set of screws, and a user’s guide.

Fractal Design ION+ 860P Power Supply Fractal Design ION+ 860P Power Supply
