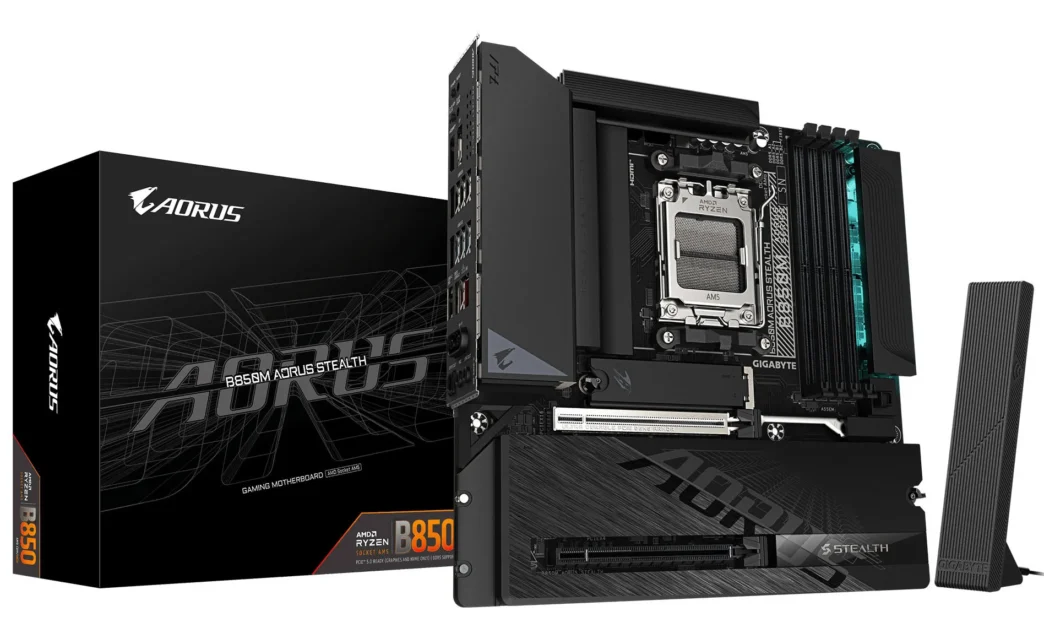

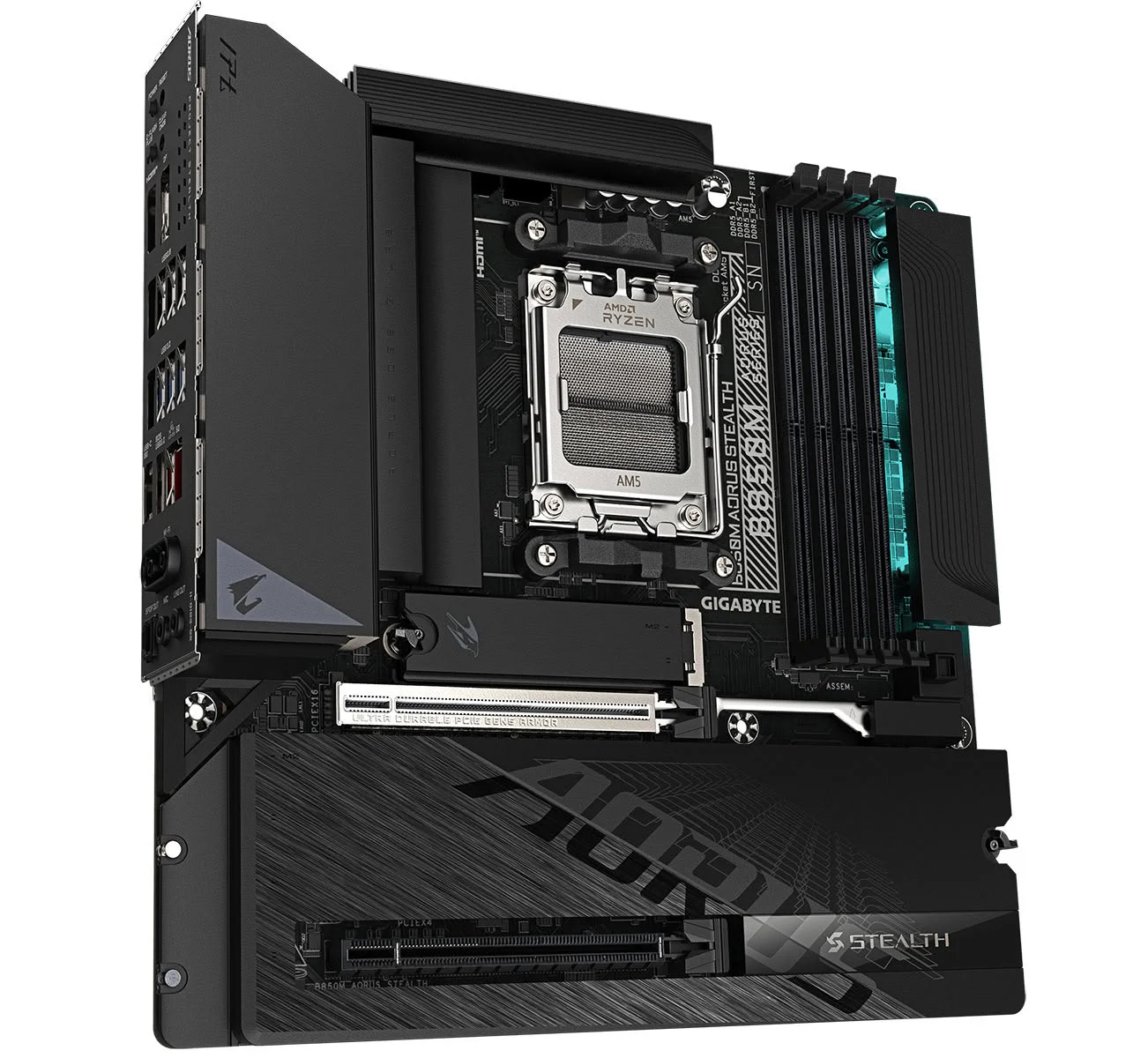

GIGABYTE has officially unveiled the B850M AORUS Stealth, a new micro-ATX motherboard designed for the AMD AM5 platform. This innovative board stands out by incorporating backside connectors, significantly improving cable management and aesthetics for PC builders. It combines a robust power delivery system with modern connectivity options for high-performance enthusiasts.
Key takeaways
- Form Factor: Compact micro-ATX design featuring backside connectivity for a cleaner build.
- Power Delivery: Equipped with an 8+2+2 phase CPU VRM configuration.
- Networking: Includes Wi-Fi 7, Bluetooth 5.4, and 5 Gbps Ethernet.
- Storage: Features a PCIe 5.0 x16 slot and multiple M.2 NVMe slots.
Design and power delivery

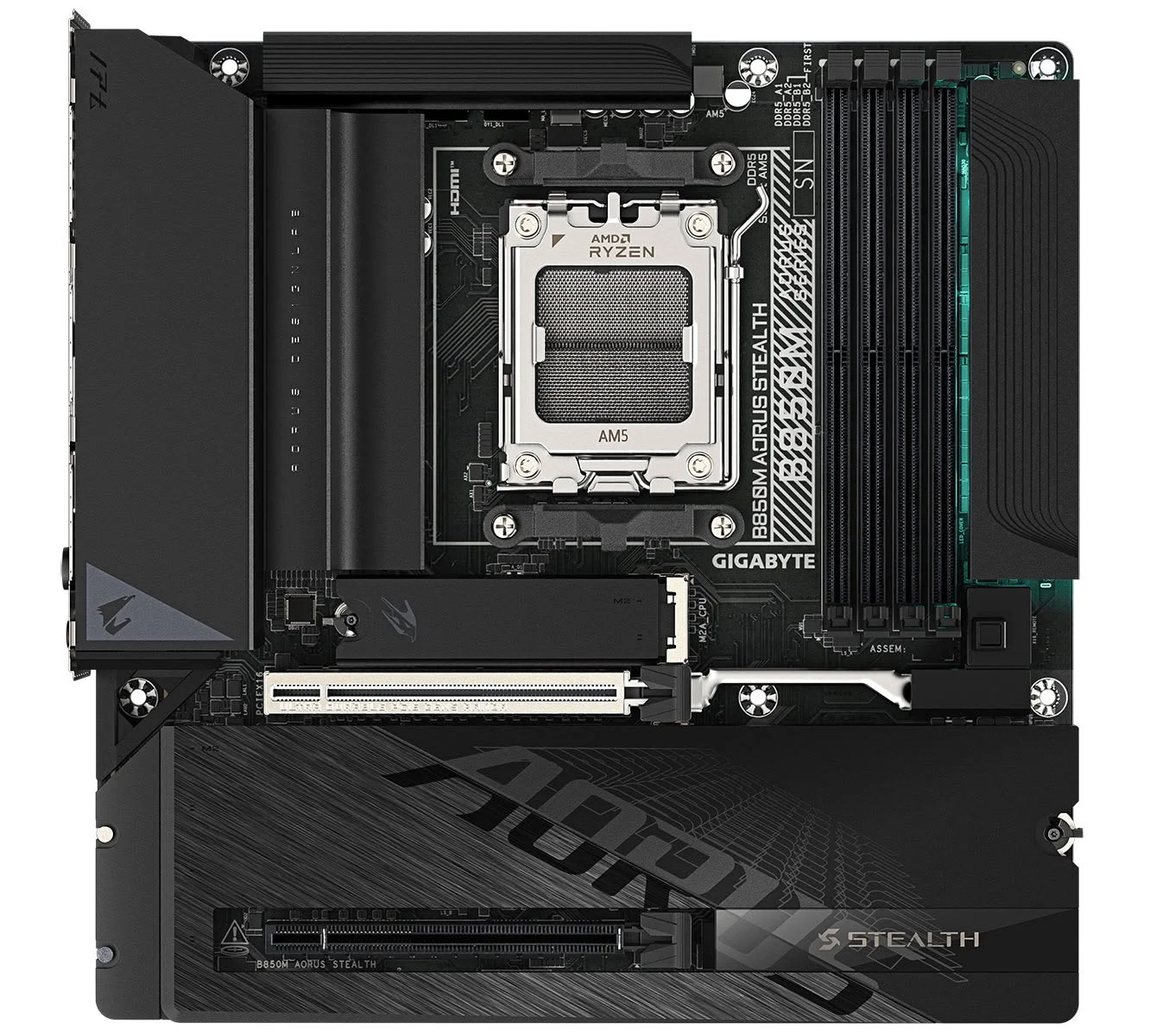

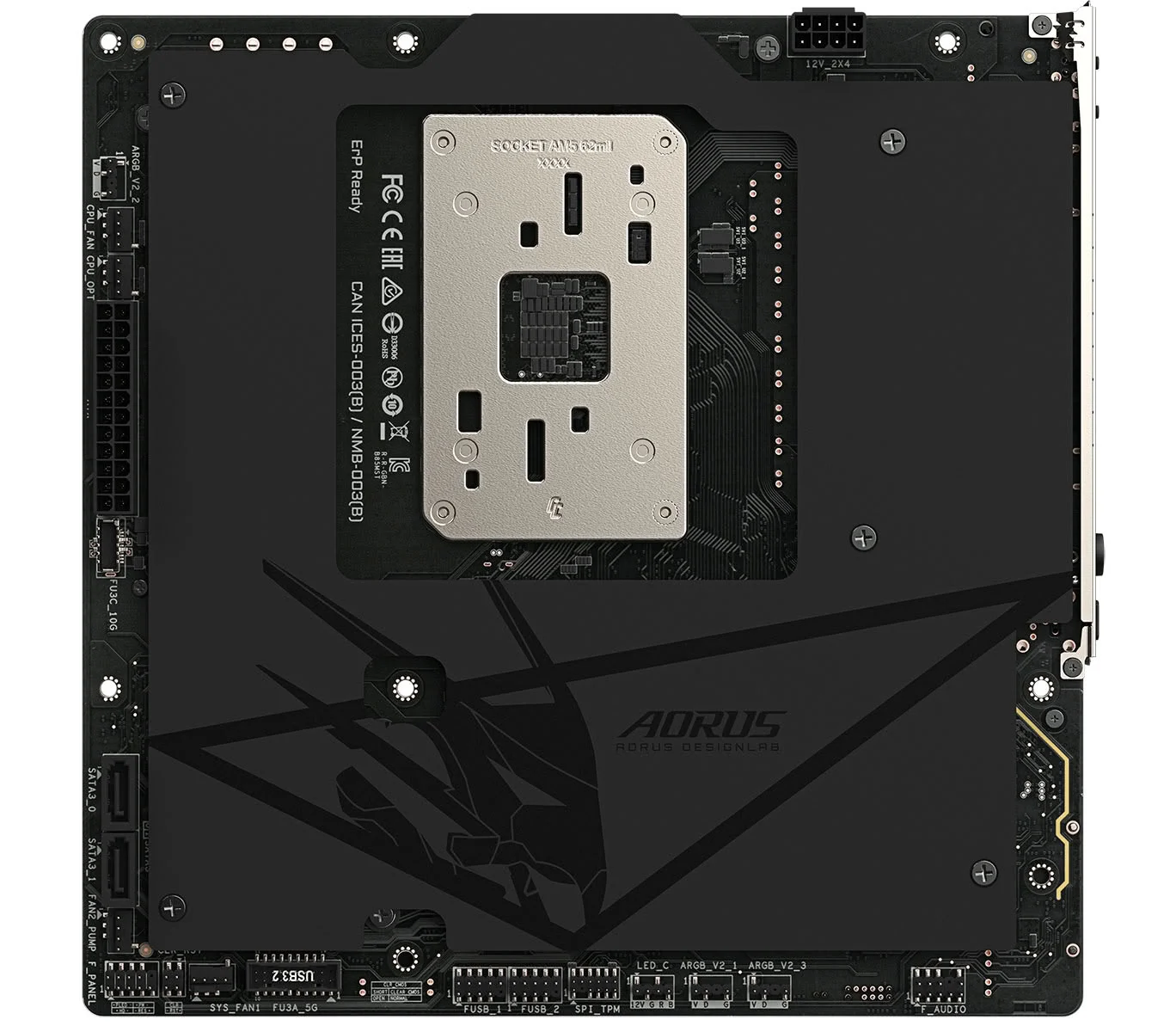

The B850M AORUS Stealth is built on the AMD B850 chipset, specifically targeting users who prioritize a clean interior aesthetic. By routing power and data connections to the back of the motherboard, GIGABYTE has minimized cable clutter, allowing for a streamlined look inside the chassis. The board is powered by a 24-pin ATX connector and a single 8-pin EPS connector, supporting stable performance through an 8+2+2 phase VRM design.
Connectivity and storage

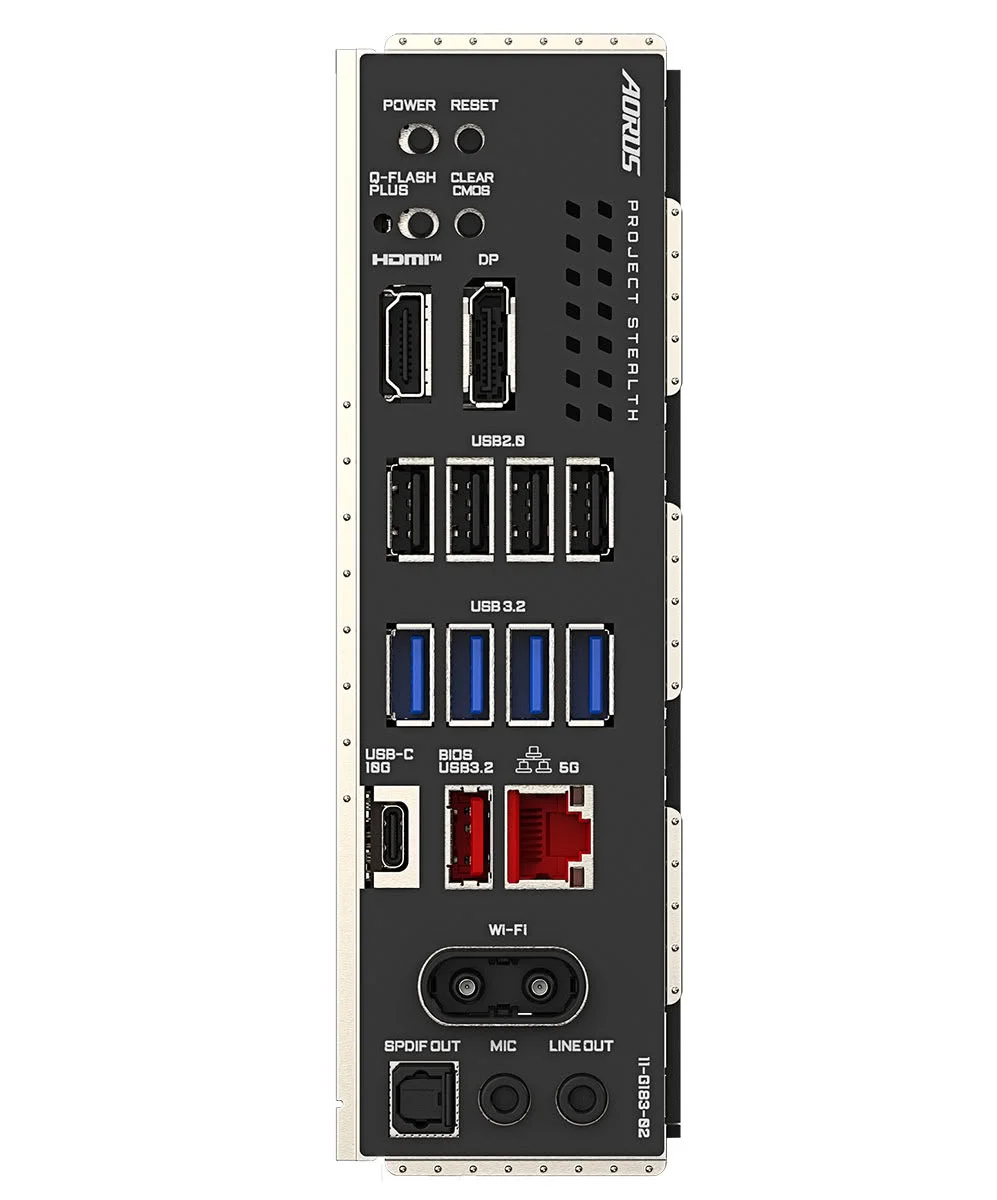

The board offers a versatile array of ports for modern peripherals and high-speed storage. It includes a PCIe 5.0 x16 slot for current and future graphics cards. Storage options are equally comprehensive, featuring a Gen 5 x4 M.2 slot and two additional Gen 4 x4 slots, along with two SATA 6 Gbps ports for legacy drives.
| Feature | Specification |
|---|---|
| Networking | Wi-Fi 7, Bluetooth 5.4, 5 Gbps Ethernet |
| USB Ports | 20 Gbps USB 3.2 Gen 2×2, 10 Gbps USB 3.2 Gen 2 |
| Audio | Realtek ALC1220 HDA |
Networking and audio
For network connectivity, GIGABYTE has integrated a Realtek RTL8922AE module, providing support for Wi-Fi 7 and Bluetooth 5.4. Wired networking is handled by a Realtek RTL8126 series PHY, enabling 5 Gbps Ethernet speeds, which is a significant step up for users requiring fast local network transfers. The onboard audio is powered by the high-fidelity Realtek ALC1220 codec, ensuring a premium sound experience for gamers and content creators alike.
