GIGABYTE Unveils Radeon RX 6900 XT GAMING OC 16G

Gigabyte has listed Radeon RX 6900 XT GAMING OC 16GB on its website. Currently, it is the fastest Radeon Graphics card by Gigabyte as it is yet to confirm its plans for the AORUS Master series.

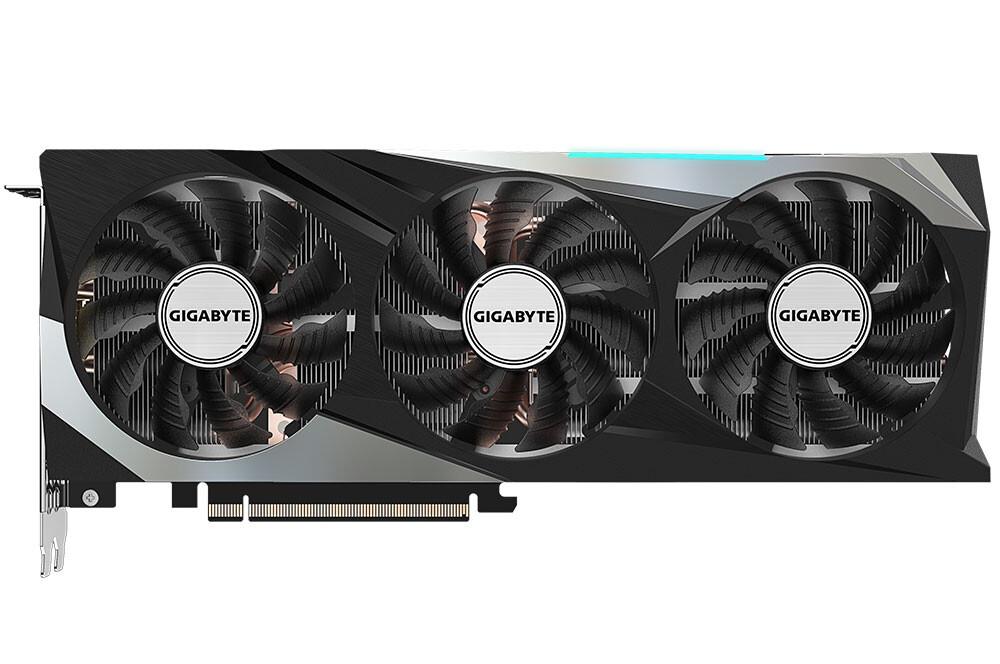

The RX 6900 XT Gaming OC features a triple-slot and triple-fan design which measures at 28.6 x 11.8 cm. As for the display configurations, the graphics card features a 2 DisplayPort 1.4a and 2 HDMI 2.1 ports.

70C4BA61 0A4B 404A AD70 B20DA09B5DAD

Gigabyte hasn’t shared any details of the PCB design or the cooler internals yet, but apparently, the cooler features two large heat sinks along with a large copper plate that is attached to at least six copper heat pipes. As for the PCB, it features three 8-pin power connectors. The card also features dual-BIOS, but Gigabyte hasn’t specified the specifications yet.

AMD Radeon RX 6900 XT features RDNA2-based 7nm Navi 21 XTX GPU . The GPU features 5120 Stream Processors along with 16GB GDDR6 RAM, which is clocked at 16 Gbps (512 GB/s). The GPU also features 128MB of AMD Infinity Cache.
B1718197 91EB 4C02 A88F 914ADCFBC683

GIgabyte has not given any information on the pricing or the availability yet, but the 6900 XT is expected to cost more than its official MSRP of $999 (USD).

FEATURES

*Powered by RDNA2 Radeon™ RX 6900 XT
*Integrated with 16GB GDDR6 256-bit memory interface
*WINDFORCE 3X Cooling System with alternate spinning fans
*Graphene nano lubricant
*RGB Fusion 2.0
*Dual BIOS
*Protection metal back plate

CORE CLOCK
Boost Clock : up to 2285 MHz (Reference card: 2250 MHz)
Game Clock* : up to 2050 MHz (Reference card: 2015 MHz)

LARGE COPPER PLATE & HEAT-PIPE
With direct contact to the GPU and VRAM, the large copper plate combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

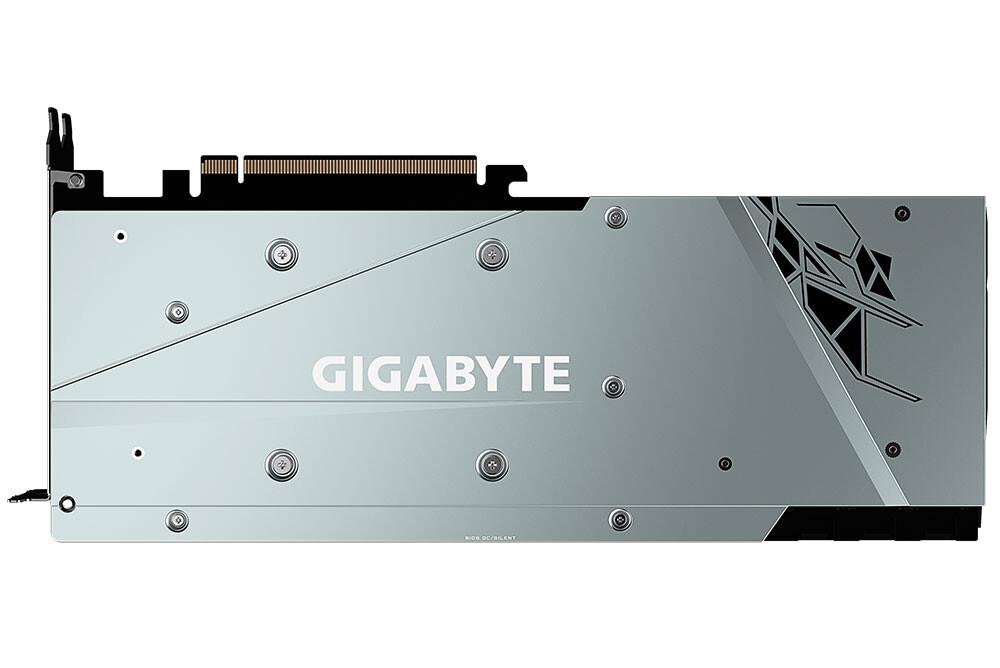

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS
Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

D920FE08 CD27 49DE 82A2 9CD4904AB309

Via Gigabyte
