MSI has officially announced the return of its legendary LIGHTNING series with the new GeForce RTX 5090 32G LIGHTNING Z. This limited-edition graphics card is engineered for extreme overclocking, boasting unprecedented power consumption and advanced cooling solutions. Aimed at the most demanding enthusiasts, the LIGHTNING Z pushes the boundaries of performance, setting new benchmarks and world records.
Key Takeaways
- Extreme Power: Capable of drawing up to 1000W in its “Extreme” mode, with a special 2500W XOC BIOS for dedicated overclockers.
- Advanced Cooling: Features a 360mm AIO liquid cooler with a full-copper, full-cover cold plate and a next-generation pump.
- Unique Display: Integrates a large 8-inch display on the GPU shroud for monitoring and customization.
- Limited Edition: Production is capped at just 1,300 units worldwide.
- Overclocking Prowess: Already holds 17 world records across various benchmarks.
A Legend Reborn
The MSI GeForce RTX 5090 LIGHTNING Z marks the revival of the iconic LIGHTNING series, a brand synonymous with top-tier overclocking performance. This new iteration is designed to “completely ignore the concepts of balance in favour of extremes,” as stated during its launch. It features a custom PCB with a robust 40-phase power design and is powered by dual 16-pin connectors, supporting up to 1000W of power draw in its standard “Extreme” mode.
Unprecedented Power and Cooling
MSI recommends a 1600W PSU for the LIGHTNING Z, highlighting its immense power requirements. For those seeking the absolute pinnacle of performance, a special 2500W Extreme Overclocking (XOC) BIOS is available, though it voids the warranty. Cooling is handled by an all-in-one (AIO) liquid cooler with a 360mm radiator. This system utilizes a full-copper, full-cover cold plate that extends to the GPU, VRAM, and VRMs, ensuring optimal thermal management under extreme loads. The card also features a next-gen pump for increased liquid flow and pressure, along with Liquid Crystal Polymer (LCP) fans and a patented hybrid-fin radiator design.
Innovative Features and Limited Availability

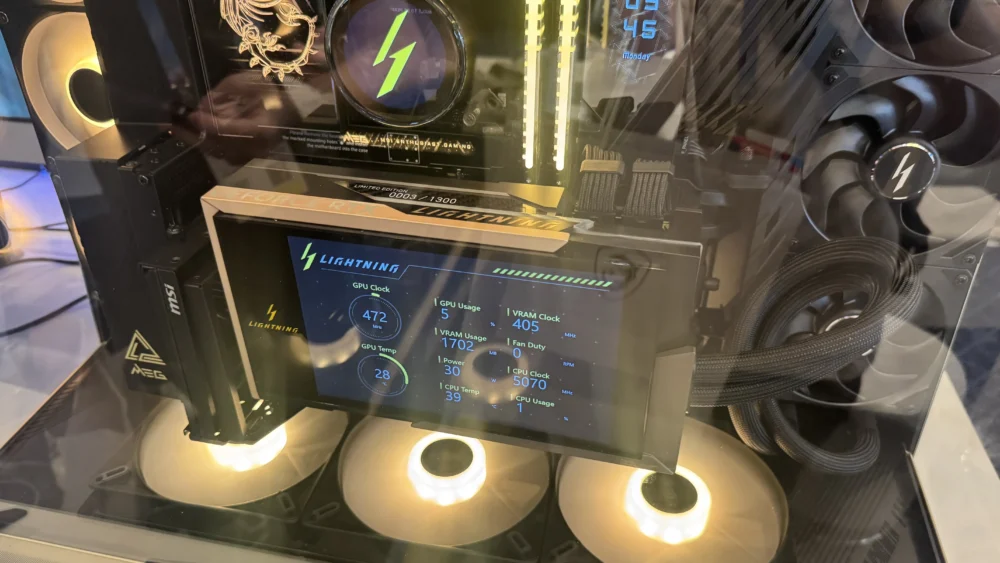

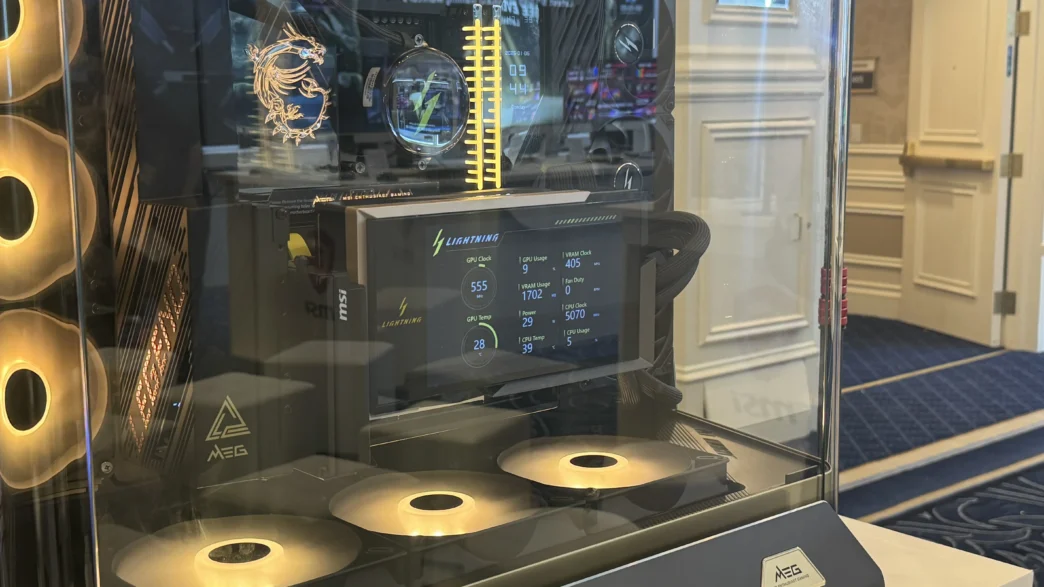

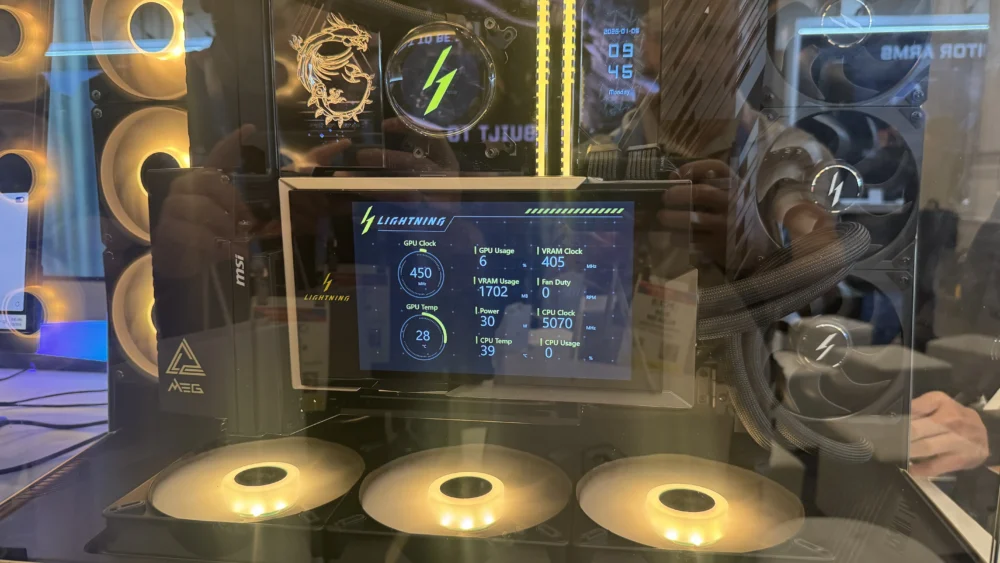

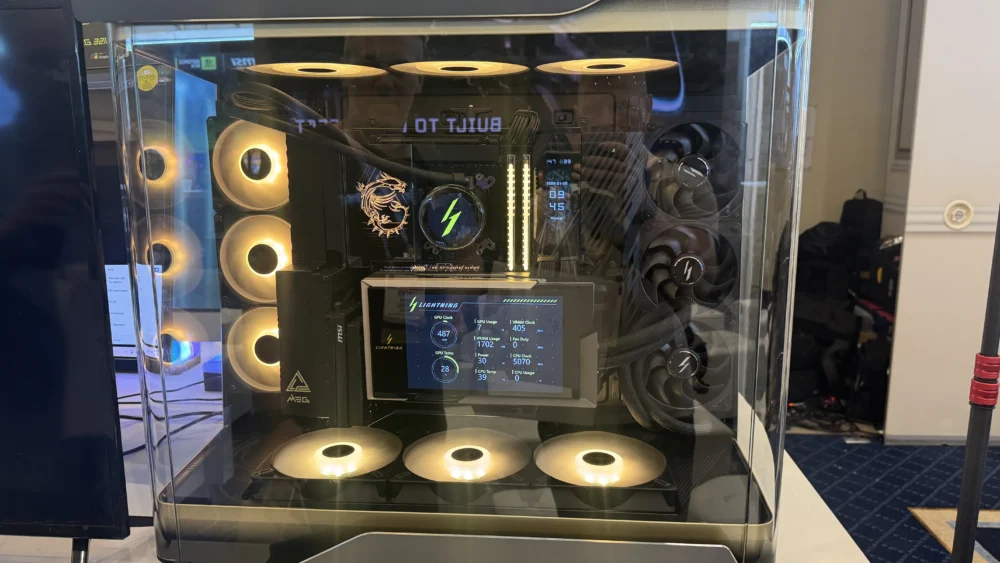

One of the most striking features of the RTX 5090 LIGHTNING Z is its integrated 8-inch display on the GPU shroud, a first for graphics cards, offering a vibrant interface for monitoring and customization. The card also includes a dedicated USB-C port solely for this display. MSI provides extensive software support through the Lightning Hub web interface and a mobile app for remote tuning and adjustments. With 21,760 CUDA cores and 32GB of GDDR7 memory running at 28 Gbps on a 512-bit bus, the card is built for raw performance. Production is strictly limited to 1,300 units globally, making it a highly sought-after collector’s item for extreme enthusiasts.
Performance Benchmarks

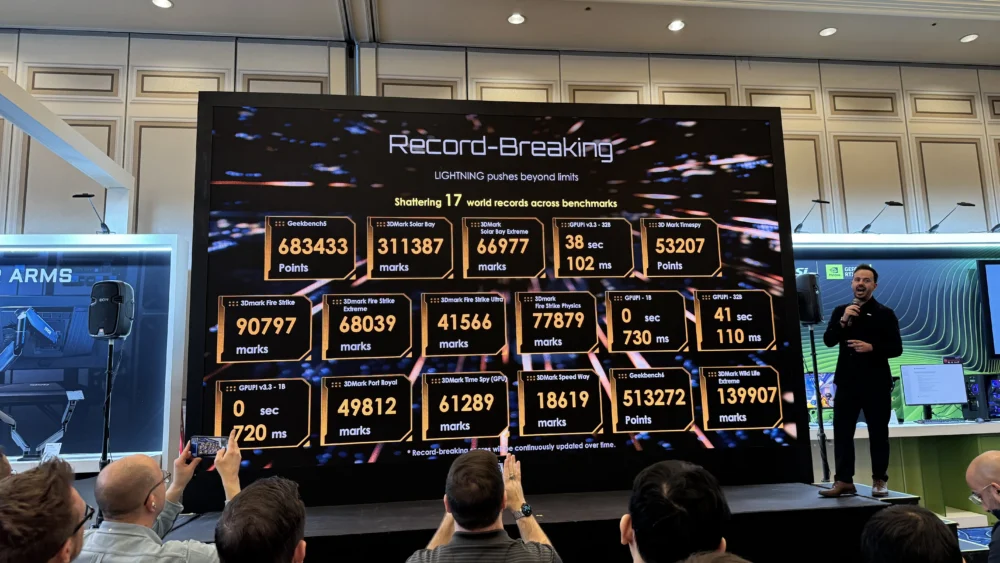

Even before its official release, the MSI GeForce RTX 5090 LIGHTNING Z has demonstrated its overclocking capabilities by securing first-place results in 17 benchmarks on platforms like HWBOT and 3DMark. These achievements showcase the card’s potential, with some overclockers pushing it to clock speeds nearing 3.7 GHz using exotic cooling methods. The card is slated for a February 2026 release, with pricing yet to be announced, but it is expected to command a premium given its limited nature and extreme specifications.
