System Overview & Testing Procedures

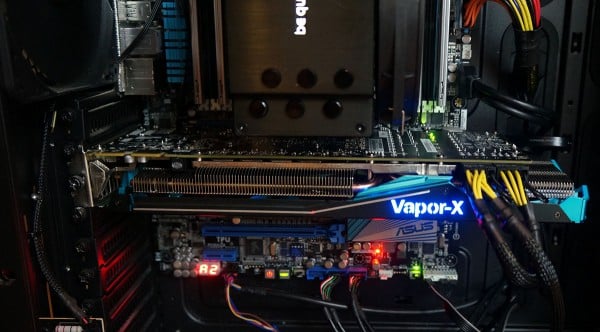

Like any graphics card you just slide the Sapphire R9 280X Vapor-X Tri-X OC into an open PCI-Express slot, connect your power and you are good to go.
This is the system we will be using to test the Sapphire R9 280X Vapor-X Tri-X OC.
Processor: Intel Core i7-4960X Extreme Edition
Motherboard: ASUS P9X79 Pro
Video Card: R9 280X Vapor-X Tri-X OC
Memory: 16GB Kingston 10th Anniversary
Power: Cooler Master V850
Storage: 750GB SATA Drive
Cooling: DeepCool Lucifer
Case: Cooler Master Cosmos II with 5 fans

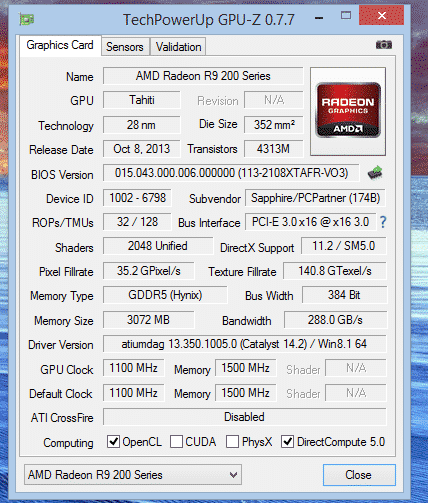

As always we’re first going to verify our numbers and make sure we’re accurately reporting the performance specification of the card. Here’s a GPU-Z screenshot, listing all the information. Opening GPU-Z we can see that the card is running at the advertised speeds of 1100 MHz boost and 6000 MHz (effective) for the memory.
For our tests we will be comparing the Sapphire R9 280X Vapor-X Tri-X OC to a few other graphics cards we have on hand. They are listed below along with their core, boost and memory speeds
Sapphire R9 280X Vapor-X Tri-X OC: 1000 MHz / 1100 MHz / 6000 MHz
ASUS R9 280X DirectCU II TOP: 970 MHz / 1070 MHz / 6400 MHz
EVGA GTX 680: 1006 MHz / 1058 MHz / 6000 MHz
Gigabyte R9 280X OC: 1000 MHz / 1100 MHz / 6000 MHz
MSI GTX 770 Gaming: 1059 MHz / 1111 MHz / 7010 MHz
MSI GTX 770 Gaming: 900 MHz / 975 MHz / 5600 MHz
Sapphire HD 7950 Vapor-X: 850 MHz / 950 MHz / 5000 MHz
Sapphire R9 280X Toxic: 1100 MHz / 1150 MHz / 6400 MHz
Sapphire R7 250 Ultimate: 800 MHz / 800 MHz / 4500 MHz
When we cover graphics cards, we always run the same benchmarking suites and then a selection of the most popular and hardware intensive games available. I have separated our tests into 2 different sections (Benchmarks & Games) and you can see them listed below.
3DMark – Fire Strike
Alien vs Predator
Max Payne 3
