Sapphire Radeon RX 7600 XT Pulse Overview
Taking a look at the Sapphire Radeon RX 7600 XT Pulse card it has a pretty simple black and red design with most of the shroud and fans being black, and then you have some red accents thrown in throughout.
The card is officially 250mm long, which will make it quite easy to fit in most cases these days. When it comes to cooling there are two cooling fans. These fans feature a dual ball bearing design, which have an 85% longer lifespan than sleeve bearings. Sapphire has also improved their fan blade design from the previous generation, giving these fans 10% better noise performance.
Under these fans is a dual heatsink stack that is connected by three composite heatpipes. The back of the card makes use of a full-cover metal backplate that has both the Pulse and Radeon logos on it.
On the side of the card that will show out from your system there are also Sapphire and Radeon logos, but there is no RGB lighting on this card. Towards the end of the card you’ll find your power connections, which are a pair of 8-pin PCI-Express power connections.

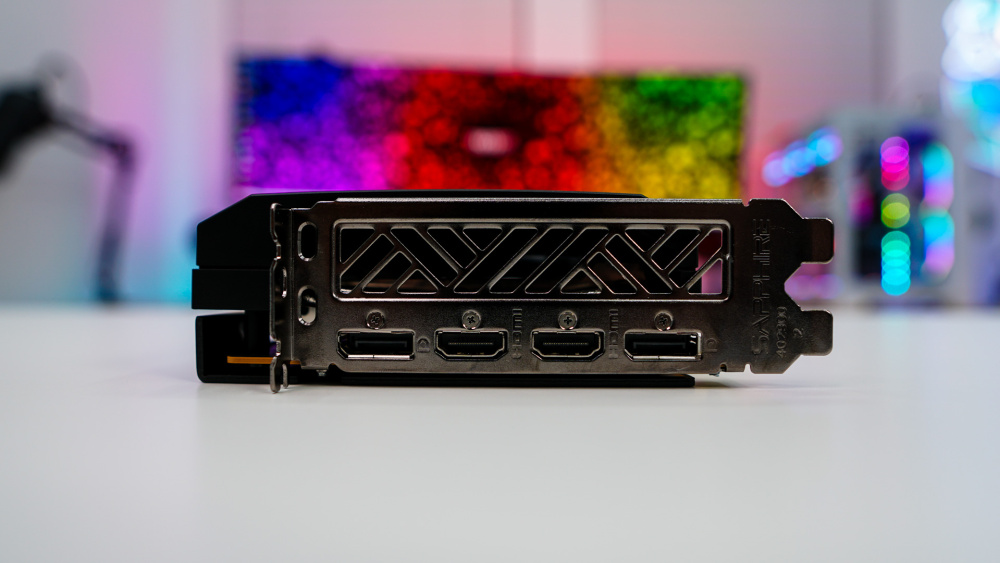

Finally when it comes to connections you have two DisplayPort 2.1 and two HDMI 2.1a. Also we can see that this card is a 2-slot card.
