Testing

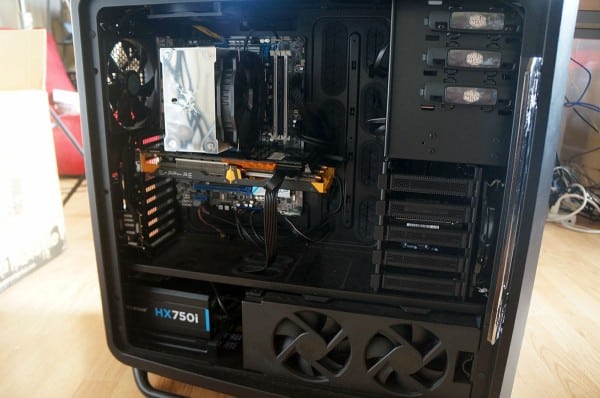

We will be installing the Mugen MAX in our Intel X79 system.
It is comprised of the following components.
Processor: Intel Core i7-4960X Extreme Edition
Motherboard: ASUS P9X79 Pro
Video Card: Sapphire R9 280X Toxic
Memory: 16GB Kingston 10th Anniversary
Power: Corsair HX750i
Storage: 750GB SATA II Drive
Cooling: Scythe Mugen MAX
Case: Cooler Master Cosmos II with 5 fans
For testing we will be using the Intel Burn Test with the AVX instruction set. We use this instead of Prime 95 as it will push the processor much harder. We have it set on the maximum setting and let it ruin through 3 passes. This gives us a realistic idea of the temperatures the processor would hit when it is under full load.

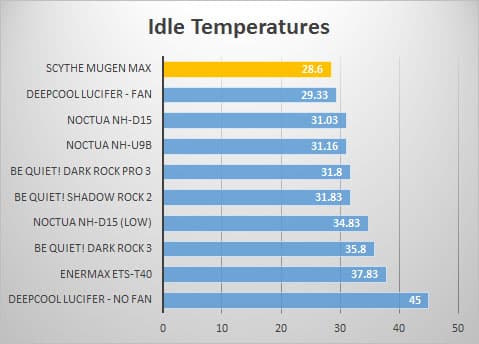

Keep in mind this is an Extreme Edition processor. These run much hotter than normal chips so keep that in mind. Since making our change to the Core i7-4960X Extreme Edition we have only tested a handful of air coolers on it so we do not have that much of a comparison. First up are our idle temperatures.

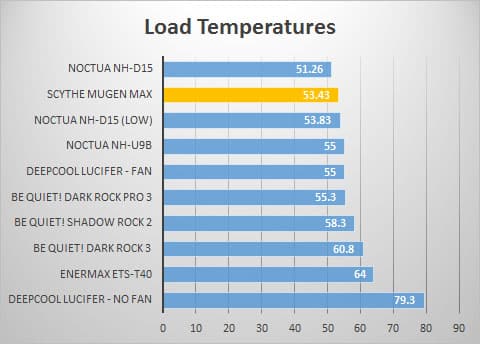

Now for the load test.
As you can see the Mugen MAX is one of the highest performing air coolers that we have tested all year.
