Thermalright has launched its innovative Phantom Spirit 120 Digital CPU cooler series, designed to offer enhanced cooling performance and real-time system monitoring. Available in striking white (SNOW) and classic black (EVO) variants, this premium air cooler targets users seeking both efficient thermal management and insightful data.
Key Takeaways
- Real-Time Monitoring: Features a magnetically attached ARGB digital top cover displaying CPU/GPU temperature and load.
- High Performance: Supports up to 275W TDP with seven 6mm copper heatpipes and dual fin stacks.
- Advanced Fans: Includes two TL-K12W fans with S-FDB V2 bearings for quiet and efficient operation.
- Broad Compatibility: Supports Intel LGA115X/1200/1700/1851 and AMD AM4/AM5 sockets.
- Connectivity Options: Digital connector supports both motherboard 9-pin and USB port connections.
Advanced Cooling Design
The Phantom Spirit 120 Digital boasts a robust dual fin-stack design, engineered to dissipate heat effectively. It utilizes seven 6 mm nickel-plated copper heatpipes that make indirect contact with the CPU via a nickel-plated C1100 pure copper base. This configuration ensures efficient heat transfer from the processor to the two aluminum fin stacks.
Innovative Digital Display
The standout feature of the Phantom Spirit 120 Digital is its unique ARGB digital top cover. This magnetically attached component provides users with real-time insights into their system’s performance by displaying critical information such as processor temperature, processor load, graphics card temperature, and graphics card load. This allows for immediate awareness of system status without needing to access software.
High-Performance Fans
Included in the package are two TL-K12W fans, each measuring 120 mm x 120 mm x 25 mm. These fans are equipped with S-FDB V2 bearings for durability and quiet operation, reaching speeds of up to 2,150 RPM. They deliver an impressive airflow of 69 CFM and a static pressure of 2.87 mm H₂O, all while maintaining a maximum noise level of 27 dBA. The fans feature 4-pin PWM connectors for speed control and 3-pin 5V ARGB connectors for customizable lighting, further enhanced by the four-sided inner frame lighting effects.
Compatibility and Specifications

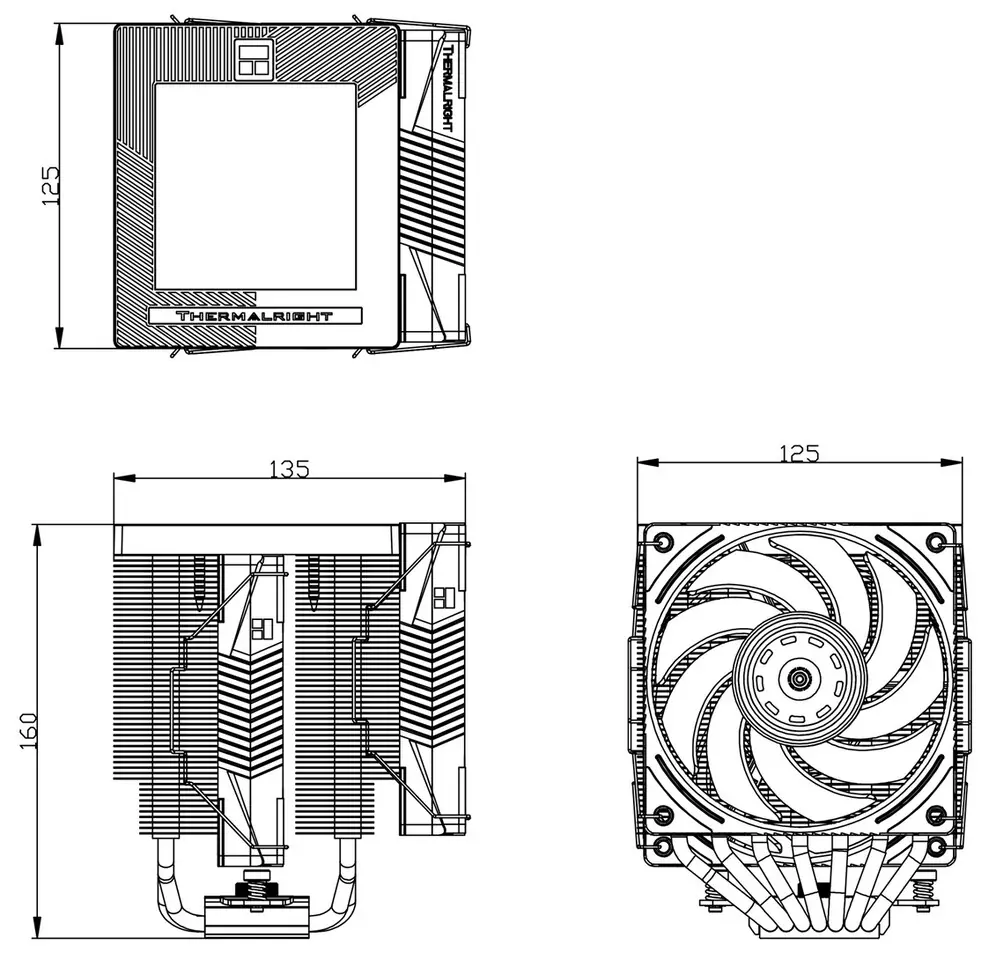

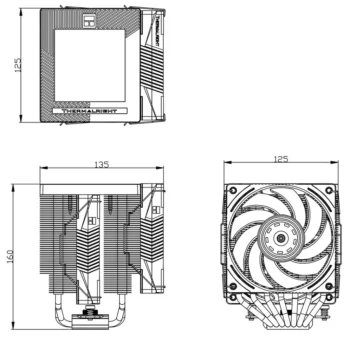

The cooler is designed for broad compatibility, supporting the latest Intel sockets including LGA115X, LGA1200, LGA1700, and the new LGA1851, as well as AMD’s AM4 and AM5 platforms. With the fans installed, the cooler has dimensions of 125 mm x 135 mm x 160 mm (Length x Width x Height). The digital connector offers flexibility with support for both motherboard 9-pin and USB port connections for data transmission.
Thermalright offers the Phantom Spirit 120 Digital with a 3-year warranty. While pricing is reported to be around US$49, specific availability details are yet to be announced.
