System Overview & Testing Procedures
The Zotac GeForce GTX 980 Ti AMP! Graphics Card was installed in our graphics card test bench without any problems at all.
This is our brand new test bench designed specifically for testing graphics cards. Check out our blog post to see what it is all about. It is made up of the following components.
Processor: Intel Core i7-5960X
Motherboard: Gigabyte X99-UD4
Graphics Card: Zotac GeForce GTX 980 Ti AMP!
Memory: 32GB Crucial DDR4-2133
Storage: Crucial BX100 512GB SSD
Power: Corsair HX1200i
Cooling: Corsair H80i GT
Case: Lian Li PC-T80

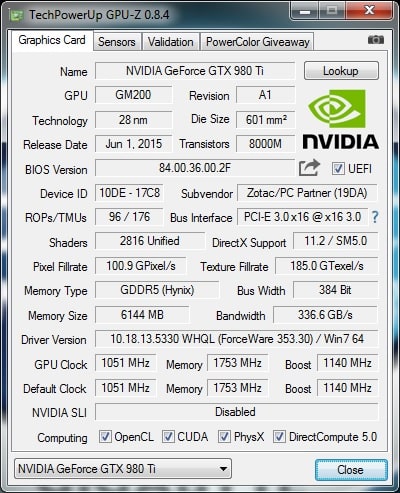

After getting the card installed we open up GPU-Z to check and make sure everything looks good.
As you can see the card is running at its factory-overclocked settings of 1051 MHz core and 1140 MHz GPU boost with the memory at 1753 MHz or 7012 MHz (GDDR5-effective).
For our tests we will be comparing the Zotac GeForce GTX 980 Ti AMP! to other graphics cards we have on hand. Please bare with us as we just built this system, as we acquire more graphics cards we will be updating the graphs in this review. The cards tested today are listed below along with their core, boost and memory speeds.
ASUS STRIX GTX 970: 1114 MHz / 1253 MHz / 7012 MHz
MSI GTX 770 Gaming: 1059 MHz / 1111 MHz / 7010 MHz
Sapphire Tri-X R9 390X: 1000 MHz / 1055 MHz / 6000 MHz
Zotac GeForce GTX 980 Ti AMP!: 1051 MHz / 1140 MHz / 7012
AMD Cards tested on: Catalyst 15.7
NVIDIA cards tested on: ForceWare 353.30
With a new test bench comes a whole new set of benchmarks. We really wanted to focus more on real-world performance so we have added seven of the latest games to our benchmarking suite. Games will be run at 1080p, 1440p and 4K resolutions. Our benchmarking suite also includes synthetic tests as well.
– Fire Strike
– Fire Strike Extreme
– Fire Strike Ultra
– Performance Benchmark
– Extreme Benchmark
Heaven Benchmark 5.0
Batman Arkham Origins
Grand Theft Auto V
Max Payne 3
Metro Last Light Redux
– Kill-A-Watt meter
– GPU-Z Sensor reading
– Galaxy Audio CM130 Sound Pressure Level Meter
Now let’s get to testing!
