Testing – Anvil, PCMark Vantage & AIDA64

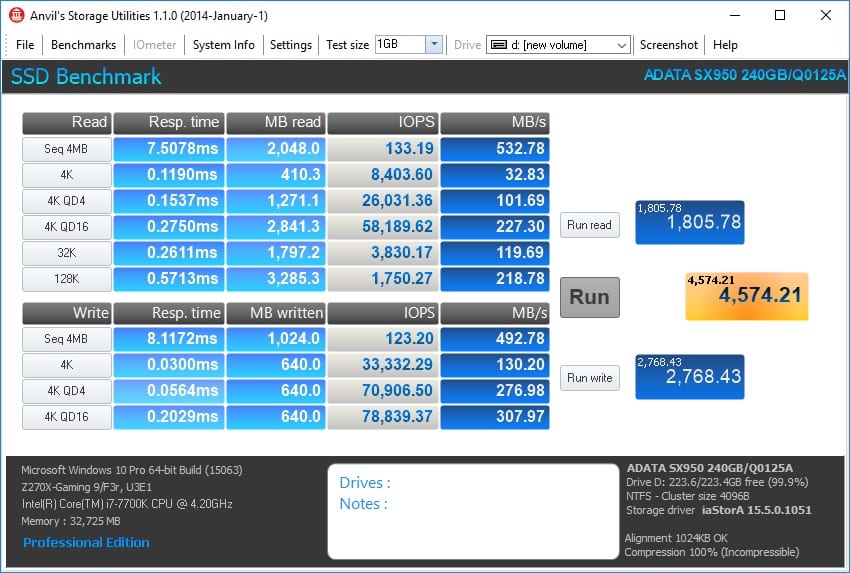

The next test is Anvil Storage Utilities, which is a really great piece of software. The SSD benchmark gives you scores for both read and write as well as a combined score.
We also use Anvil to test IOPS. The Threaded Read and Write tests are great for this. On each one we set the QD to 32.

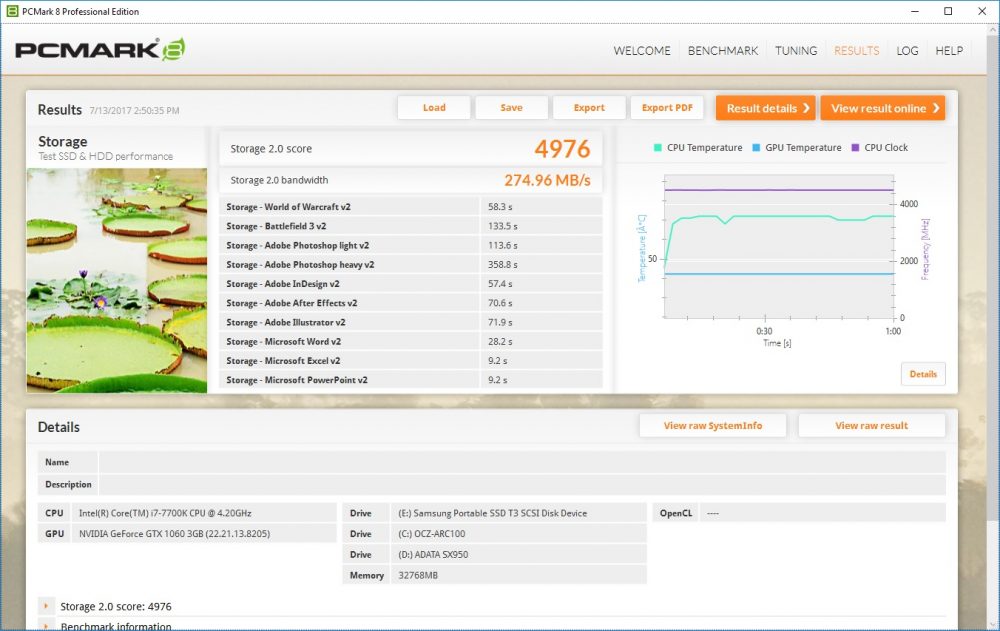

Next up is PCMark 8, we will be running the typical Storage Benchmark.

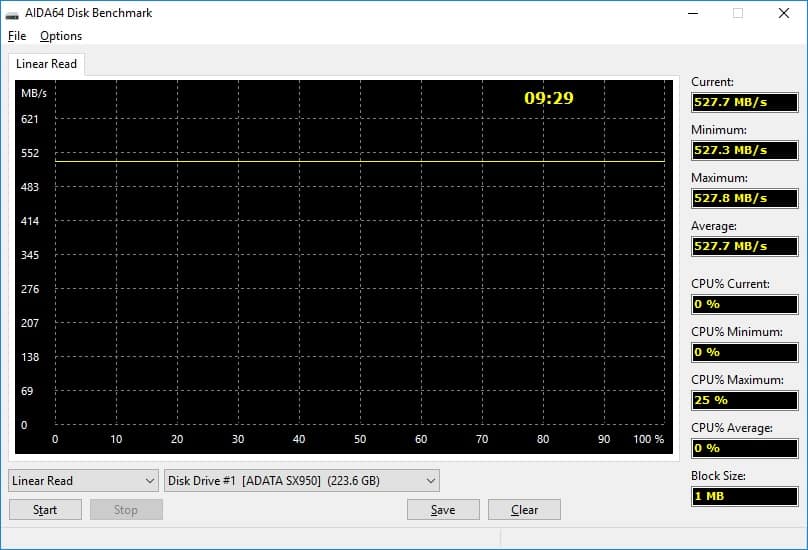

We have added back AIDA64’s Disk Benchmark to our testing. The linear tests will actually scan from the first physical sector to the last on the test drive. This gives a good representation of sustained read / write operations. We will be running the linear read and write tests using a 1MB block size.

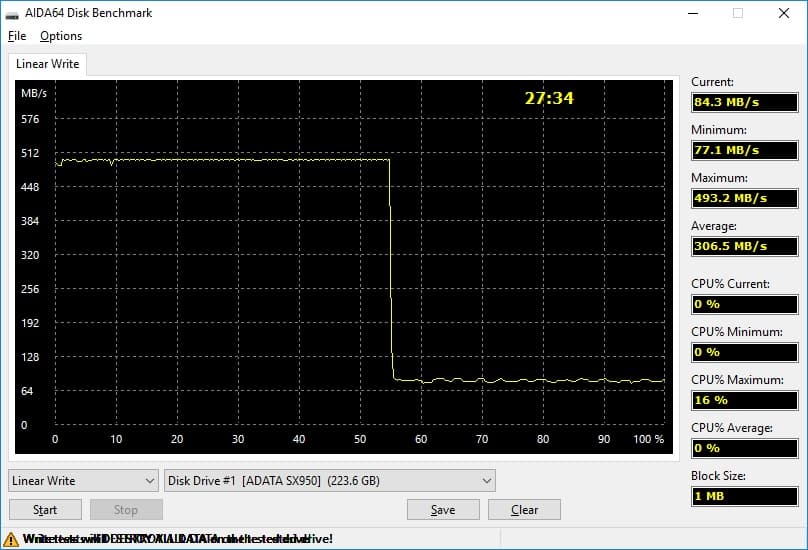

As you can see from the write test the SLC caching is working and the drive actually gets beyond 50% before performance starts the drop off.
