The new match of two design highlights! Alphacool presents the Core Distro Plates now in combination with the VPP Apex pump. This setup should not be missing in any performance-oriented custom water cooling system in which CPU and graphics card(s) are to be cooled simultaneously. The Distro Plate greatly simplifies the planning, construction and maintenance of complex water loops. It not only has an integrated reservoir, but also features an integrated VPP Apex pump. Due to the arrangement of the G1/4″ connections, confusing and complicated hose paths are a thing of the past.
A stylish and elegant element of the Core Distro Plate are the chrome-plated, brass G1/4″ connections. The connections, which are recessed into the acrylic and fitted with an O-ring, are absolutely leak-proof and support the clear and functional look of the Alphacool Core Design series. By not screwing the connections directly into the acrylic, cracking and any resulting leakage is prevented. Alphacool’s Core Distro Plate is made of high-quality acrylic, which allows a clear view of the coolant and provides brilliant illumination from the built-in, digitally addressable aRGB lighting.
The integrated VPP Apex pump relies on a smooth-running ceramic shaft. The coils of the motor have been moved from the inside to the outside. These changes successfully counteract the occurrence of vibrations, with the result that the pump operates stably as well as smoothly. A positive side effect is that power consumption has been almost halved compared to similar pumps on the market. The pump’s entire speed range is controlled and read out via the 4-pin fan connector. The VPP Apex pump is equipped with a SATA connector for power supply.
With the help of the included Core Push Mounting Kit, the Distro Plate can be easily mounted on a radiator or on the case panel. This ensures stable positioning as well as easy disassembly for maintenance or expansion projects. The Core Distro Plate is now available as a 240 mm or 360 mm variant, each with left or right placement of the pump top in the Alphacool Online Shop.

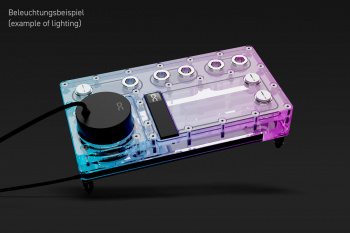

Core Distro Plate 240 Left with VPP pump:
- Dimensions: (L x W x H) 240 x 125 x 42 mm
- Volume: 164ml
- Threads: 8x G1/4″ inner thread / 1x drain port
- Quantity digital aRGB LEDs: 12

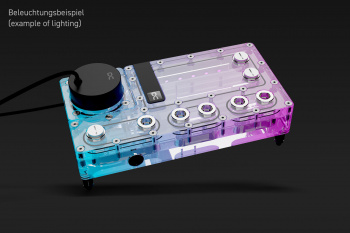

Core Distro Plate 240 Right with VPP pump:
- Dimensions: (L x W x H) 240 x 125 x 42 mm
- Volume: 164ml
- Threads: 8x G1/4″ inner thread / 1x drain port
- Quantity digital aRGB LEDs: 12

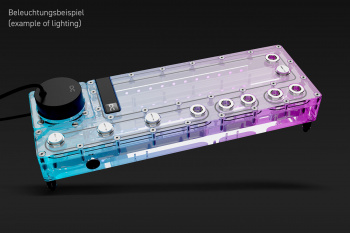

Core Distro Plate 360 Left with VPP pump:
- Dimensions: (L x W x H) 360 x 125 x 42 mm
- Volume: 309ml
- Threads: 10x G1/4″ inner thread / 1x drain port
- Quantity digital aRGB LEDs: 18

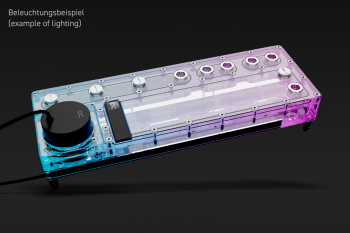

Core Distro Plate 360 Right with VPP pump:
- Dimensions: (L x W x H) 360 x 125 x 42 mm
- Volume: 309ml
- Threads: 10x G1/4″ inner thread / 1x drain port
- Quantity digital aRGB LEDs: 18
Features of the pump:
- Material pump housing: aluminium
- Other materials: synthetic material & ceramics
- Speed range: 2500-4500 RPM via 4-Pin PWM
- Maximum pumping head: 4,25 m
- Maximum flow rate: 340L/h
- Operating voltage: 8-13 V DC (SATA Power Management)
