ASRock Z390 Phantom Gaming X Motherboard Review

Overclocking on the Z390 platform is pretty much the same as it was on the Z370 platform. So if you are familiar with that, overclocking your 9th gen Intel processor will be pretty easy. We are going to do all of our overclocking in the BIOS.

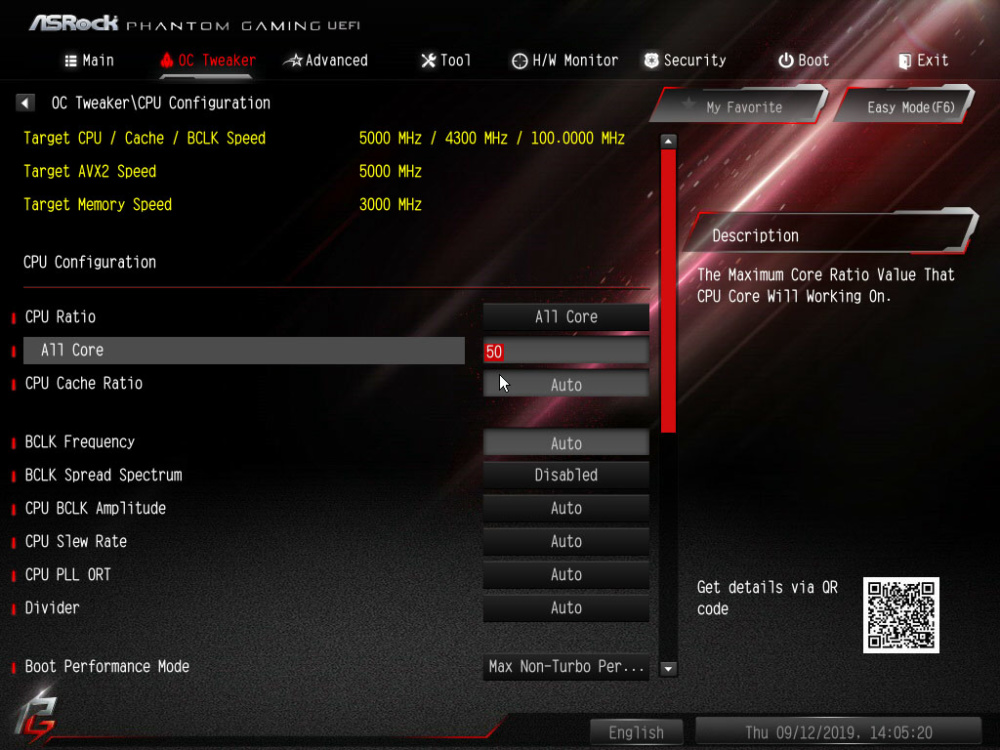

In our BIOS the first thing we are going to want to set is the CPU Ratio mode to “All Core” and the “All Core” ratio to what we are going to shoot for. In our case it is 50, which will bring all of our cores to 5.0 GHz.

phantom bios oc1

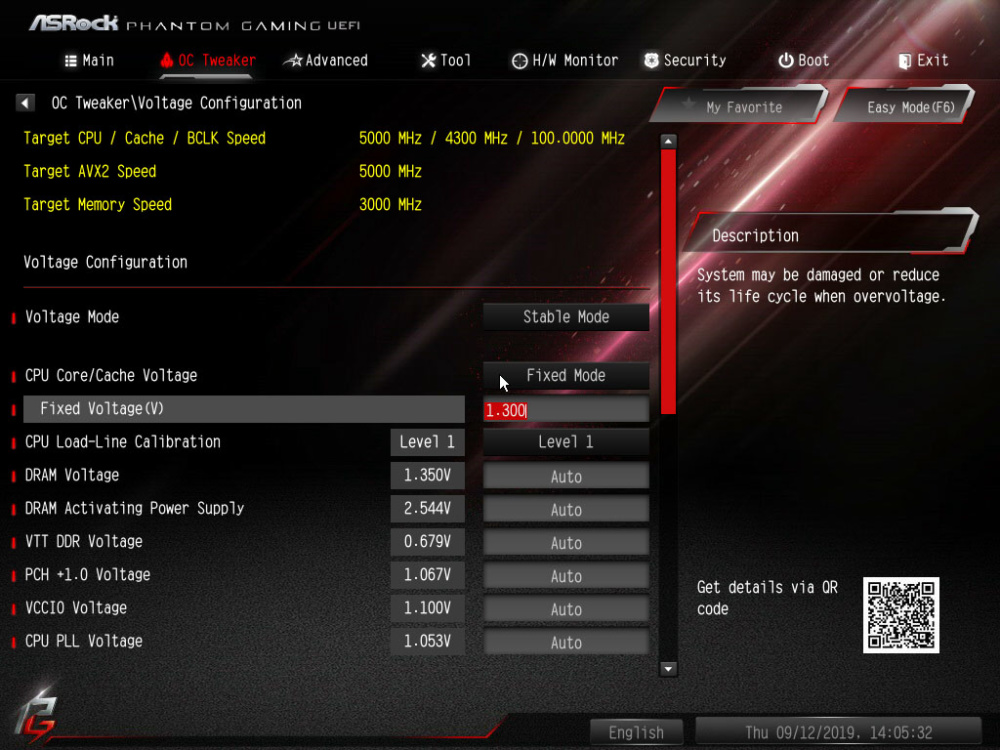

In your Voltage and power settings you are going to want to have a set CPU VCore voltage. You don’t want your motherboard throwing too much voltage at your processor when you are upping the frequency. After some testing we went with 1.30V as a stable VCore voltage. You may also want to test different load-line calibration settings.

phantom bios oc2

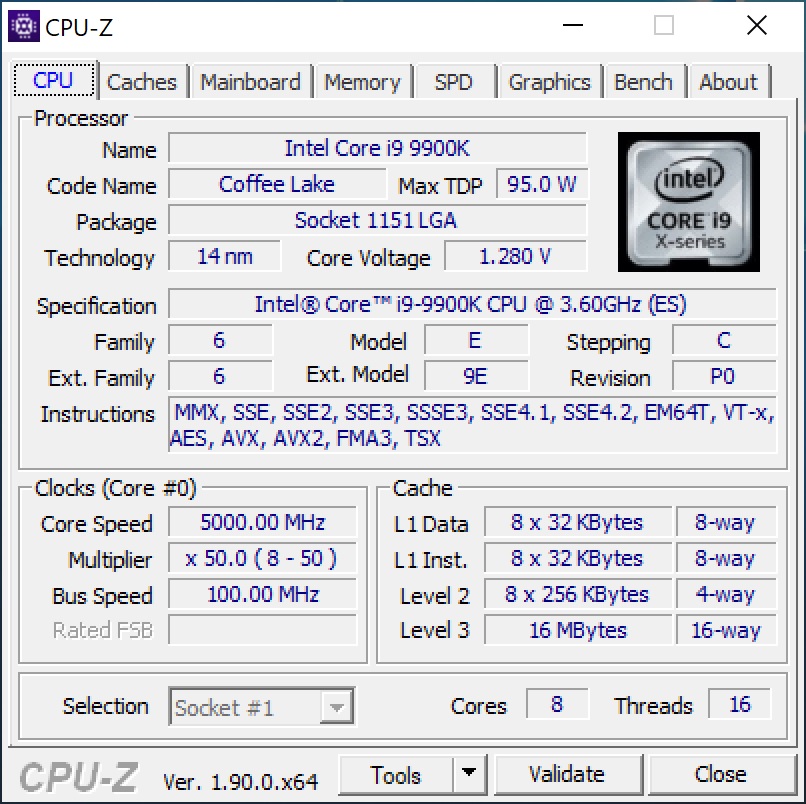

With these settings we were able to achieve a stable overclock of 5.1 GHz across all eight cores of our Core i9-9900K.

gamingx oc2

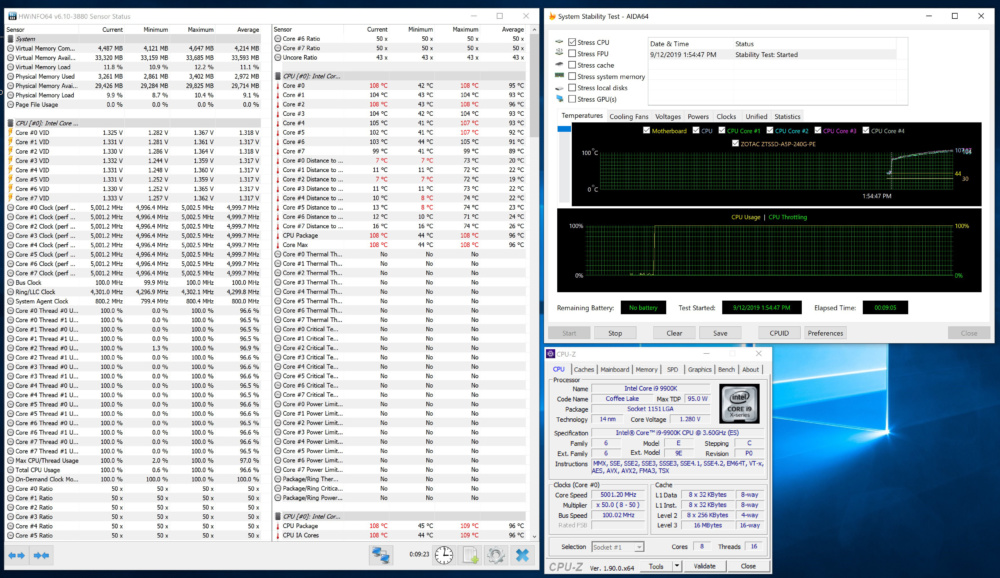

We ran the AIDA64 system stability test to confirm the system was stable, while it was pretty stable we did notice temperatures getting quite hot. We can’t blame this one the motherboard as we know the i9-9900K can get quite hot when overclocking. The chip did not thermal throttle and the VRMs held up as well. Now we would not suggest running this as a 24/7 overclock though, unless you really had some serious cooling.

gamingx oc1
