ASRock Z590 Phantom Gaming-ITX/TB4 Motherboard Review

Testing – SATA, USB, & Power

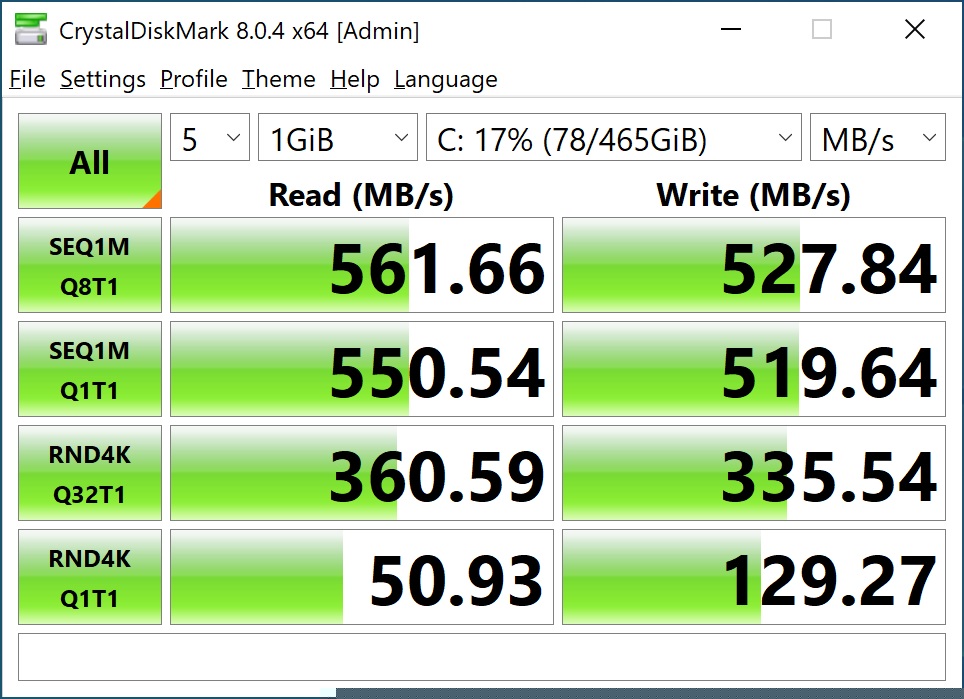

To test SATA, M.2, and USB speeds we make use of CrystalDiskMark hard drive benchmarking tool. First up is our SATA drive which is the Samsung 870 EVO.

asrock z590 pg itx tb4 ssd

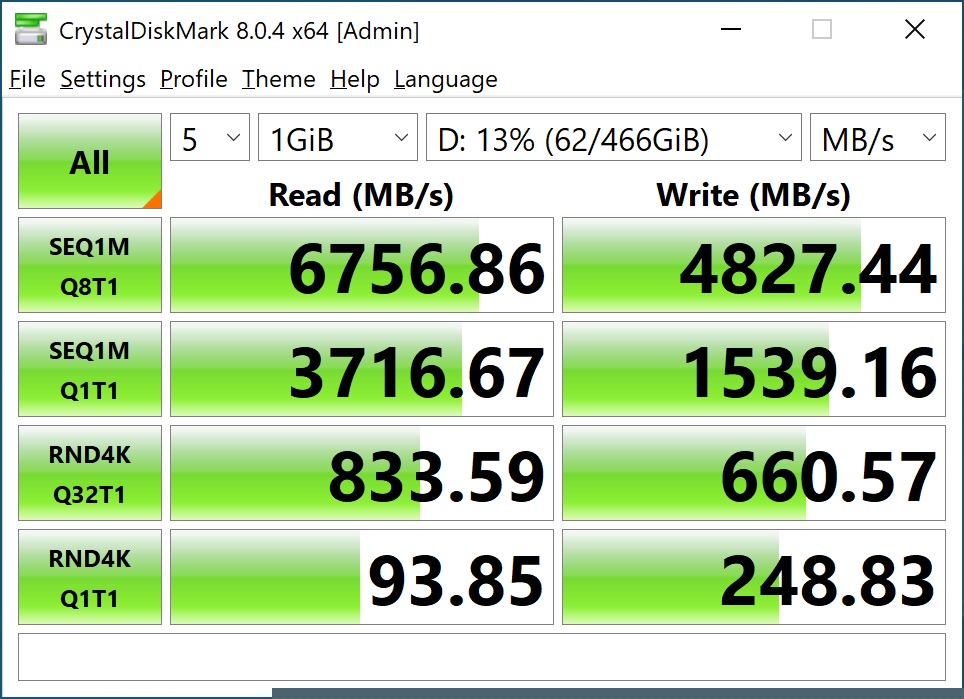

For M.2 testing we will using the PCI-Express 4.0 (main) slot. We use the Samsung 980 Pro drive.

asrock z590 pg itx tb4 nvme

For USB testing we have the ADATA SE900G, which is a USB 3.2 gen 2×2 drive. Unfortunately there is not a gen 2×2 connection on the rear of the board so we used a USB 3.2 gen 2 connetion.

asrock z590 pg itx tb4 usb

Power consumption for a system is of course very important. To measure power consumption I used a killawatt meter. The idle test is taken on the Windows 10 desktop and the load test is taken while running AIDA64’s system stability test with GPU’s enabled. Remember these values are for the entire system.

asrock z590 pg itx tb4 power idle

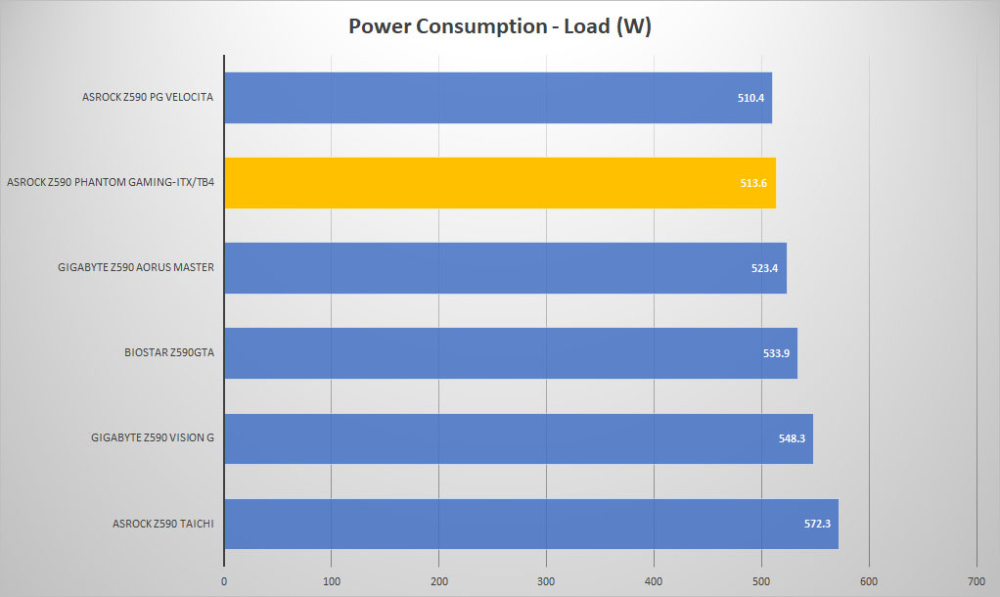

asrock z590 pg itx tb4 power load
