Cooler Master MasterAir MA620P CPU Cooler Review

The last time we took a look at a CPU cooler from Cooler Master it looked pretty awesome, but the performance was a little lacking. Today we have a pretty beefy cooler from the company that boasts dual fans, dual heatsink towers, and six large copper heatpipes. Is this the Cooler Master air cooler you want for those overclocks and intense gaming sessions? Read on as we find out!

Special thanks to Cooler Master for providing us with the MasterAir MA620P to review.

Specifications

Product Name MasterAir MA620P
Model MAP-D6PN-218PC-R1
CPU Socket Intel® LGA 2066 / 2011-v3 / 2011 / 1366 / 1156 / 1155 / 1151 / 1150 / 775 socket

AMD® AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / socket

Heat Sink Dimensions 116 x 110.1 x 165 mm (4.6 x 4.3 x 6.5″)
Heat Sink Material 6 Heatpipes / CDC 2.0 / Aluminum Fins
Heat Sink Weight 850g (1.87lb.)
Heat Pipe Dimensions Ø6 mm
Fan Dimensions 120 x 120 x 25 mm (4.7 x 4.7 x 1″)
Fan Speed 600 – 1,800 RPM (PWM) ± 10%
Fan Air Flow 53.4 CFM ± 10%
Fan Air Pressure 1.65mm H2O ± 10%
Fan MTTF 160,000 hours
LED Color RGB
Fan Noise Level 31 dBA (Max)
Fan Connector 4-Pin (PWM)
Fan Rated Voltage 12 VDC
Fan Rated Current 0.30 A
Fan Safety Current 0.37 A
Fan Power Consumption 3.6 W
Warranty 2 years
EAN Code 4719512065365
UPC Code 884102037887

Packaging
The MasterAir MA620P comes in Cooler Master’s typical retail packaging. On the front we have a photo of the cooler in action and it tells us about the RGB lighting. On the back there is a list of features in a few different languages as well as a diagram showing the dimensions of the cooler.

Cooler Master MasterAir MA620P Cooler Master MasterAir MA620P

On one side of the box some of the main features are detailed, like the dual tower design, the six heatpipes and CDC 2.0 technology, and the wired RGB controller. On the opposite side is a full list of specifications. I feel that if you were at the store you would have more than enough information on this cooler to make an informed buy.

Cooler Master MasterAir MA620P Cooler Master MasterAir MA620P

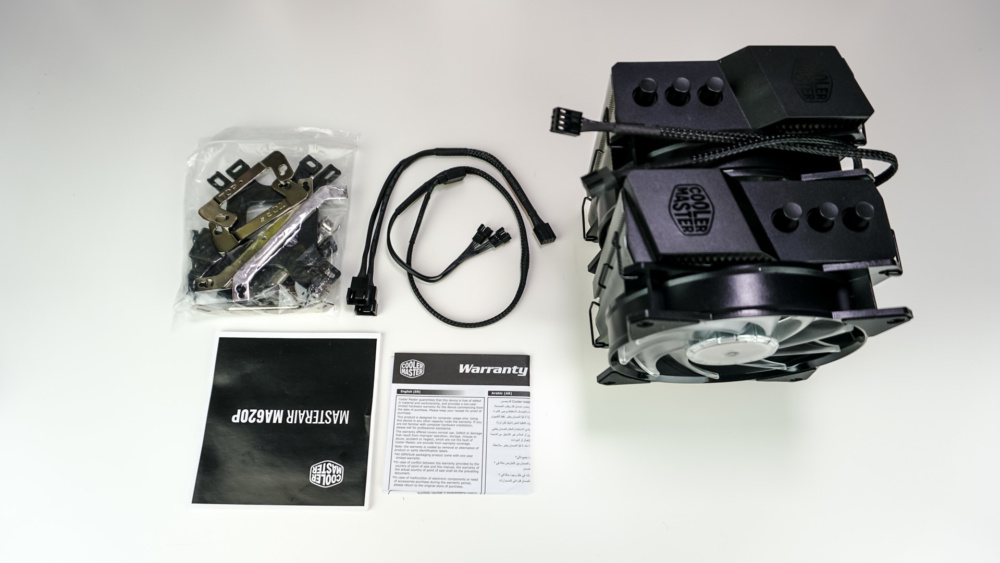

Getting everything out of the box you have the MA620P CPU cooler, mounting hardware, RGB controller, users guide, and a warranty guide.

Cooler Master MasterAir MA620P
