Corsair has introduced the ThermalProtect PCIe 5.1 600W 12V-2×6 GPU power cable, a new accessory designed to proactively protect high-performance graphics cards from overheating damage. This innovative cable integrates real-time temperature monitoring directly into the power connection, offering an added layer of security for expensive GPU hardware.
Key Takeaways
- Integrated Over Temperature Protection (OTP): The cable features a sensor that monitors the connection’s temperature.
- Automatic GPU Shutdown: If critical temperatures are detected, the cable triggers an immediate GPU shutdown to prevent damage.
- Plug-and-Play Simplicity: No user configuration is required; the protection is active upon connection.
- Enhanced Cable Management: A single, flexible cable design improves internal airflow and aesthetics compared to adapters.
- Broad Compatibility: Works with any power supply featuring a native 12V-2×6 connector.
Preventing GPU Catastrophes

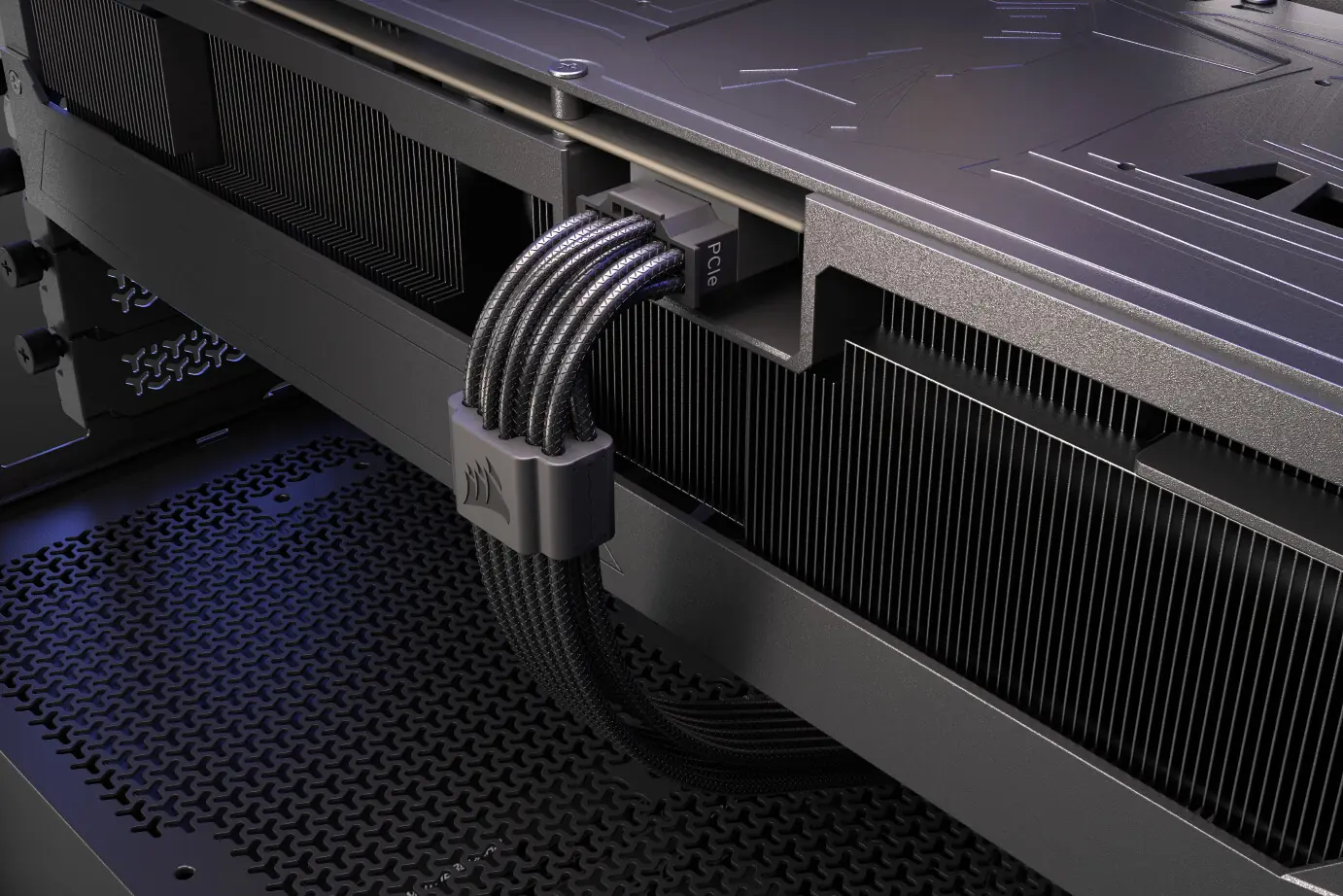

The increasing power demands of modern GPUs have raised concerns about the reliability of power connectors. Overheating, often caused by improper connection or insufficient thermal dissipation, can lead to irreversible damage to graphics cards. Corsair’s ThermalProtect addresses this issue directly by embedding a KSD thermal sensor approximately 30mm from the GPU connector. This sensor continuously monitors the temperature at the critical connection point.
How ThermalProtect Works

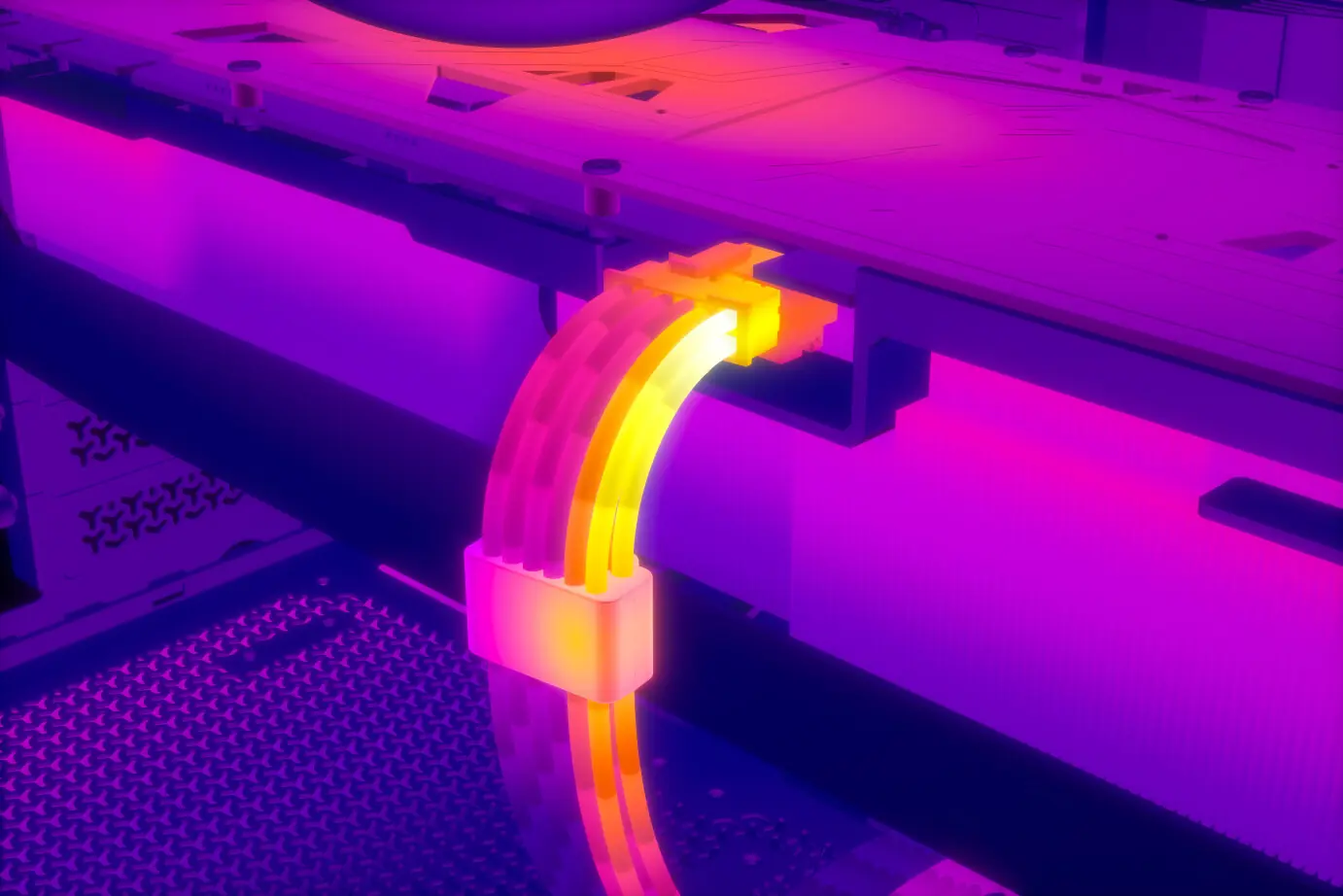

When the sensor detects temperatures exceeding a critical threshold (reportedly around 65°C), the ThermalProtect cable utilizes the sense pins (sense0 and sense1) of the 12V-2×6 connector to send an immediate shutdown command to the GPU. This proactive measure aims to prevent damage before it occurs. Notably, when the system shuts down due to ThermalProtect activation, other system components like fans and RGB lighting remain active, allowing users to quickly identify the cause as an OTP event rather than a general system crash.
Design and Compatibility

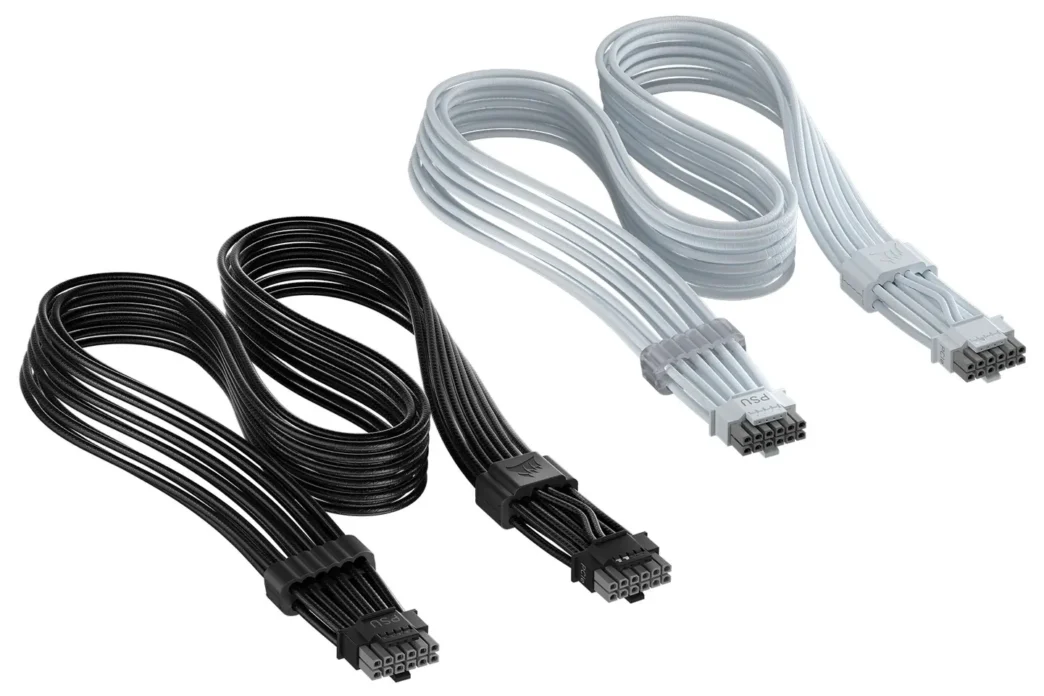

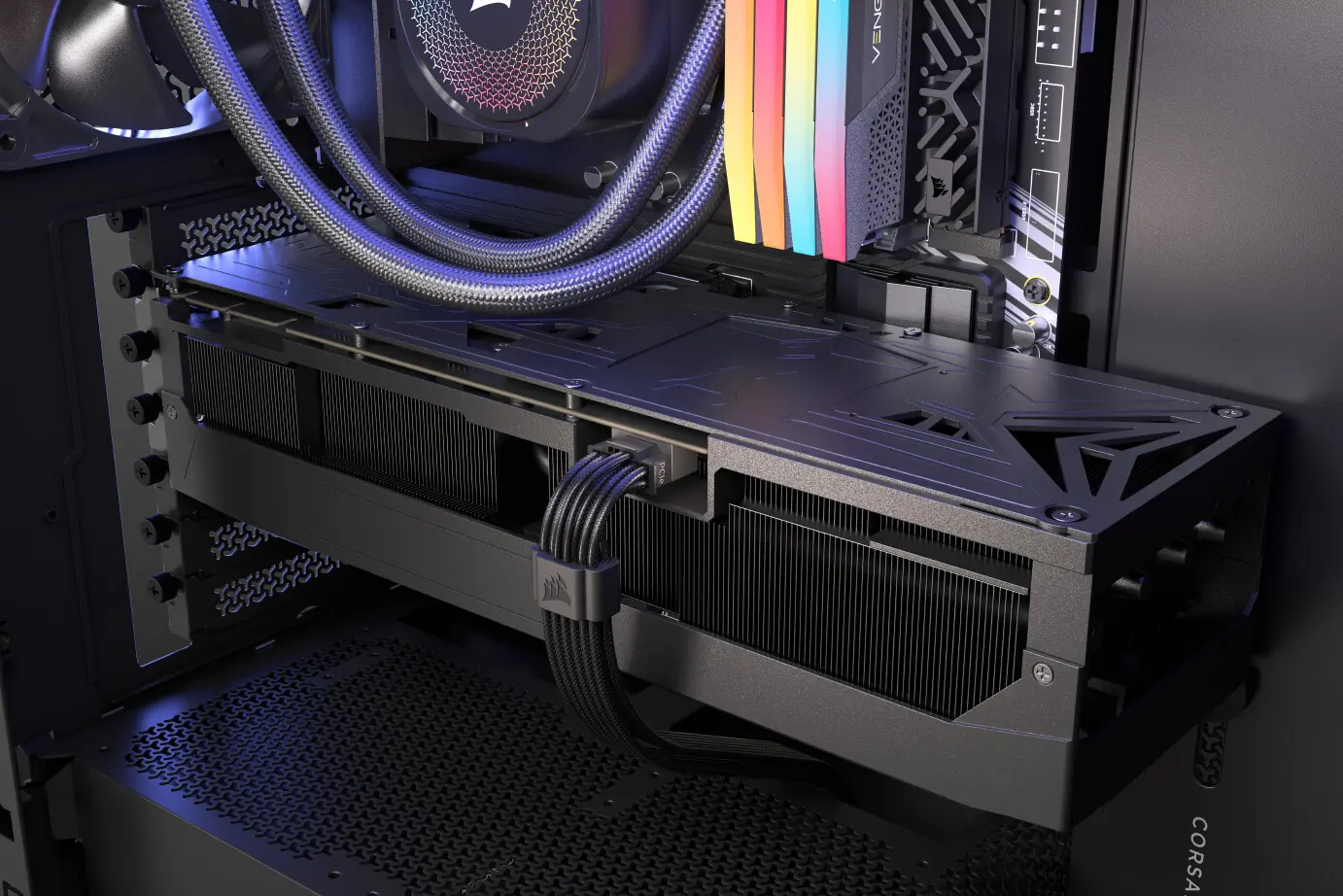

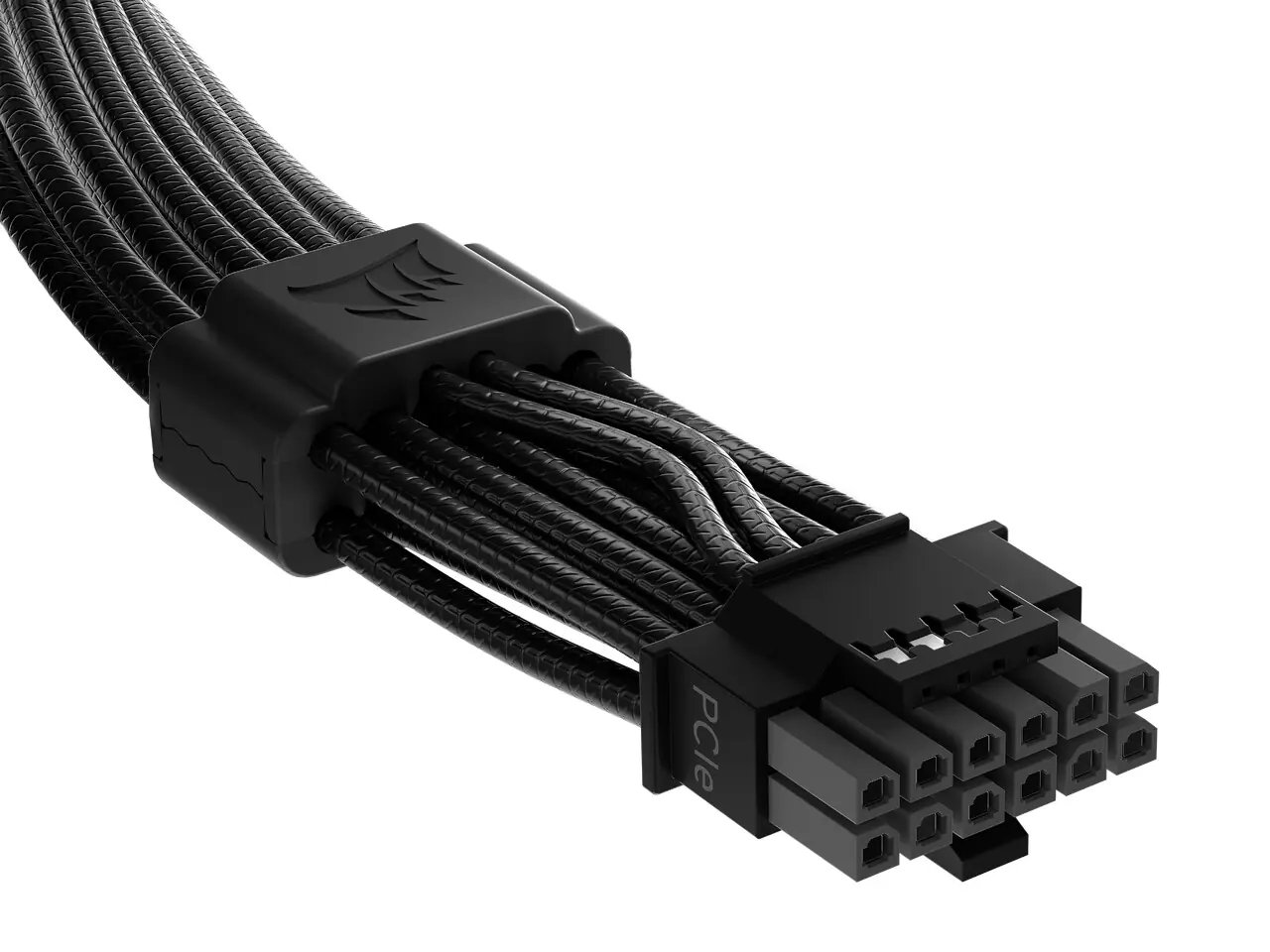

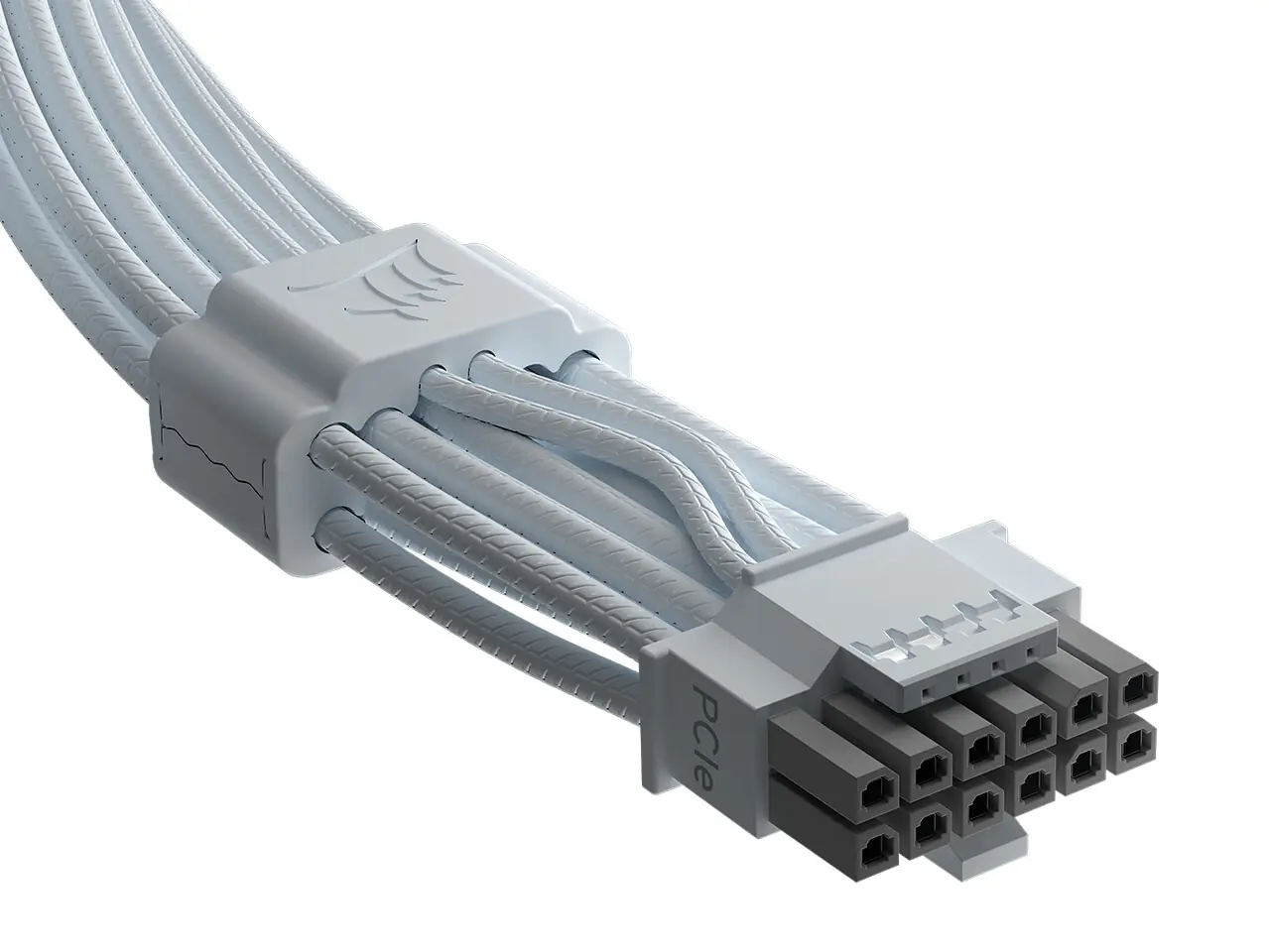

The ThermalProtect cable is designed for ease of use and aesthetic appeal. It features a flexible, 650mm long design available in black or white, facilitating cleaner cable management and improved airflow within the PC case. Dual-tone connectors with gray tips provide a visual cue for a secure connection. The cable is compatible with any power supply unit (PSU) equipped with a native 12V-2×6 connector, making it a versatile upgrade option for users looking to enhance their system’s safety without replacing their entire PSU.
Availability and Pricing
The Corsair ThermalProtect PCIe 5.1 600W 12V-2×6 cable is available immediately through Corsair’s authorized retailers and its official webstore. It comes with a two-year warranty. Pricing is set at $24.99.
Via Corsair
