DAN Cases Unveils the DAN C4-SFX Case, Available from May 16

DAN C4-SFX Case DAN C4-SFX Case

The C4-SFX case was developed with focus on strong cooling and high-end hardware compatibility—while being as small as possible. This case uses a heavily optimized classic hardware layout. The list of features is long—280 mm radiator support, big air cooler up to 145 mm in height, indirect GPU cooling, ITX, deep ITX, DTX, 3.9 slot full length GPU, SFX & SFX-L Power Supply support, s.o. All this is packed in an elegant enclosure with 14L made by Lian Li. In terms of hardware support there are nearly no limits. This case is the perfect match for SFF (Small Form Factor) enthusiasts, developers who require a case with a smaller footprint due to limited desk space and gamers who want a high-end PC experience in their living room.

DAN C4-SFX Case DAN C4-SFX Case

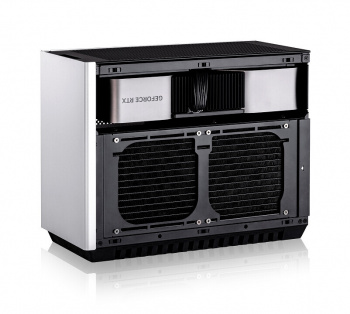

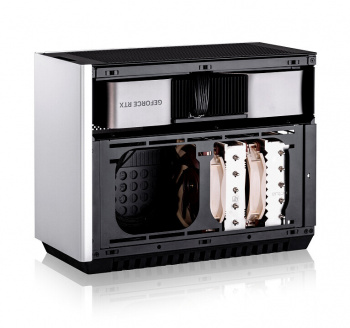

The case allows for tower heatsinks with 120 mm fan up to an height of 145 mm like the Noctua D12L or very big top blow heatsinks like the Noctua C14S. For these configurations it is possible to mount the power supply 90° rotated. With the radiator bracket it is possible to install 120, 140, 240 or 280 mm radiators with 25 mm thick fans for the best cooling results. You can install 3.9 slot GPUs with a length of up to 336 mm. Two 120 or 140 mm fan mount points at the top of the case allows for indirect GPU cooling if you remove the preinstalled GPU fans.

DAN C4-SFX Case DAN C4-SFX Case

Two 2.5″ HDDs or SSDs can be mounted at the front. The drives will be mounted with rubber spacers to reduce vibration and noise. The case does come with special air flow brackets and an RTX 40-series blow through air tunnel to force hot GPU air out of the case. This will result in much better CPU temps.

DAN C4-SFX Case

The all-aluminium body will be manufactured again by Lian Li in Taiwan per their highest quality standards. A commitment to quality lies at the core of our business philosophy.

Specifications:

  • Case Size: 253 (H) x 166 (W) x 350.2 mm (D)
  • Overall Dimensions: 273 (H) x 166 (W) x 350.2 mm (D) / including feet
  • Case Volume: 14,7 L
  • Case Weight: 3.7 Kg
  • IO: USB 3.2 gen 2 Type-C (internal Key-A plug)
  • Material: 1.5 mm aluminium & 1.2 mm steel
  • Finish: Anodized black or silver exterior (glass beats blasted), matte black painted interior

Compatibility:

  • Graphic cards:
    • 3.5 Slot up to 336 mm length
    • 3.9-Slot up to 334 mm length
  • Watercooling: up to dual 240/280 radiator
  • Heatsink: up to 145 mm in height
  • Motherboard: Mini-ITX, DTX, Deep-ITX, short 3-slot mATX
  • Power Supply: SFX, SFX-L
  • Drives: 2 x 2.5″ HDD/SSD
  • Fans:
    • 2 x 120/140 mm fan top
    • 2 x 120/140 mm fan side
    • 1 x 80 or 1x 92 mm fan back side

On Tuesday the 16th May, at 4 PM CET, the C4-SFX v1 will be available for purchase. Please refer to www.dan-cases.com for the real time countdown.
The case will launch with a reference price of 205€ on Caseking.de

The case will be available through our resellers

  • Caseking.de (EU Cusstomers)
  • OverclockersUK (US/Canada/UK customers)
  • ComputerOrbit (all countries)
  • Dirac Japan partner shops (Japan customers)

RTX 4080/4090 cards that will fit:

  • ASUS RTX 4080 Pro Art
  • ASUS RTX 4080/4090 TUF OG
  • Colorful RTX 4080/4090 BattleAx
  • Gainward RTX 4080/4090 Phantom
  • Gainward RTX 4080/4090 Phoenix
  • Gainward RTX 4080 Panther
  • Gigabyte RTX 4080 Windforce
  • INNO3D RTX 4080/4090 iChill X3 / X3 OC
  • KFA2/Galax RTX 4080/4090 Serious Gaming
  • Manli RTX 4080
  • MSI RTX 4080/4090 Ventus X3
  • MSI RTX 4080 Gaming X Trio
  • NVIDIA 4080/4090 Founders Edition
  • Palit RTX 4080 JetStream
  • Palit RTX 4080/4090 GameRock
  • Palit RTX 4080 GamingPro
  • PNY RTX 4080/4090 Verto
  • PNY RTX 4080/4090 XLR8
