System Overview & Testing Procedures

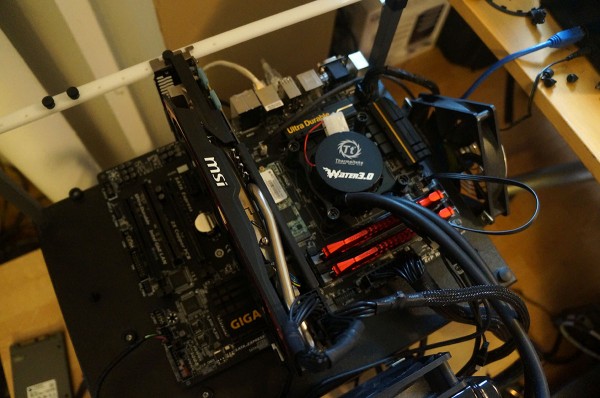

The Gigabyte Z97X-UD3H-BK was installed in our test bench, which we use to test all of our motherboards. All of the hardware besides the motherboard stays the same to keep things uniform.
Test System Specs
Processor: Intel Core i7-4790K
Video Card: MSI GTX 770 Gaming
Motherboard: Gigabyte Z97X-UD3H-BK
Memory: 16GB Kingston HyperX Savage
Storage: 120GB Kingston HyperX 3K
Power: Corsair AX860i
Cooling: Thermaltake Water 3.0 Extreme
Case: HighSpeed PC Top Deck Tech Station
We will be testing the motherboard at the CPU’s stock speed of 4.0 GHz and again at our max stable overclock which is 4.6 GHz.
I have organized our benchmarks into the sections you see below.
– Processor Arithmetic
– Processor Multi-Media
CINEBENCH R11.5 64-bit
x264 HD Benchmark 5.0
Overall System Testing
Gaming & Video
Alien vs Predator Benchmark
Now let’s get to testing!
