HYTE Revolt 3 Mini-ITX Case Review

A Look Inside

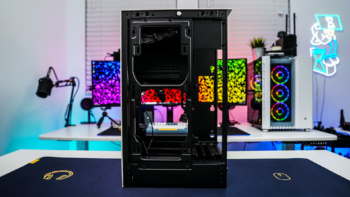

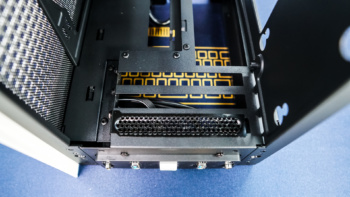

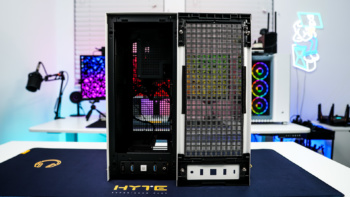

The panels of the case come off pretty effortlessly by just pulling on them from the bottom. All of the panels except the top panel are completely tool-less. With the first panel removed we can see there are a total of three expansion slots. HYTE says “most” graphics cards up to 335 mm will fit in the case, they actually have a GPU compatibility list on their website, which is nice if you are planning out a build.

HYTE Revolt 3 Mini-ITX Case HYTE Revolt 3 Mini-ITX Case

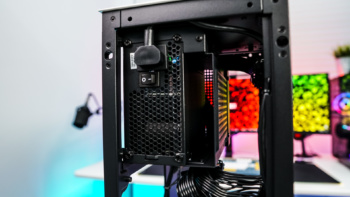

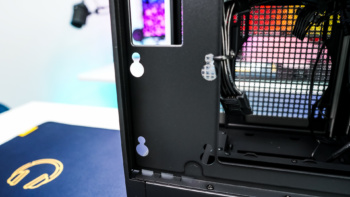

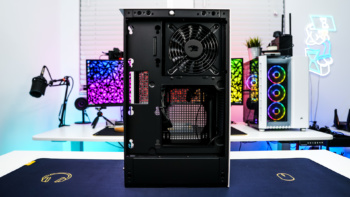

Removing one of the side panels we find out power supply. You can buy the case with or without a power supply. If you choose it with the case will come with a 700W iBUYPOWER 80PLUS Gold branded unit. If you don’t get the case with a power supply you’ll be able to install SFX or SFX-L units. On this side of the case you’ll also find two 2.5-inch SSD mounts. There is an opening in the case to easily route all of your cables to your drives.

HYTE Revolt 3 Mini-ITX Case HYTE Revolt 3 Mini-ITX Case HYTE Revolt 3 Mini-ITX Case HYTE Revolt 3 Mini-ITX Case

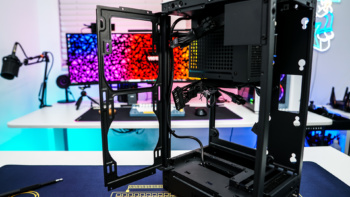

On the other side of the case we find a cooling bracket. This bracket is mainly made for radiators as it susprisingly fits up to a 280mm radiator. So you can either install an air cooler in this case up to 140 mm or go the all-in-one route. This bracket has a hinge design which allows it to swing open for easy installation and access to your motherboard once you have everything installed.

HYTE Revolt 3 Mini-ITX Case HYTE Revolt 3 Mini-ITX Case

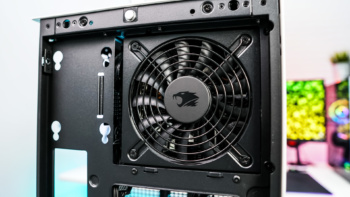

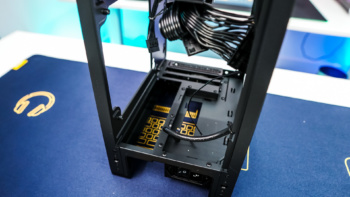

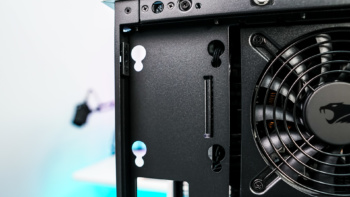

Taking the rear panel off the case we can see our power supply and right next to it is a single 3.5-inch hard drive mount. So out of the box you have support for at least 3 hard drive and don’t forget that doesn’t include the M.2 slot on your mini-ITX motherboard. Looking into the rest of the case we can see where we’ll mount our motherboard.

HYTE Revolt 3 Mini-ITX Case HYTE Revolt 3 Mini-ITX Case

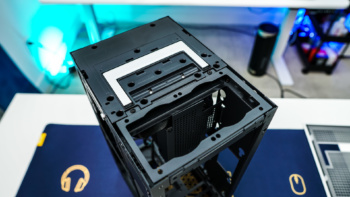

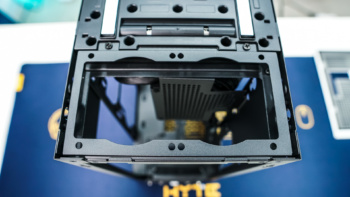

The top panel of the case does require a screwdriver to take off. Once removed we can see that there is another cooling bracket that does support up to two 80 mm fans. If you do decide to install fans here it does cut down the support GPU length to 320 mm.

HYTE Revolt 3 Mini-ITX Case HYTE Revolt 3 Mini-ITX Case
