Lexar NM800 Pro NVMe Solid State Drive Review

Testing – Anvil, PCMark 8, 3DMark & AIDA64

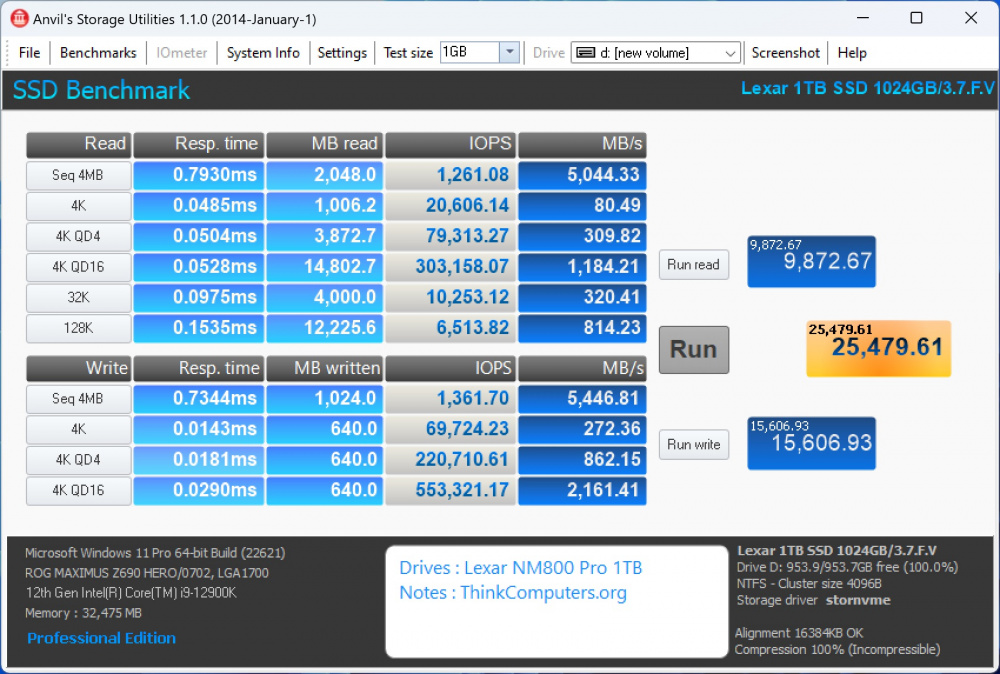

The next test is Anvil Storage Utilities, which is a really great piece of software. The SSD benchmark gives you scores for both read and write as well as a combined score.

lexar nm800 pro anvil 1

Next up is PCMark 10, we will be running the Full System Drive Benchmark.

lexar nm800 pro pcmark10

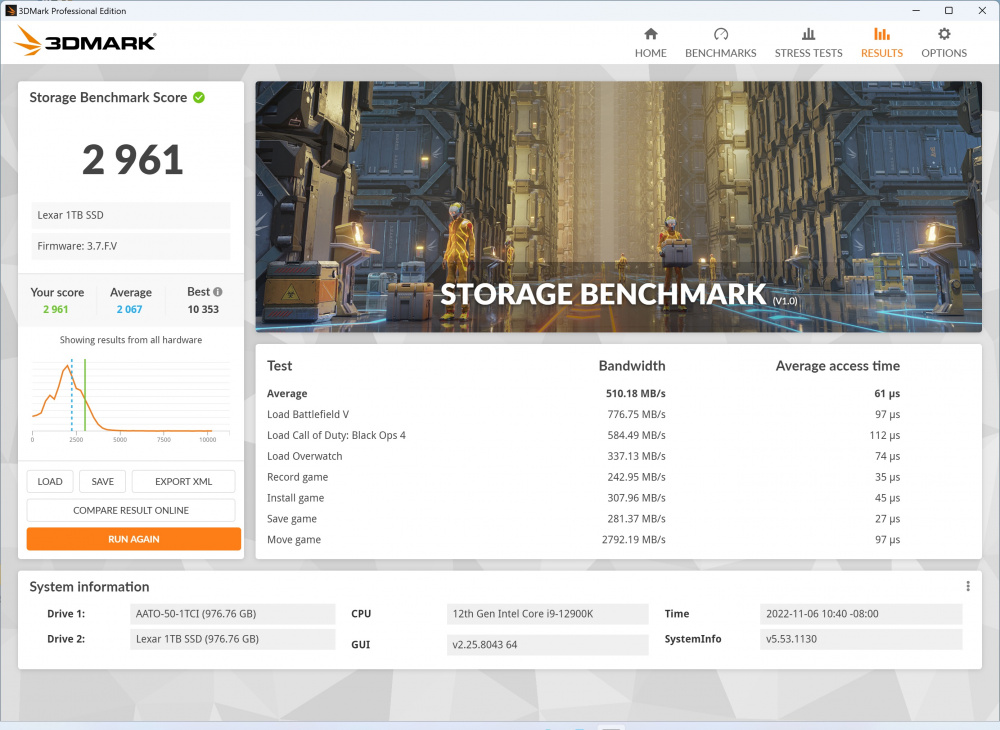

A new test we’ve added to our benchmarking suite is the 3DMark Storage Benchmark. This is probably the most comprehensive gaming storage benchmark that we’ve ever seen. It does a handful of different actions like loading games, recording games, etc.

lexar nm800 pro 3dmark 1

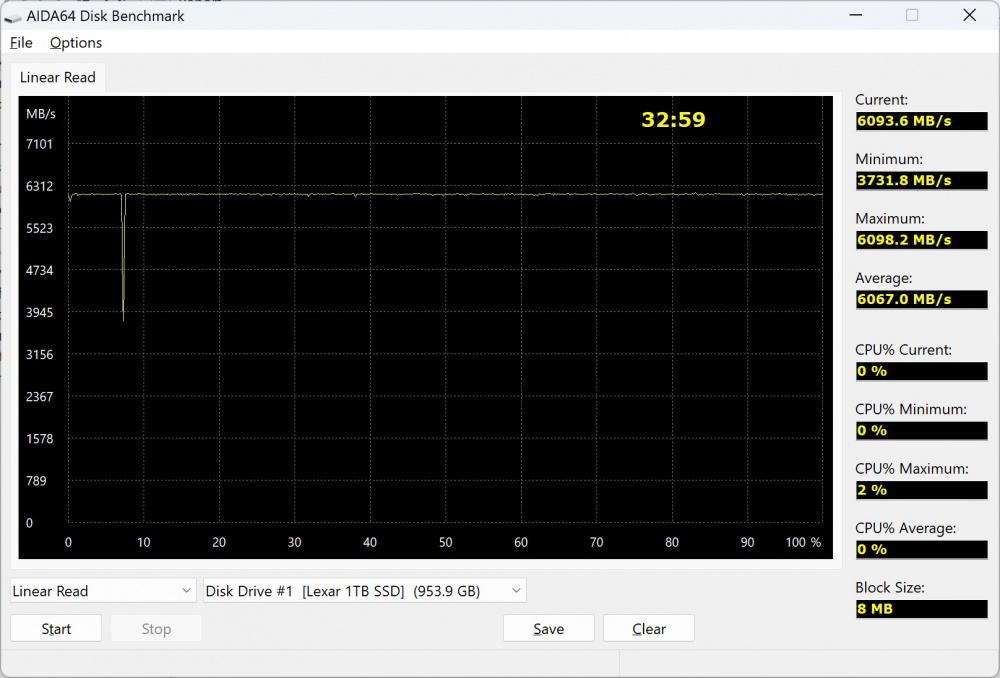

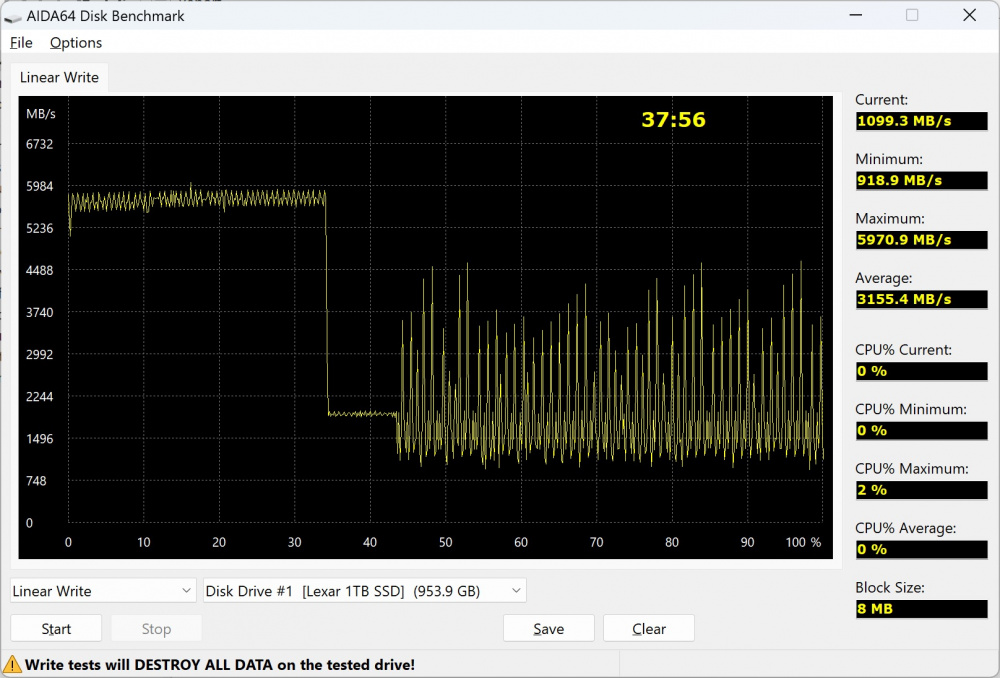

We have added back AIDA64’s Disk Benchmark to our testing. The linear test will actually scan from the first physical sector to the last on the test drive. This gives a good representation of sustained read / write operations. We will be running both the Linear Read and Linear Write tests using a 8MB block size.

lexar nm800 pro aida read 1

lexar nm800 pro aida write 1
