MSI MAG CORELIQUID A12 240 Installation
Like most AIOs, the installation of the be MSI MAG CORELIQUID A12 240 is a very straightforward process. As DIY PC building seems to be getting more popular each and every day, the option of AIO liquid coolers is sure to entice those wanting to have a more advanced build, and easy installation will go a long way towards not scaring off first-time builders. As I mentioned when I covered the included accessories, MSI has included all of the necessary mounting hardware for modern AMD and Intel platforms, though they have opted for a digital installation manual. We are seeing more companies move to digital versions of their product manuals, and while I appreciate their reduced waste, I still prefer a physical copy of installation instructions. This is especially true with this cooler, as there is no installation manual available on the product page, and you have to scan a QR code that is inside the outer flap of the box in order to gain access to it.

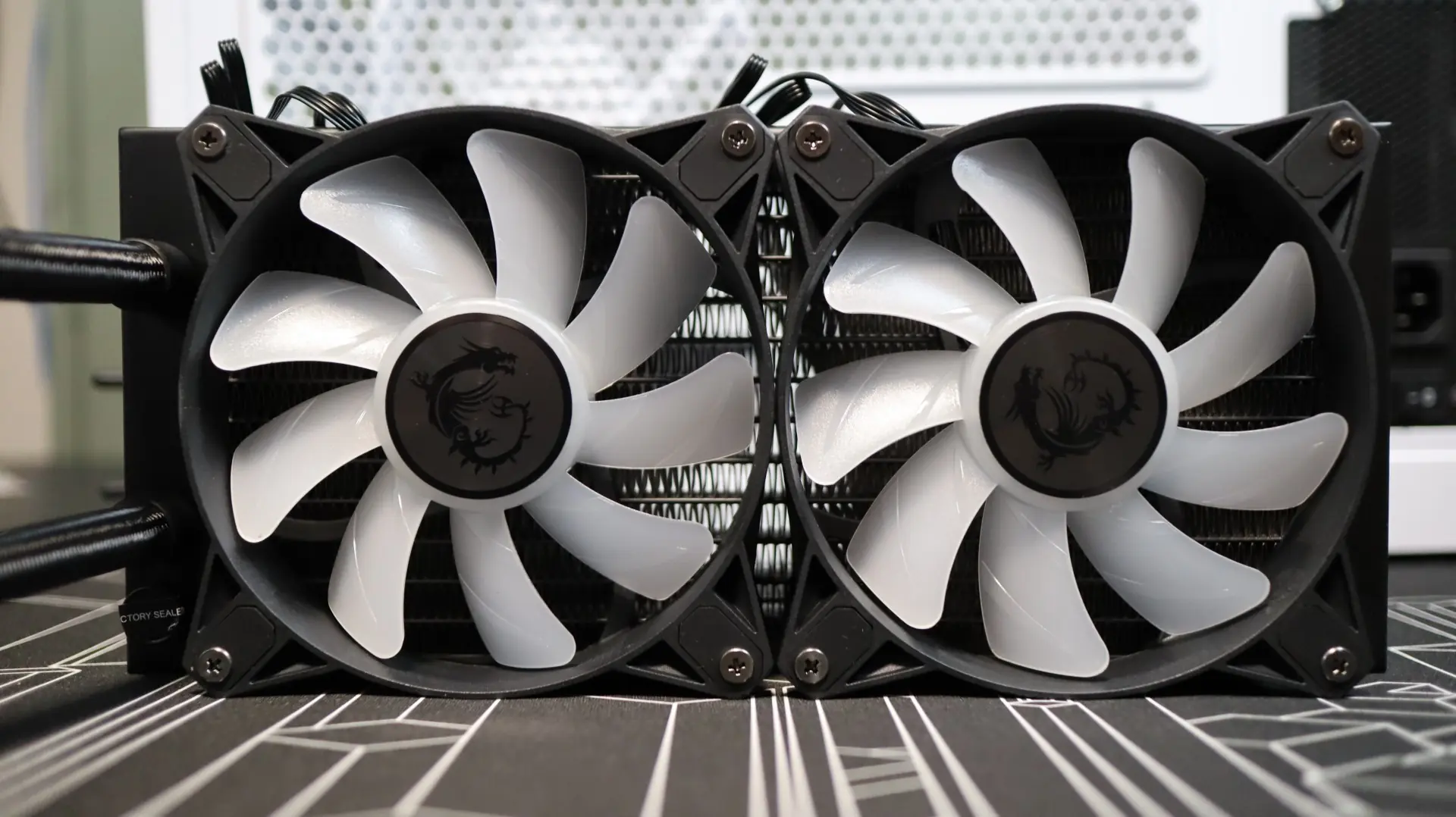

Our testing is performed with the fans in a push configuration, which required aligning and mounting our fans to the radiator using the included fan screws.

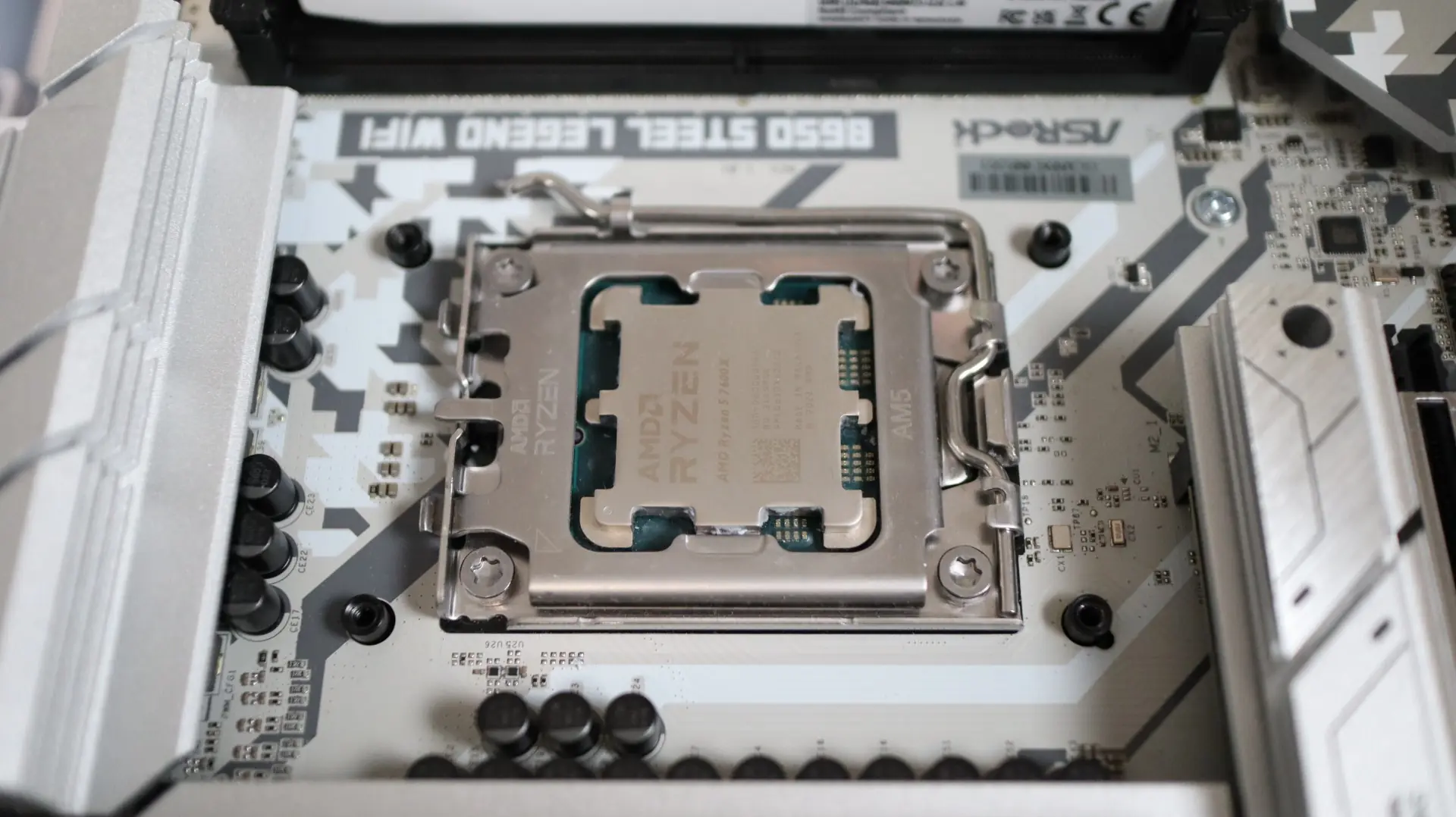

As previously mentioned, the MAG CORELIQUID A12 240 does not have any mounting hardware installed from the factory, so I first had to install AMD mounting hardware to the pump housing for my Ryzen 7 7600X test system. This is a simple process that just requires sliding a flat bracket into place. The MAG CORELIQUID A12 240 does not use the factory AMD mounting clips for securing the cooler to the motherboard, so I did have to remove the plastic mounting brackets in order to secure the cooler to the motherboard.

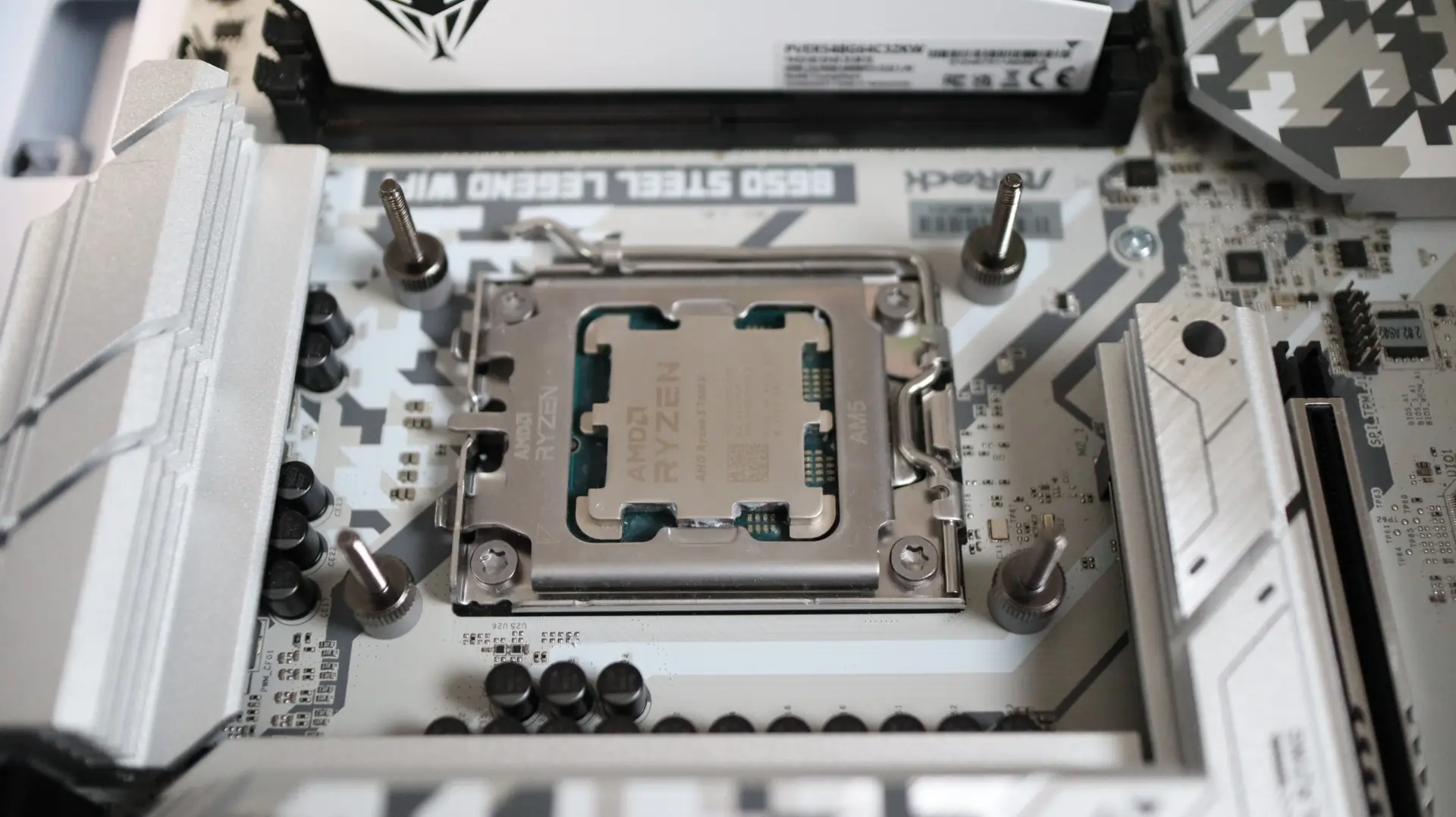

Next up is installing standoffs on each of the motherboard’s backplate mounting points in order for the included spring-tensioned screws to properly hold down the cooler.

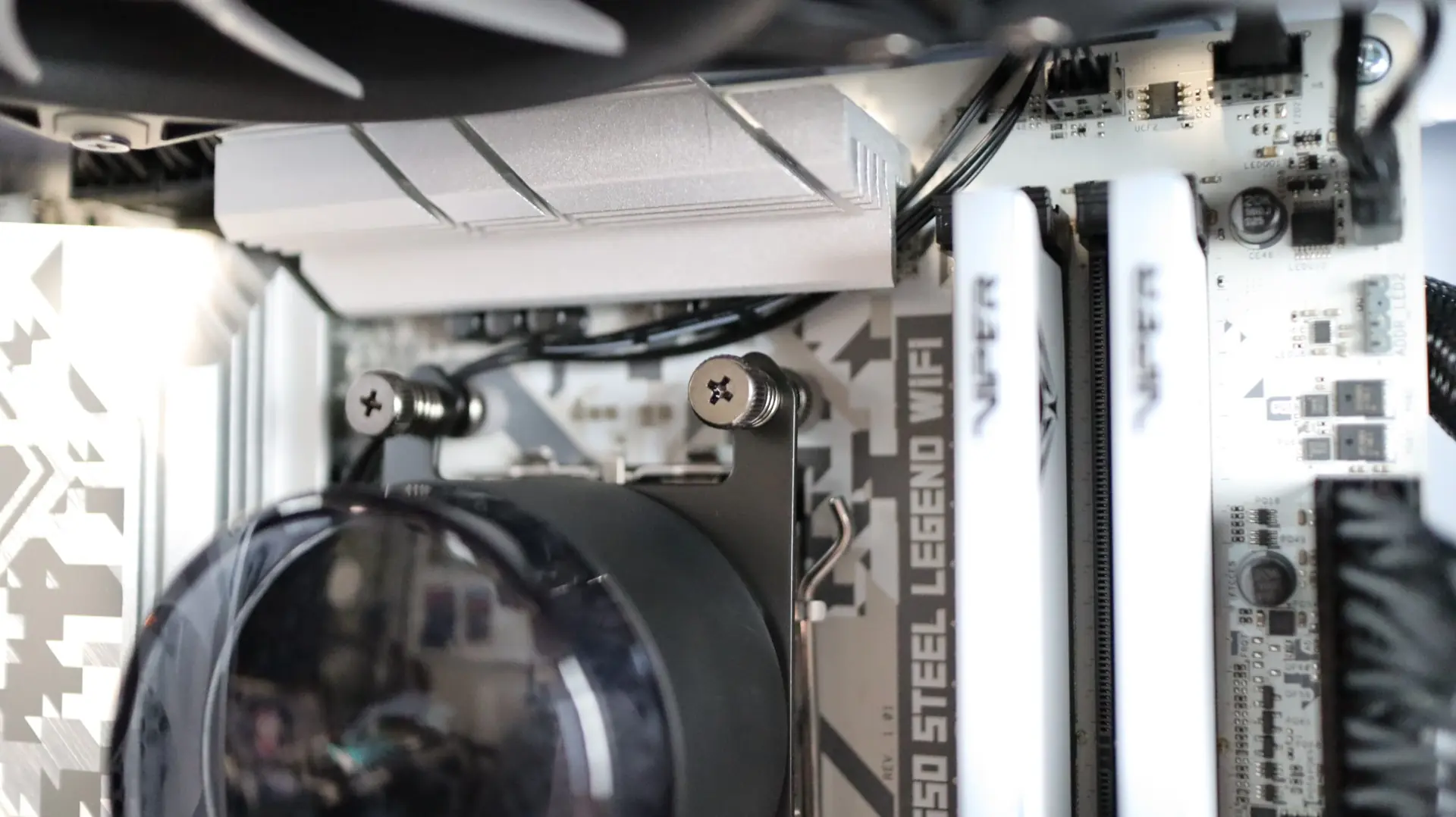

With the mounting hardware in place and thermal paste applied to the CPU, it is time to line up the cooler with the brackets, and tighten everything down. The use of four spring-tensioned screws makes the rest of this installation very simple. Next up is attaching the radiator to the top of our case. Using the eight included screws, simply align them with the appropriate mounting points on your case, and tighten.
With all of the hardware in place and the wiring complete, it is time for testing.
Gallery

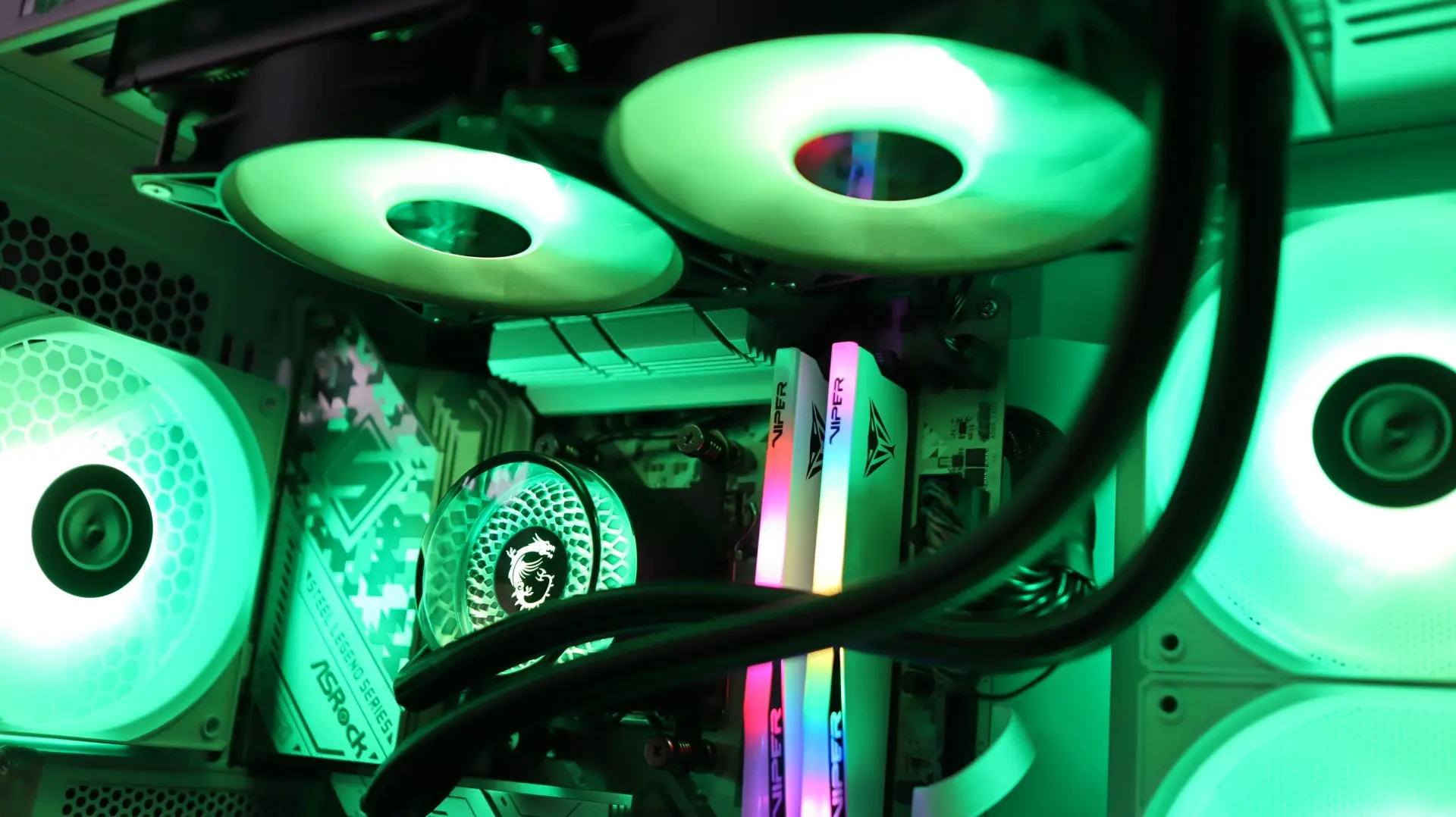

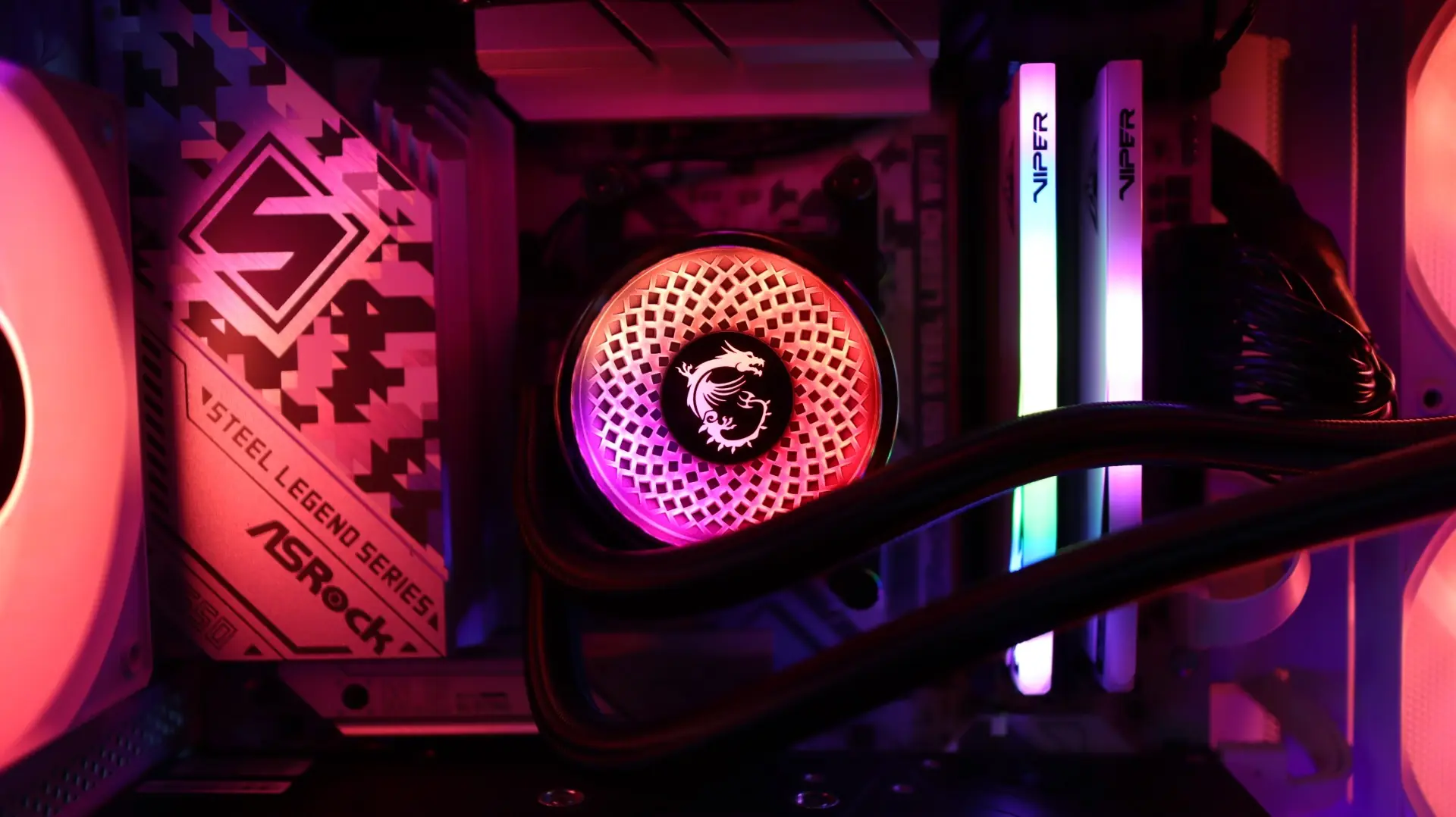

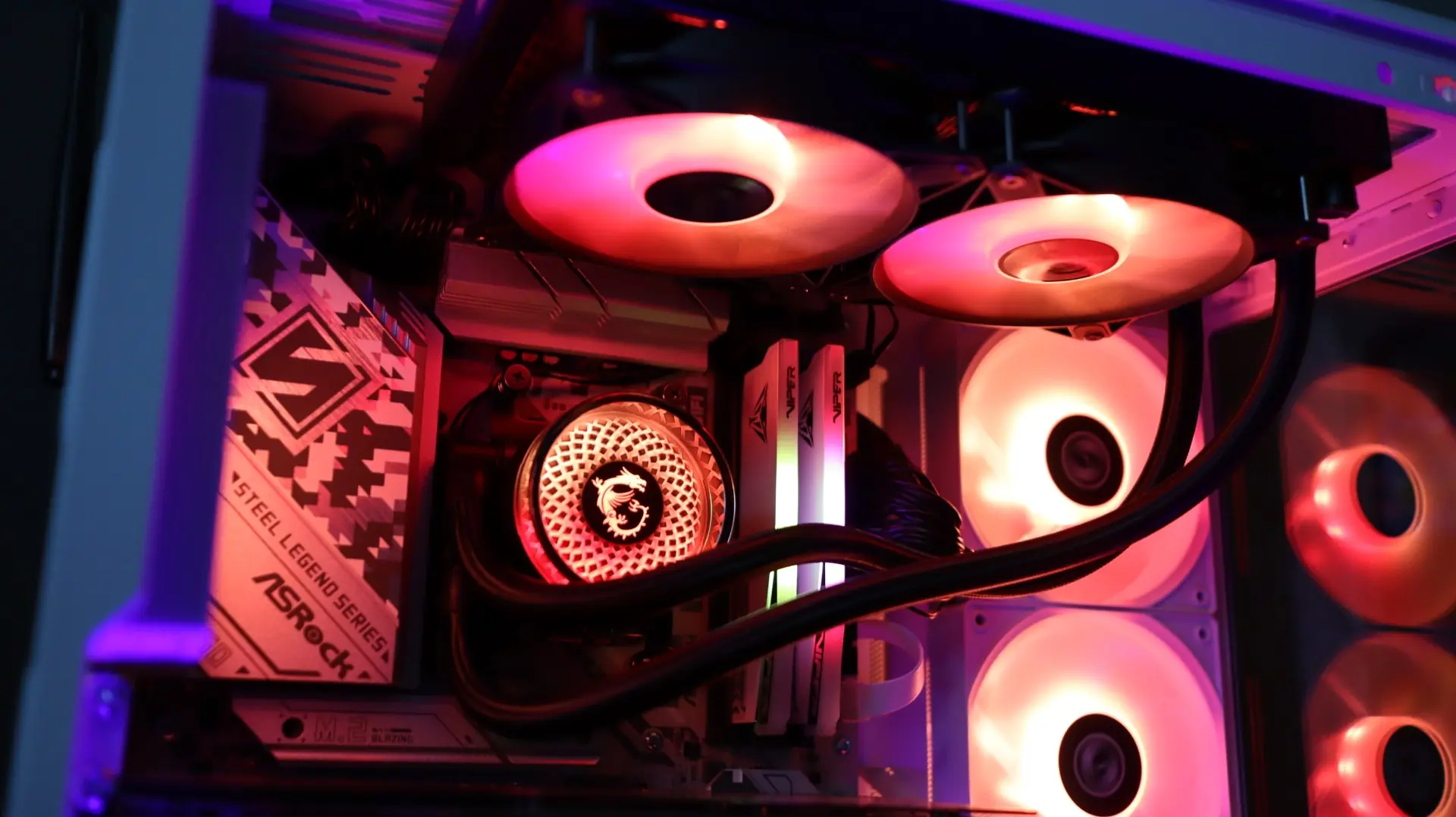

Here are a few shots of the MAG CORELIQUID A12 240 In Action
