MSI MAG PANO 110R PZ Case Review

What does the MSI MAG PANO 110R PZ Case Look Like?

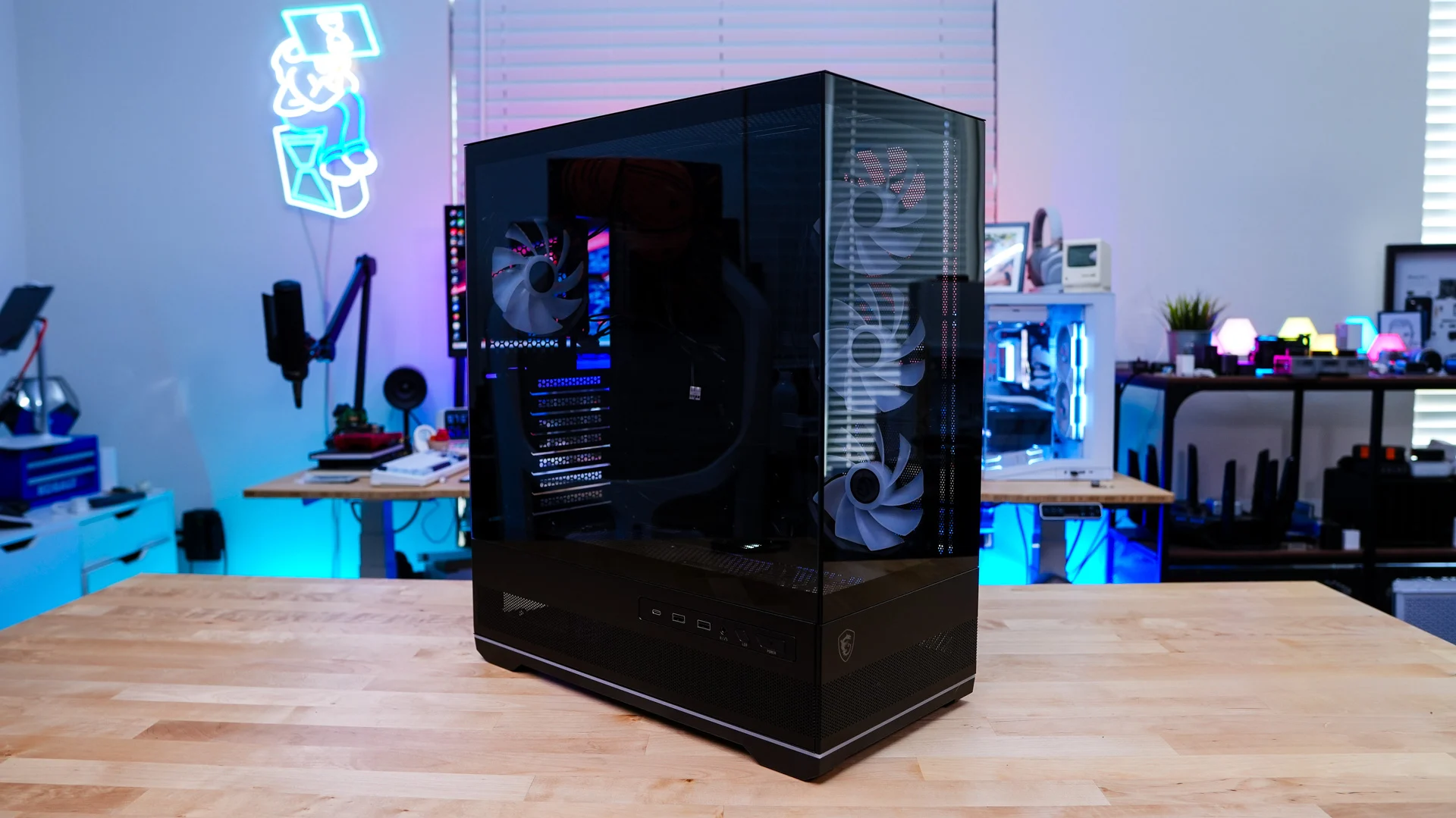

Taking a first look at the MAG PANO 110R PZ, it is what I would call a compact mid-tower. With official dimensions of 420 x 225 x 485 mm it is going to be quite easy to fit on your desk. Don’t let the smaller size fool you, this case does support full-size hardware. We received the black version of the case, but it will also come in a white version.

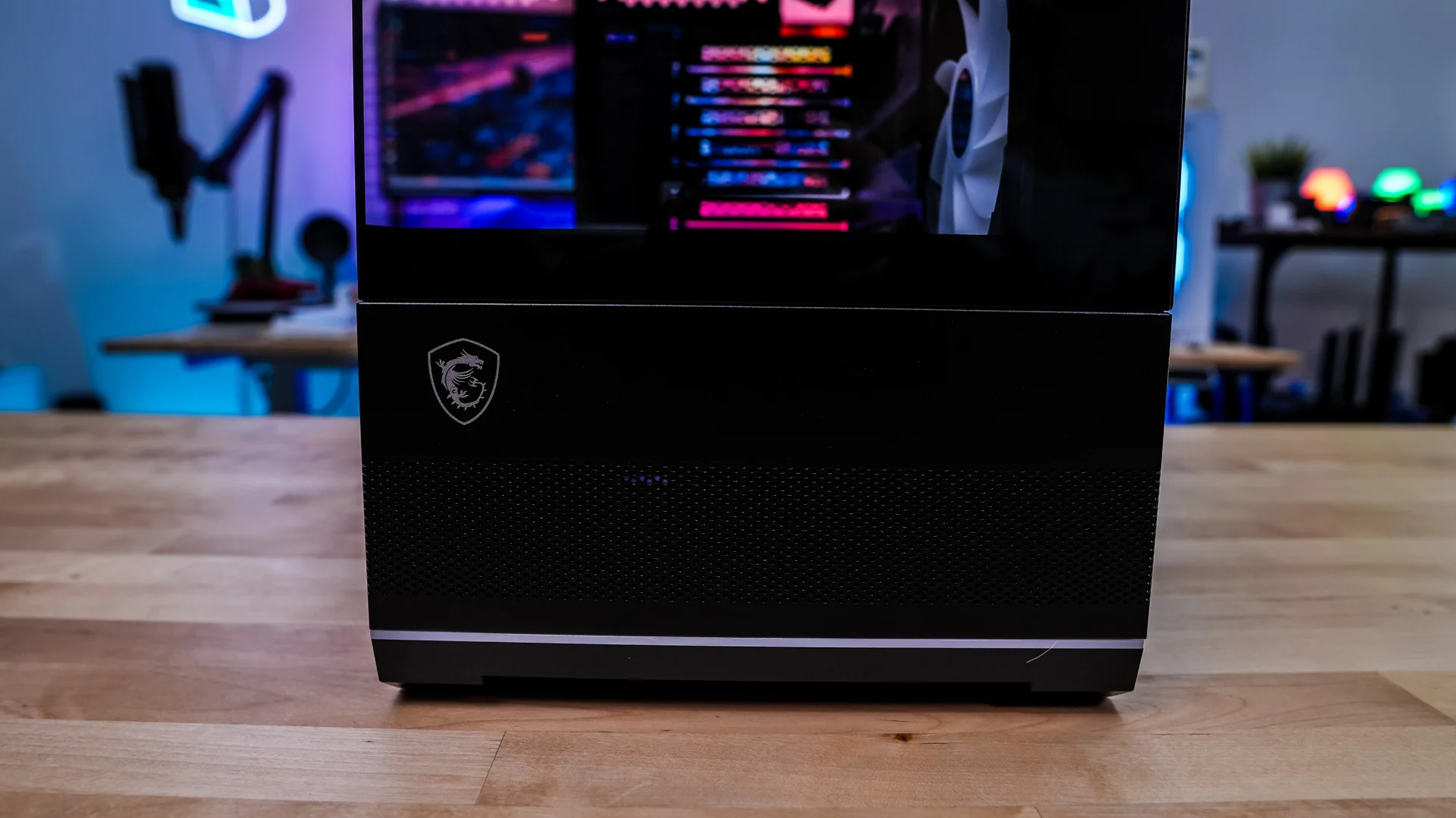

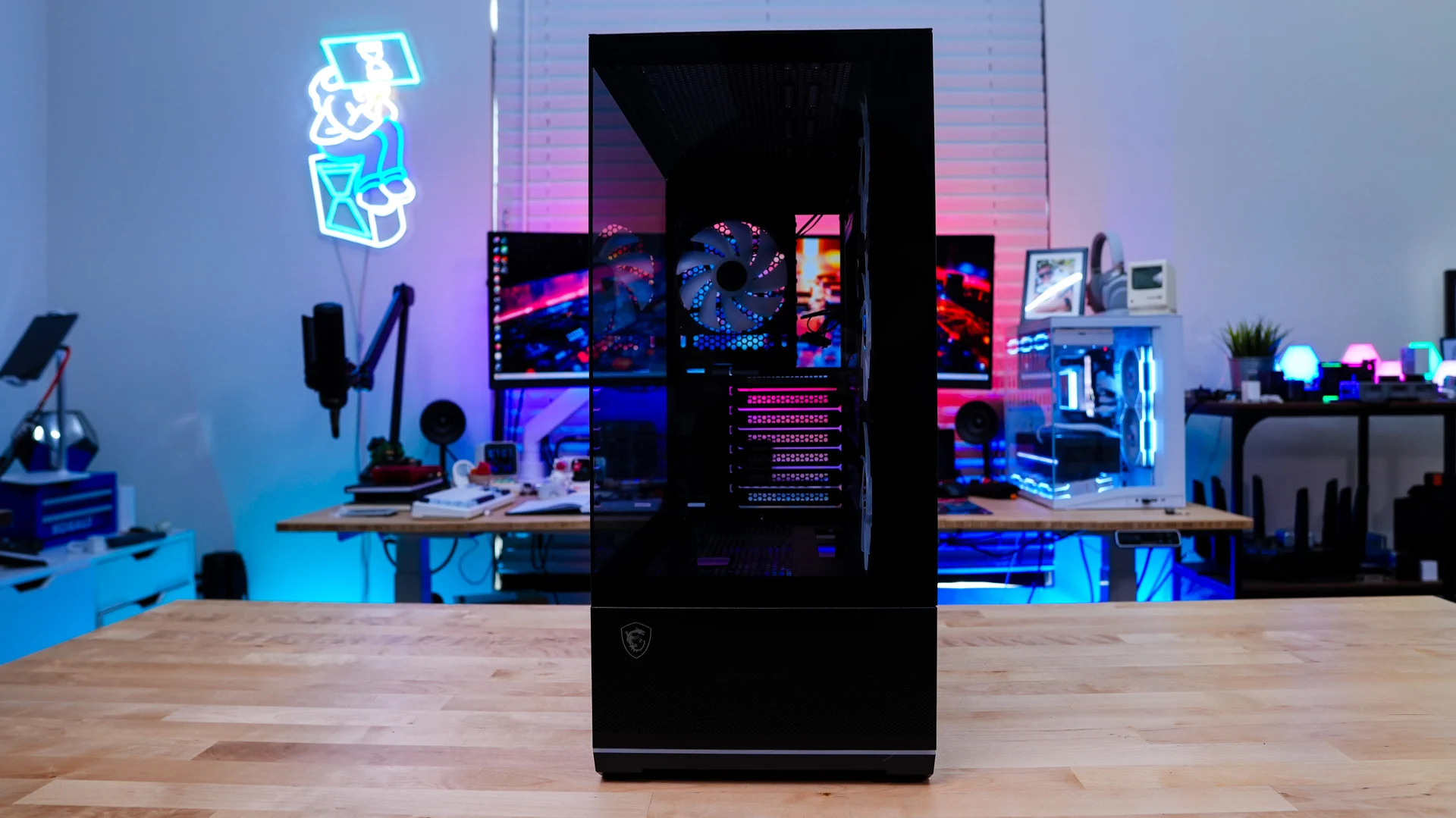

The front of the case is split into two sections with a tempered glass panel taking up about 80% of the front and a small ventilated section below with the MSI logo. You’ll see this 80/20 design on the main side panel as well. The tempered glass panel gives you an obstructed view right into your system.

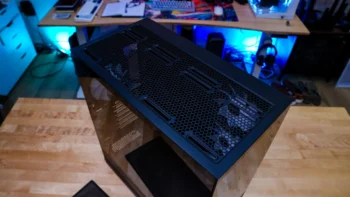

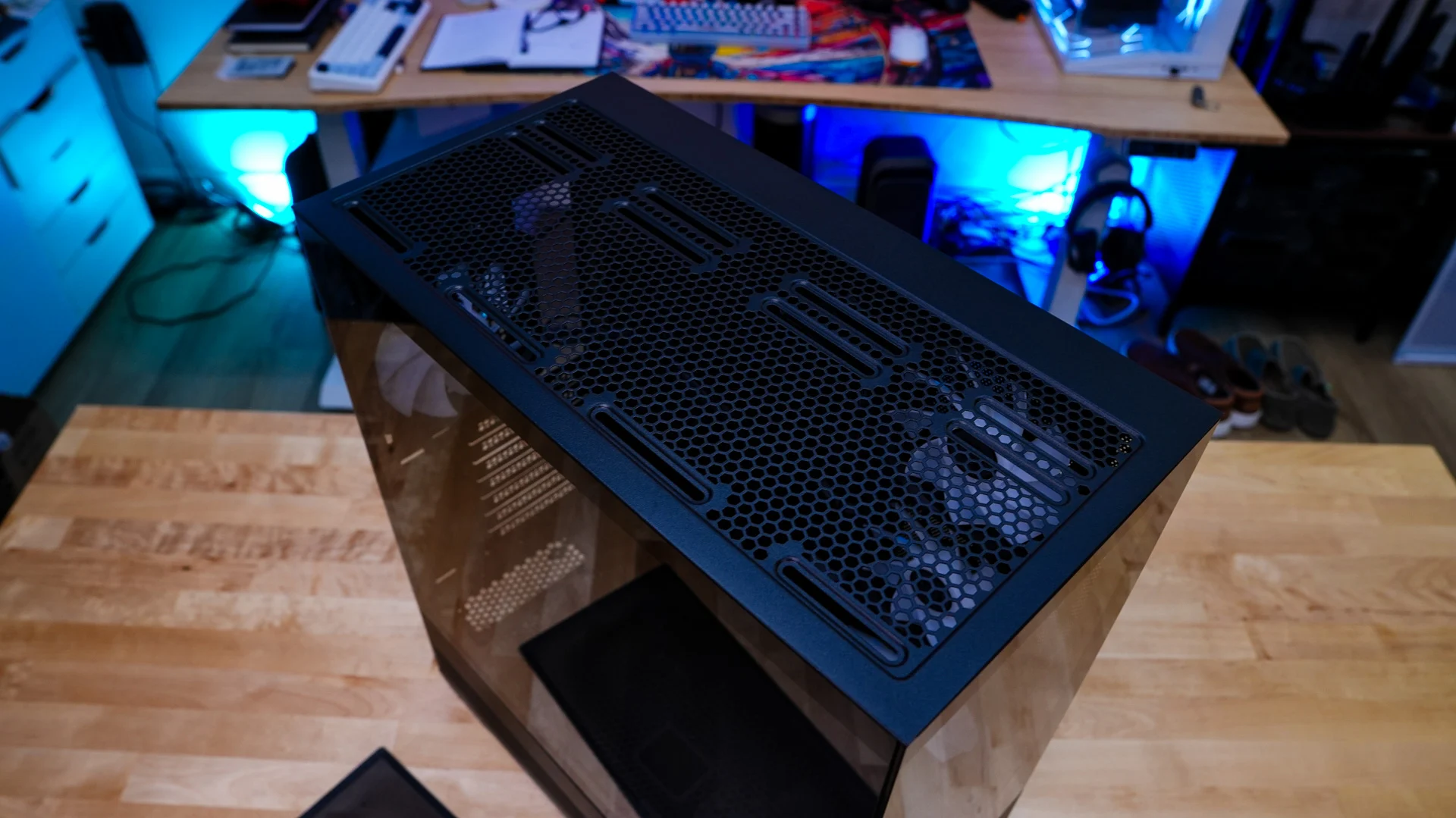

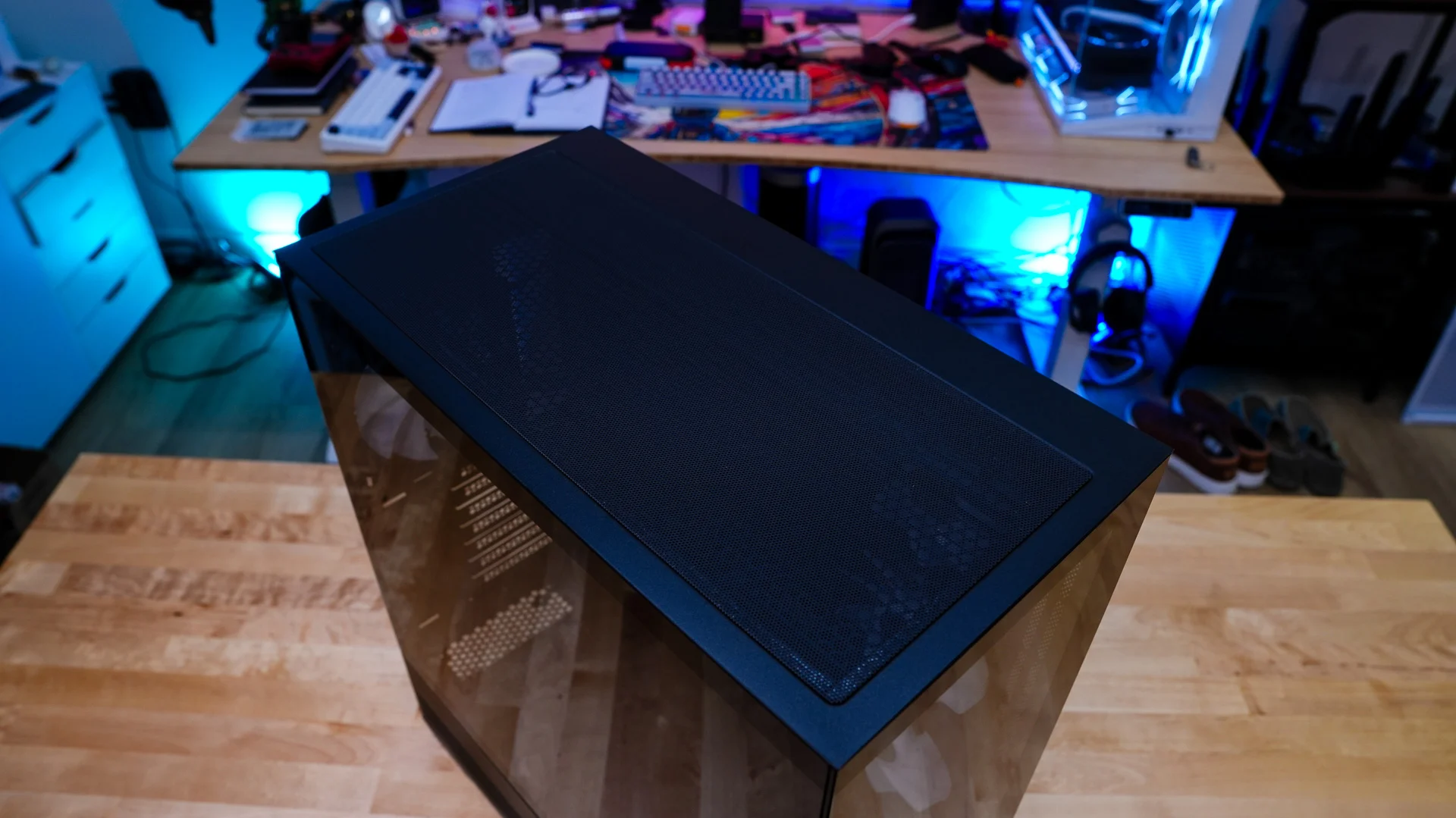

Moving up to the top of the case we have a removable magnetic filter. Removing it we find a cooling mount that supports either three 120mm fans, two 140mm fans, or radiators up to 360mm.

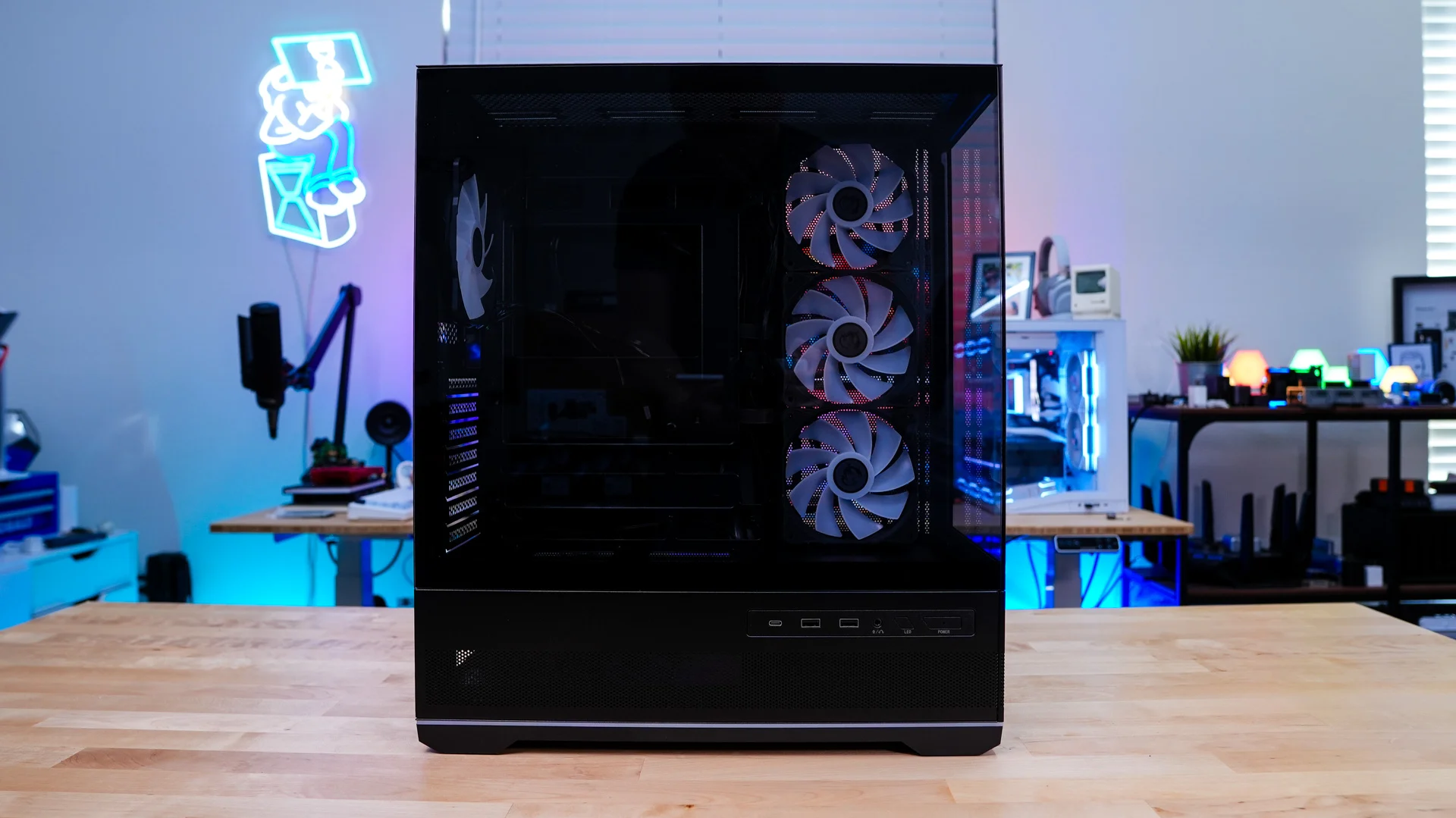

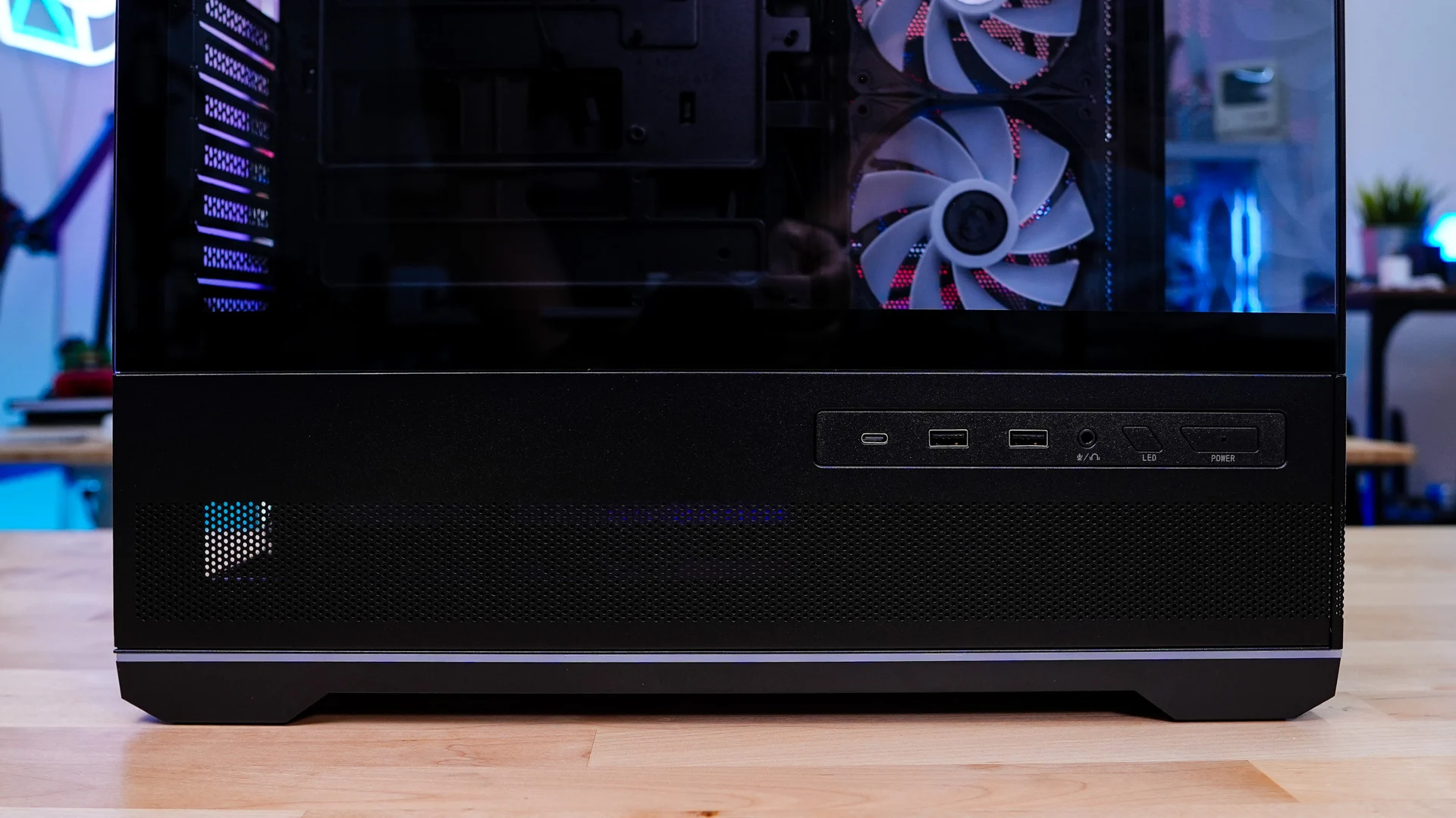

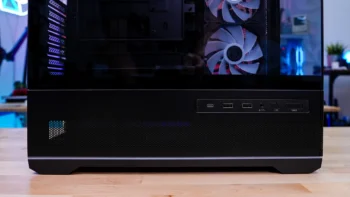

The main side panel is going to be a tempered glass panel, which will allow you to fully show off your system. It extends about 80% of the side of the case, with 20% being a normal ventilated panel. On this panel you’ll find your buttons and connections which include a large power button, LED button, a combination headphone / microphone jack, two USB 2.0 ports, and a USB 3.2 gen 2×2 Type-C port.

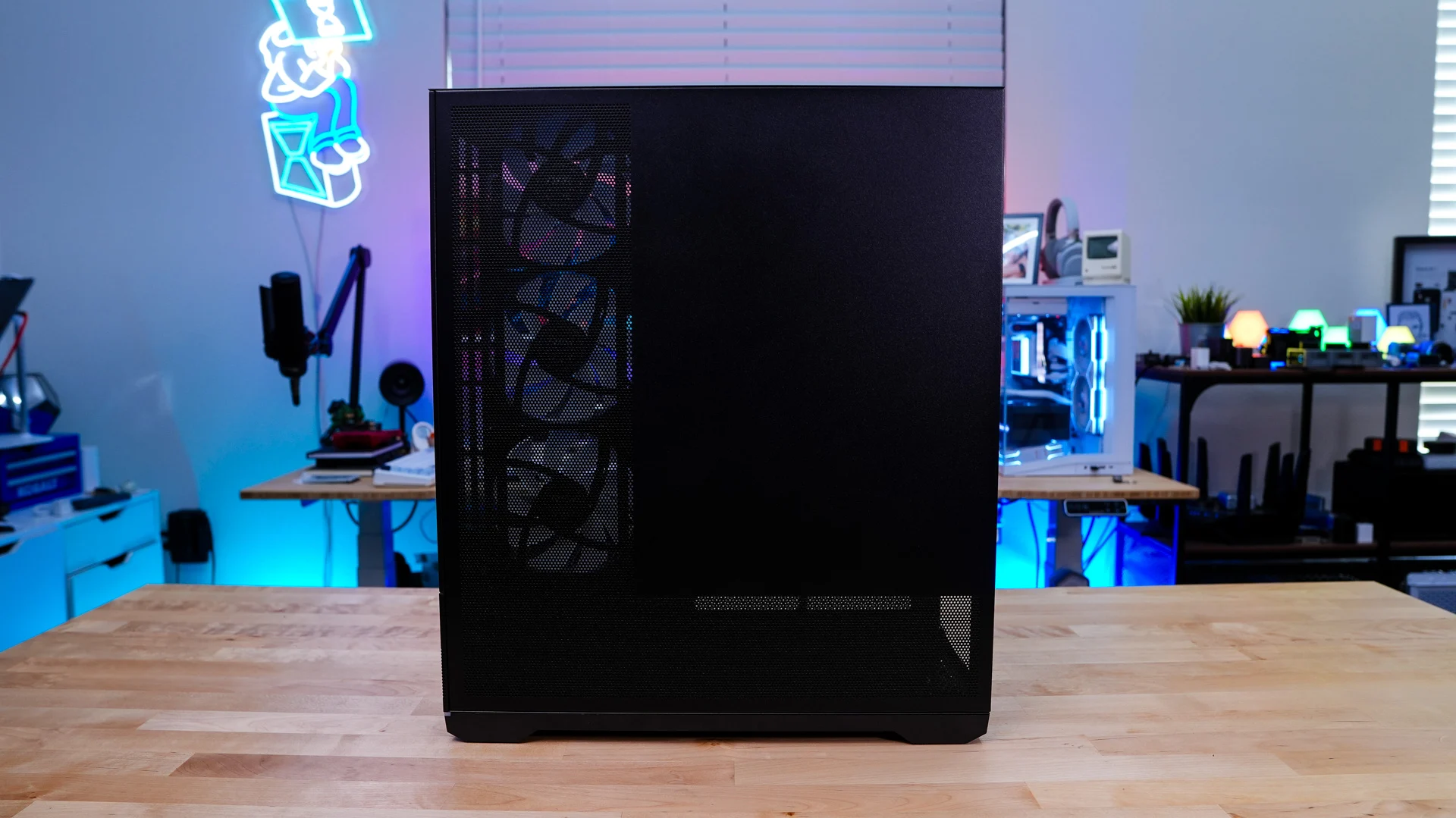

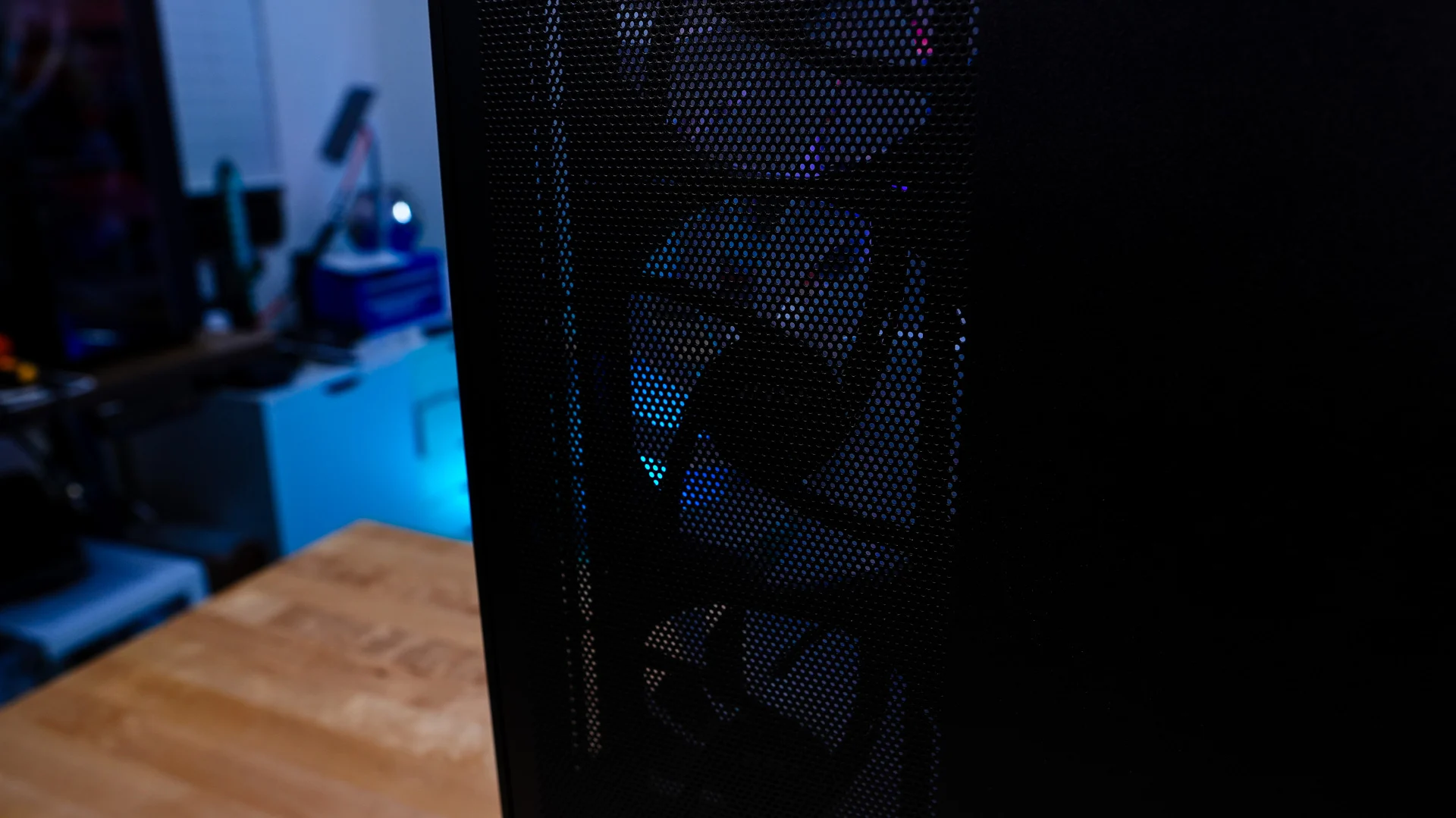

The opposite side panel is a normal steel panel, but you will see ventilation for the side mount cooling (more on that in a bit) and more ventilation towards the bottom of the case.

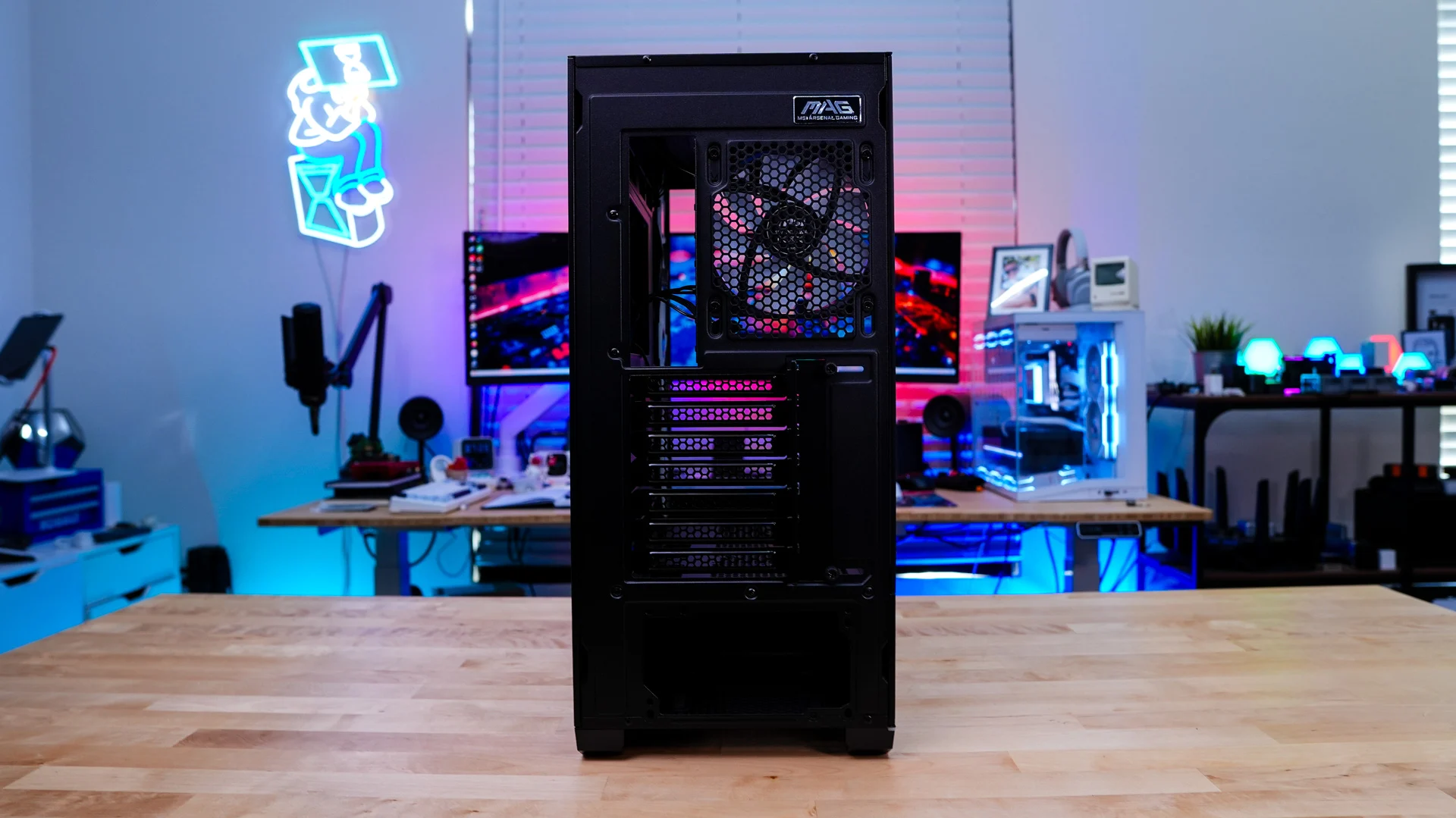

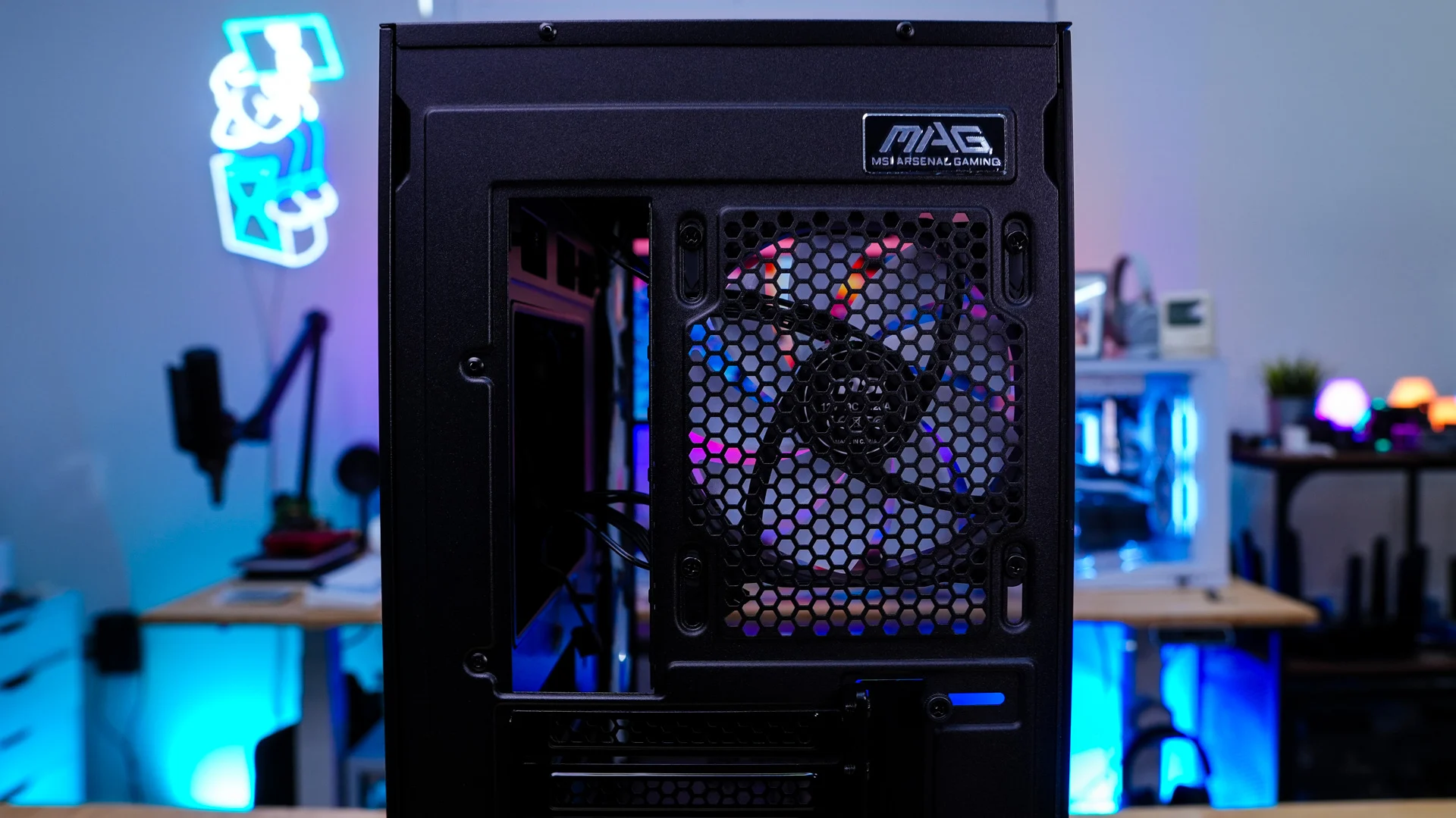

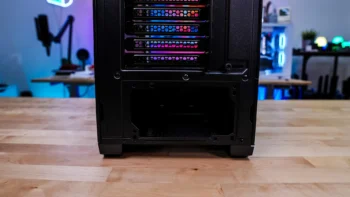

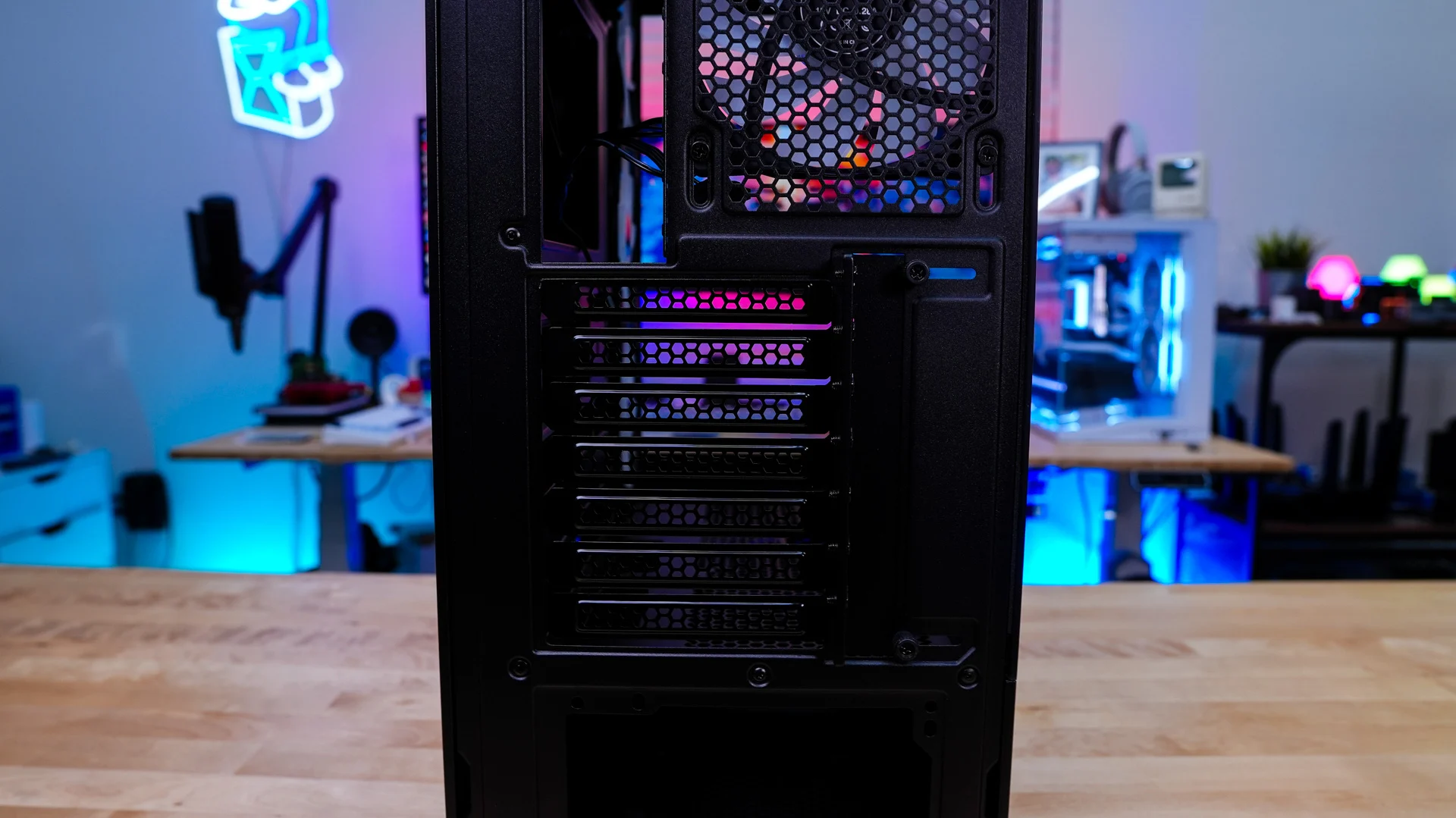

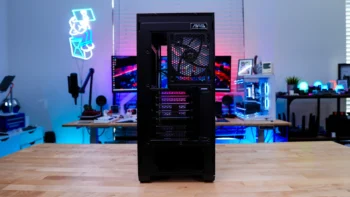

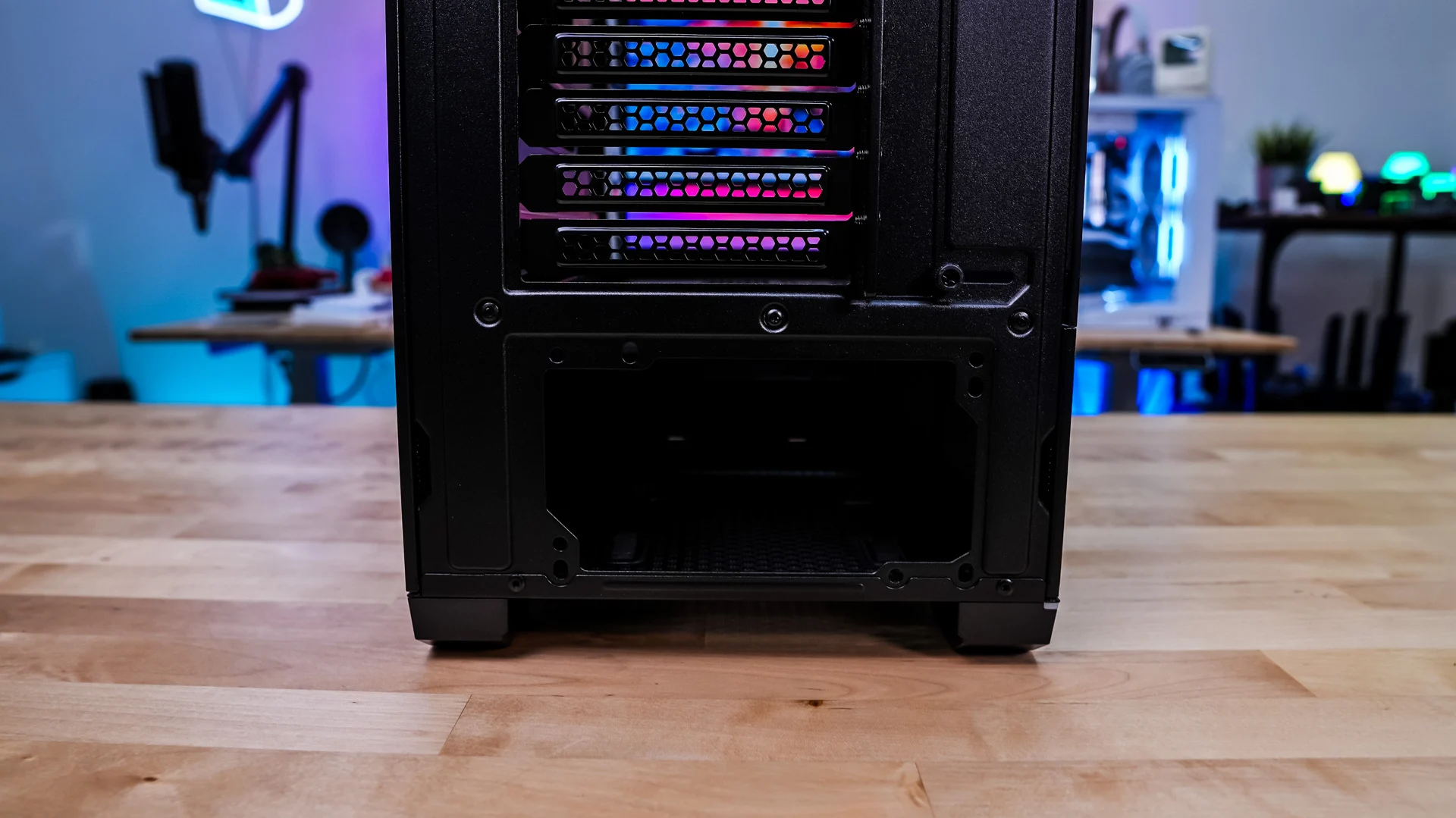

Moving to the back of the case we have a pretty standard design with our motherboard mount, cooling mount with a 120mm fan pre-installed, our expansion slot covers, and our power supply mount at the bottom of the case.
