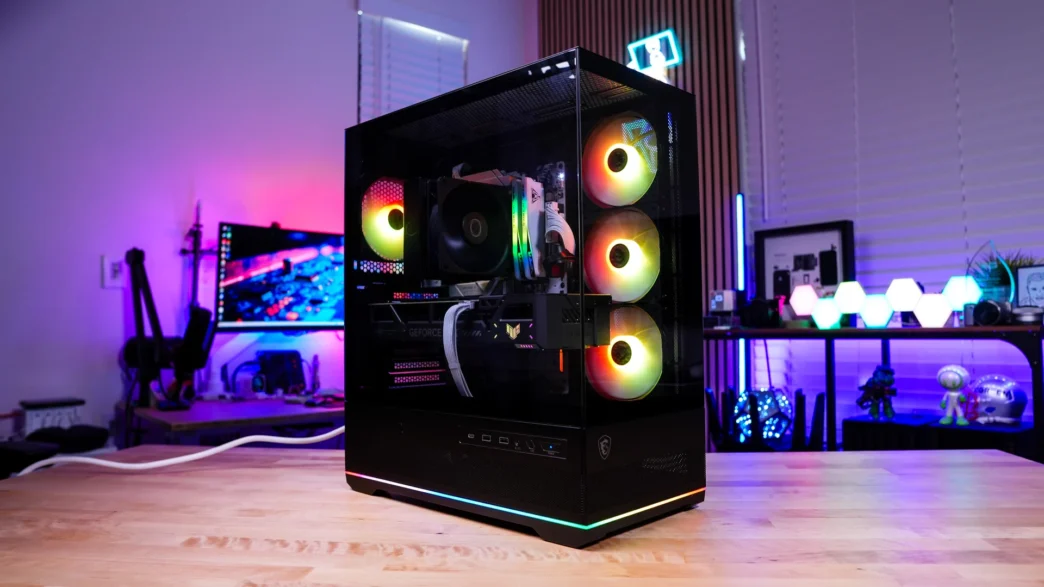

Panoramic PC cases have become extremely popular over the past couple of years, giving builders a much better view of their components while offering a clean and modern aesthetic. Today we are taking a look at the MSI MAG PANO 110R PZ, a mid-tower PC case built around a 270-degree panoramic tempered-glass design. It also supports traditional ATX, Micro-ATX, and Mini-ITX motherboards, as well as back-connect ATX and Micro-ATX motherboards, making it an interesting option for anyone who wants to keep visible cables to a minimum.
MSI equips the MAG PANO 110R PZ with three 120 mm reverse-blade ARGB fans along the side and a standard 120 mm ARGB exhaust fan at the rear. The case supports up to ten fans, a 360 mm liquid-cooling radiator at the top, graphics cards up to 400 mm long, and CPU coolers up to 160 mm tall. You also get a built-in ARGB fan control board and a front I/O panel with a 20 Gbps USB Type-C connection. With plenty of cooling support, room for high-end hardware, and a panoramic design intended to show off your build, does the MSI MAG PANO 110R PZ have what it takes to stand out in an increasingly crowded case market? Let’s take a look!
Special thanks to MSI for providing us with the MAG PANO 110R PZ Case to review.
What are the specifications of the MSI MAG PANO 110R PZ?
| Product Name | MSI MAG PANO 110R PZ / WHITE |
|---|---|
| Case Form Factor | Mid-Tower |
| Motherboard Support |
Standard: ATX, Micro-ATX, Mini-ITX Back-Connect: ATX, Micro-ATX |
| Front I/O Ports |
1 × USB 20 Gbps Type-C 2 × USB 5 Gbps Type-A 1 × Audio-Out / Microphone-In 1 × LED Button 1 × Power Button |
| Drive Mount Support |
2 × 2.5-inch 2 × 3.5-inch 2 × 2.5-inch / 3.5-inch combination mounts |
| Expansion Slots | 7 |
| Maximum GPU Length | 400 mm / 15.75 inches |
| Maximum CPU Cooler Height | 160 mm / 6.30 inches |
| Power Supply Support | ATX |
| Maximum PSU Length | 200 mm / 7.87 inches |
| Fan Support |
Top: 3 × 120 mm or 2 × 140 mm Front: None Rear: 1 × 120 mm Side: 3 × 120 mm or 2 × 140 mm Bottom: 3 × 120 mm above the power supply shroud |
| Preinstalled Fans |
Side: 3 × 120 mm reverse-blade ARGB fans Rear: 1 × 120 mm ARGB fan |
| Radiator Support |
Top: 120, 140, 240, 280, or 360 mm Front: None Rear: 120 mm Side: None Bottom: None |
| Dimensions Without Feet, Protrusions, or Screws | 420 × 225 × 485 mm / 16.54 × 8.86 × 19.09 inches (D × W × H) |
Packaging of the MSI MAG PANO 110R PZ Case
The MSI MAG PANO 110R PZ comes in a pretty standard case box. On the front we have an illustration of the case itself. On the side is where you’ll find your full list of specifications.

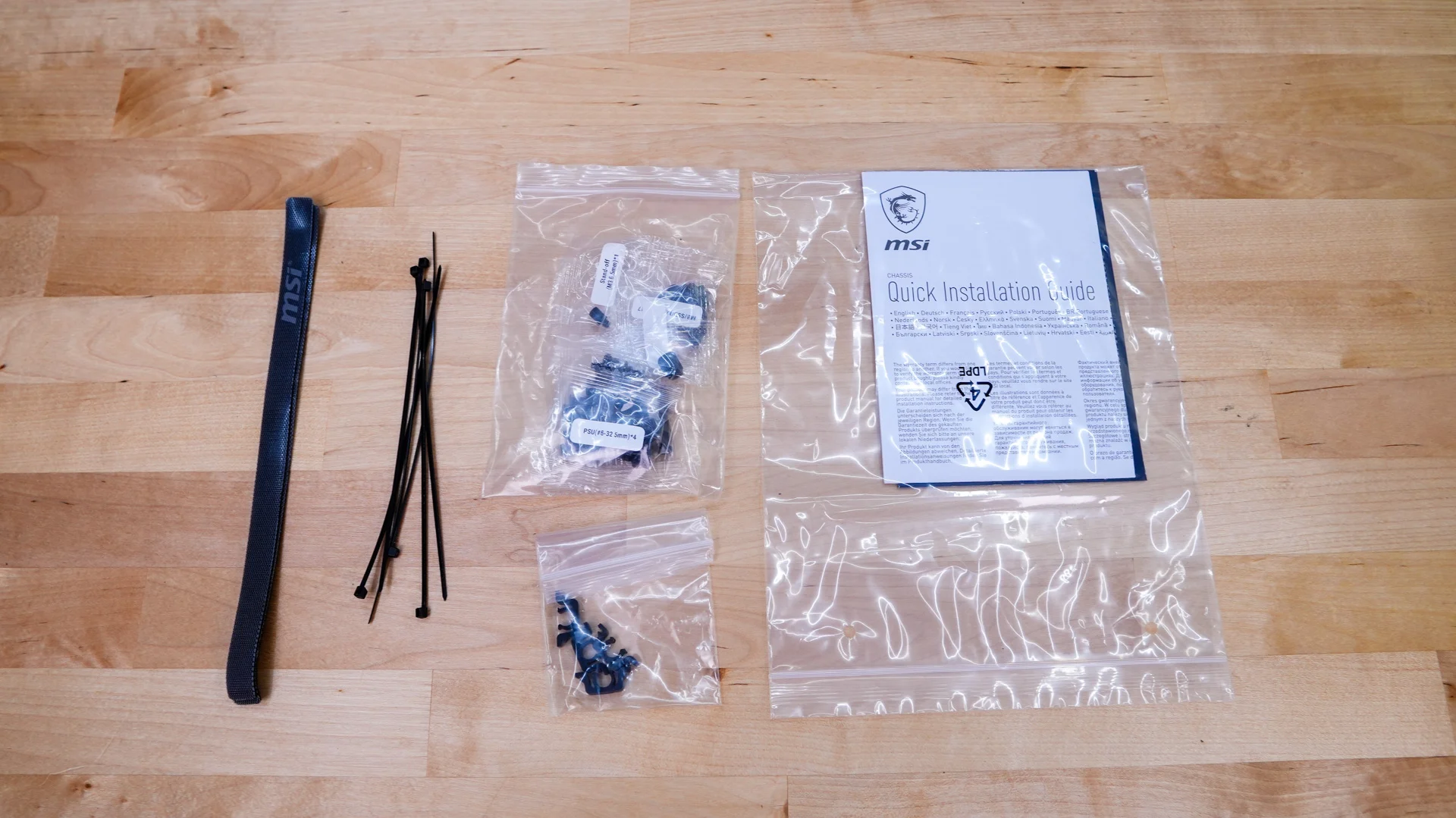

Opening the box up you’ll find the case nicely protected. There is also an accessories kit which includes your mounting hardware, zip ties, velcro ties, and a quick installation guide.
