Installation a M.2 Drive in the Patriot Viper EV330

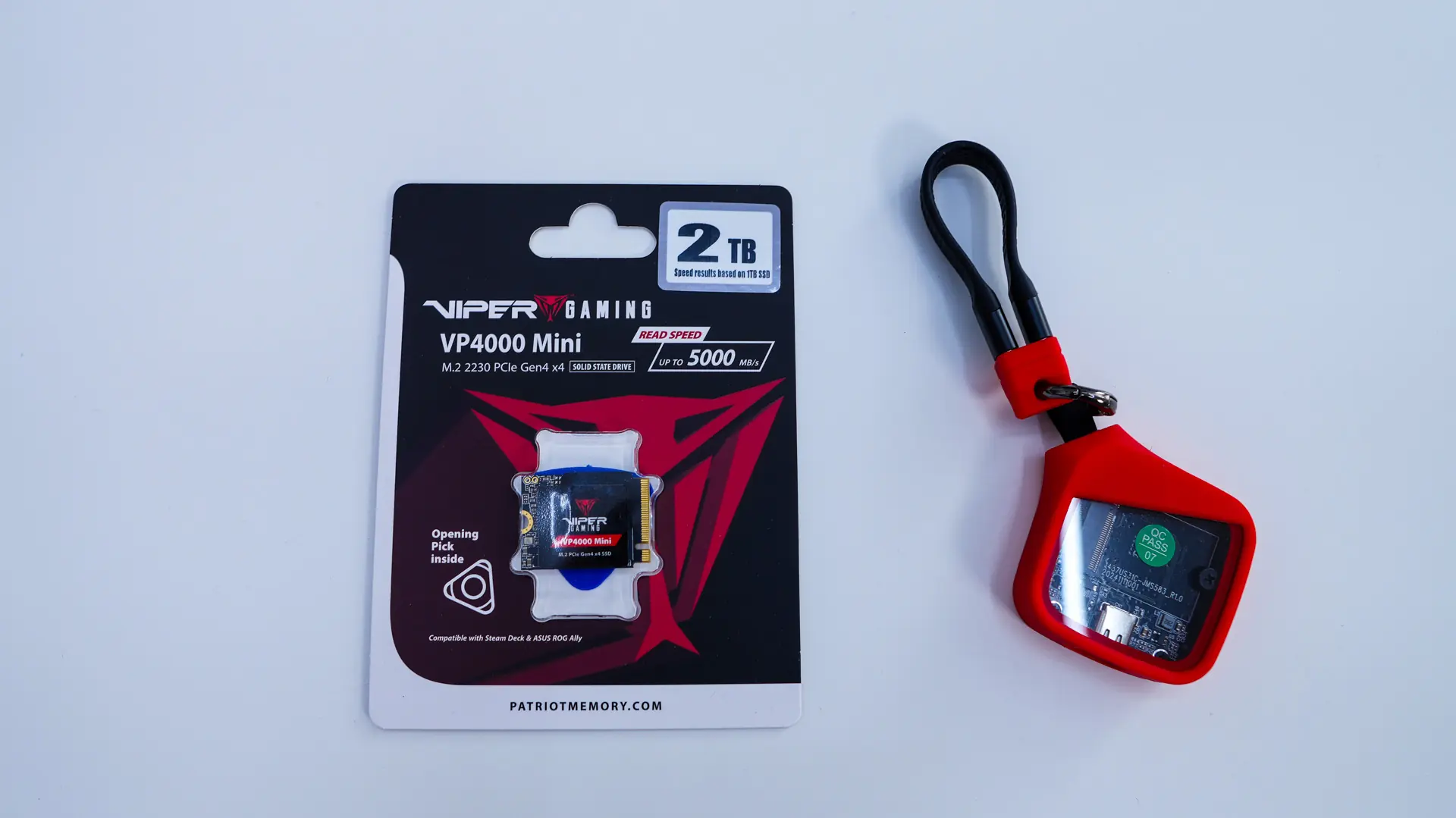

Patriot was nice enough to send us over their Viper VP4000 Mini drive to use in the EV330. This is a Gen4 drive that has speeds of up to 5000 MB/s and is the perfect thing for a portable game console like the ROG Ally.

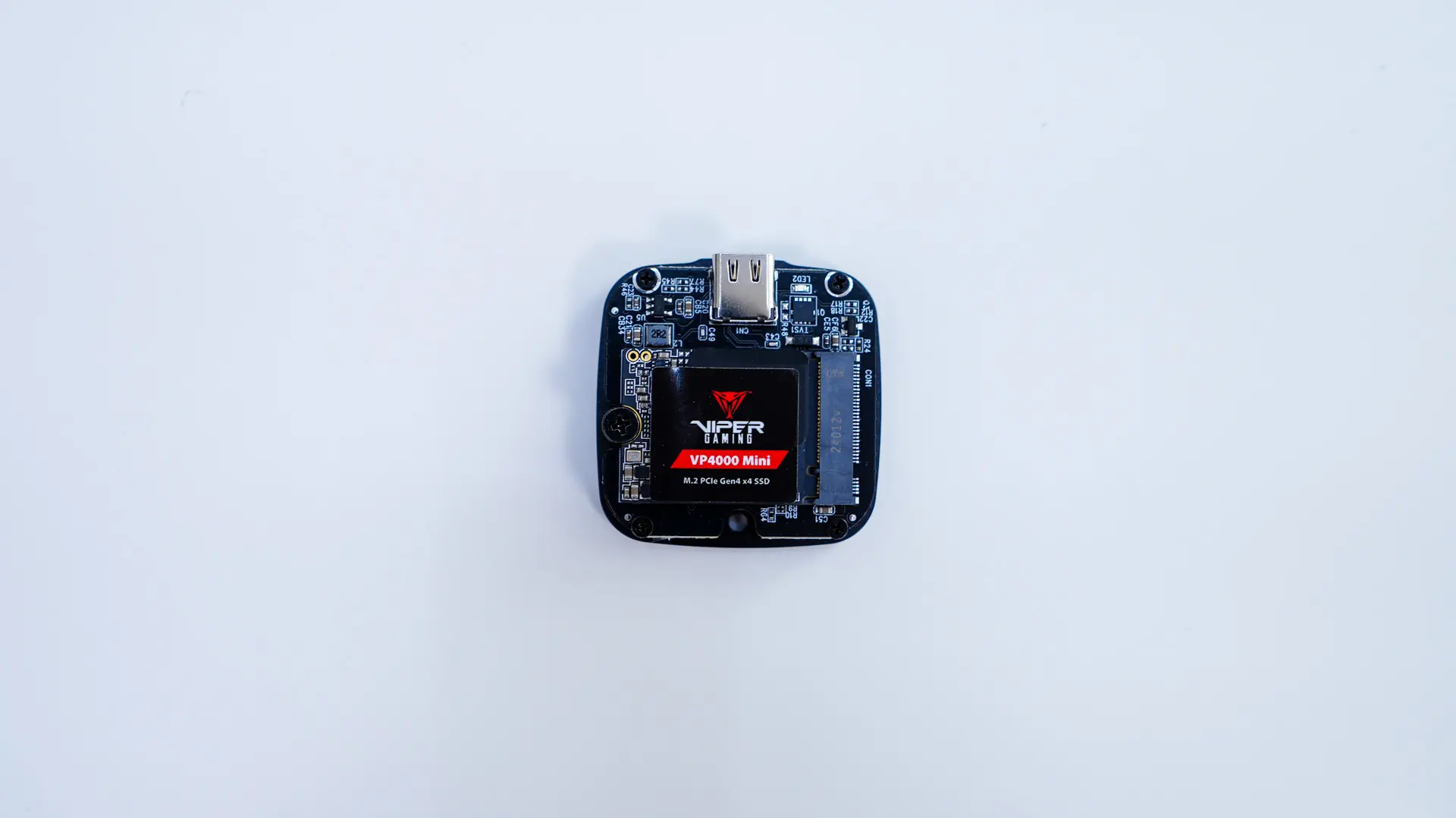

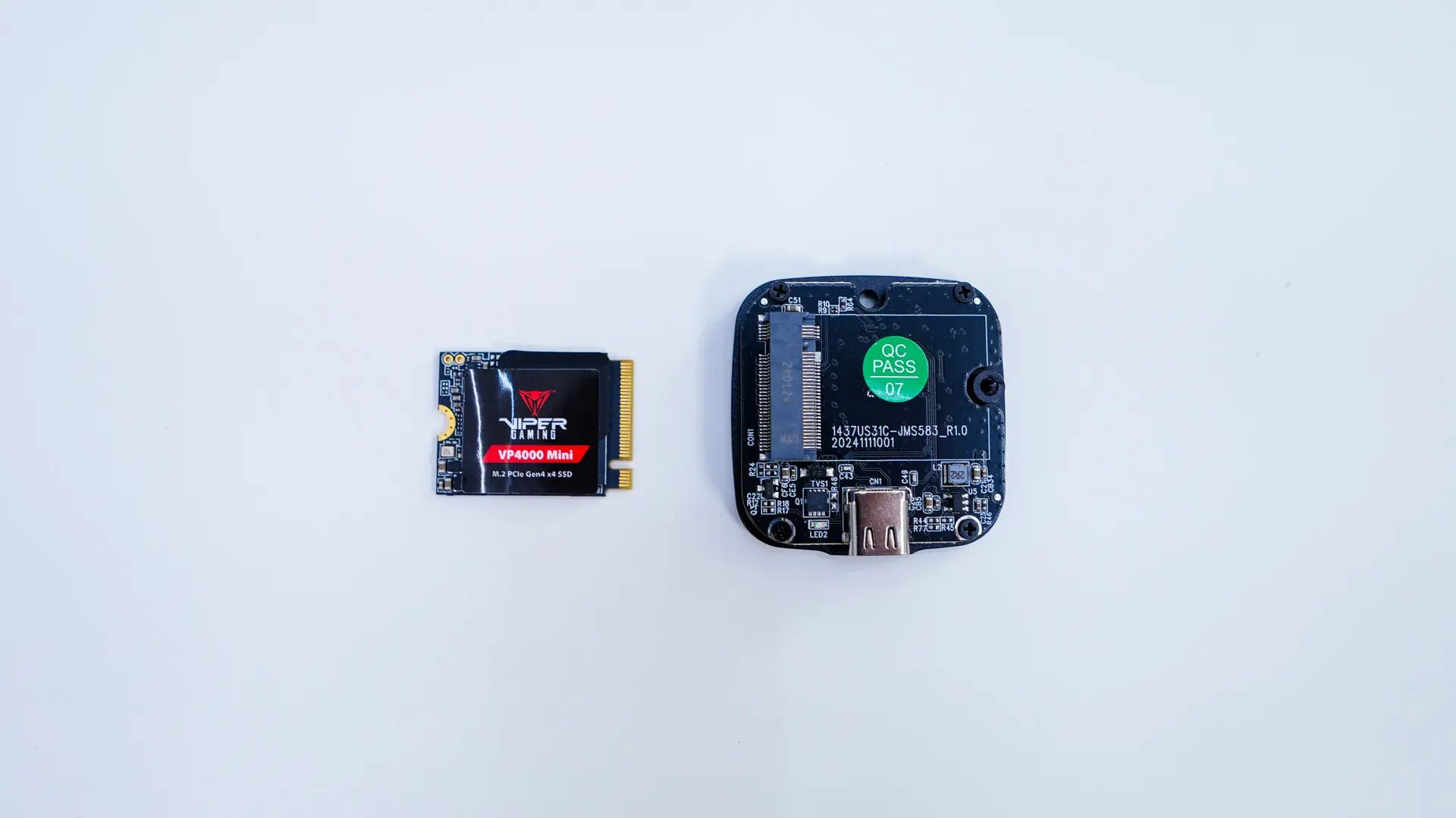

With the PCB removed we can easily slot in our drive. There is a screw that you need to remove to get the drive in, again Patriot includes the small screwdriver so this is not an issue at all.

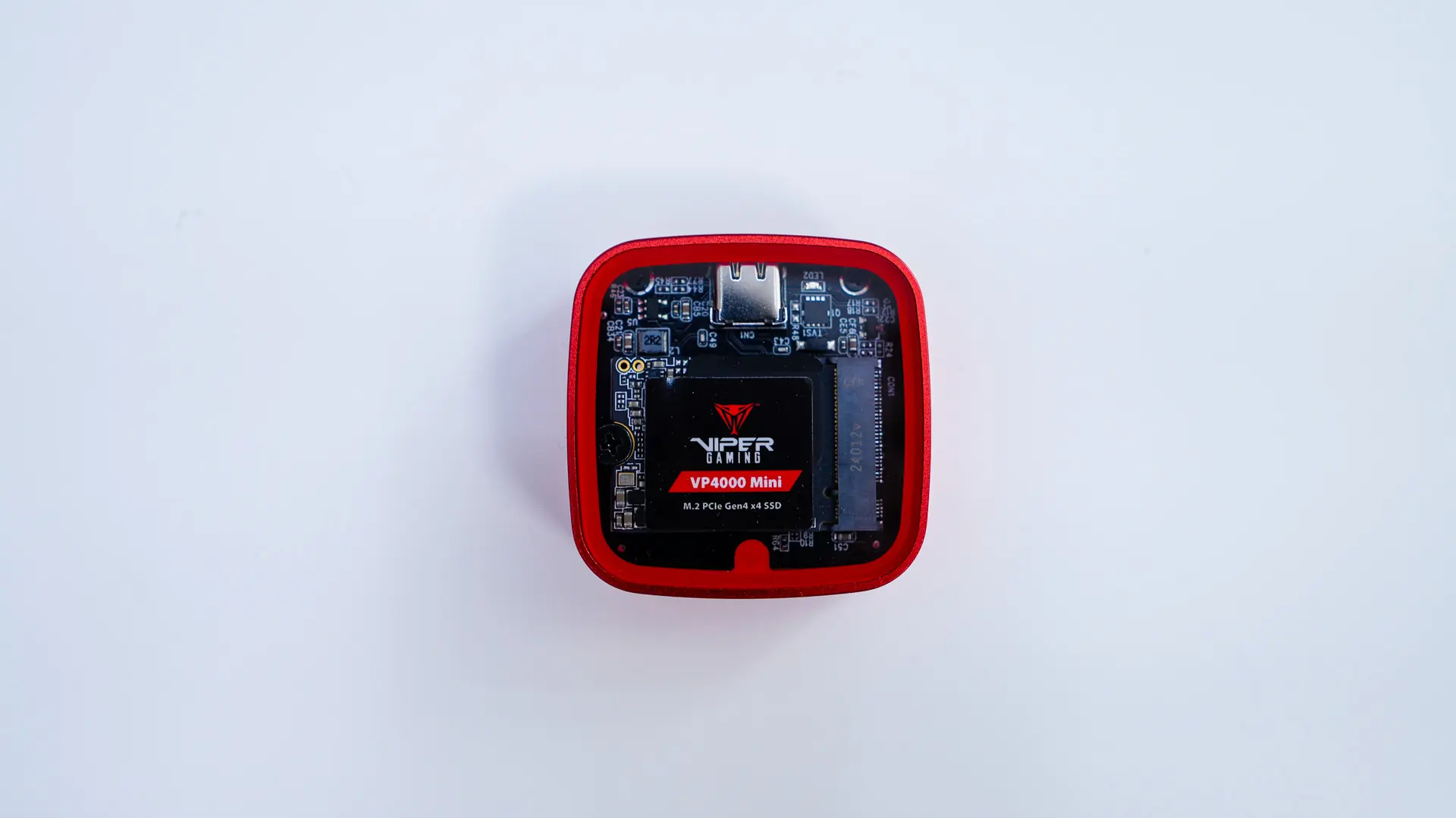

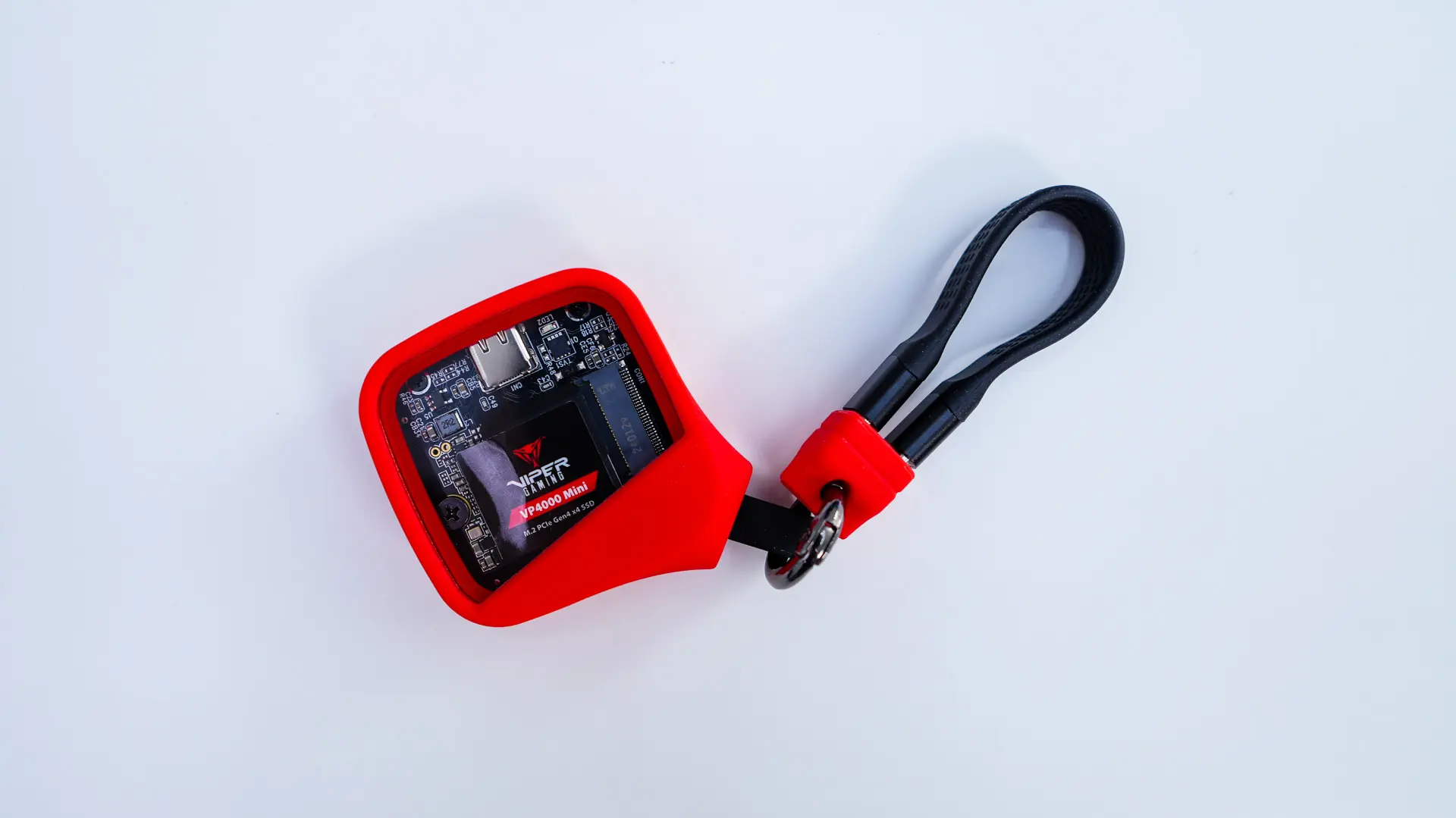

Now just reinstall the PCB in the enclosure and close it up with the screw you removed previously. With the drive installed we can see it through the window in the enclosure. Finally slip the bump over the enclosure and you are ready to take it with you!
Performance on the Patriot Viper EV330 M.2 2230 SSD Enclosure

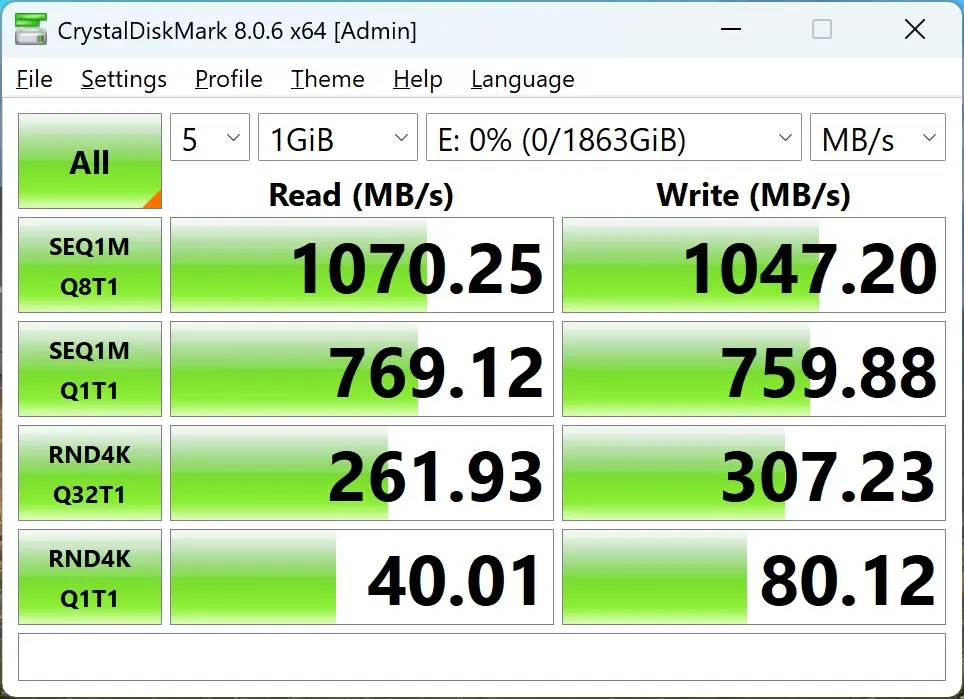

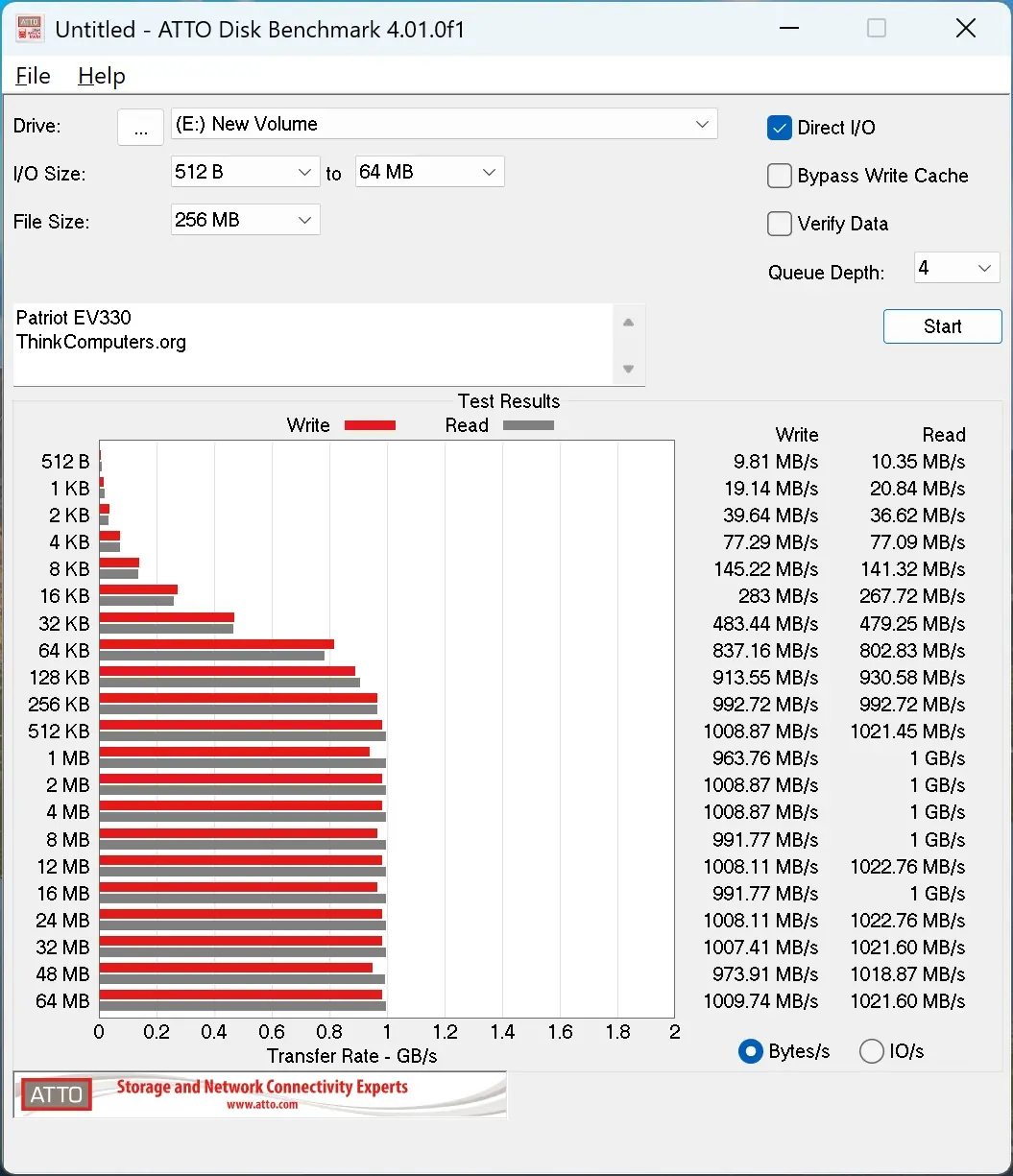

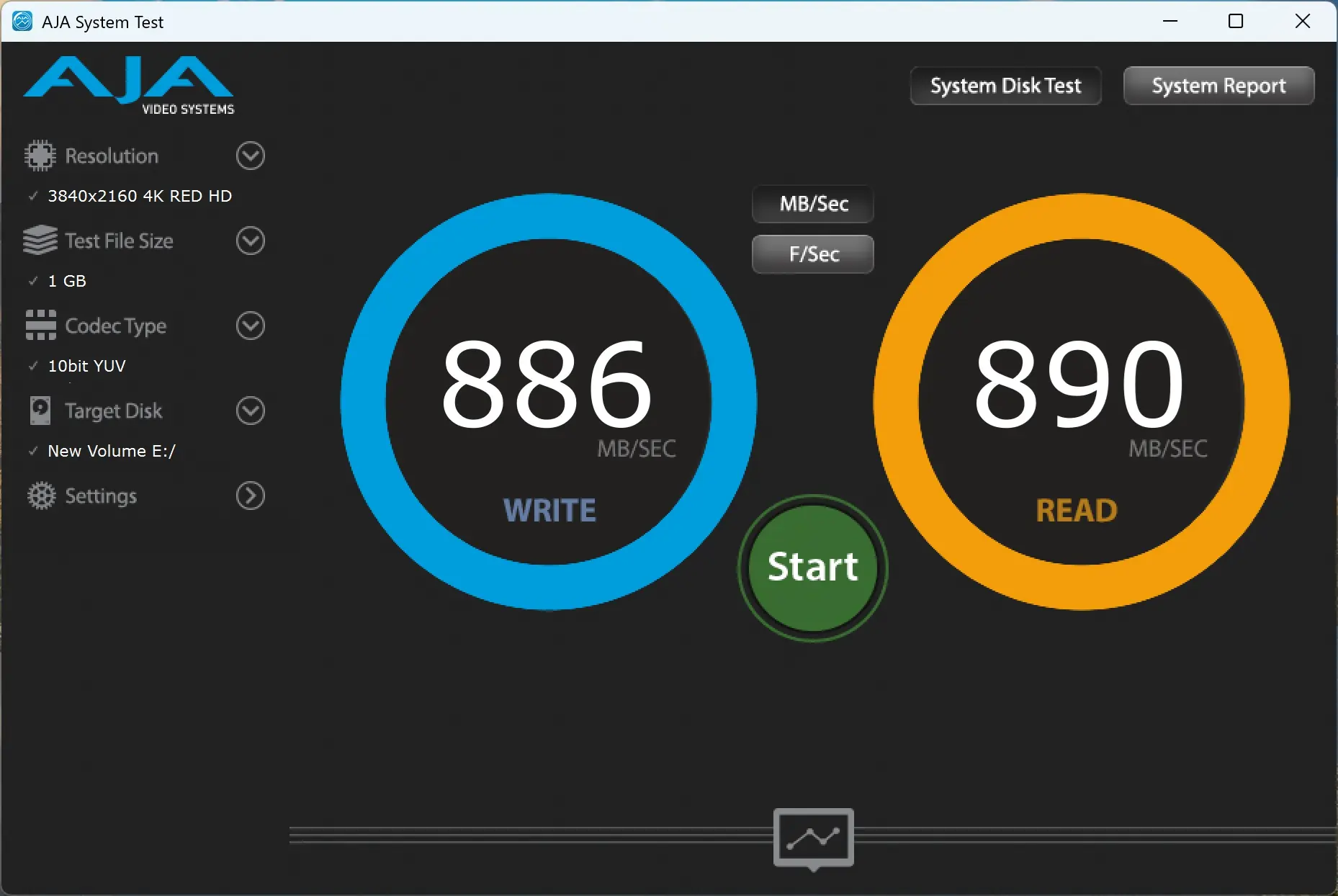

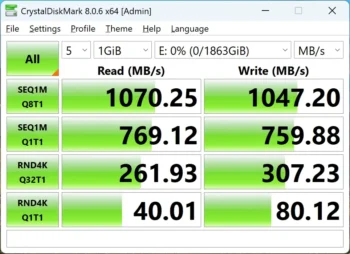

When it comes to performance we will be running a handful of different storage benchmarks. Keep in mind that the performance will always depend on the drive that you actually install in the Viper EV330.
Final Thoughts on the Patriot Viper EV330 M.2 2230 SSD Enclosure
Portable storage seems like almost a necessity these days. Whether you are bringing files to and from work, having a mobile game or editing drive, or simply need to transfer files. The reason I prefer an enclosure over a normal portable solid state drive is that I have the ability to choose the drive I install in it, I can upgrade it, and if I want to I can remove the drive and use it in another device. With a traditional portable SSD you are sort of stuck with what you get with no possibility to upgrade or use it for something else.
Patriot’s Viper EV330 is an extremely small drive too, which makes it easy to take with you. The included bumper protects the enclosure and they have integrated the cable so you’ll never forget it. The enclosure itself is made of aluminum alloy and is very high quality. Installation couldn’t be easier, but we have seen some that are completely tool-less which would mean you wouldn’t have to worry about losing the small included screwdriver.
Right now you can pick this enclosure at our favorite online retailer for $27.99. Overall ThinkComputers gives the Patriot Viper EV330 M.2 2230 SSD Enclosure a 9 out of 10 score.
Pros:
– Small and compact
– Included bumper with integrated cable
– Easy to install a drive
– Made of aluminum alloy
– Window allows you to see your installed drive
– Great performance
Cons:
– No tool-less installation
