Reeven Brontes Overview
When Reeven Brontes is quite a small CPU cooler, which makes it perfect for small form factor systems. It has official dimensions of (W)105 x (H)59 x (D)114mm.

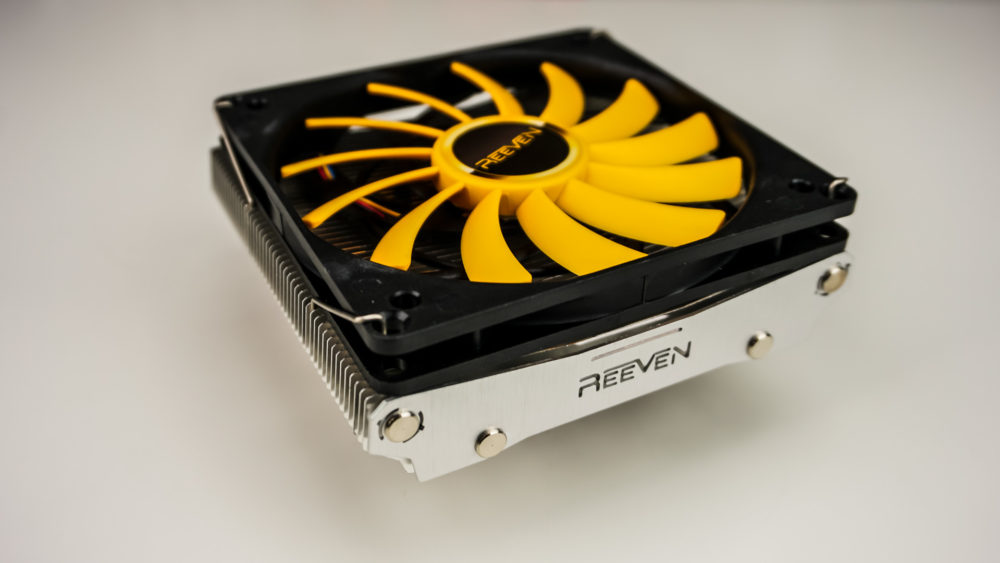

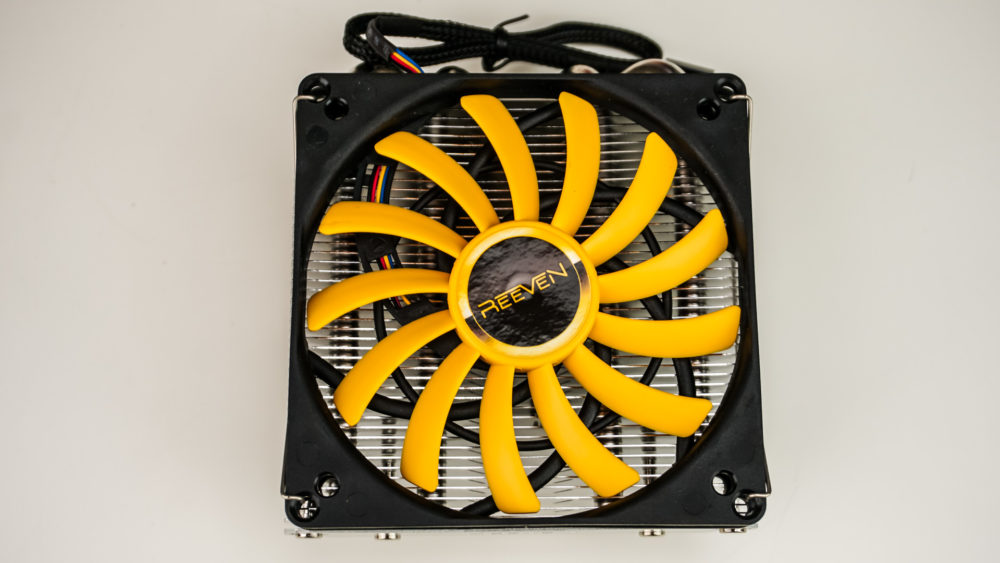

Right at the top of the cooler you have a 100 mm cooling fan, which has a black frame with yellow blades. The fan is only 12 mm thick, but it will run anywhere from 650 – 2200 RPM.

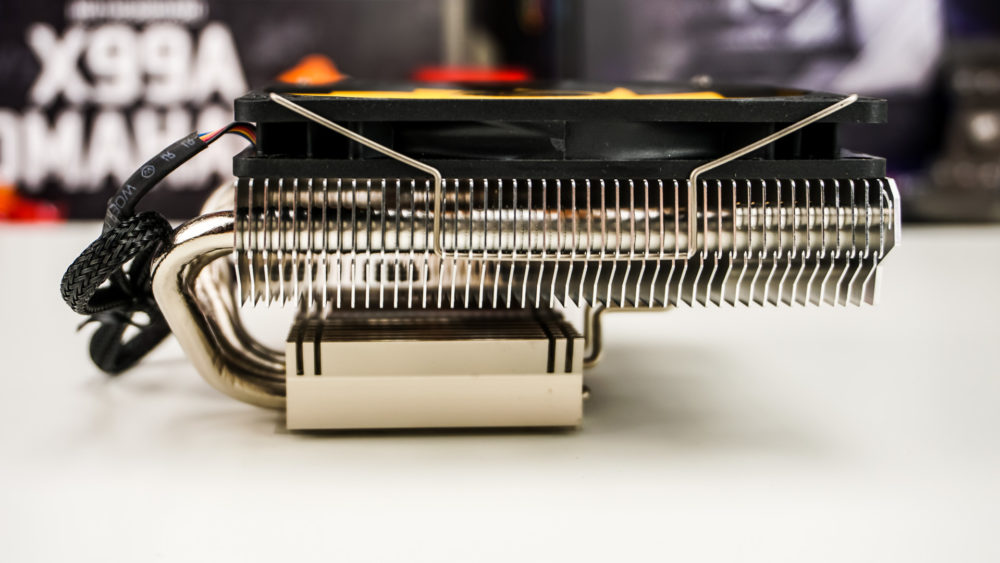

Looking at the cooler from the side we can see that it is a C-type cooler with a large heatsink on top and a small one on the base. The larger top heatsink is made up of aluminum heatsink fins.

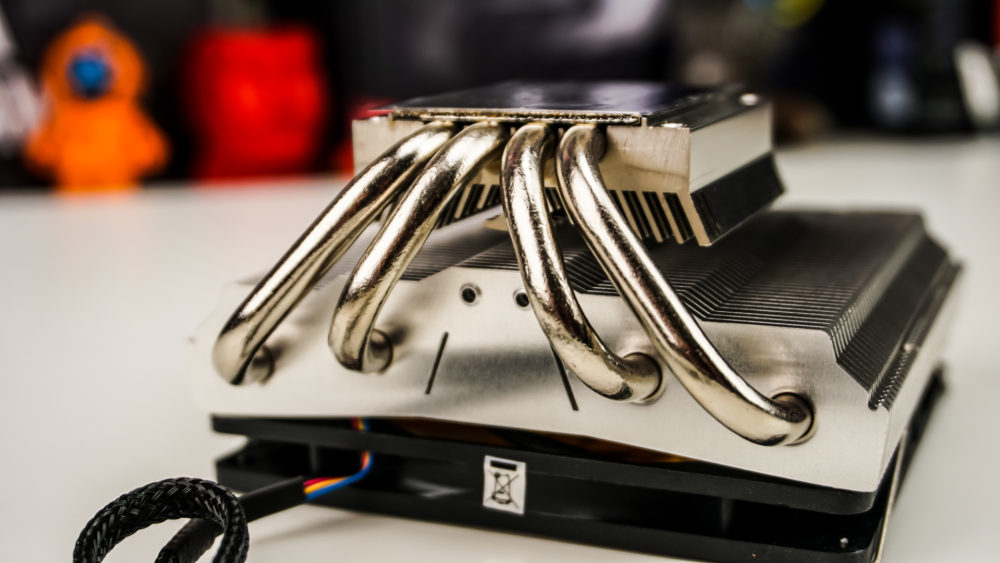

The reason we call this is a C-type cooler is that the heatpipes come up from the base and go into the top heatsink in a “C” fashion. There are four 6mm-thick copper heatpipes on this cooler.

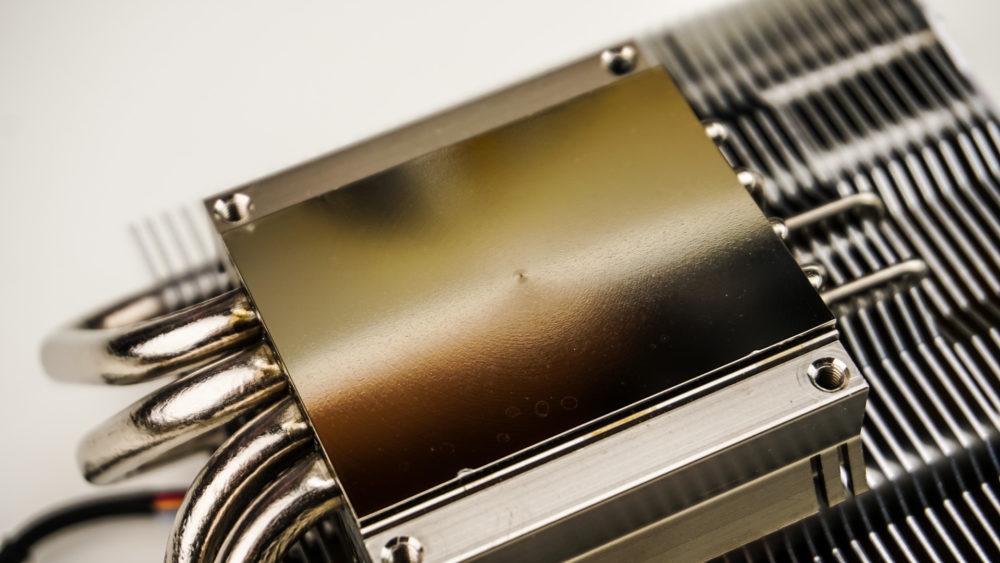

The base of the cooler has a small heatsink built into it, which should help out a little bit with cooling. If we take a closer look at the base of the cooler it does have a mirror-like finish, but machining marks are definitely visible.
