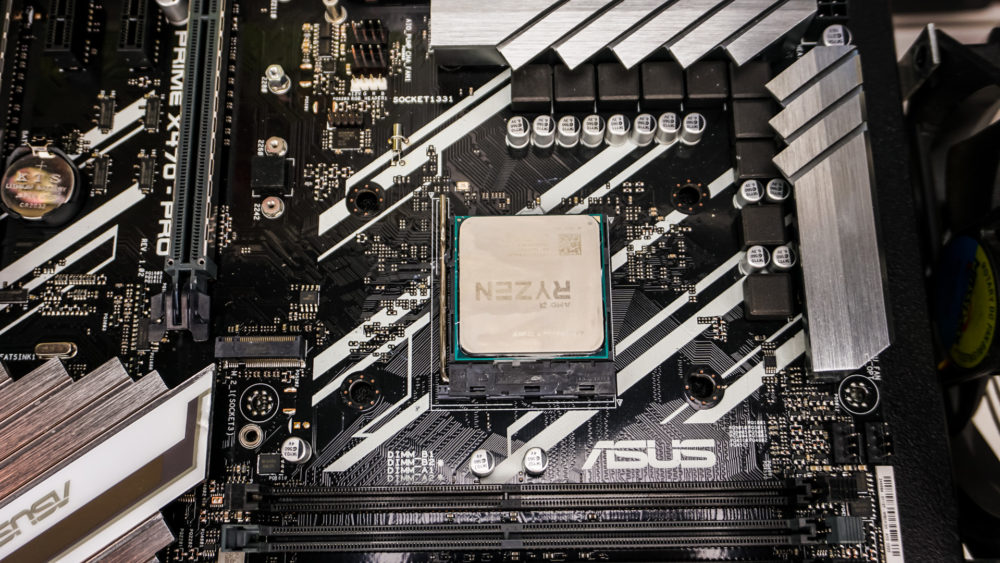

Getting the Reeven Brontes installed in your system is not all that hard. We will be installing it in our AM4 system. The first thing you are going to want to do is remove the stock AM4 mounting bracket.

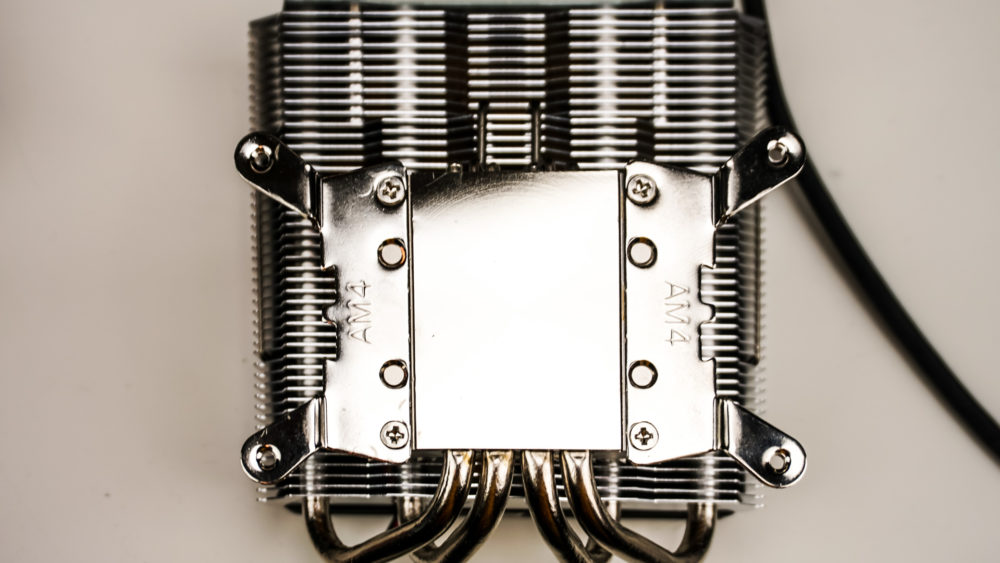

Next install the AM4 brackets on the bottom of the CPU cooler like you see in the photo below.

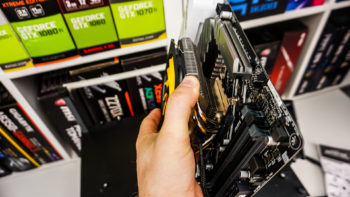

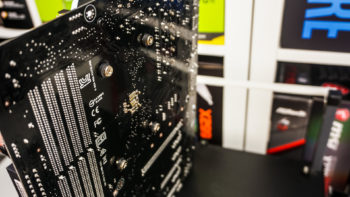

Make sure you apply the included thermal paste on your CPU and then very carefully line your cooler up above it. The heatpipes should be lined up with your memory slots. Now carefully use the screws to secure the cooler through the back of the motherboard.

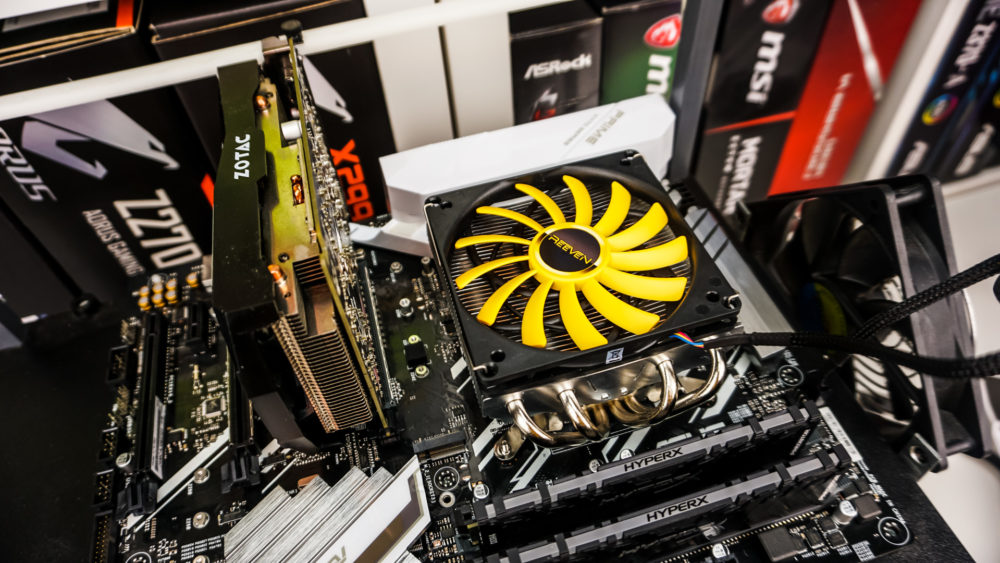

As you can see with our memory and graphics card installed there are no clearance issues at all. The last thing you’ll need to do is connect the fan to the CPU fan header on your motherboard.
