Reports have emerged of a Sapphire Radeon RX 9070 XT GPU experiencing issues with its 12V-2×6 power connector, leading to melting. This incident highlights ongoing concerns with the new power connector standard, even with its improved design.
Key Takeaways
- A Sapphire Radeon RX 9070 XT GPU has reportedly suffered a melted 12V-2×6 power connector.
- The issue occurred while the GPU was running at default settings during gaming sessions.
- The problem appears linked to the use of adapters with older PSUs lacking native 12V-2×6 support.
- Users are advised to opt for ATX 3.1 PSUs to avoid the need for adapters.
Recurring Power Connector Problems

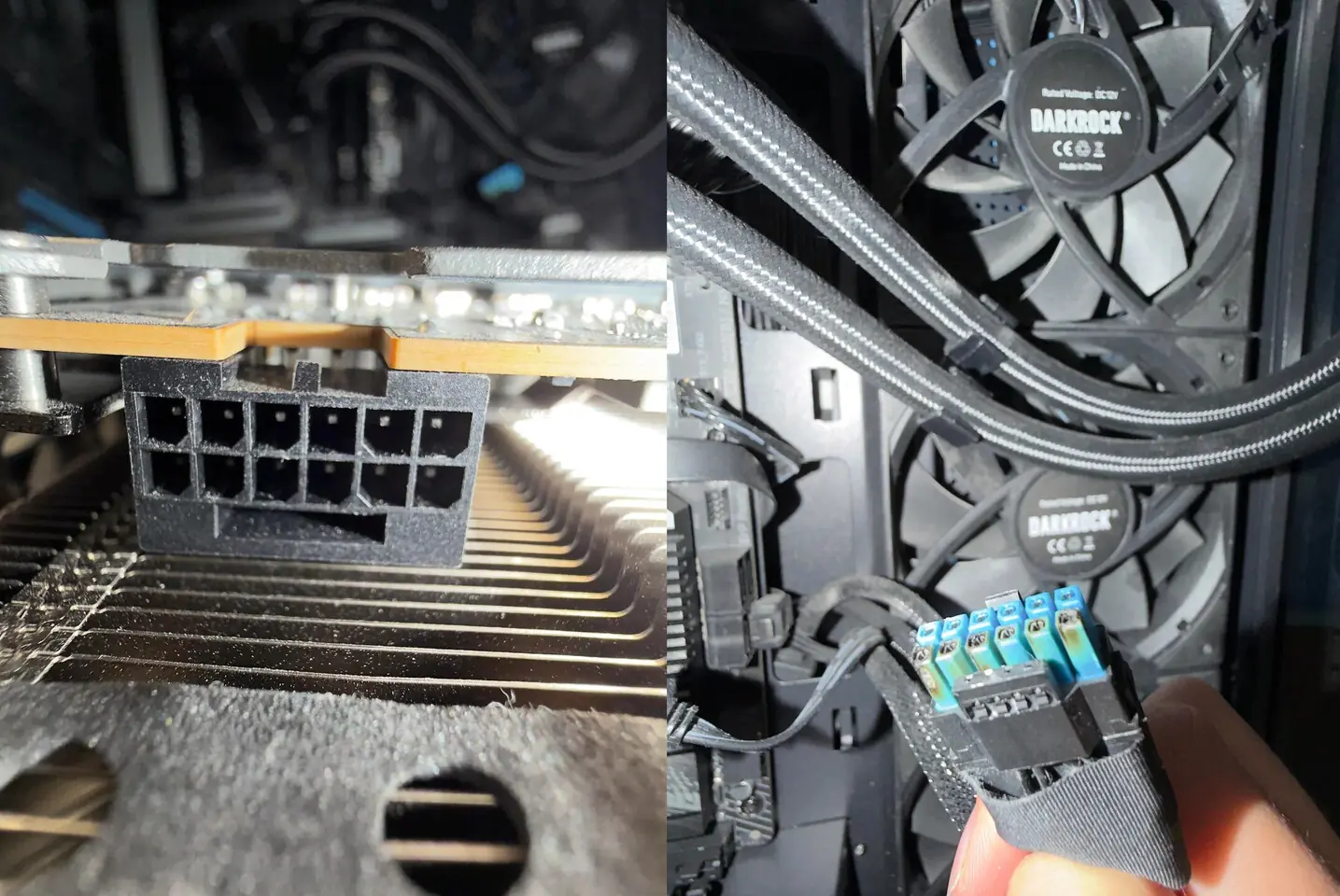

The 12V-2×6 power connector, an iteration of the earlier 12VHPWR, continues to face overheating and melting issues. A recent case involved a Sapphire Radeon RX 9070 XT, where a user shared images of a burned connector end on their GPU. The user stated the card was operating at default settings without any overclocking or increased power limits while playing various games.
Adapter Usage and PSU Compatibility
Evidence suggests the problem may stem from powering the GPU with a standard power supply unit (PSU) that does not feature a native 12V-2×6 output. Instead, the affected RX 9070 XT was connected using a 3×8-pin adapter, a configuration known to cause melted connectors. This issue has been observed previously, underscoring the importance of using compatible hardware.
Recommendations for Users
To prevent such incidents, it is recommended to avoid using last-generation PSUs that require adapters. Opting for an ATX 3.1 compliant PSU is advised, as these units are designed to support the new power connector standards directly, eliminating the need for potentially problematic adapters. As more GPUs adopt the 12V-2×6 power source, investing in an ATX 3.1 PSU can ensure better compatibility and safety for future hardware.
Broader Implications for GPU Power Delivery
This incident with the Sapphire Radeon RX 9070 XT adds to a growing list of concerns surrounding the 12V-2×6 connector. While the RX 9070 XT is designed for lower power consumption compared to some high-end NVIDIA cards, the melting issue still occurred. This suggests that the problem might be more related to the connector design itself and its implementation, rather than solely high power draw. The lack of native support in many existing PSUs and the reliance on adapters appear to be significant contributing factors.
Via r/AMD Subreddit
