Testing

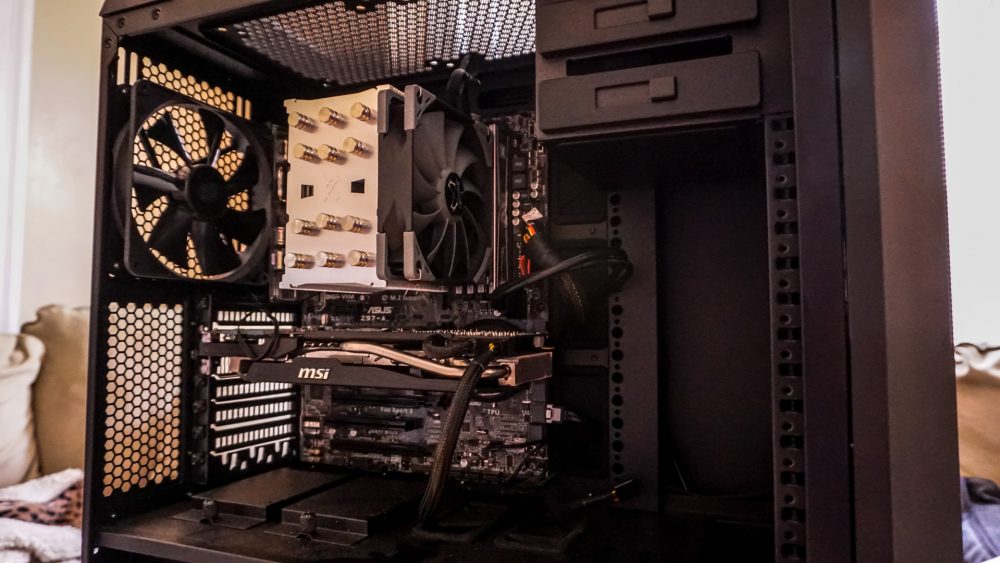

We installed the Mugen 5 in our Z97 system, it is made up of the follow components:
Processor: Intel Core i7-4790K
Motherboard: ASUS Z97-A
Video Card: MSI GTX 770
Memory: 16GB Kingston 10th Anniversary
Power: be quiet! Dark Power Pro 11 850W
Storage: 120GB Samsung 840 Evo
Cooling: Scythe Mugen 5
Case: Cooler Master MasterCase 5 with 2 fans

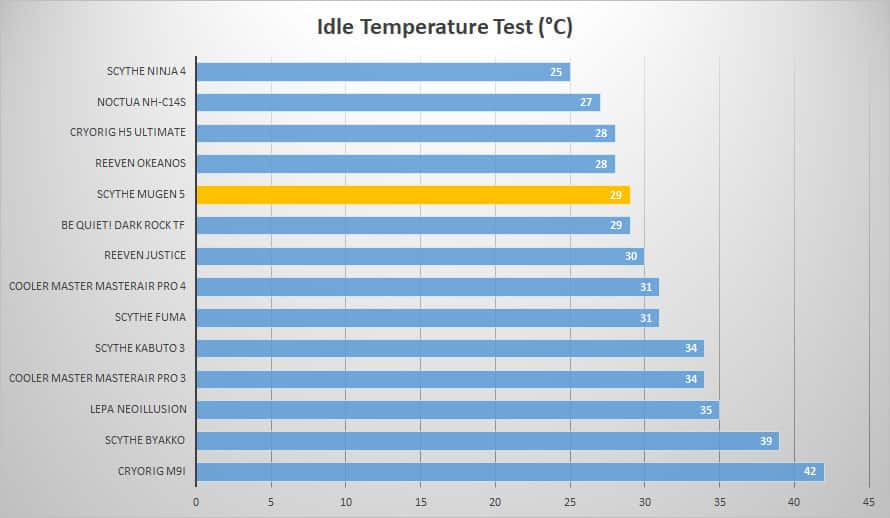

For testing we will first be taking our idle temperatures from the Windows 10 desktop after having the system on in an idle state for one hour.

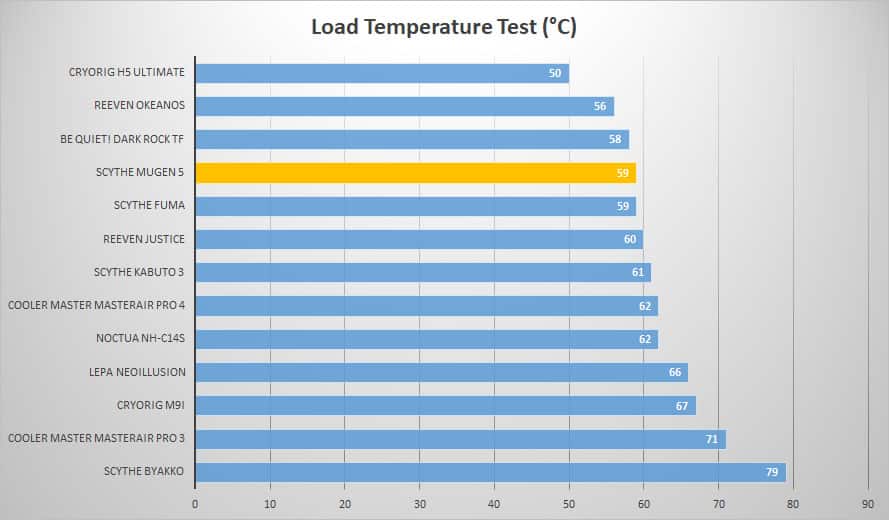

Next we will be putting 100% load on the CPU using Prime95. We will run it and take a temperature reading at the 1 hour mark.
Taking a look at the results you can see that the Mugen 5 does a great job, it is in the top of our test group.
Does this support TR4 socket for the new Ryzen Threadripper processors from AMD?
This is a great cooler as you have found. I will only note that on the Asus Crosshair Hero VI (designed for Ryzen) the Mugen 5 cooler fins have an approx 1mm interference with any card you put in the nearest PCIe (x1) slot. It’s enough to push the card a little sideways, and will require a very thin piece of plastic to be wedged between the card and the fins to prevent electrical shorts.
I would still buy the cooler again, because this isn’t a big deal, but be aware of the issue.
