ASRock Unveils Flagship Z87 Extreme 11 Motherboard

ASRock has unveiled their flagship Z87 Extreme 11/TB20 motherboard at IDF13 San Francisco. Designed for the Haswell platform this board features an incredibly high-end design that features 22 SATA ports and dual Thunderbolt ports.

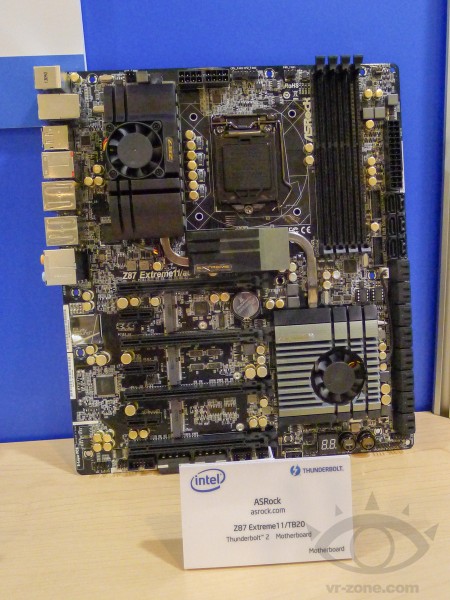

ASRock Z87 Extreme11

Starting with the power deliver the Z87 Extreme 11/TB20 features a 12 phase VRM design with ASRock A-Style features and components. There are dual 8pin CPU power connectors that will allow for increased overclocking ability. As you can see in the photo above the board has active cooling on both the power components and the PCH. These large heatsinks are connected via a large heatpipe.

The board has massive storage capacity of 22 SATA 6GB/s ports and three SATA 3GB/s ports. This is the largest storage capacity offered by a Z87 motherboard. If that is not enough for you there are three mSATA ports! This really is a storage monster! The board has a PLX chip to offer more PCI-Express lanes for the four PCI-Express 3.0 x16 slots. The board also has three PCI-Express 3.0 x1 slots. For sound you have ASRock’s A-Style Purity Sound chip.

ASRock Z87 Extreme11

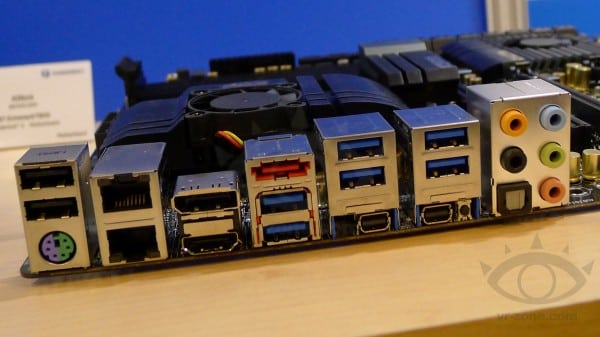

On the rear I/O there are dual Thunderbolt ports, six USB 3.0 ports, two USB 2.0 ports, PS/2 port, dual Gigabit Ethernet, HDMI, DisplayPort and a single eSATA port. With everything loaded onto this motherboard it comes in the XL-ATX form factor. ASRock did not give pricing or release details, but considering the features expect this to be one of the most expensive Z87 boards out there!

Images courtesy of VR-Zone.

Source: VR-Zone | News Archive
